GENERAL SPECIFICATIONS:

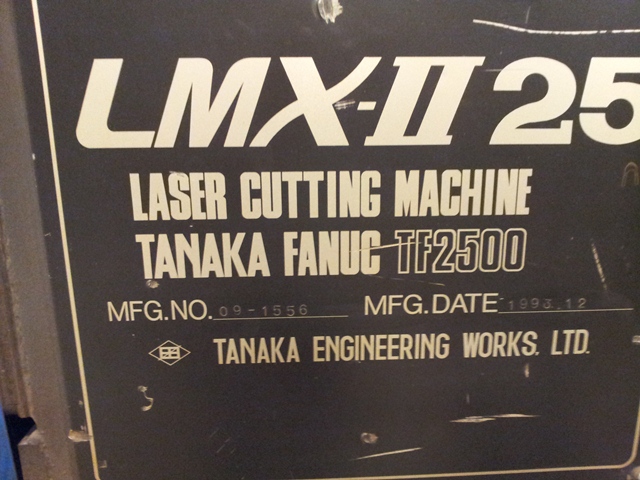

MANUFACTURER...................... TANAKA
MODEL............................. TF2500
SERIAL NUMBER..................... 09-1556
NEW............................... 1993
PART SIZE......................... 102" X 519" (2600mm x 13200mm)
SPEED FOR CUTTING................. 1 - 196 IPM (1 - 5000 mm/min)
RAPID TRAVERS SPEED............... 945 IPM (24,000 mm/min)
RETURN TO ORIGINAL SPEED.......... 472 IPM (12,000 mm/min)
BEAM HEAD LIFTING SPEED........... 393 IPM (10,000 mm/min)
LASER OUTPUT...................... 2500 WATT
LASER TYPE........................ TF2500 RF DISCHARGE TYPE

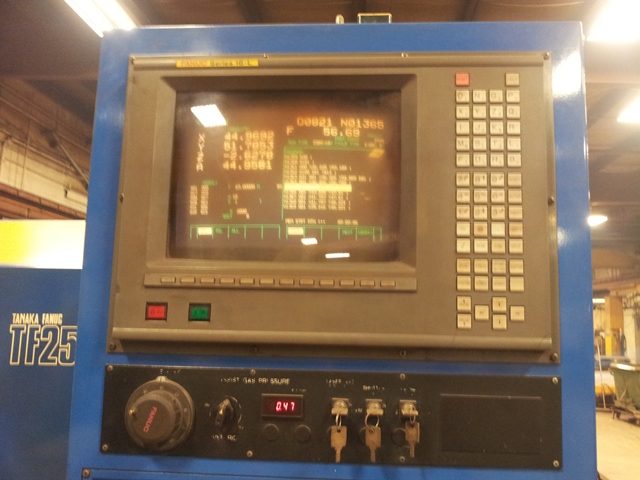

CONTROL........................... FANUC 16LA
RATED CAPACITY OXYGEN............. 5/8" CARBON STEEL
EQUIPPED WITH:
BEAM HEAD WITH AUTOMATIC HEIGHT CONTROL SYSTEM
CONSTANT BEAM LENGTH SYSTEM
HE-NE LASER FOR POSITIONING OF THE BEAM HEAD
SKIPPING FUNCTION-WHEN THE MACHINE IS STOPPED DUE TO THE ALARM OF NOZZLE CONTACT, ETC. THIS FUNCTION ENABLES TO RESTART CUTTING FROM THE NEXT PIERCING POINT ON THE PART PROGRAM AFTER "SKIPPING" BLOCKS ON THE PART PROGRAM
RETRY FUNCTION-THE MACHINE WILL STOP BY THE ALARM WHEN SPATTERS STICK ON THE NOZZLE OTHER THAN THE CONTACT OF THE WORK PLATE AND NOZZLE DURING AN AUTOMATIC OPERATION. IN THIS CASE, THE SEQUENCE OF "TORCH LIFT UP, TORCH LIFT DOWN, AND BEAM ON" IS AUTOMATICALLY REPEATED THREE TIMES. IF THE ALARM IS RELEASED AFTER THE SEQUENCE, THE CUTTING WILL CONTINUE.
OPERATORS PLATFORM SO THE OPERATOR CAN TRAVEL WITH THE GANTRY.
SPECIFICATIONS SUBJECT TO VERIFICATION
