GENERAL SPECIFICATIONS:

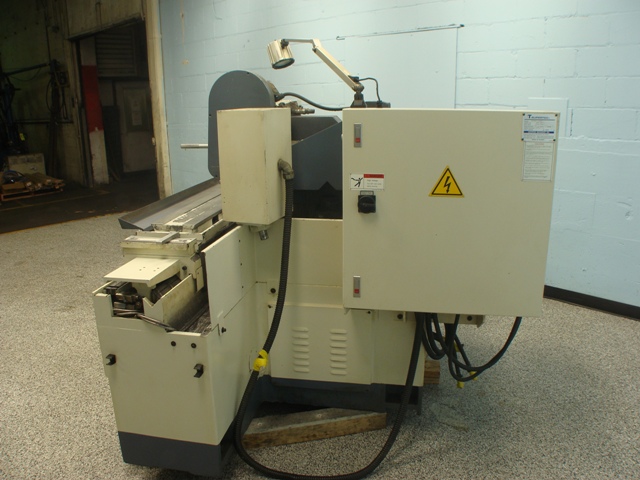

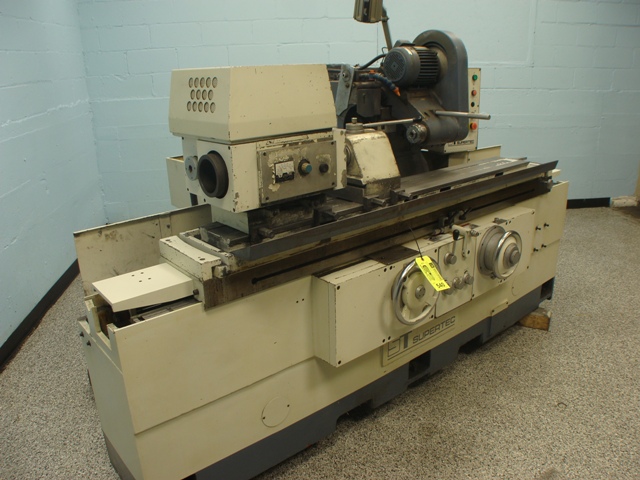

MANUFACTURER....................... SUPERTEC
MODEL.............................. STG-38P.1004
SERIAL#............................ GD04001
AGE APPROXIMATELY.................. 2004
SWING OVER TABLE................... 15"
DISTANCE BETWEEN CENTERS........... 40"
GRINDING DIAMETER.................. 14"
CHUCKING LENGTH.................... 12.4"
CHUCKING DIAMETER.................. 6"
CAPACITY BETWEEN CENTER............ 330LBS.
GRINDING WHEEL..................... 16" X 2" X 5"
SPINDLE SPEED...................... 1650 RPM
INFEED TRAVEL...................... 9.6"
HAND FEED TRAVEL................... 7.9"
TOP SLIDE TRAVEL................... 7"
MOTORIZED WORKHEAD................. 12,000 / 18,000 RPM
SPINDLE MOTOR...................... 7.5 HP
WORKHEAD MOTOR..................... 2 HP
WEIGHT APPROXIMATELY............... 10,500 LBS.
EQUIPPED WITH:
SUPERTEC CONTROLS
RAPID ADVANCE AND RAPID RETRACT
GRINDING WHEEL FLANGE
DIAMOND DRESSER
COOLANT SYSTEM
I D ATTACHMENT
3 STEADY RESTS
SONY 2 AXIS D R O (X & Z)
VARIABLE SPINDLE SPEEDS
MICRO TABLE STOP
MICRO INFEED
BALLSCREW
SELLER WILL LOAD ON TRUCK
