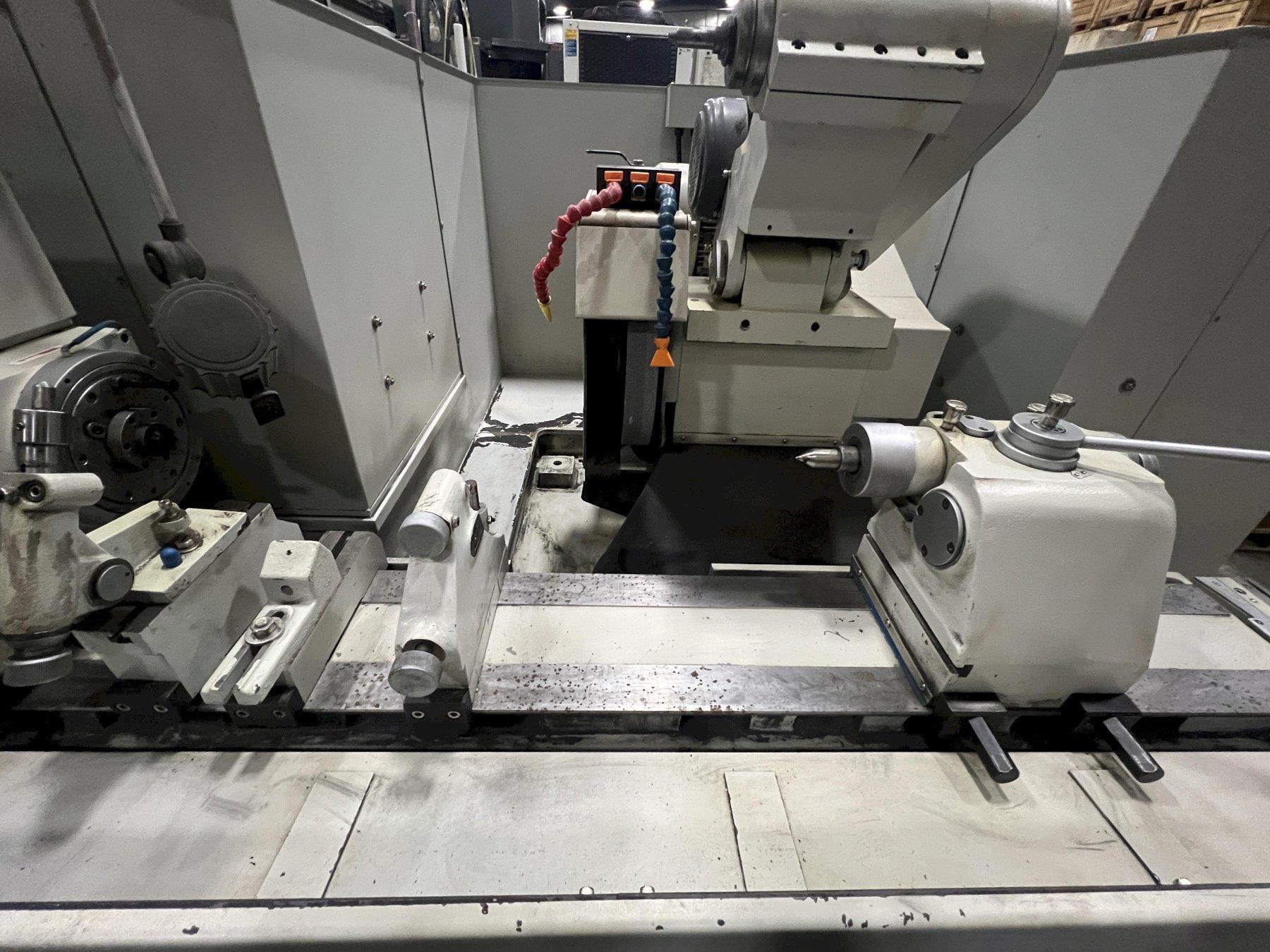

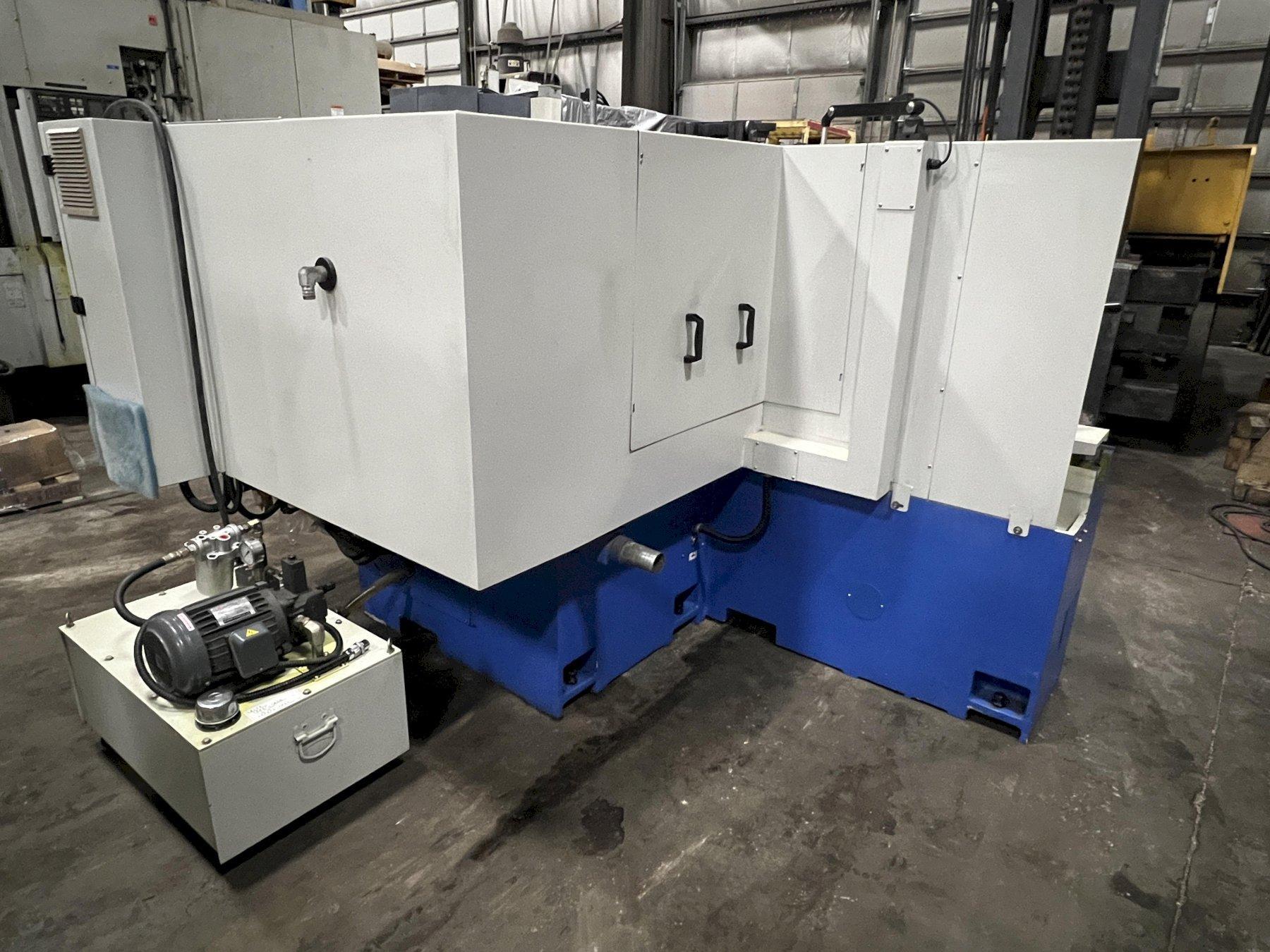

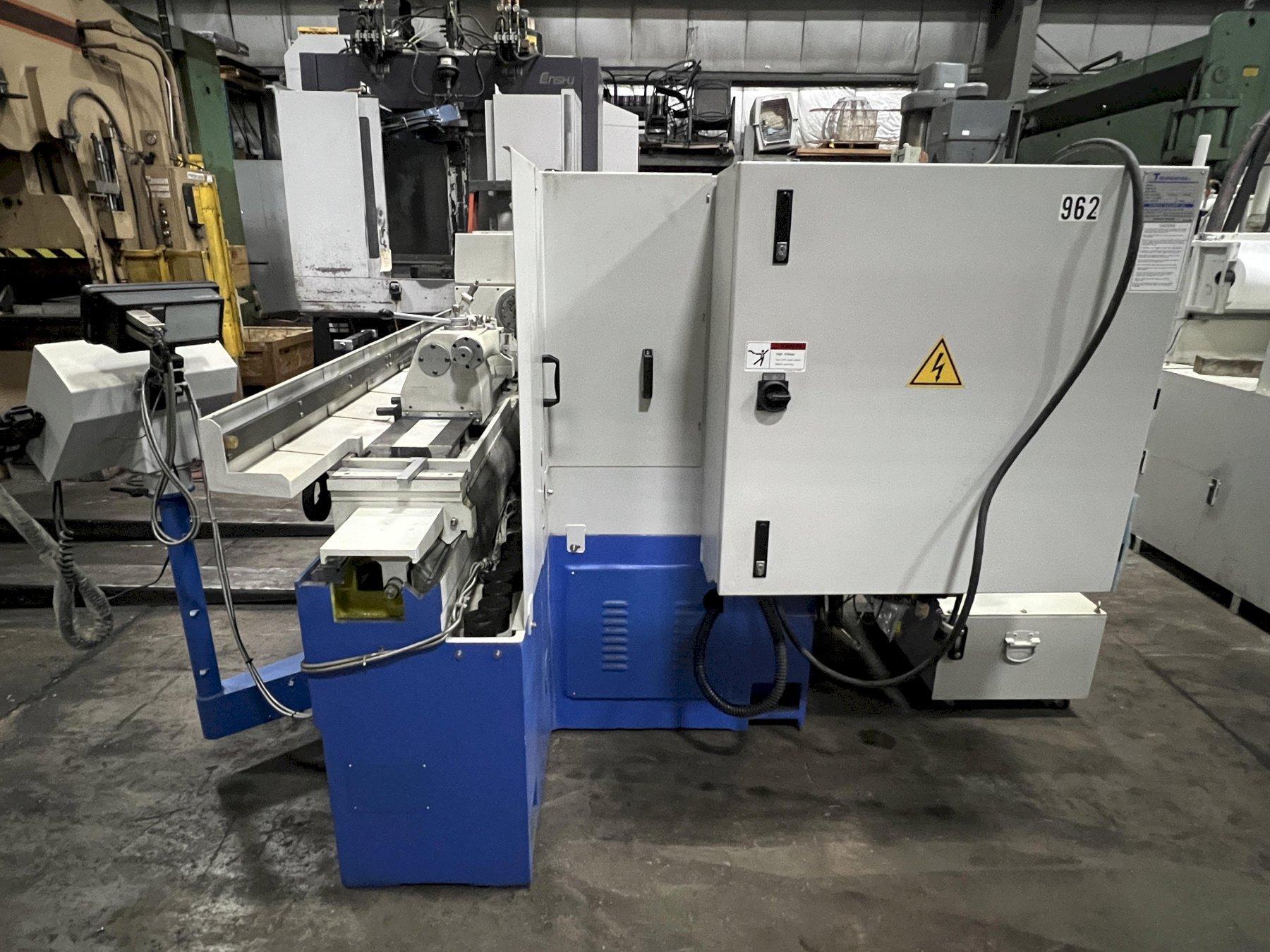

15" X 40" SUPERTEC CYLINDRICAL GRINDER, MODEL G38-100NC, 2013

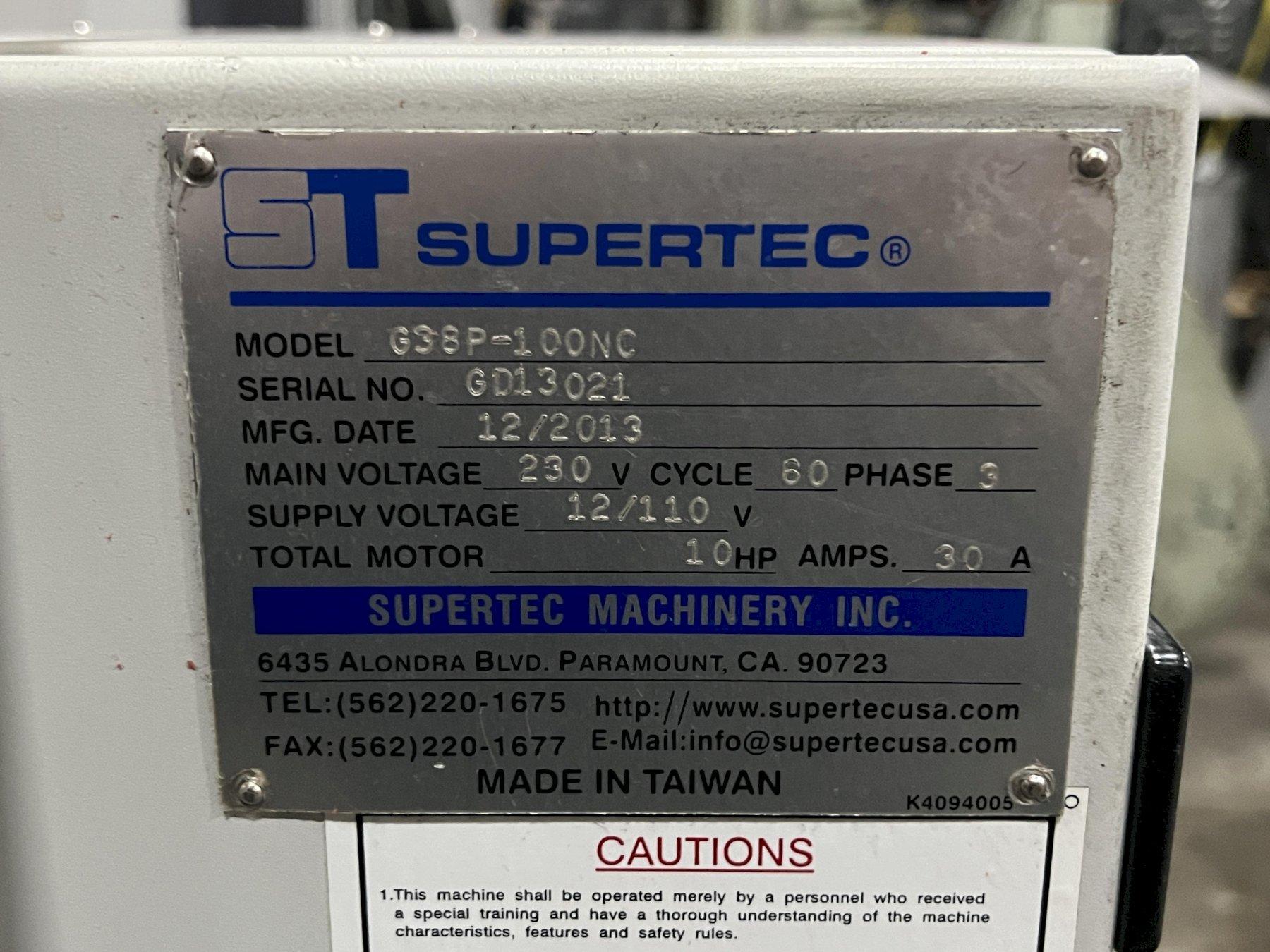

Manufacturer....................... Supertec
Model.............................. G38P-100NC
Age................................ 2013

Capacity:
Distance Between Centers............ 40″
Swing Over Table.................... 15″
Max. Grinding Diameter.............. 14″
Max. Load Held Between Centers...... 330 lbs.

Wheelhead:
Swiveling Angle..................... +/- 30°
Infeed Travel....................... 9.6″
Hand Feed Travel.................... 7.8″
Top Slide Travel.................... 7″
Automatic Rapid Travel.............. 1 3/4″
Auto Increment Infeed............... 0.0001″ – 0.0999″
Handwheel per Graduation............ 0.0002″
Handwheel per Revolution............ 0.1″

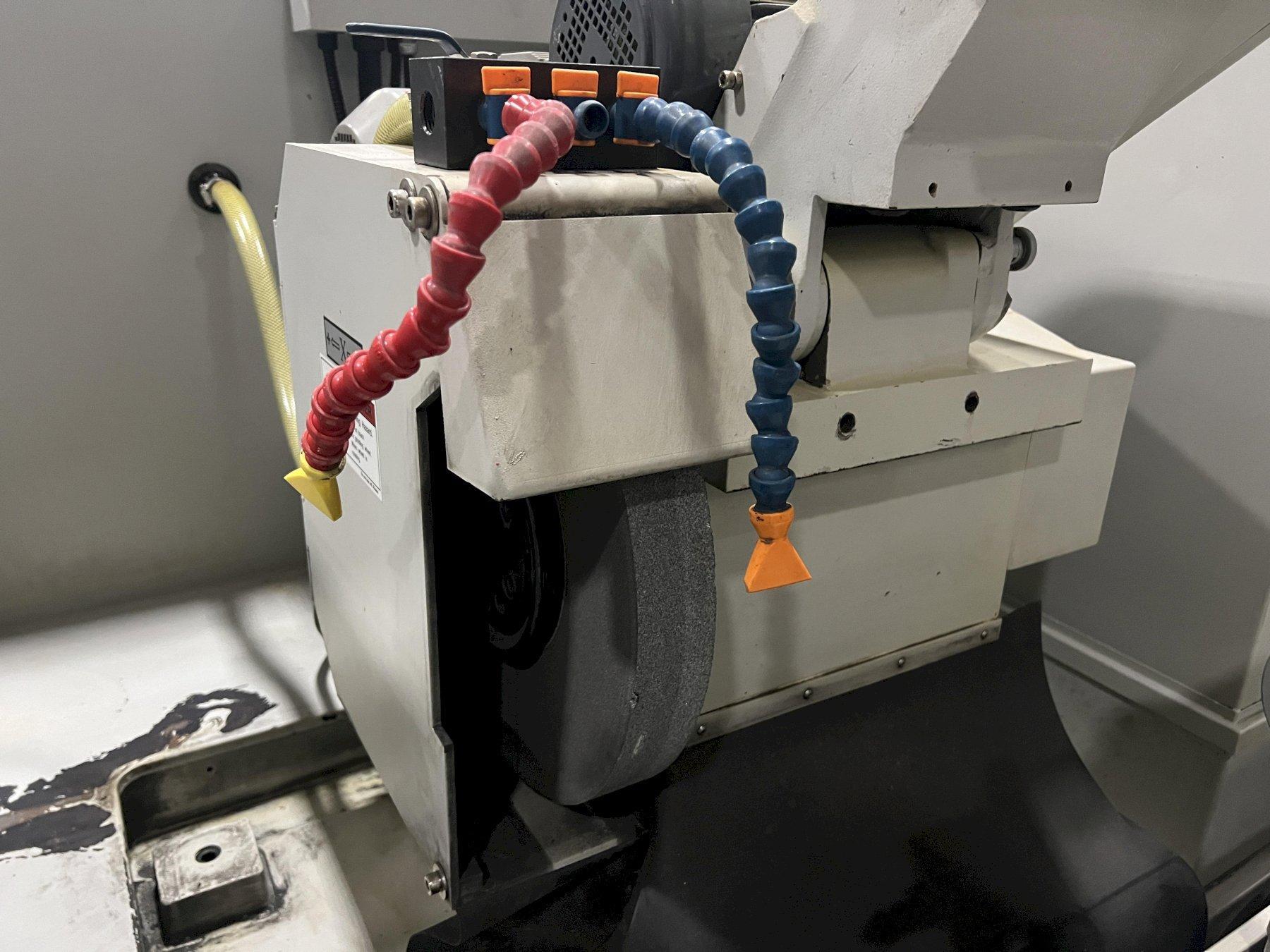

Grinding Wheel:
Dimensions.......................... 16″ x 2″ x 5″
Wheel Speed......................... 1,650 RPM

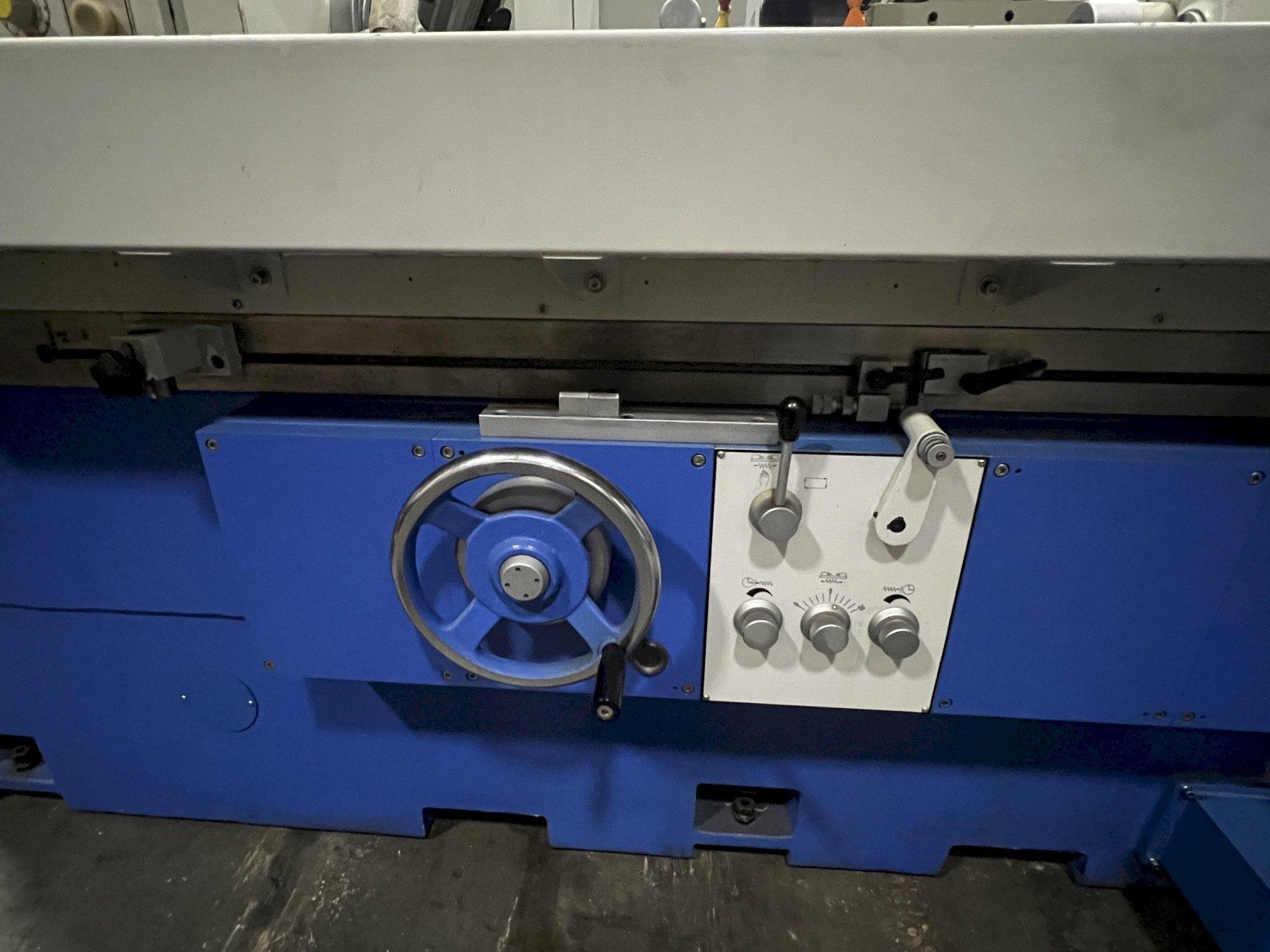

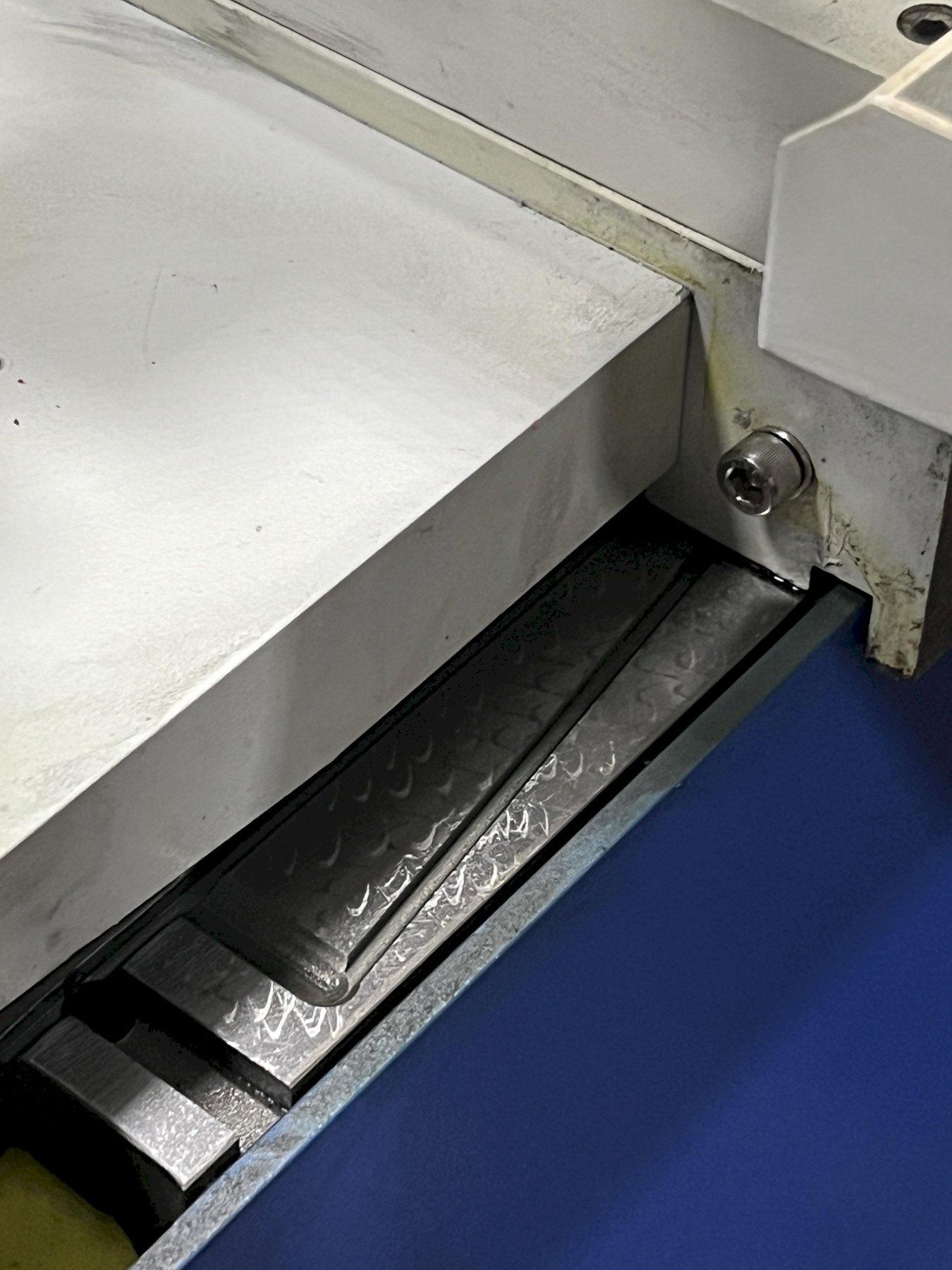

Table:

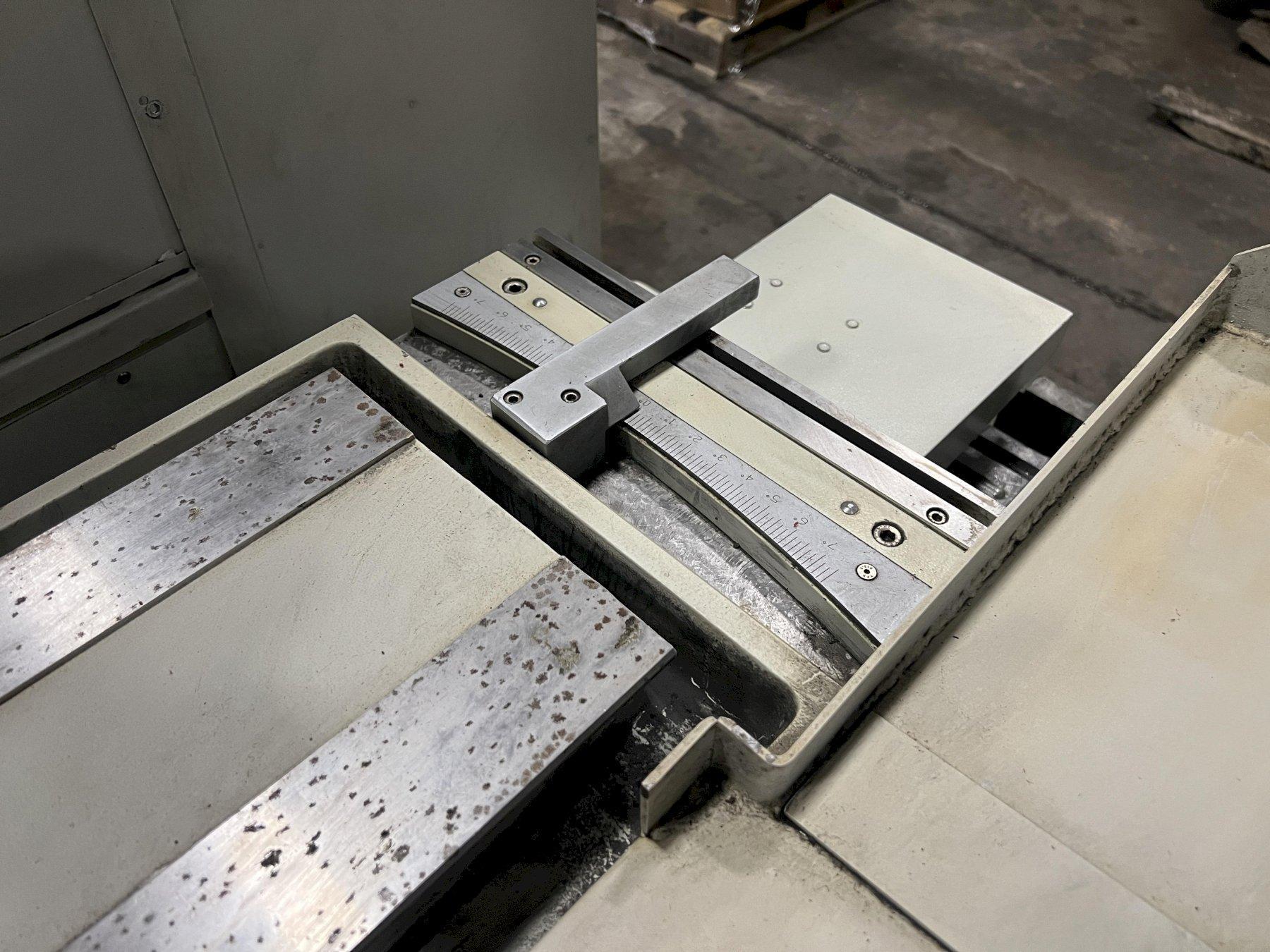

Swiveling Angle..................... +/- 7°
Traverse Speed...................... 1 1/5″ – 275″ /Min.
Handwheel per Revolution............ 4″

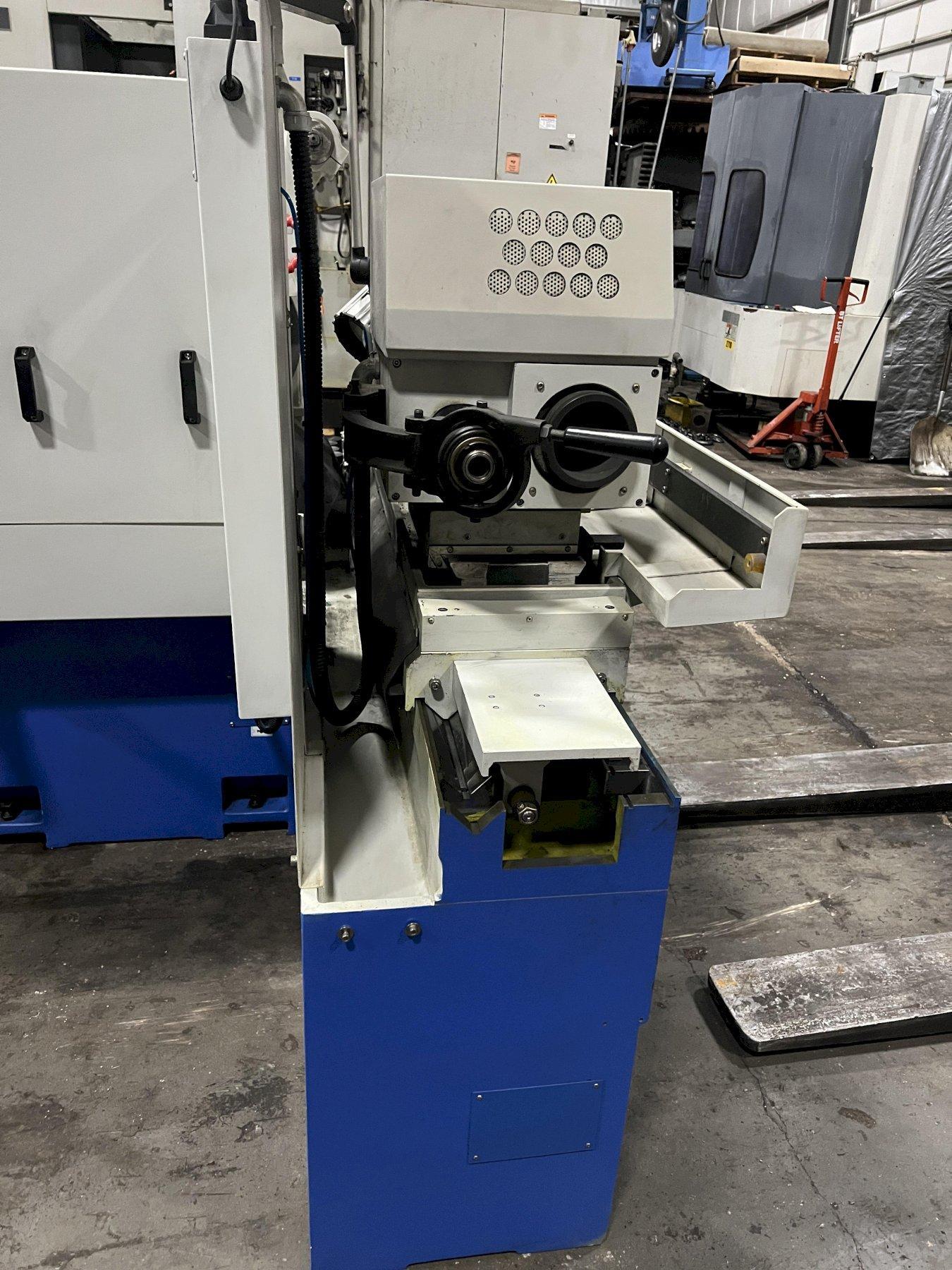

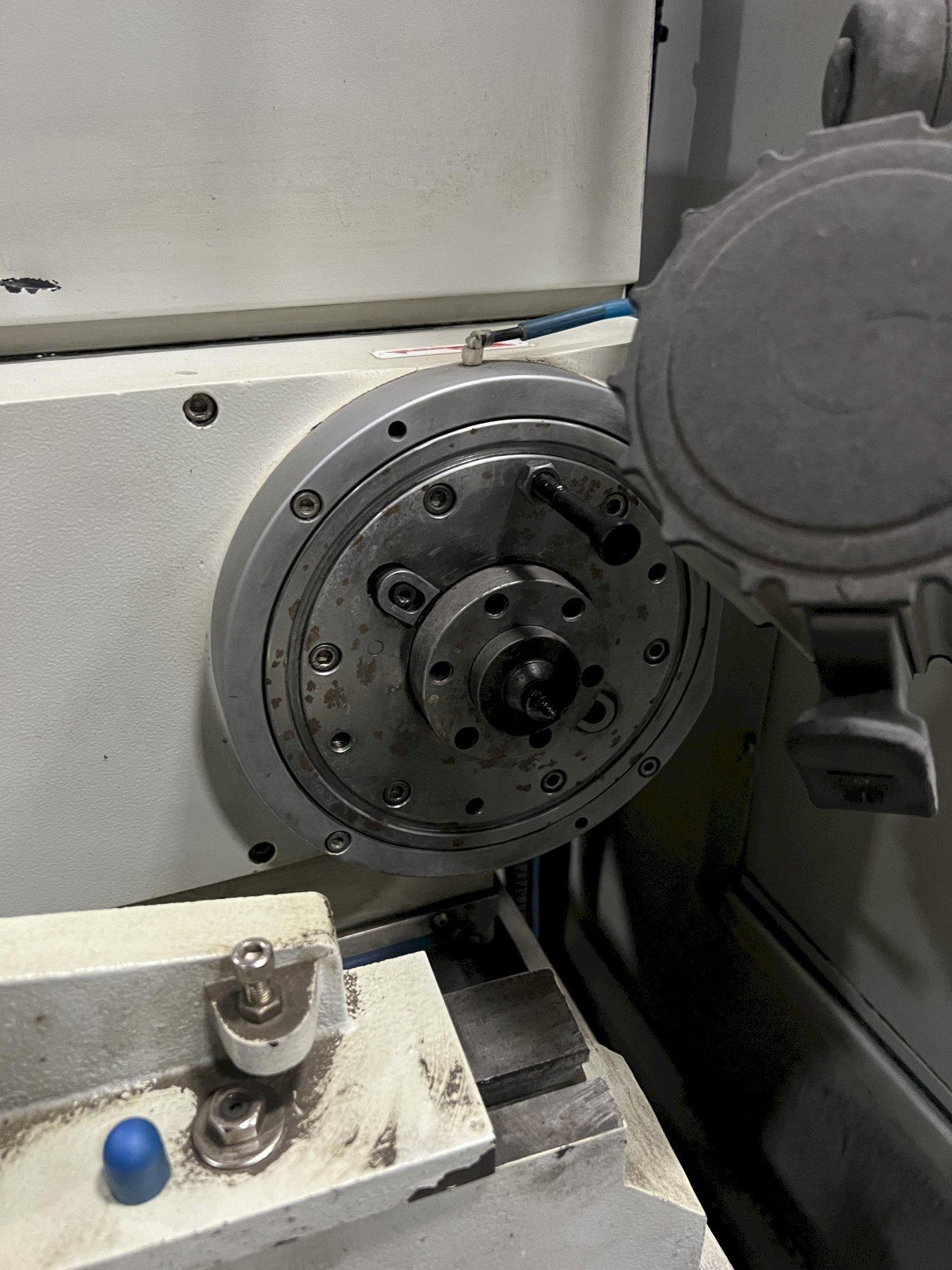

Workhead:
Swiveling Angle..................... 90°
Center Taper........................ MT 4
Spindle Speed....................... 30 – 350 RPM

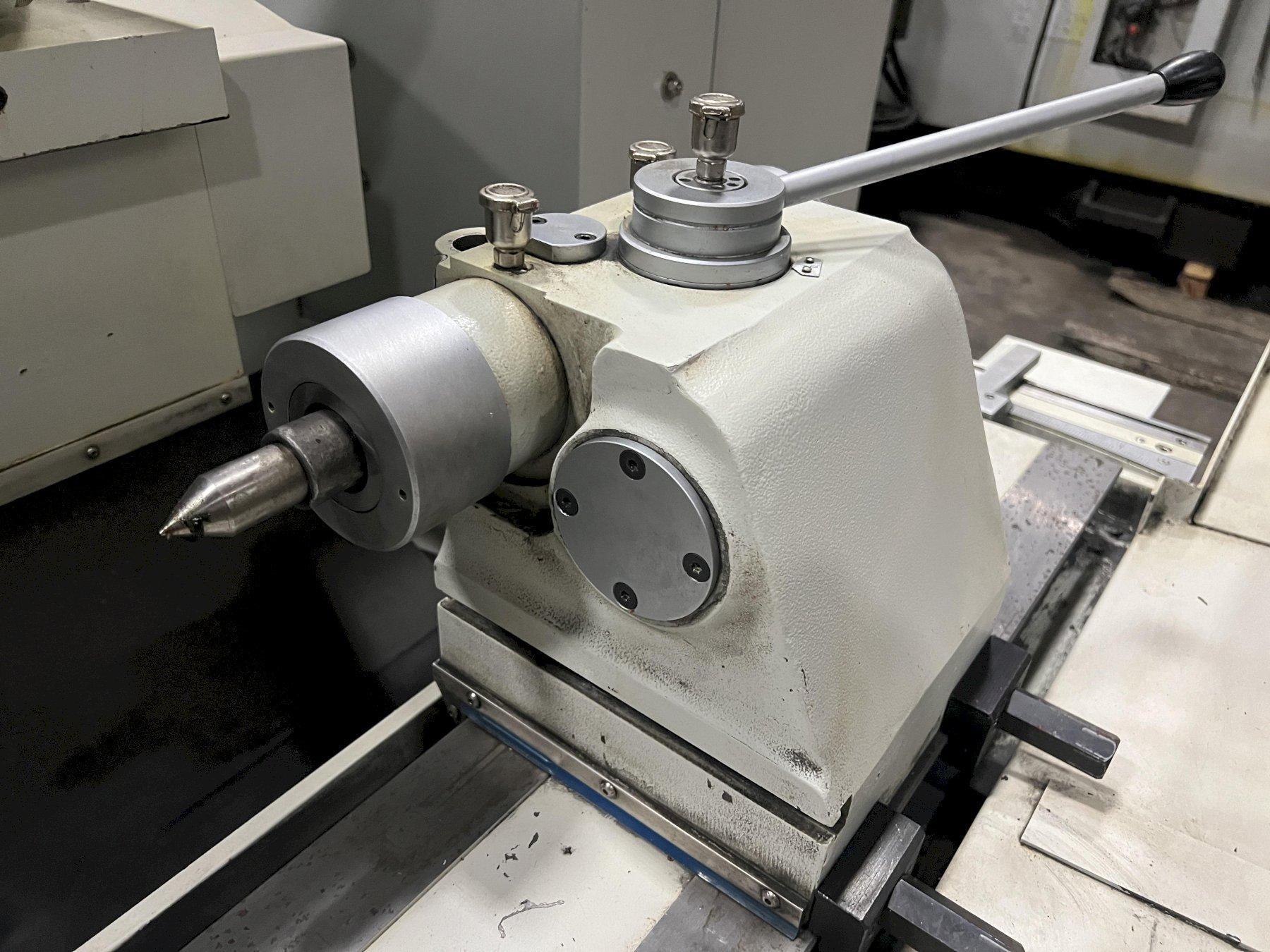

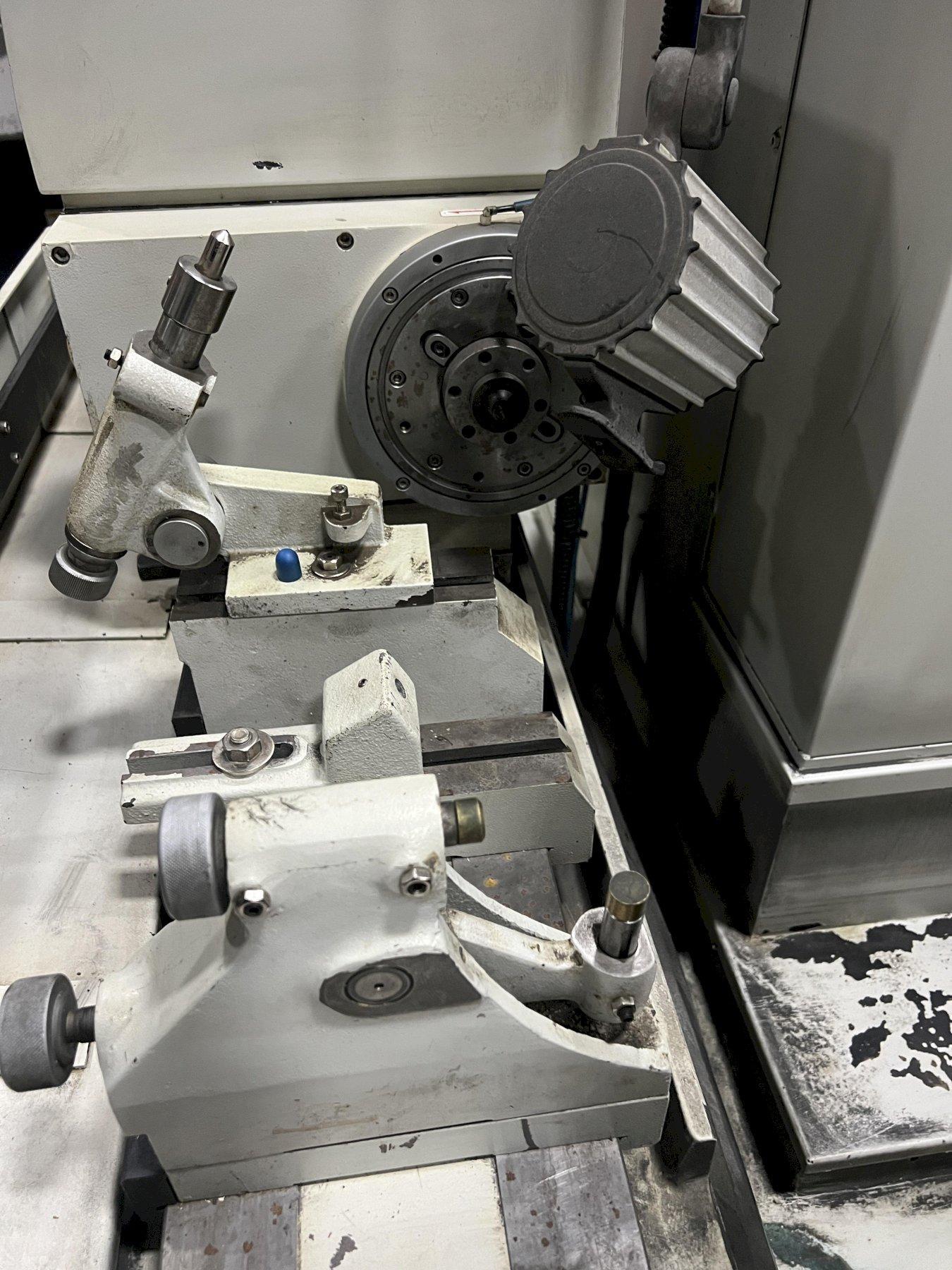

Tailstock:
Center Taper........................ MT 4
Quill Travel........................ 1″

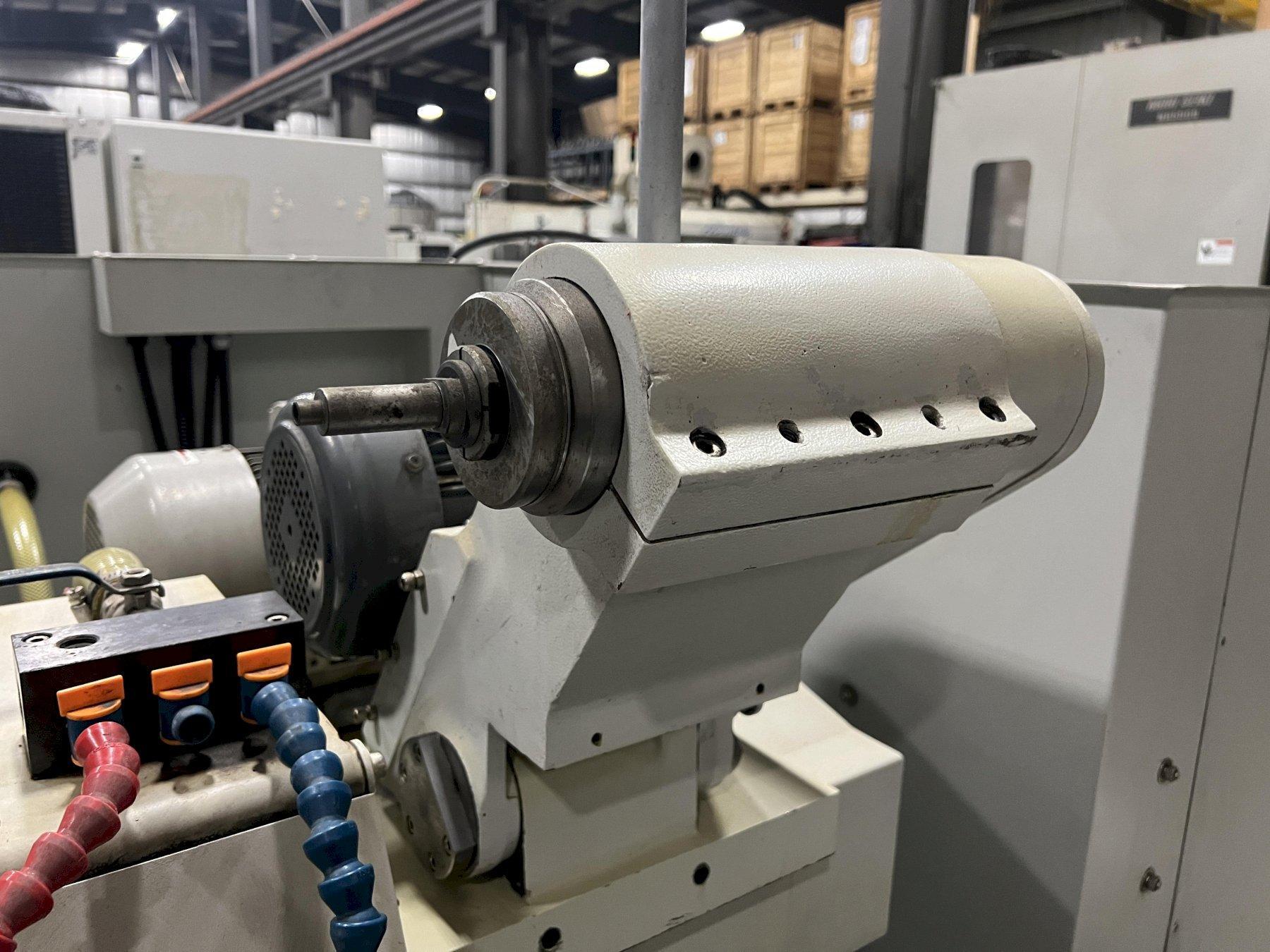

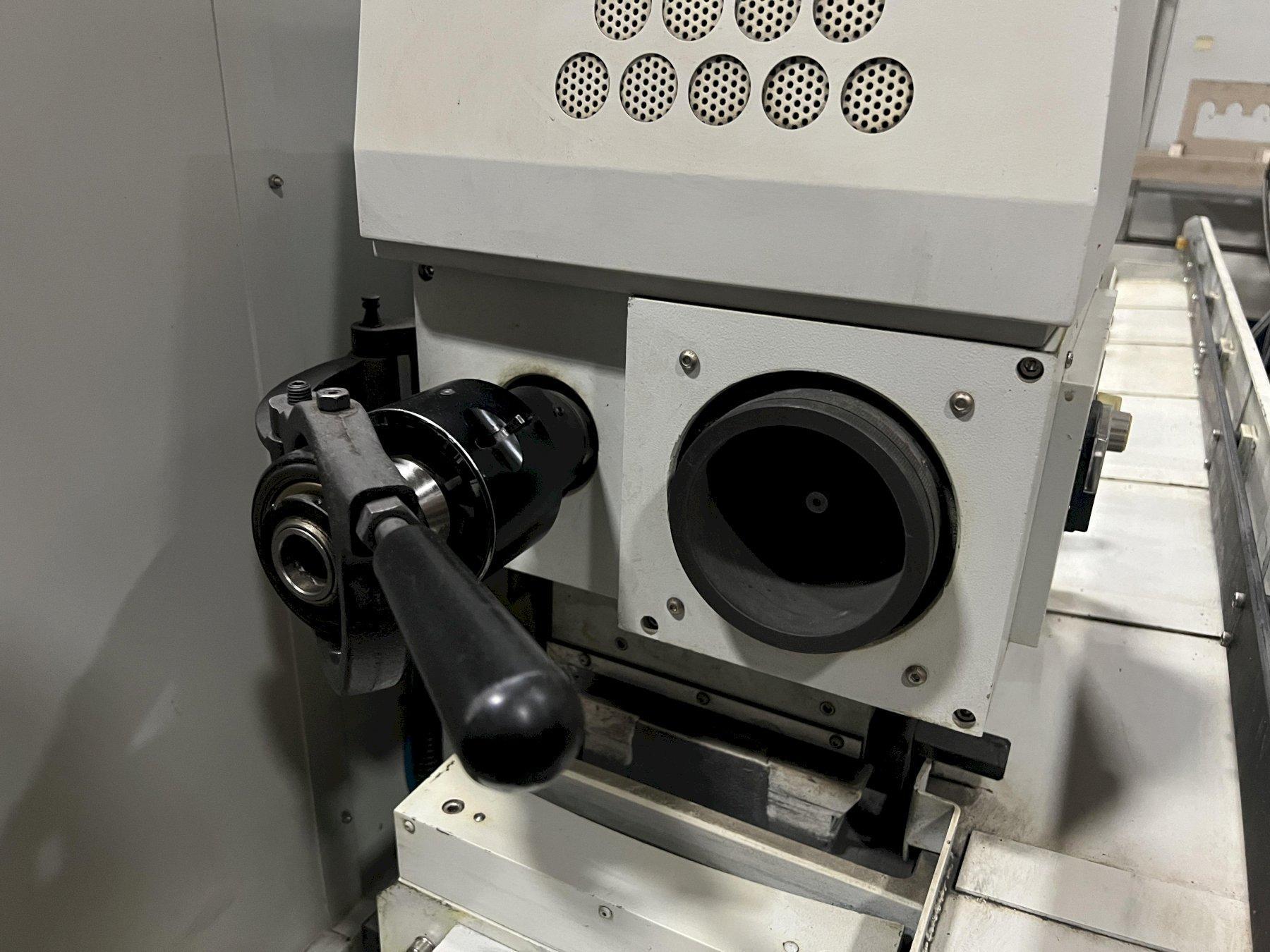

Internal Grinding:
Spindle Speed....................... 12,000 – 18,000 RPM OR 25,000 RPM
Max. Grinding Bore.................. 1.18″ – 3.94″ OR .79″ – 1.97″
Max. Grinding Length................ 4.33″ OR 2.17″
Max. Chuck Length................... 12 2/5″
Max. Chuck Diameter................. 6″

Motor:
Wheel Spindle Motor................. 7.5 HP

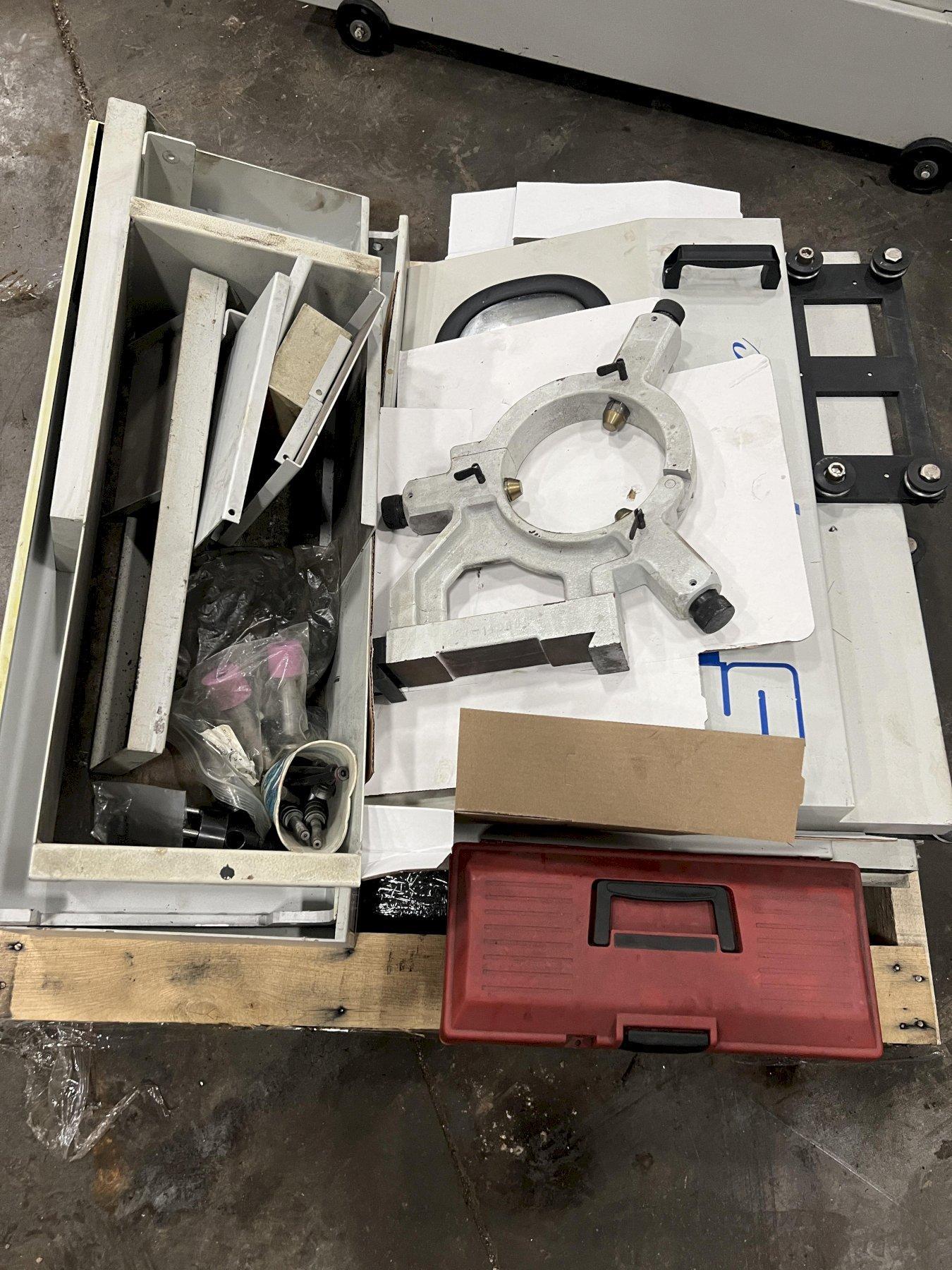

Includes:
Balancing Arbor
Wheel Extractor
Grinding Wheel with Flange
Steady Rest

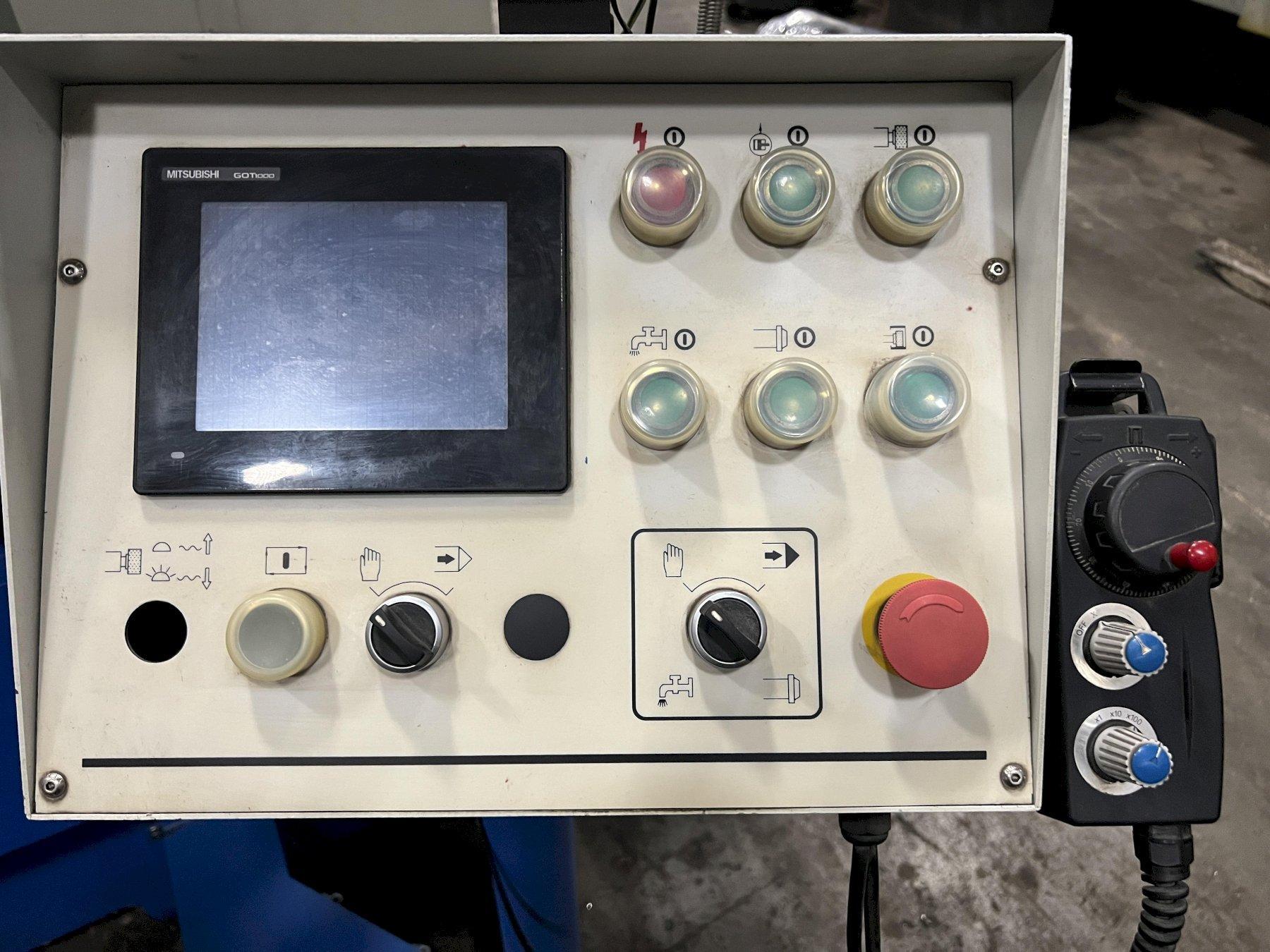

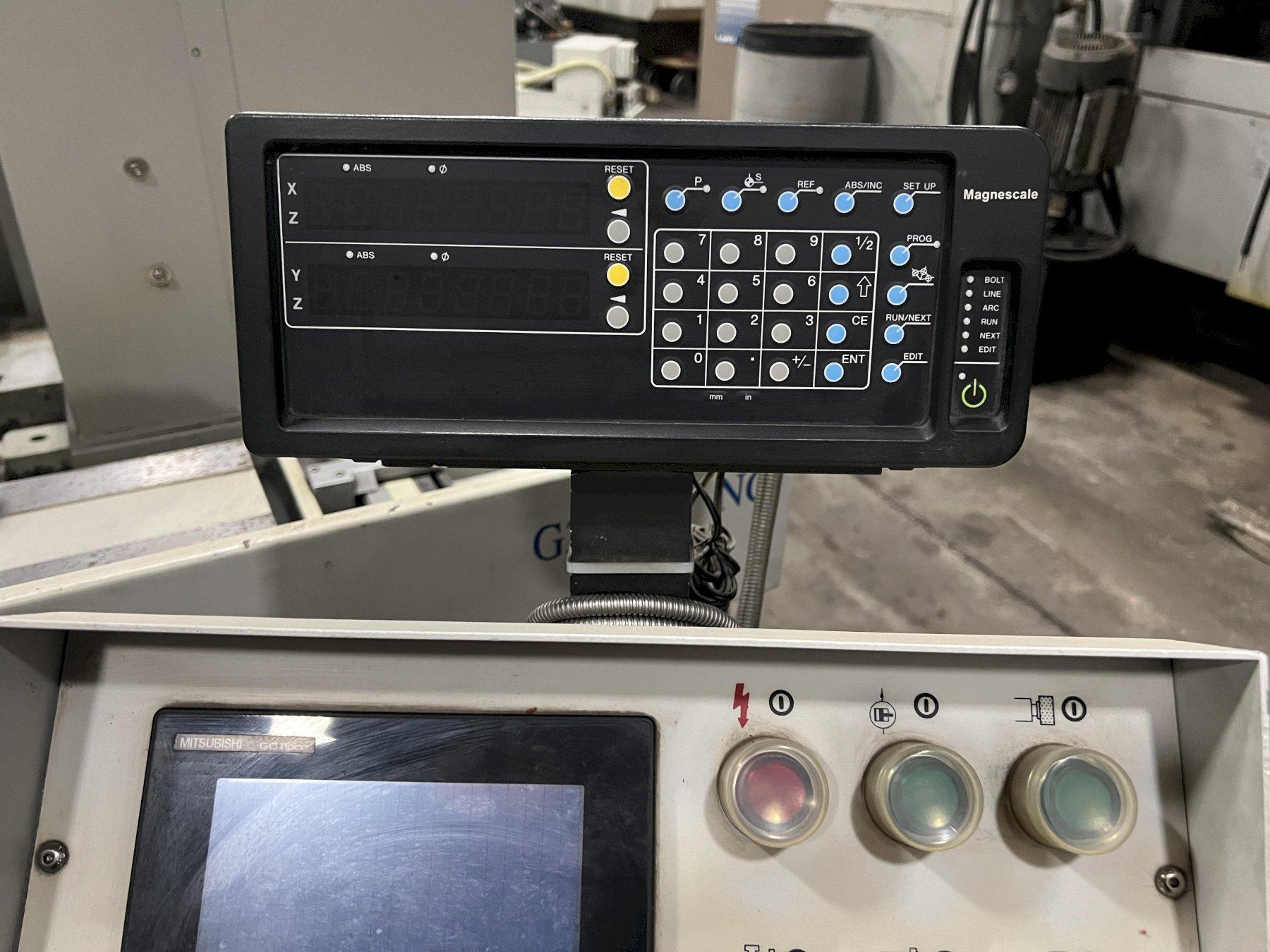

Programmable Digital Readout
Tool Box with Adjusting Tools
Diamond Dresser (Fixed on Table)
Operation Manual with Parts List

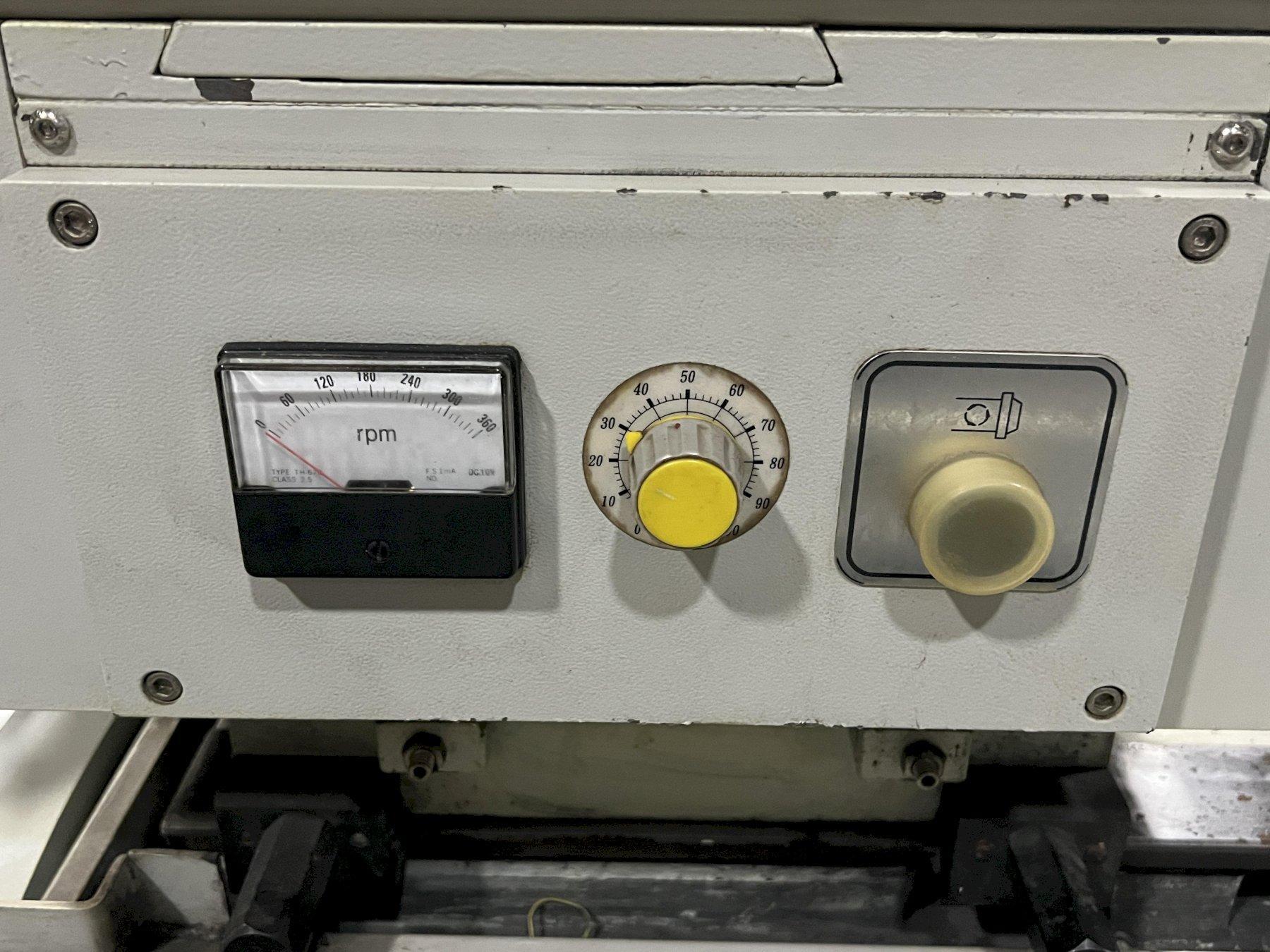

Variable Speeds Workhead
Dial Gauge
Splash Guard

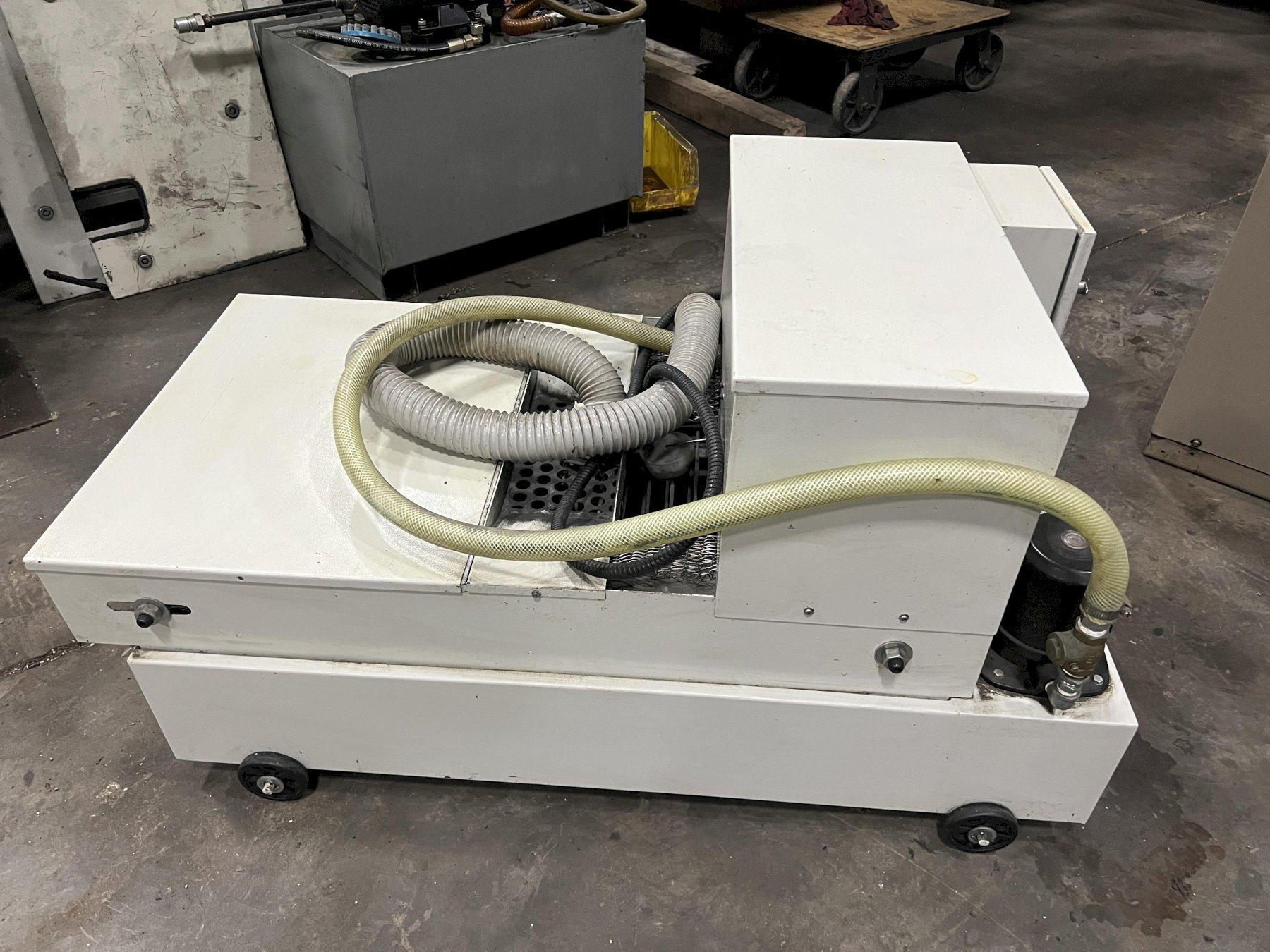

Coolant System

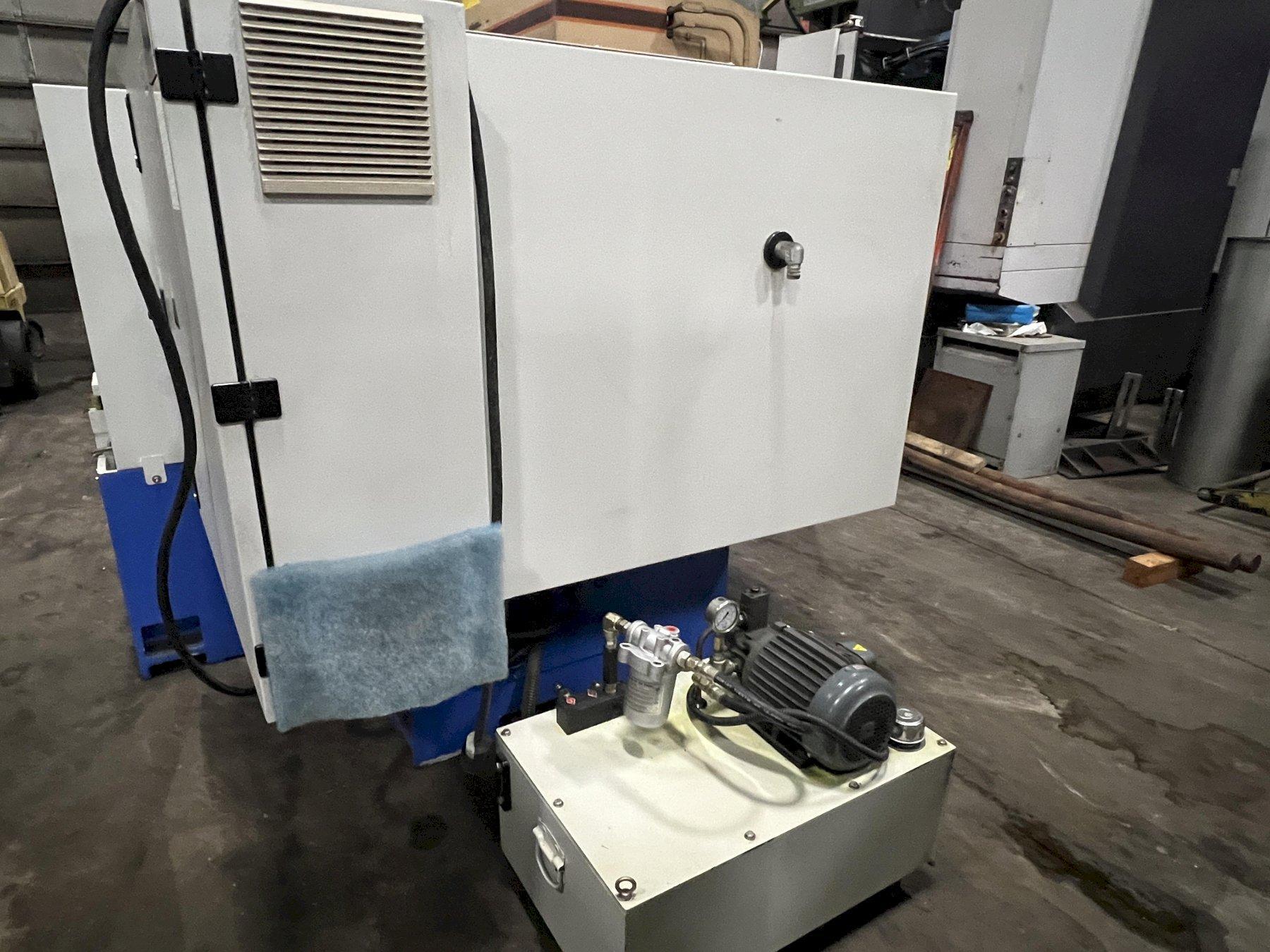

Auto Lube System
Carbide Tip Centers
Leveling Screws with Blocks
Halogen Light

Mechanical Specifications:
Shipping Dimensions................. 119″ x 90″ x 79″
Shipping Weight..................... approx. 11,440 lbs.
Voltage............................. 230 3 phase
