Specifications
Equipped With
GENERAL SPECIFICATION:

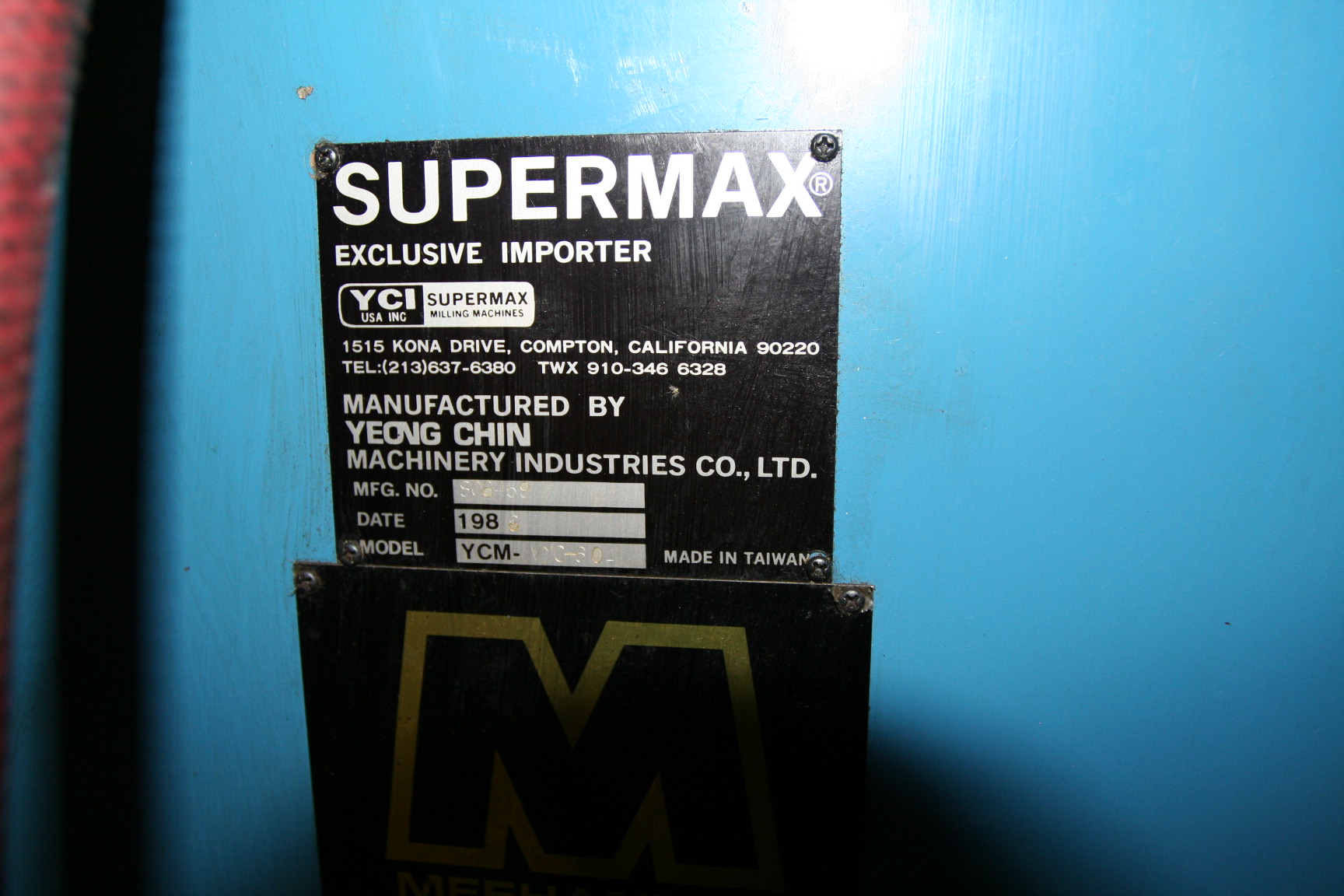

MAKE: .................. SUPERMAX
MODEL: ................. YCM-VMC-60A
SERIAL NUMBER: ......... 806459
(AGE) YEAR:............. 1988
TRAVELS X AXIS.......... 23.622 IN (600 MM)
TRAVELS Y AXIS.......... 15.748 IN (400 MM)
TRAVELS Z AXIS.......... 18.110 IN (460 MM)

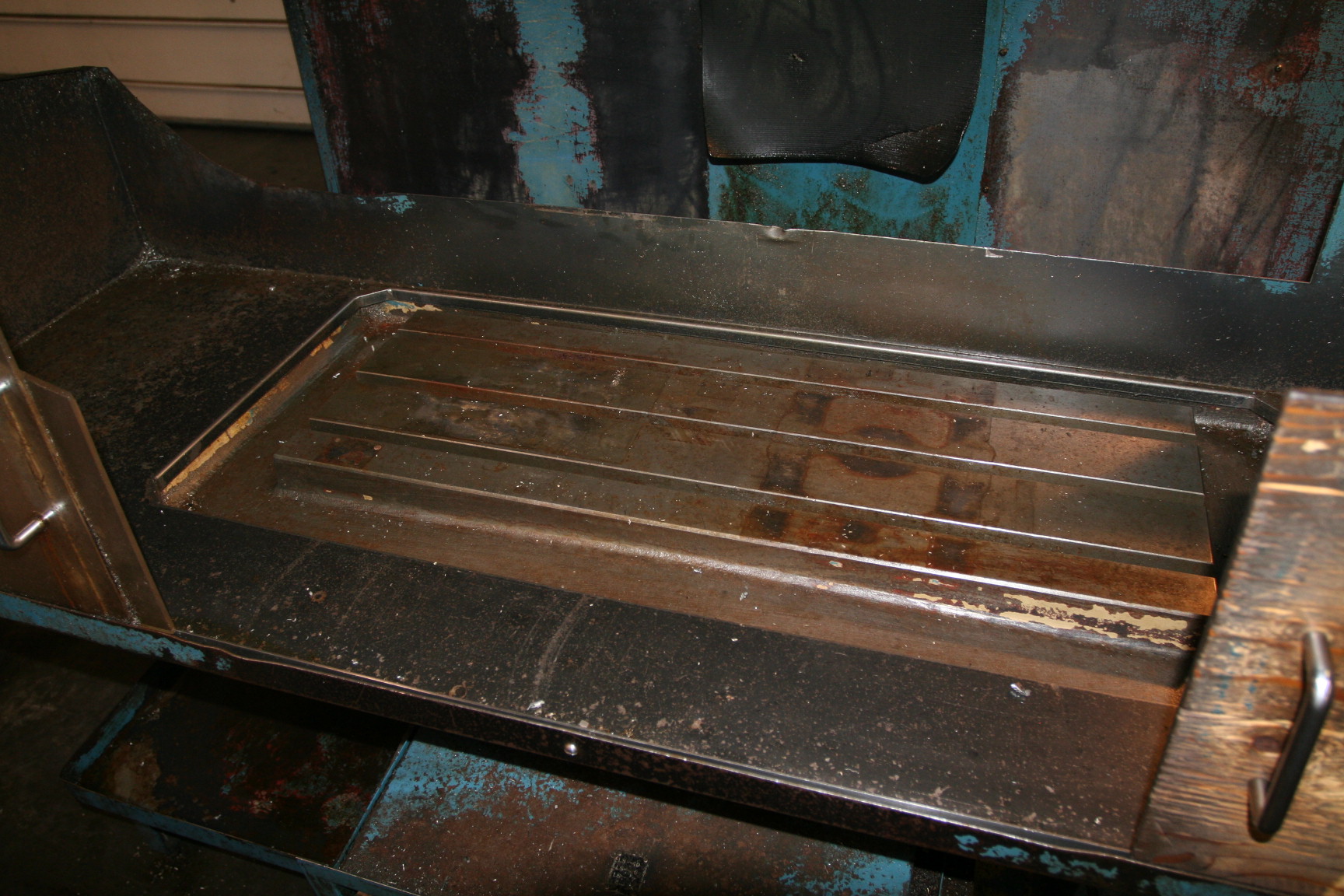

TABLE SIZE.............. 45.66 x 19.68 IN (1160 MM x 500 MM)
TABLE WORKING SIZE...... 36.22 X 12.59 IN (920 MM X 320 MM)
SPINDLE END TO TABLE.... 4.92 (125 MM) - 23.03 IN (585 MM)
SPINDLE SPEEDS.......... 45 - 6000 RPM
SPINDLE TAPER........... BT 40

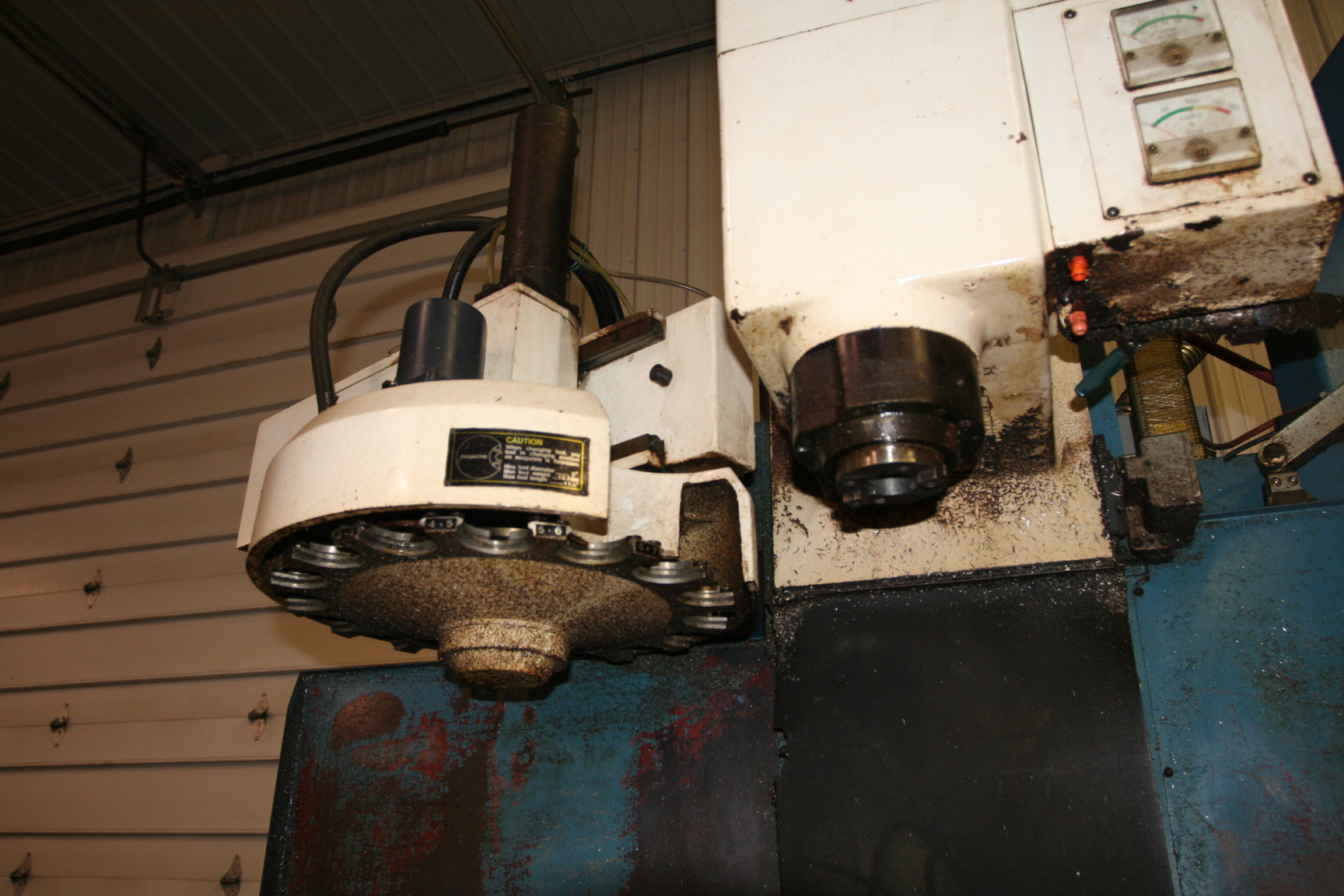

TOOL CHANGER............ 16 ATC
EQUIPPED WITH:

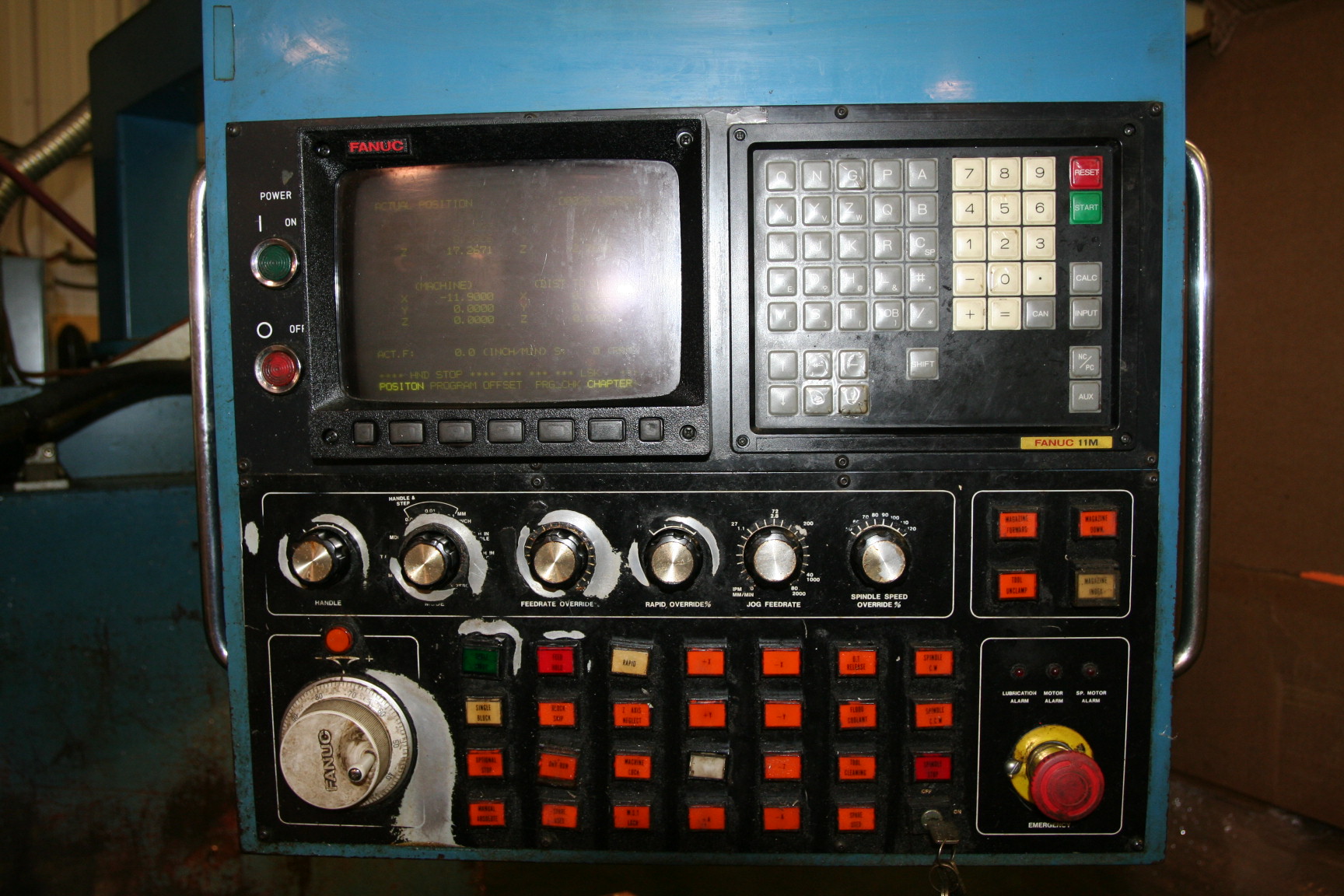

FANUC 11M CONTROL
COOLANT PUMP/TANK
Net Price "As is".
