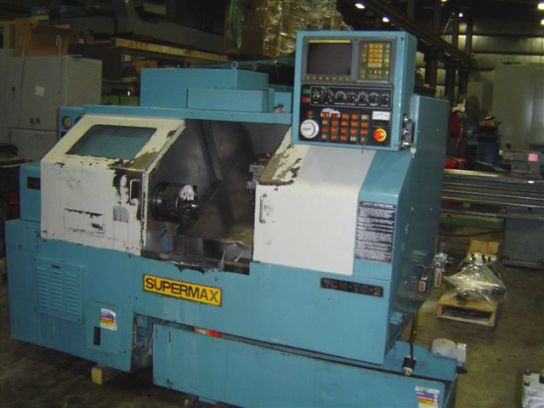

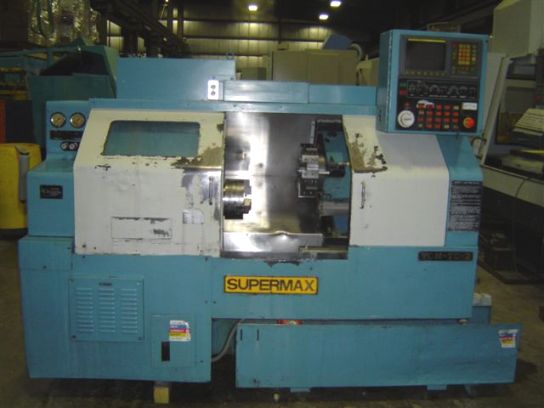

Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER SUPERMAX
MODEL YCM-TC-2
SERIAL # 004116
NEW (APPROX.) 1990
SWING OVER BED 18.9"
SWING OVER CARRIAGE 12.2"
SPINDLE CENTER HEIGHT FROM FLR 35.43"
SPINDLE NOSE 12-6
SPINDLE INSIDE TAPER 1/20
HOLE THRU SPINDLE/DRAW BAR 2.44"/2.05"
FRONT BEARING I.D. 3.94"
SPINDLE SPEED (LOW) 40 - 1194 RPM
SPINDLE SPEED (HIGH) 1195 - 3500 RPM
MAX. CROSS TRAVEL (X) 5.91"
MAX. LONGITUDINAL TRAVEL (Z) 19.69"
MAX. MACHINING DIA. (X) 9.84"
TAILSTOCK QUILL STROKE 3.94"
TAILSTOCK STROKE 12.4"
BETWEEN CENTERS 21.65"
MAIN MOTOR 7/10 HP
X RAPID FEED RATE 393.7"/MIN.
Z RAPID FEED RATE 590.55"/MIN.
X BALL SCREW DIA. 1.1"
Z BALL SCREW DIA. 1.57"
TURRET INDEXING # 8
TURRET TOOL POSITIONS 8
STANDARD CUTTING TOOL SIZE 0.98"
MULT-TOOL COUPLING DIA. 7.09"
TAILSTOCK QUILL DIA. 2.95"
TAILSTOCK QUILL TAPER MT-4
BED OVERALL WIDTH 28.74"
BED CARRIAGE WIDTH 19.98"
BED TAILSTOCK WIDTH 6.57"
WEIGHT (APPROX.) 5,512 LBS.
EQUIPPED WITH:

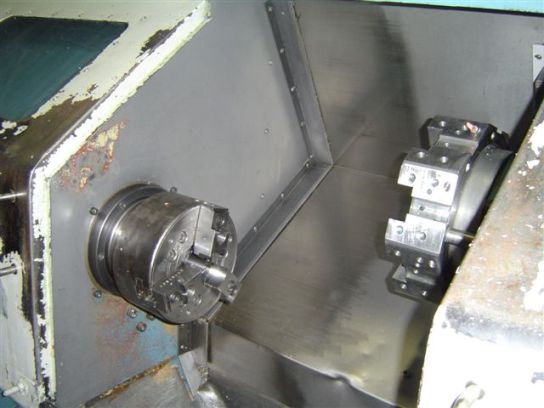

8" CHUCK

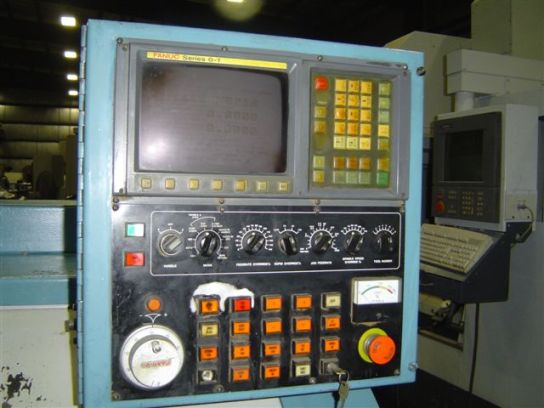

FANUC OT

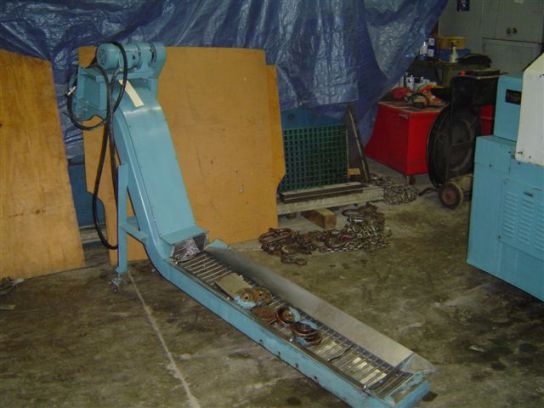

CHIP CONVEYOR
