Specifications
Equipped With
GENERAL SPECIFICATIONS

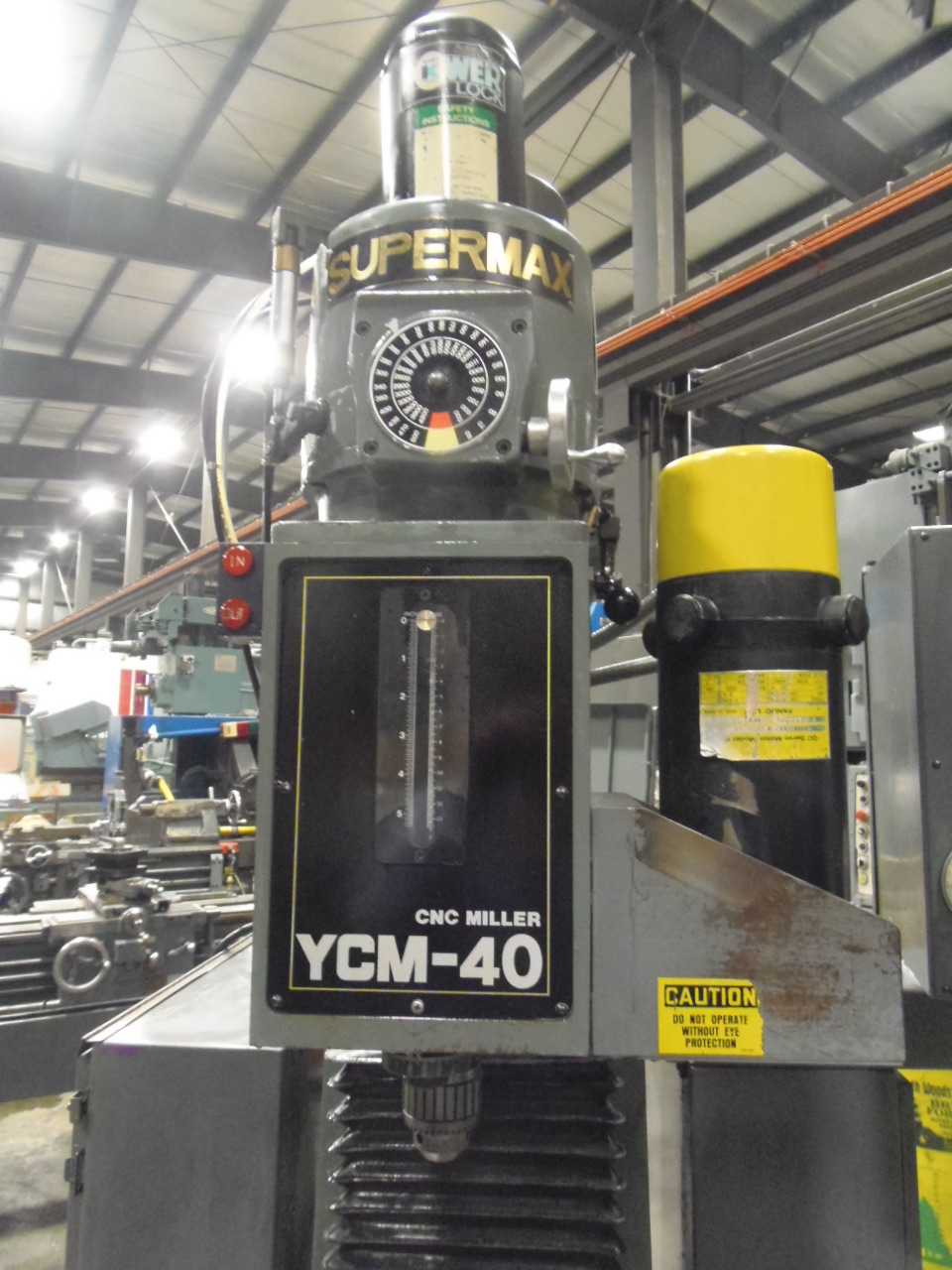

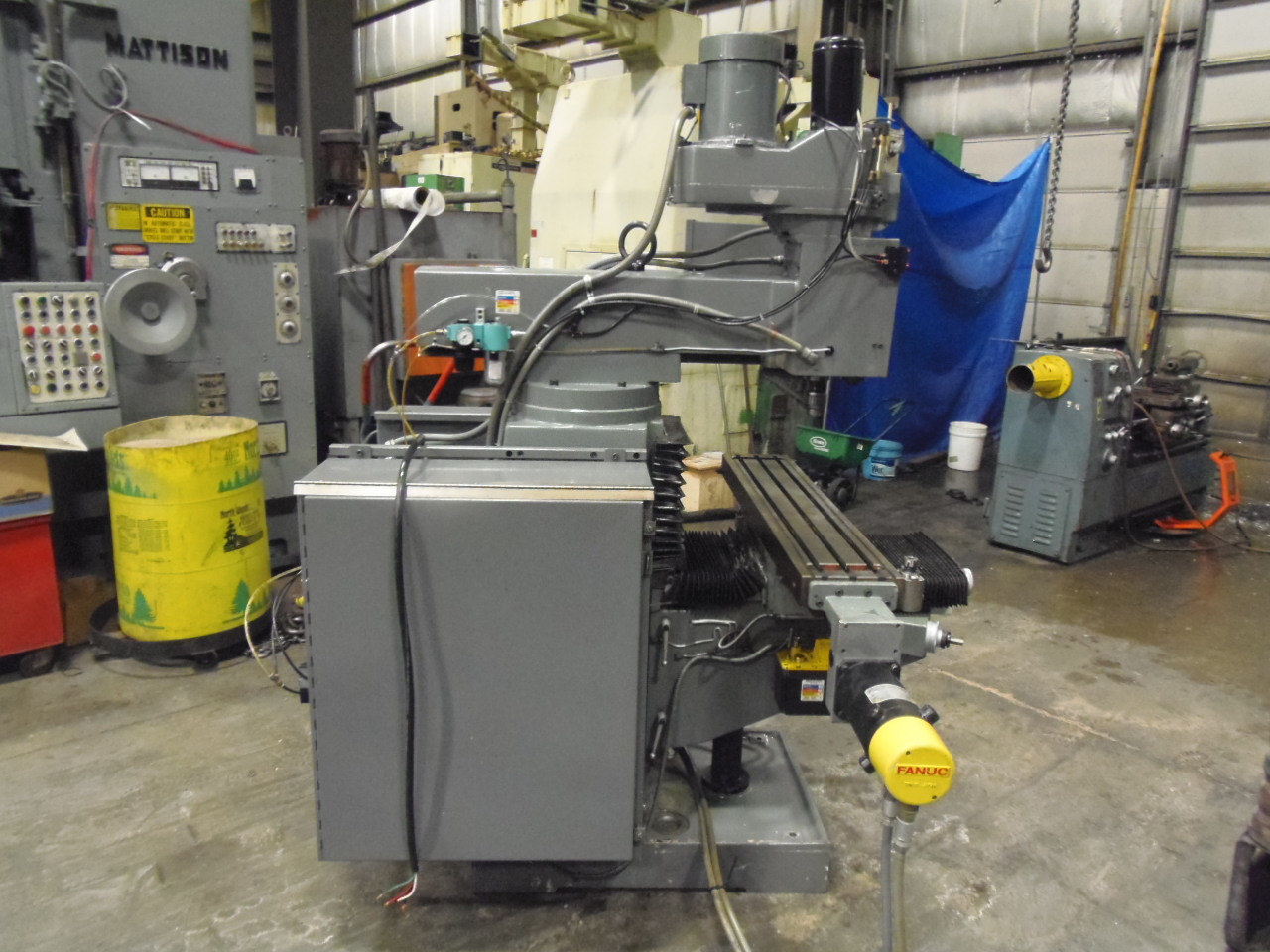

MANUFACTURER....................... SUPERMAX
MODEL.............................. YCM 40
SERIAL#............................ 04044
AGE APPROXIMATELY.................. 1995

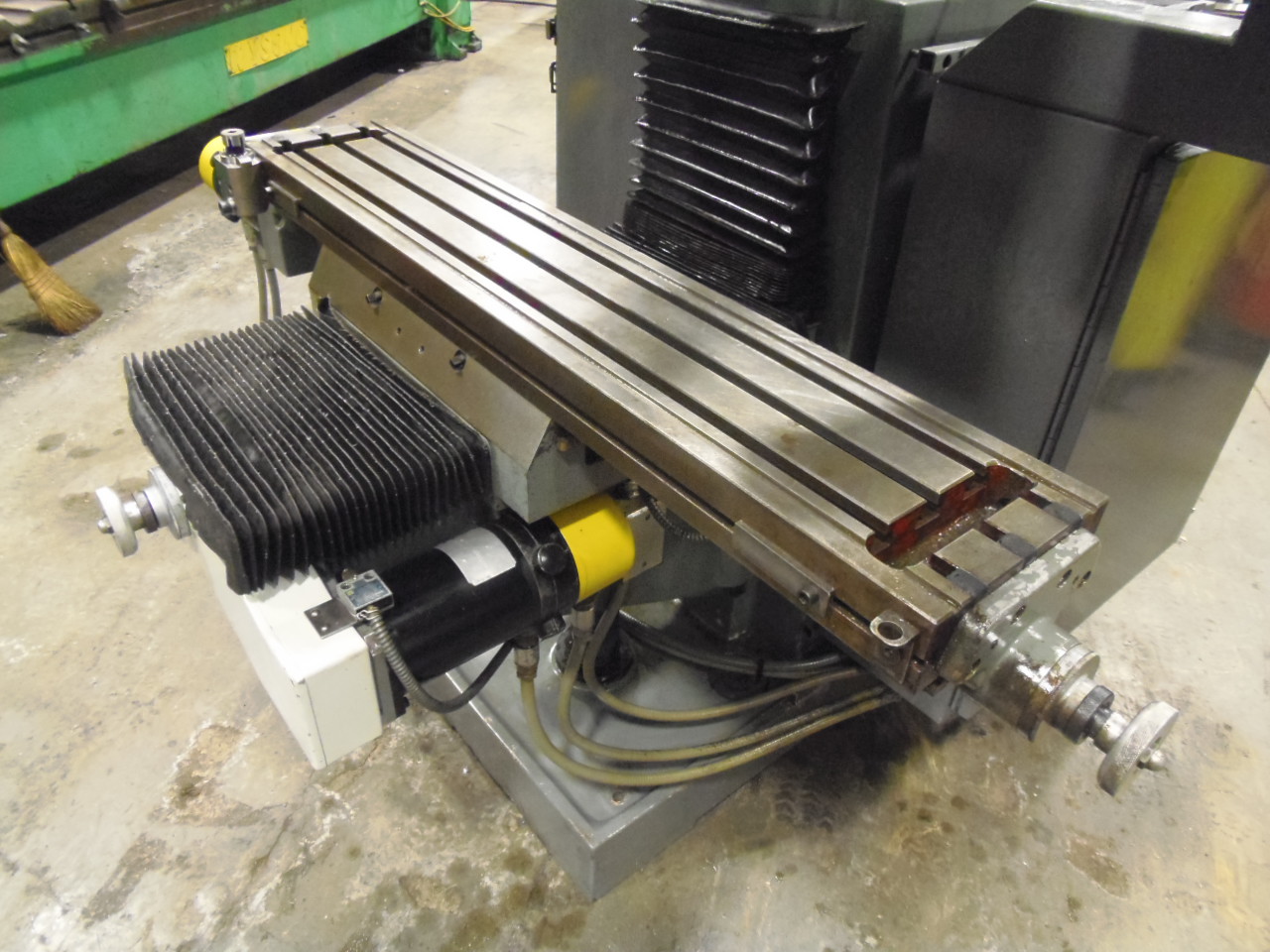

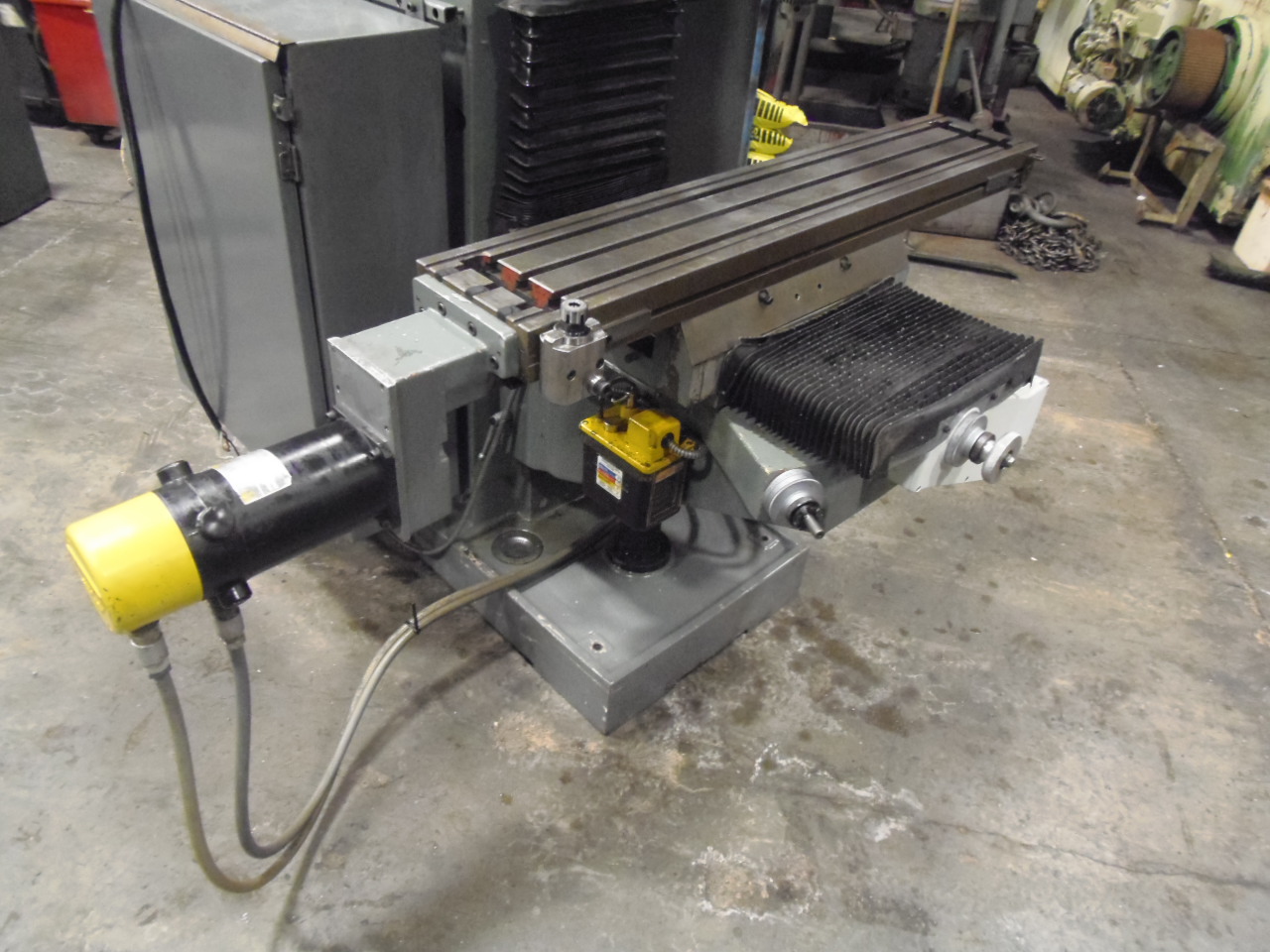

TABLE SIZE......................... 9" X 49"
TRAVELS (X)........................ 28"
(Y)........................ 15.5"
(Z)........................ 5"
(KNEE)..................... 16"
SPINDLE SPEEDS..................... 80 TO 4200
SPINDLE MOTOR...................... 2 HP

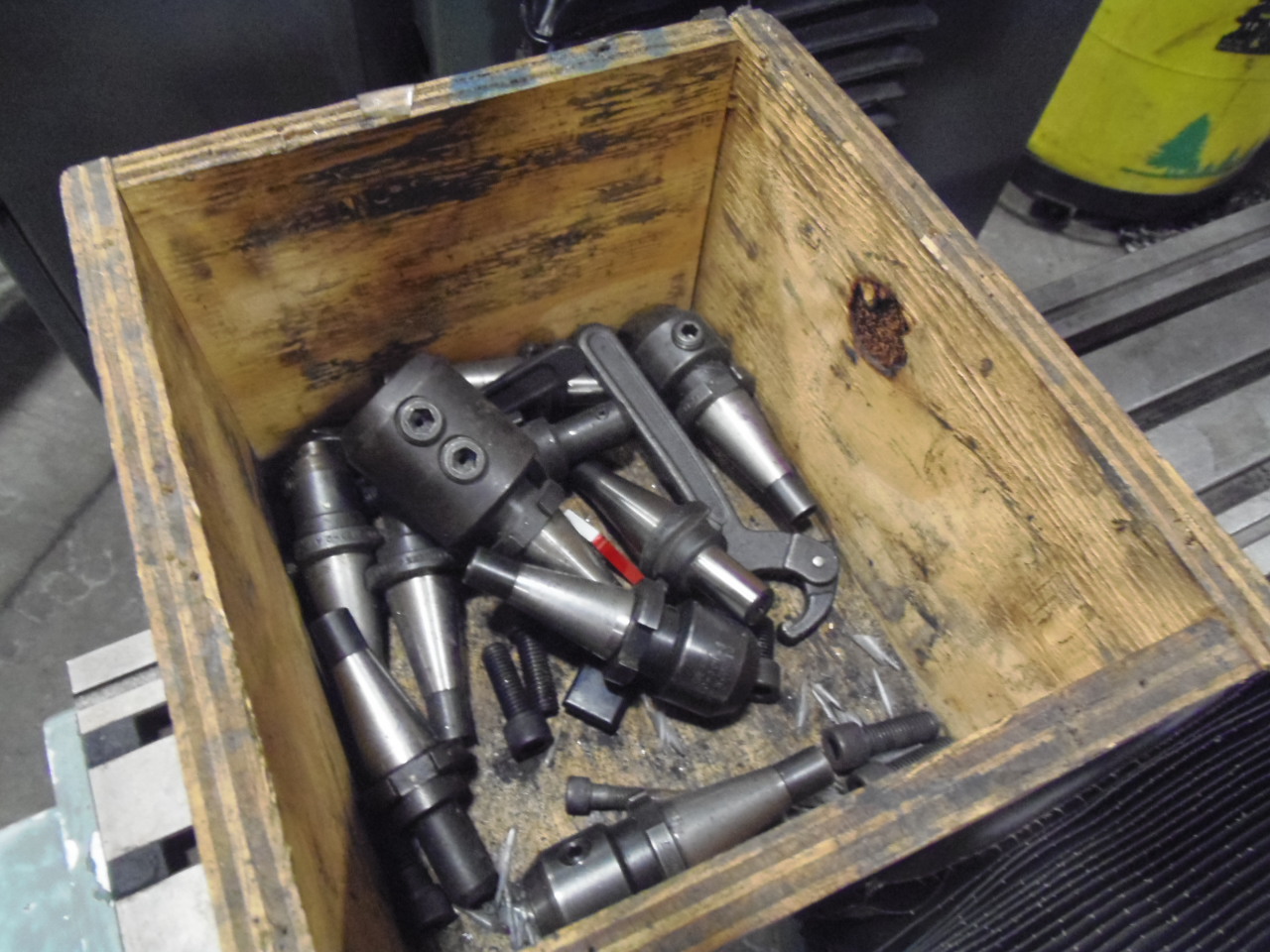

SPINDLE TAPER...................... NST 30

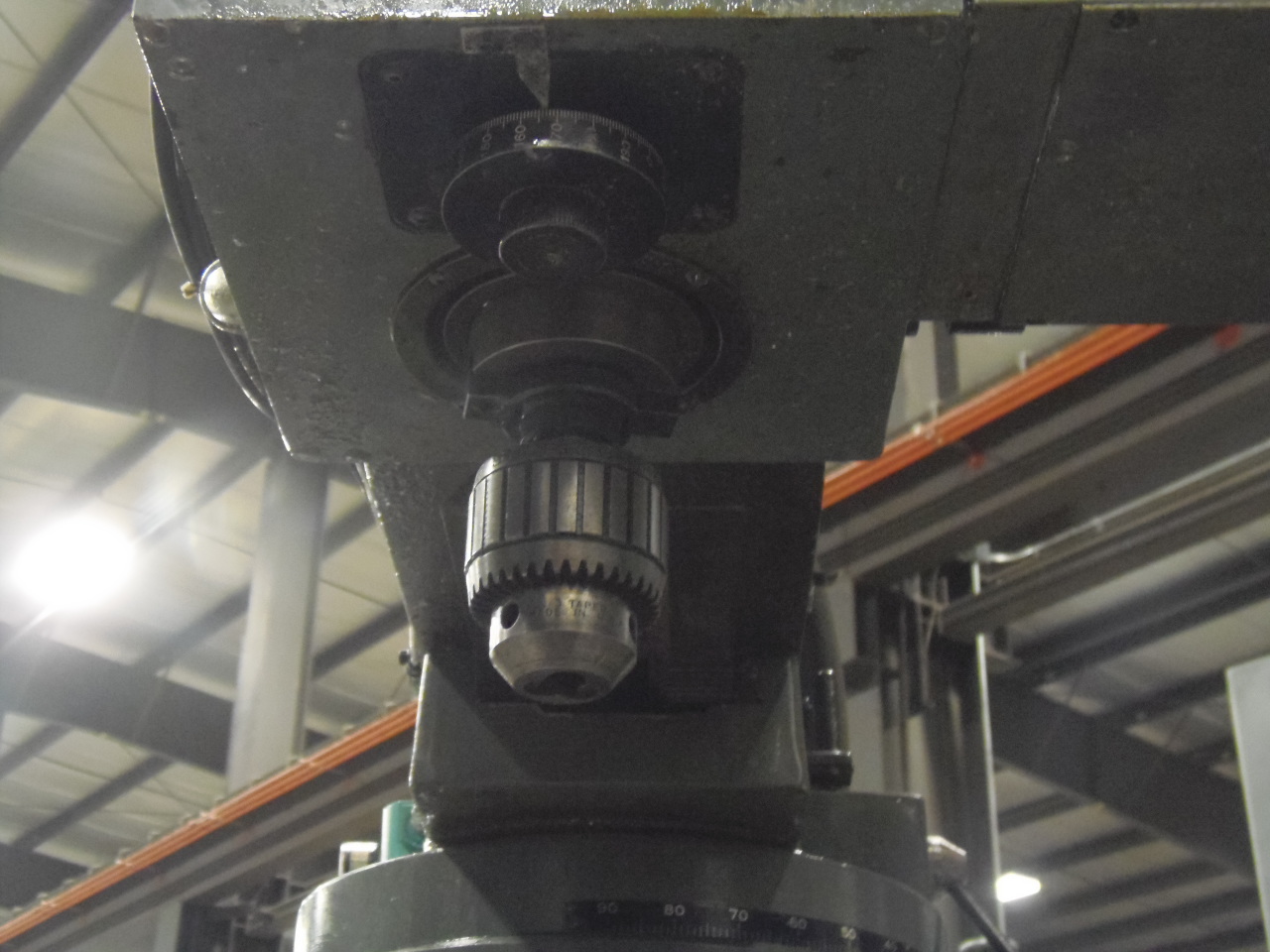

QUILL DIAMETER..................... 3.94"
EQUIPPED WITH:

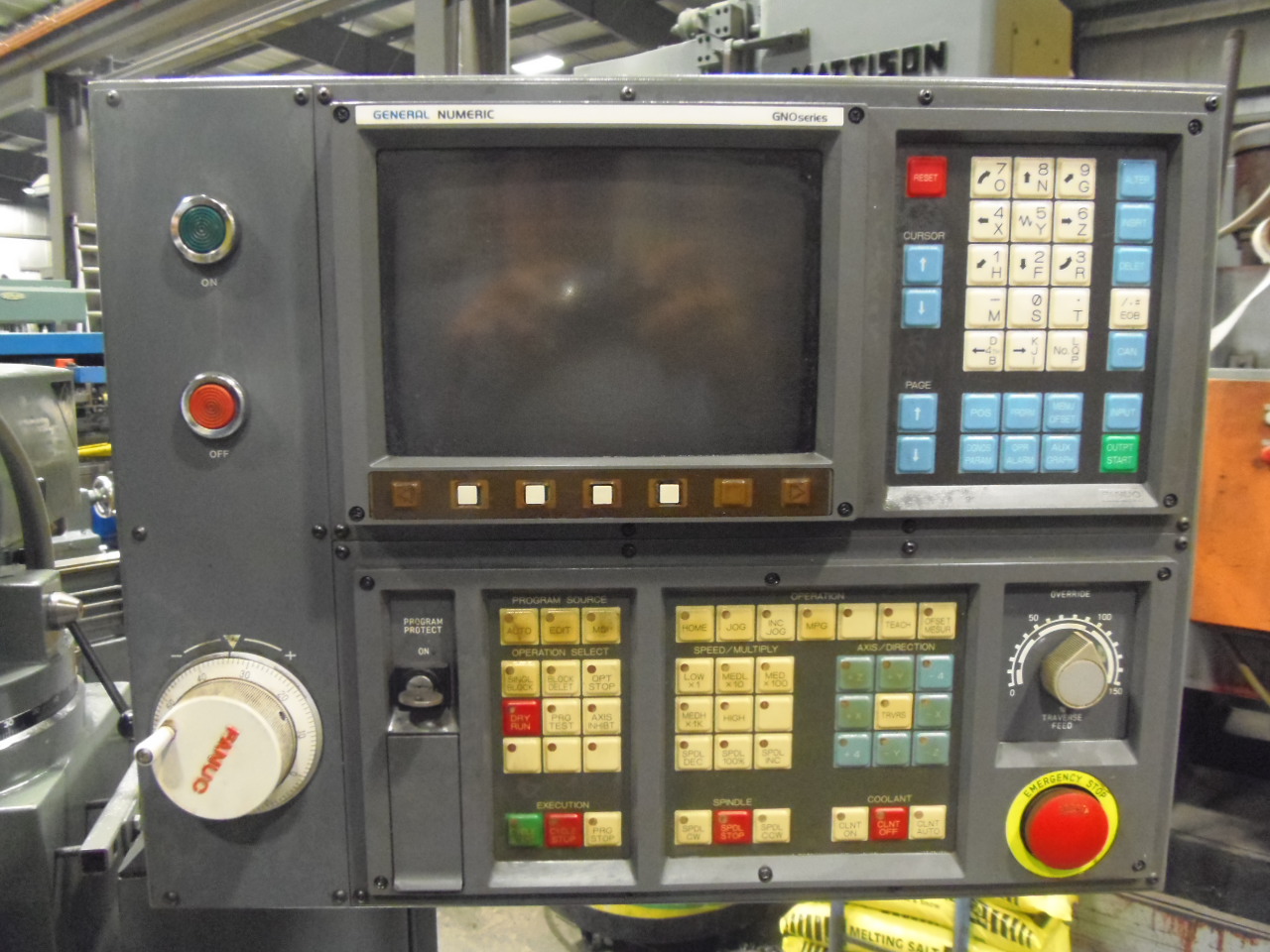

GENERAL NUMERIC FANUC O,3 AXIS CONTROL
POWER DRAW BAR
SPECIFICATIONS SUBJECT TO VERIFICATION
