GENERAL SPECIFICATIONS:

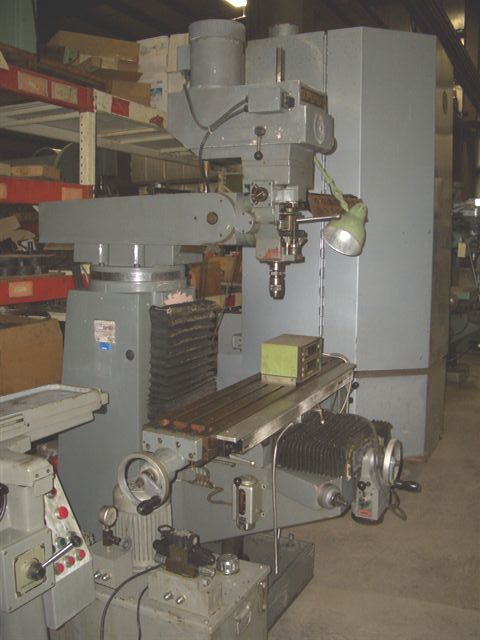

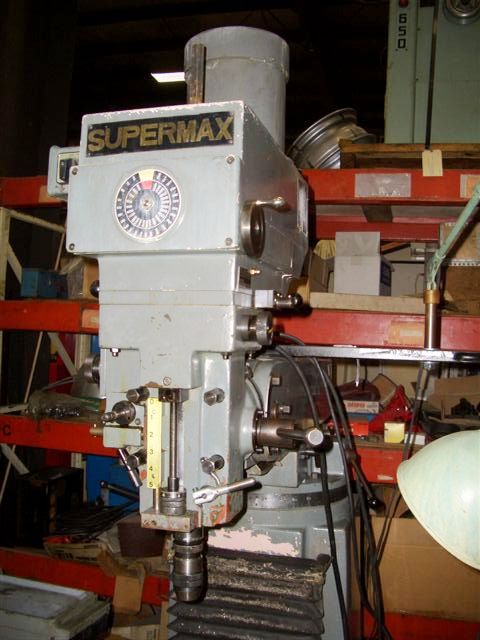

MANUFACTURER SUPERMAX
MODEL YCM-16VS
SERIAL # 06733
NEW (APPROX.) 1986
TABLE SIZE 9" X 48"
LONG. TRAVEL 36"
CROSS TRAVEL 16"
RAM TRAVEL 18"
QUILL TRAVEL 5"
KNEE TRAVEL 16"
SPINDLE NOSE TO TABLE SURFACE 0-19"
SPDL CNTR TO COLUMN SLIDE SURFACE 5 7/16" - 23 7/16"
TABLE SIZE 9" x 49"W
SPINDLE TAPER R-8
SPINDLE SPEEDS (VARY) 60-4200 LOW/HIGH RANGES
QUILL POWER FEED .0017, .0032, .0053 PER REV
EQUIPPED WITH:

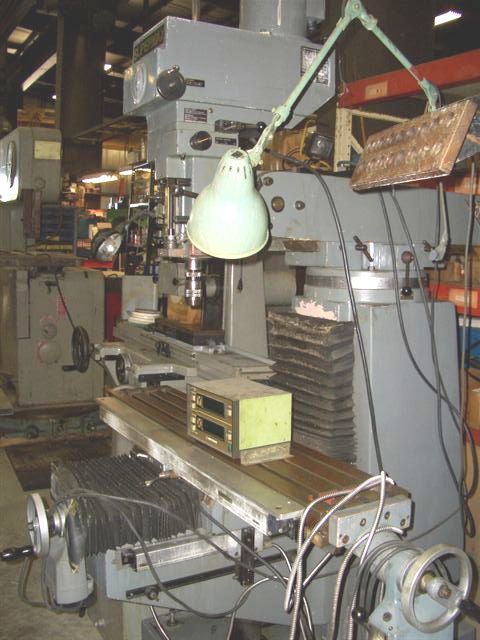

2 AXIS MITUTOYO DIGITAL READOUT
MODEL 100 SERVO FEED ON LONGITUDINAL TRAVEL
MODEL 150 SERVO FEED ON CROSS
ONE SHOT LUBE
VISE
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
