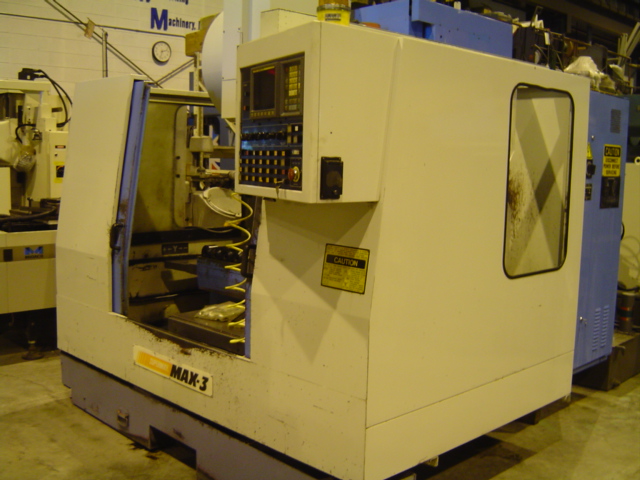

SUPERMAX MAX 3, FANUC OM CTRL, 17 x 33 x 24 TRVLS, 40 TAPER SPINDLE, 24 ATC

GENERAL SPECIFICATIONS:
MANUFACTURER SUPERMAX
MODEL MAX 3
NEW (APPROX.) 1994
X TRAVEL 34"
Y TRAVEL 17.3"
Z TRAVEL 24.8"
SPINDLE NOSE TO TABLE 5.9" - 30.7"
TABLE SIZE 37.4"L x 15.7"W
MAX. WEIGHT ON TABLE 1,100 LBS.
# OF T-SLOTS 3
TAPER SIZE #40 TAPER
SPINDLE SPEED 45 - 6,000 RPM
SPINDLE MOTOR 7.5 HP CONT
10 HP PEAK
TOOL CHANGER CAPACITY 24
ELECTRICS 230 VOLTS

EQUIPPED WITH:

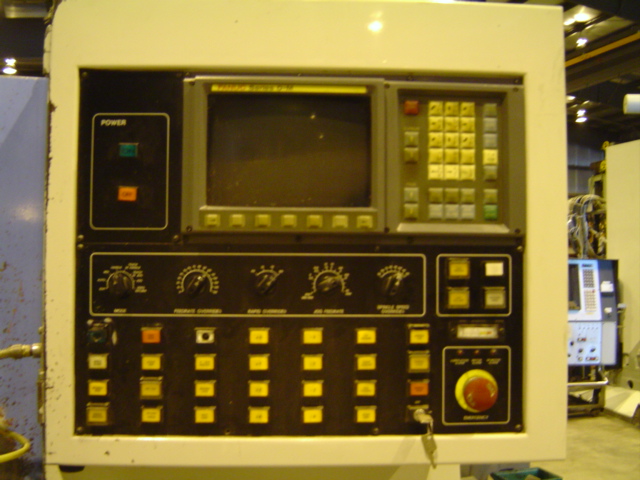

FANUC OM CONTROL
PROGRAMMABLE COOLANT
