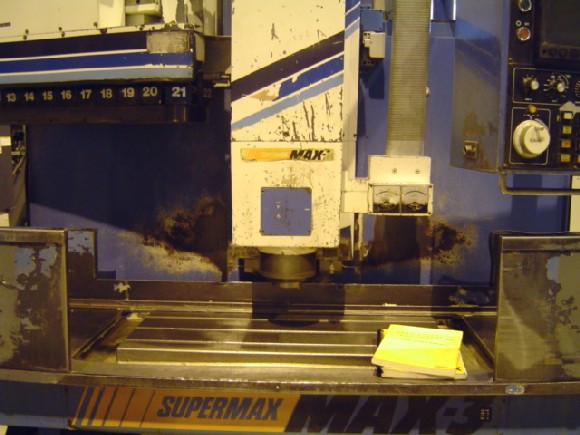

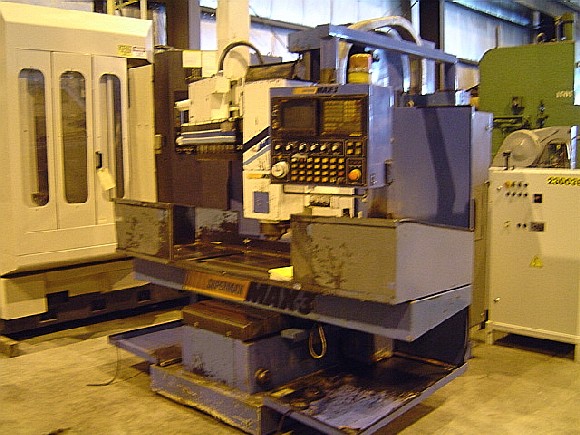

SUPERMAX MAX 3, FANUC 11M, 17 X 34 TRAVELS, 24 ATC, 37 X 16 TABLE, 1986

GENERAL SPECIFICATIONS:
MANUFACTURER SUPERMAX
MODEL YCM-VMC-72A
SERIAL # 08028
NEW (APPROX.) 1986
X TRAVEL 33.9"
Y TRAVEL 17.3"
Z TRAVEL 24.8"
SPINDLE NOSE TO TABLE SURFACE 5.9" - 30.7"
SPDL CNTR TO COLUMN SLIDE SURFACE 16.9"
TABLE SIZE 37.4"L x 15.7"W
T-SLOTS 11/16"W x 3" x 5" DIST.
TABLE MAX. LOAD CAPACITY 1,100 LBS.
X & Y RAPID FEEDS 472 IPM
Z RAPID FEED 315 IPM

EQUIPPED WITH:
FANUC 11M CONTROL
24 AUTOMATIC TOOL CHANGER TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
