SUPERMAX MAX 3, FANUC 0M, 17 X 34 TRAVELS, 24 ATC, 37 X 16 TABLE, 1990

GENERAL SPECIFICATIONS:
MANUFACTURER SUPERMAX
MODEL YCM-VMC-72A
SERIAL # 907976
NEW (APPROX.) 1990
X TRAVEL 33.9"
Y TRAVEL 17.3"
Z TRAVEL 24.8"
TABLE SIZE 37.4"L x 15.7"W
T-SLOTS 11/16"W x 3" x 5" DIST.
TABLE MAX. LOAD CAPACITY 1,100 LBS.
X & Y RAPID FEEDS 472 IPM
MAXIMUM RPM 8000
SPINDLE TAPER 40
Z RAPID FEED 315 IPM

EQUIPPED WITH:

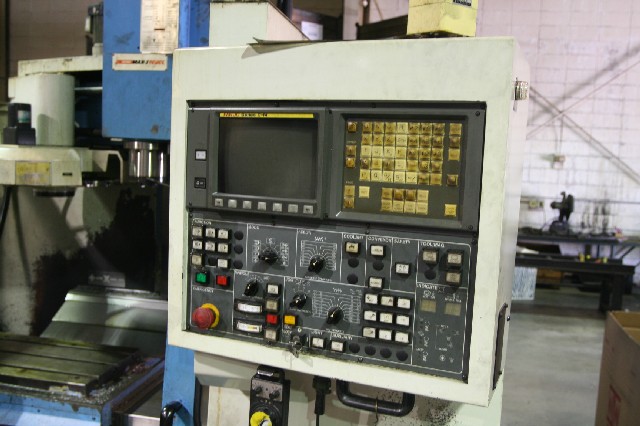

FANUC 0M CONTROL
24 AUTOMATIC TOOL CHANGER
CHIP CONVEYOR WITH BUILT IN COOLANT SYSTEM
WIRED 220V 3 PHASE TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
