Specifications
Equipped With
GENERAL SPECIFICATIONS:

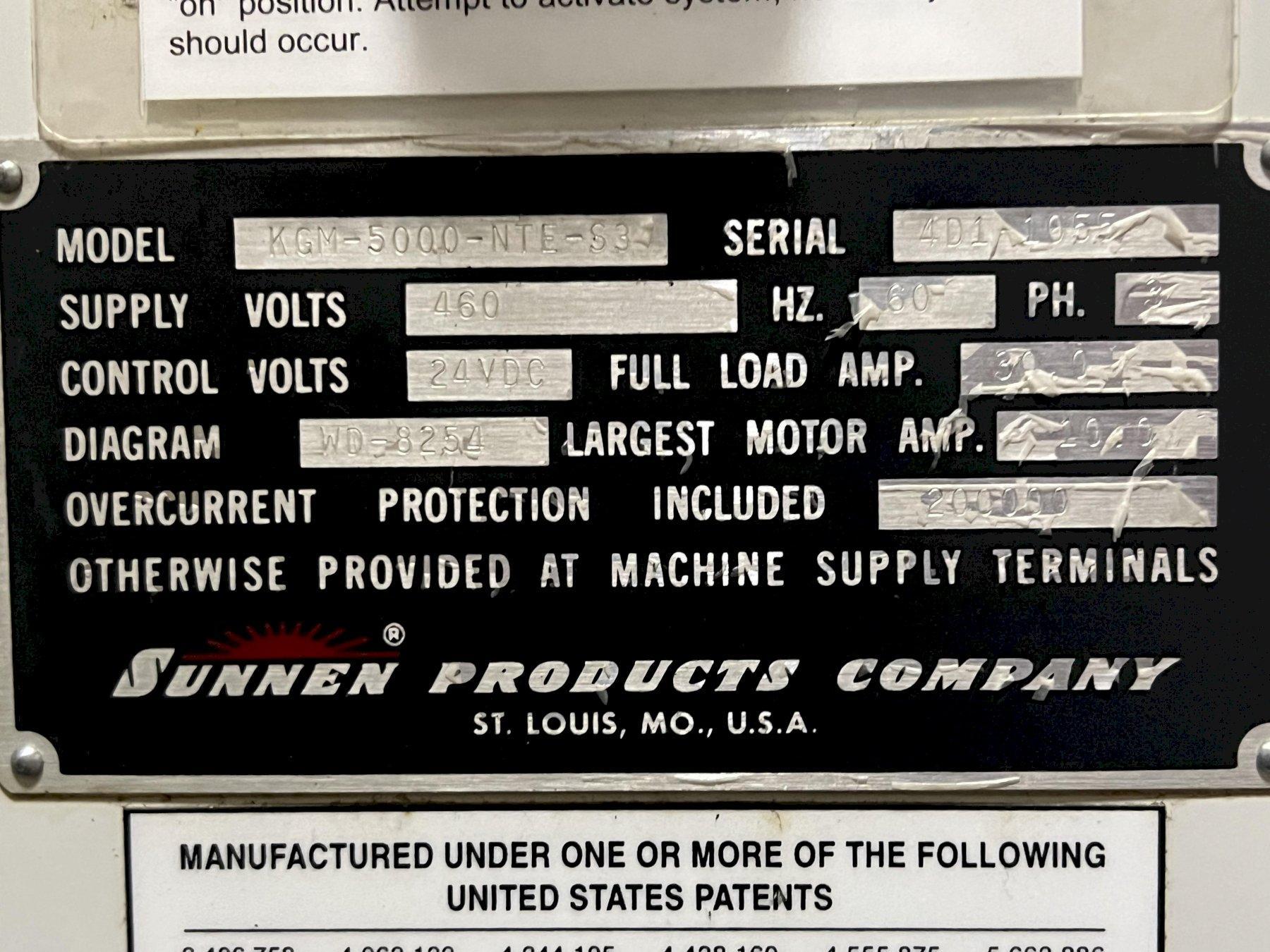

MANUFACTURER....................... SUNNEN

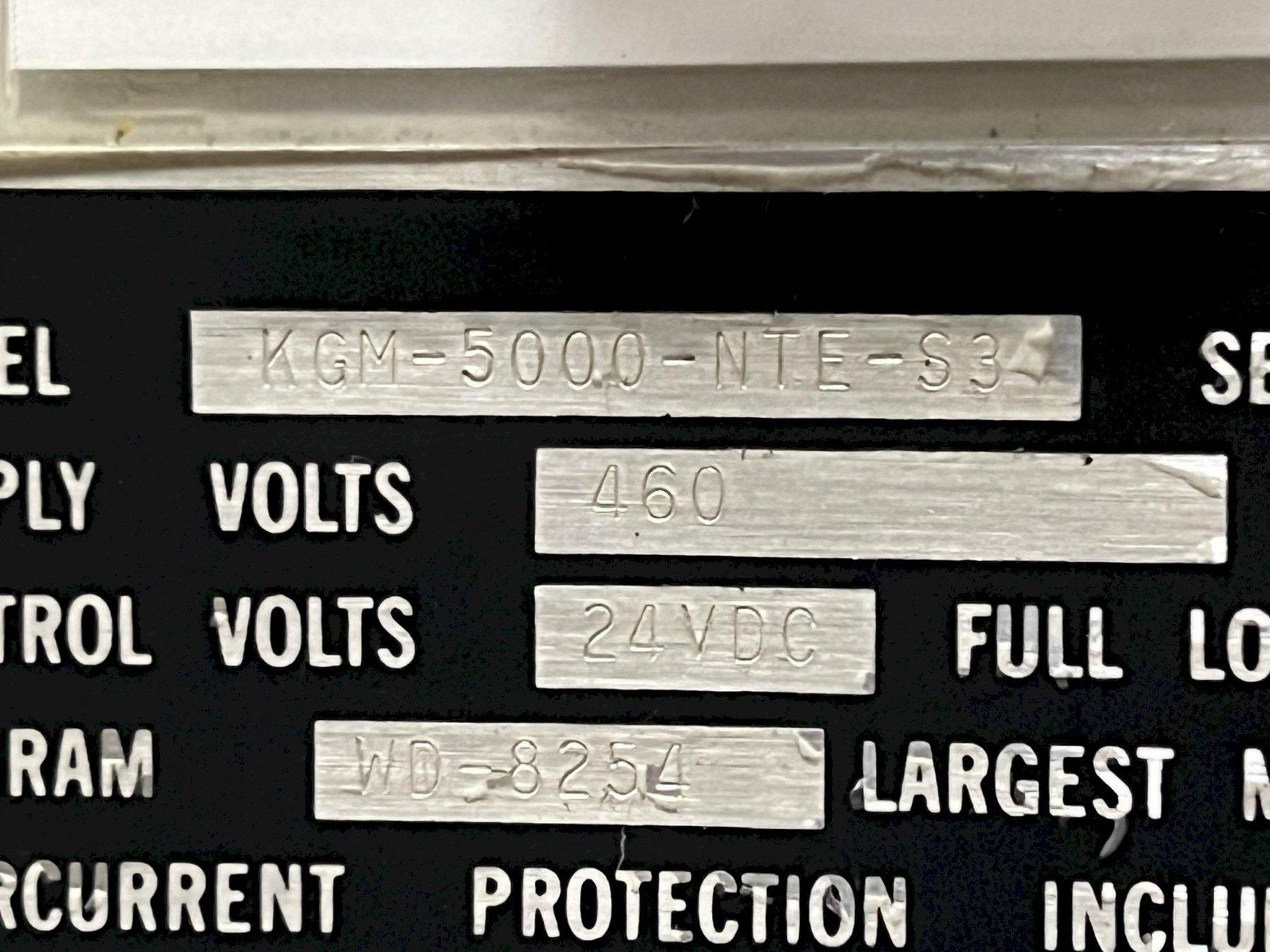

MODEL.............................. KGM5000-NTE-S3-094

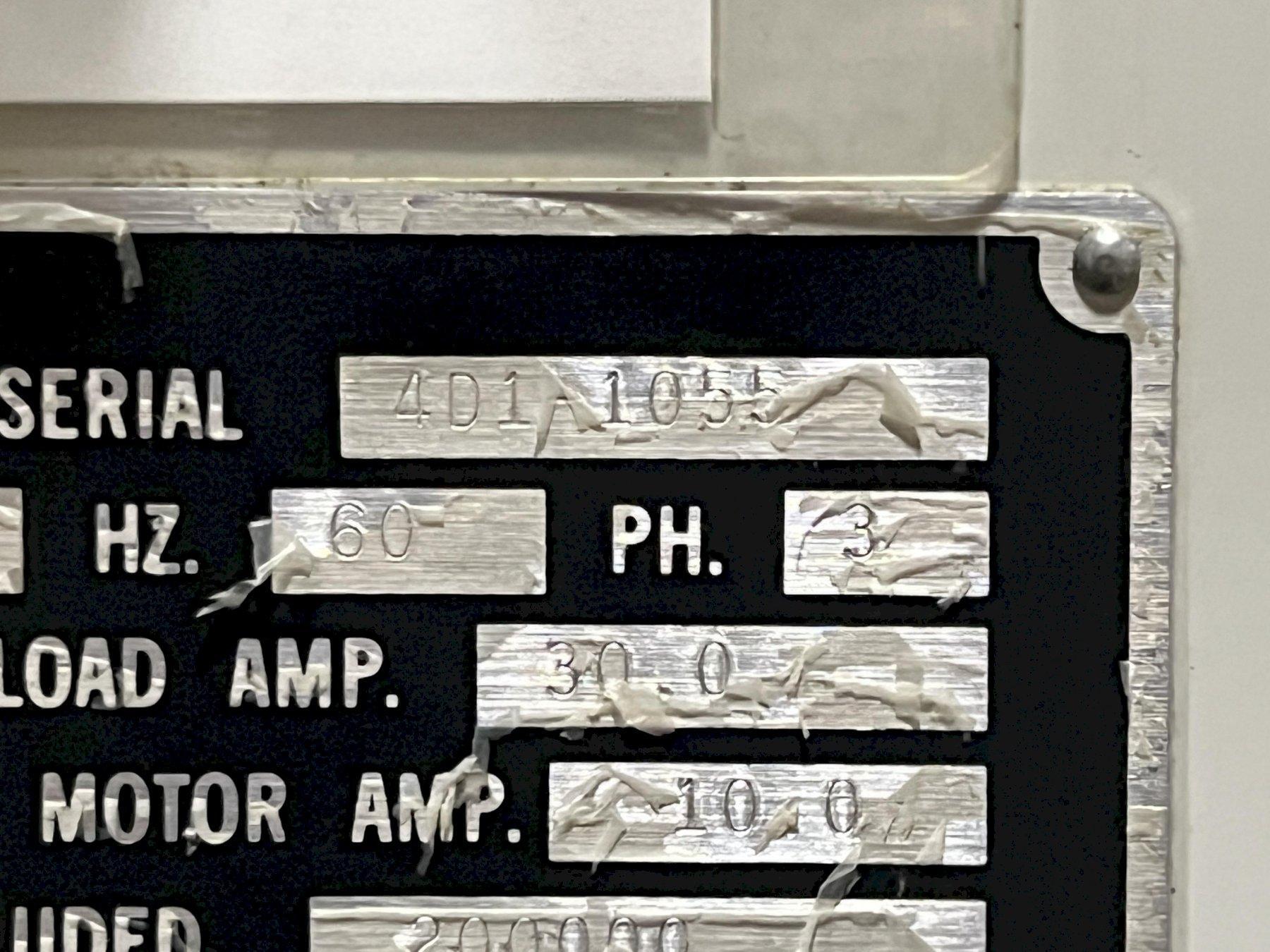

SERIAL NUMBER...................... 4D1-1055
AGE................................ 2006
DIAMETER RANGE..................... .153 TO 1.260 INCHES FOR CGT TOOLING
WORKPIECE.......................... .31 TO 6 INCHES
MAX. WORKPIECE WEIGHT.............. 4.5 LBS
SPINDLE SPEED ..................... 257 TO 3700 RPM VARIABLE
STROKE RATE ....................... 33 TO 500 SPM VARIABLE
VOLTAGE............................ 400/460
MACHINE DIMENSIONS................. 116" X 119" X 72"
WEIGHT............................. 3500 LBS
EQUIPPED WITH:
AUTOMATIC SETUP:SPINDLE SPEED, STROKE SPEED, STROKE LENGTH, FEED RATE, AND SPARKOUT
AUTO OR CONTINUOUS
SET UP FOR KOSS GRINDING SYSTEM TOOLING
WINDOWS NT OPERATING SYSTEM FOR WITH MENU FOR EASY SETUP AND OPERATION BY UNSKILLED OPERATORS
COOLANT OR OIL SYSTEM

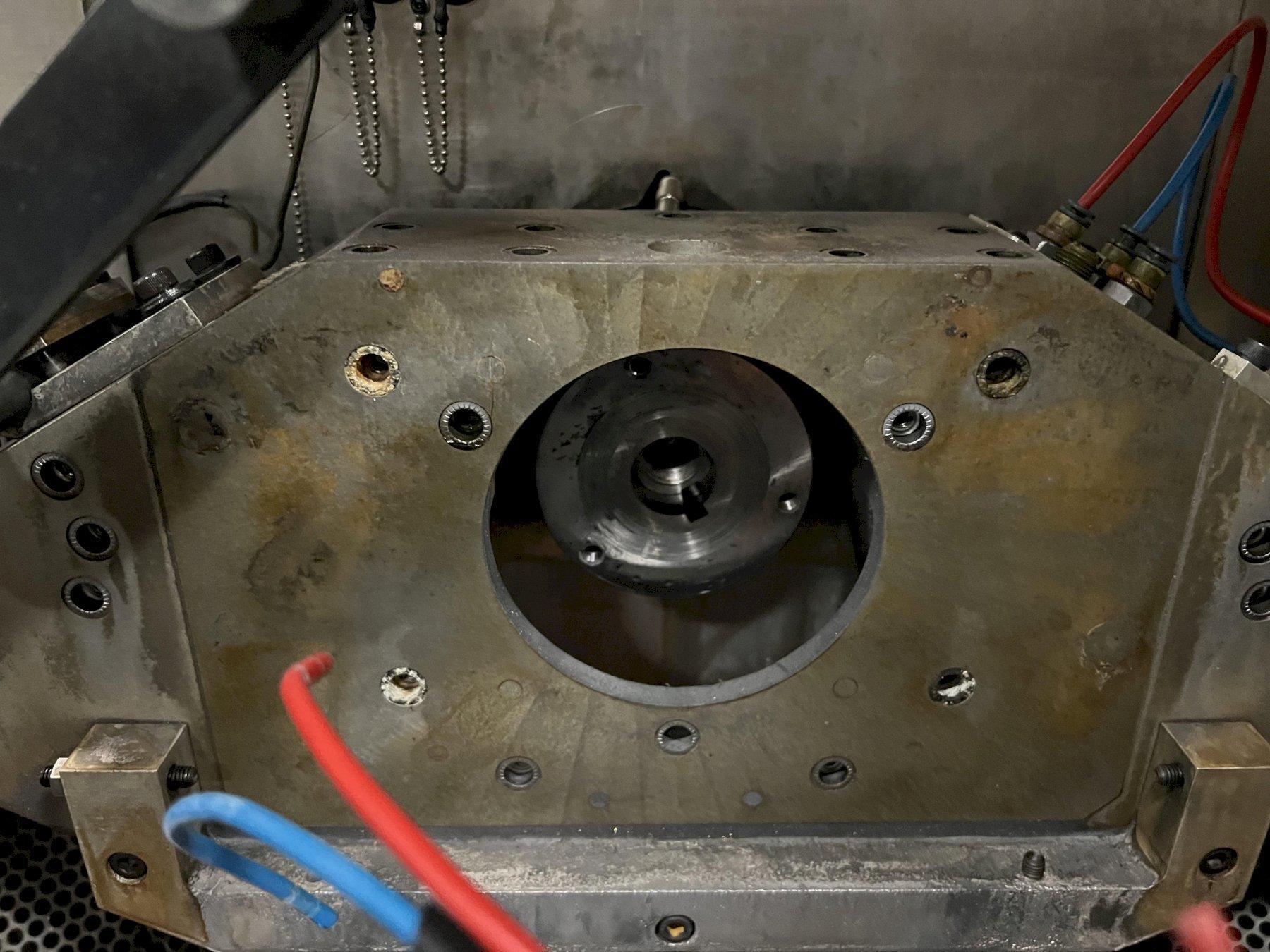

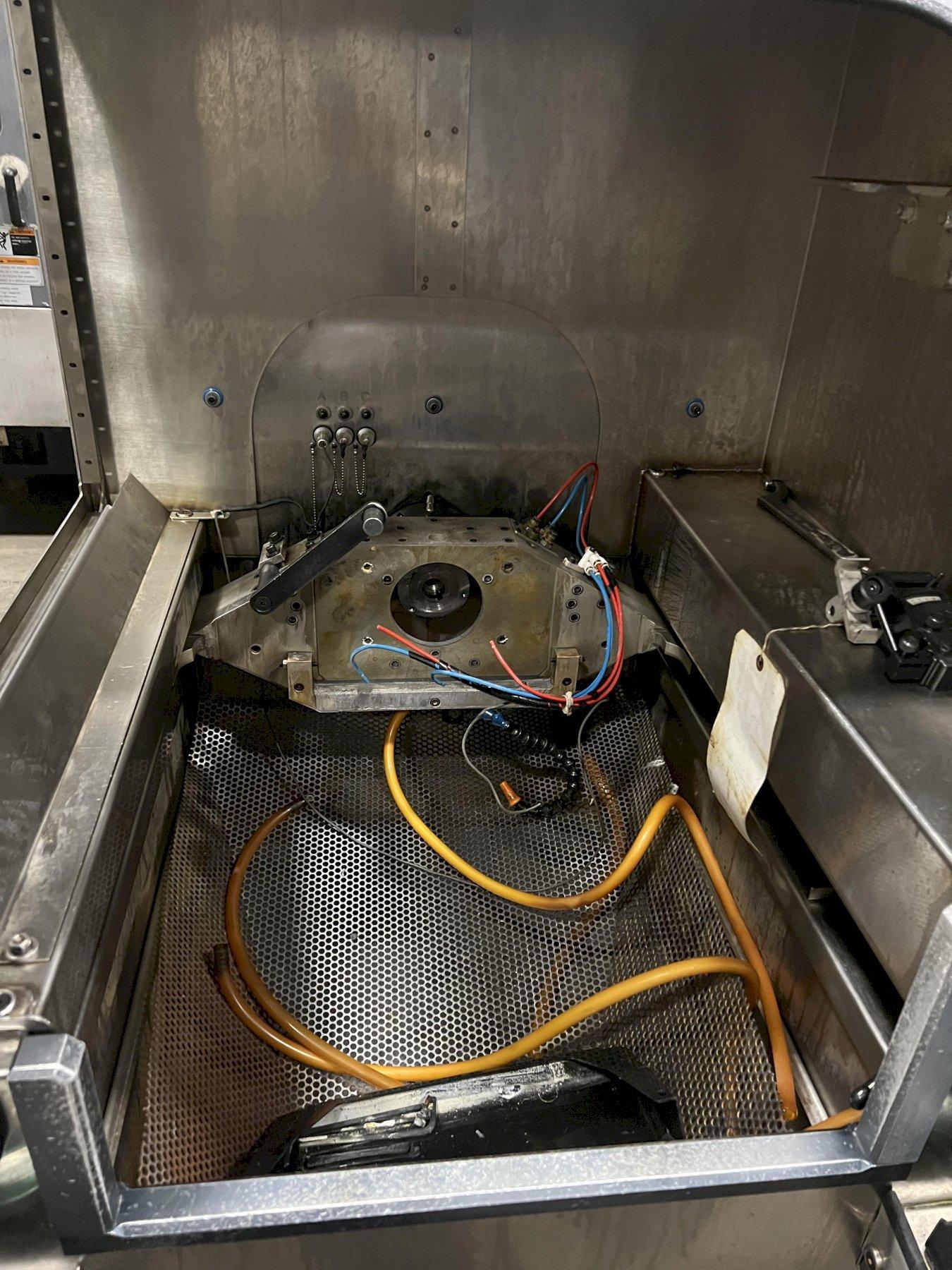

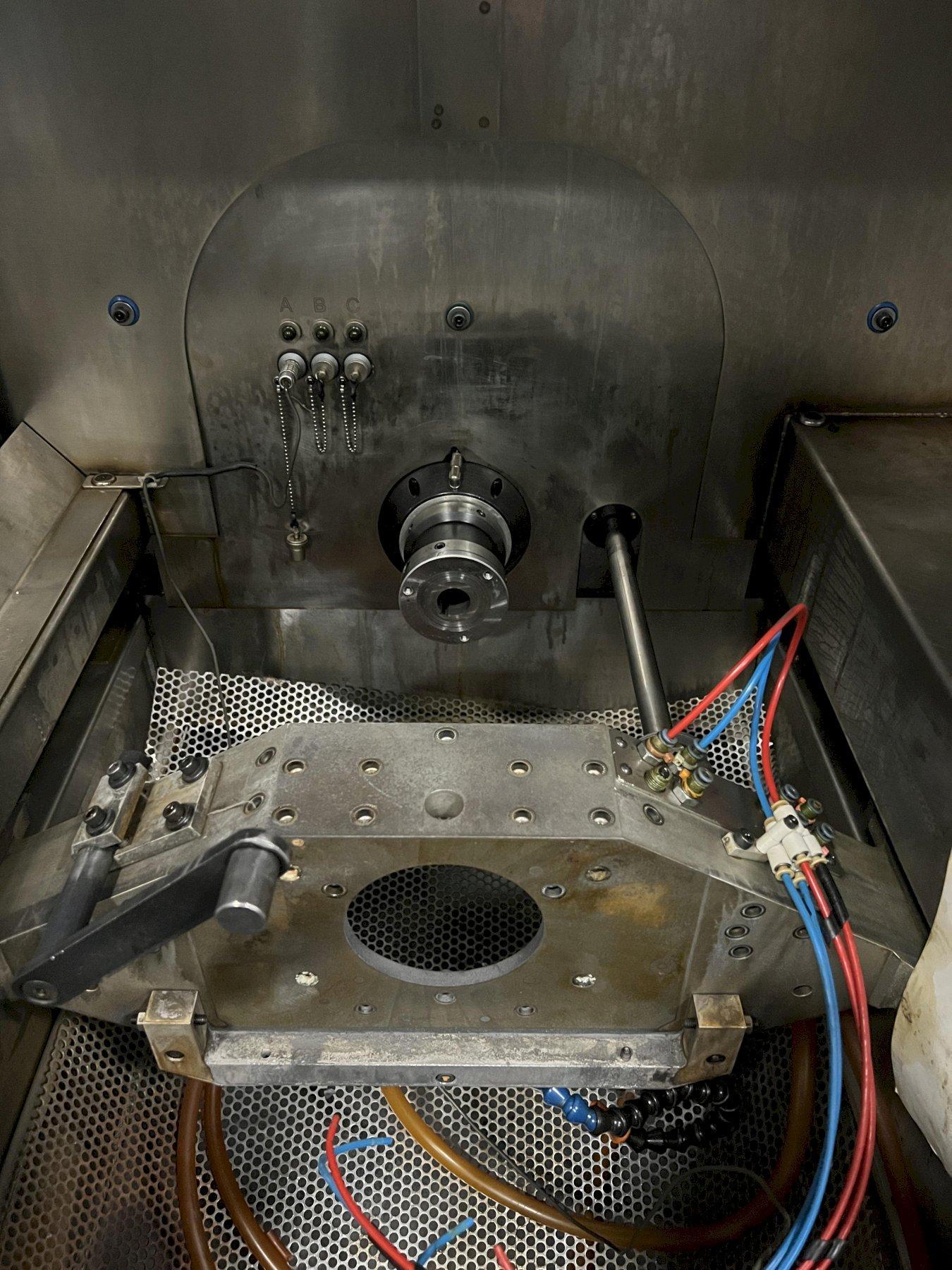

STAINLESS STEEL WORK AREA
