GENERAL SPECIFICATIONS:

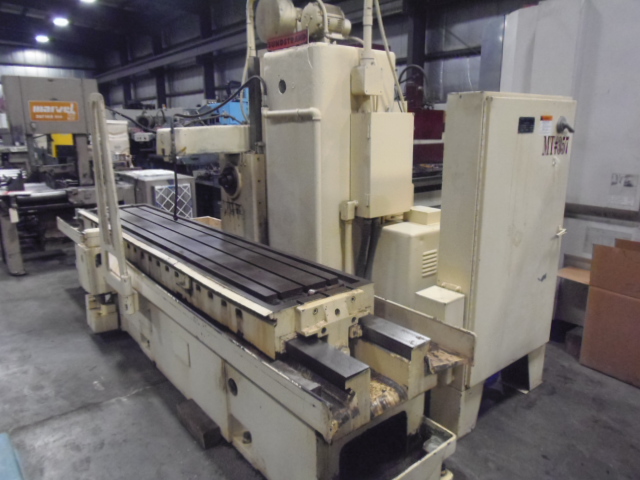

MAKE:........................ SUNDSTRAND
MODEL:....................... C-4-248-RIGID MILL
SERIAL:...................... C4-16
AGE (APPROX):................ 1966

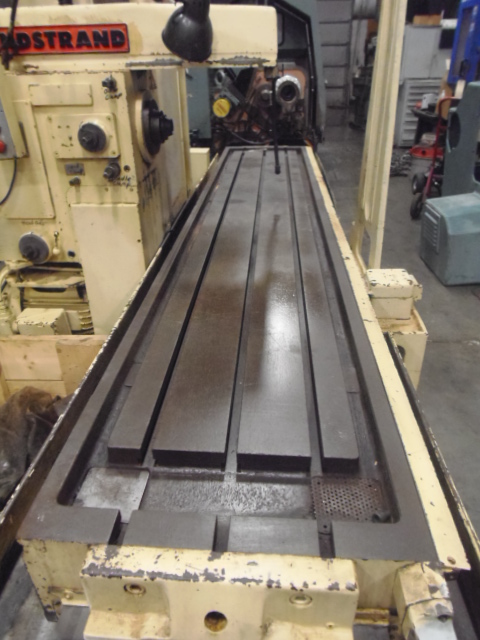

TABLE:....................... 24" X 132"
SPINDLE MOTOR................ 30 HP
SPINDLE TAPER................ 50 N.M.T.B.A
SPINDLE SPEEDS (CHANGE GEARS) 30-752
FEEDS........................ .38 - 38 IPM
TRAVEL (VERTICAL COLUMN)..... 40"
TRAVEL (TABLE STROKE)........ 96"
EQUIPPED WITH:

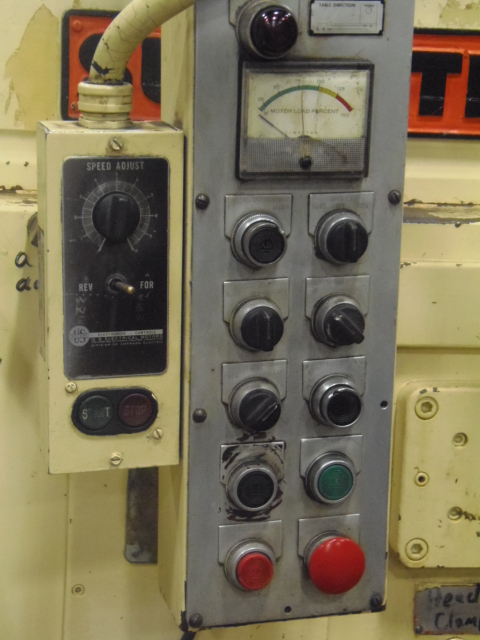

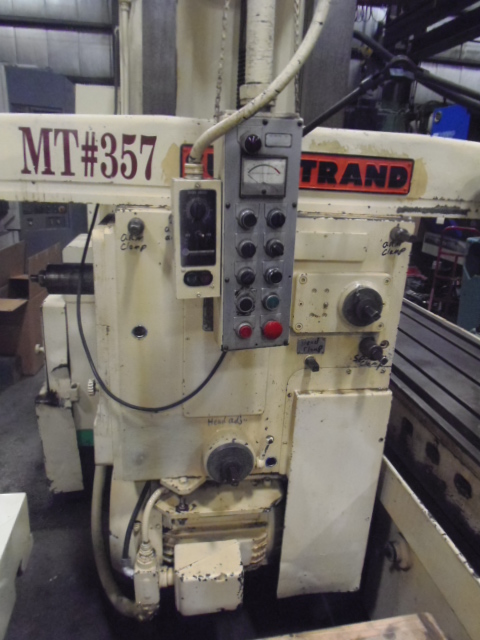

PENDANT CONTROL
VARIABLE SPEED CONTROL
COOLANT
POWER HEAD UP AND DOWN
SPINDLE AUTOMATIC OR CONTINUOUS
RAPIDS AND FEEDS
7 FEED GEARS 19T,25T,31T,37T,43T
4 SPEED GEARS 29T,41T,52T,64T

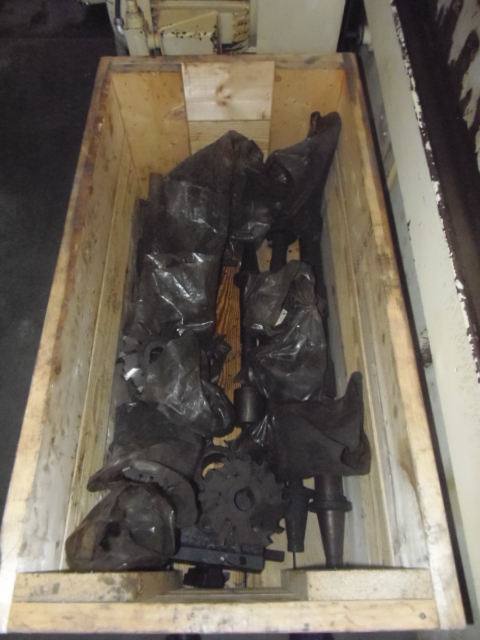

BOX OF TOOLING
