26" x 120" SUMMIT ENGINE LATHE, MODEL 26-4X120, 4" SPINDLE BORE, INCH/METRIC THREADING, STEADY REST, 3 JAW AND 4 JAW CHUCKS

Brand
SUMMIT

Model
26-4X120

Type
Lathes, Engine

Stock #
10848

Condition
Used

Year

Request a Quote

Specifications

Swing in Gap 36.5 inches
Spindle Speed RPM 1010
Main Motor 15
Longitudinal Feeds 70
Cross Feeds 70
Swing 26 inches
Centers 120 inches
Spindle Bore 4 inches
Power 15 horsepower
RPM 1010
Swing Over Cross Slide 16.5 inches
CNC Control no
Weight 13000 pounds

Equipped With

GENERAL SPECIFICATIONS:

MAKE.................... SUMMIT
MODEL................... 26-4"
SERIAL NUMBER........... 87113
AGE (YEAR)..............
SWING................... 26"
SWING OVER CROSS SLIDE.. 16.5"
SWING OVER GAP.......... 36.5"
LENGTH OF GAP........... 15"
SPINDLE SPEEDS.......... (16) 14-1010 RPM
SPINDLE NOSE............ D1-8
HEADSTOCK CENTER........ #5 MT

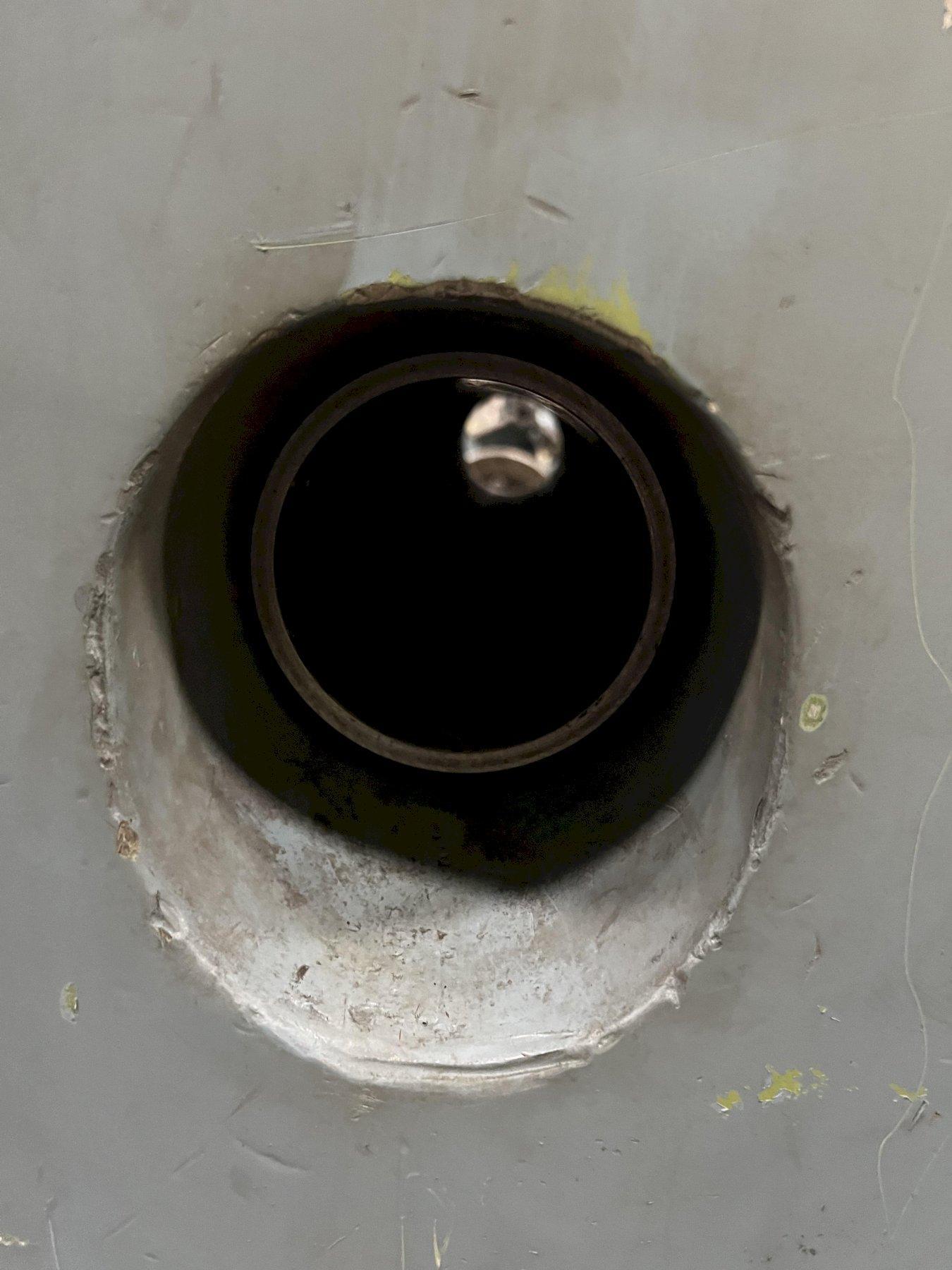

HOLE THRU SPINDLE....... 4"

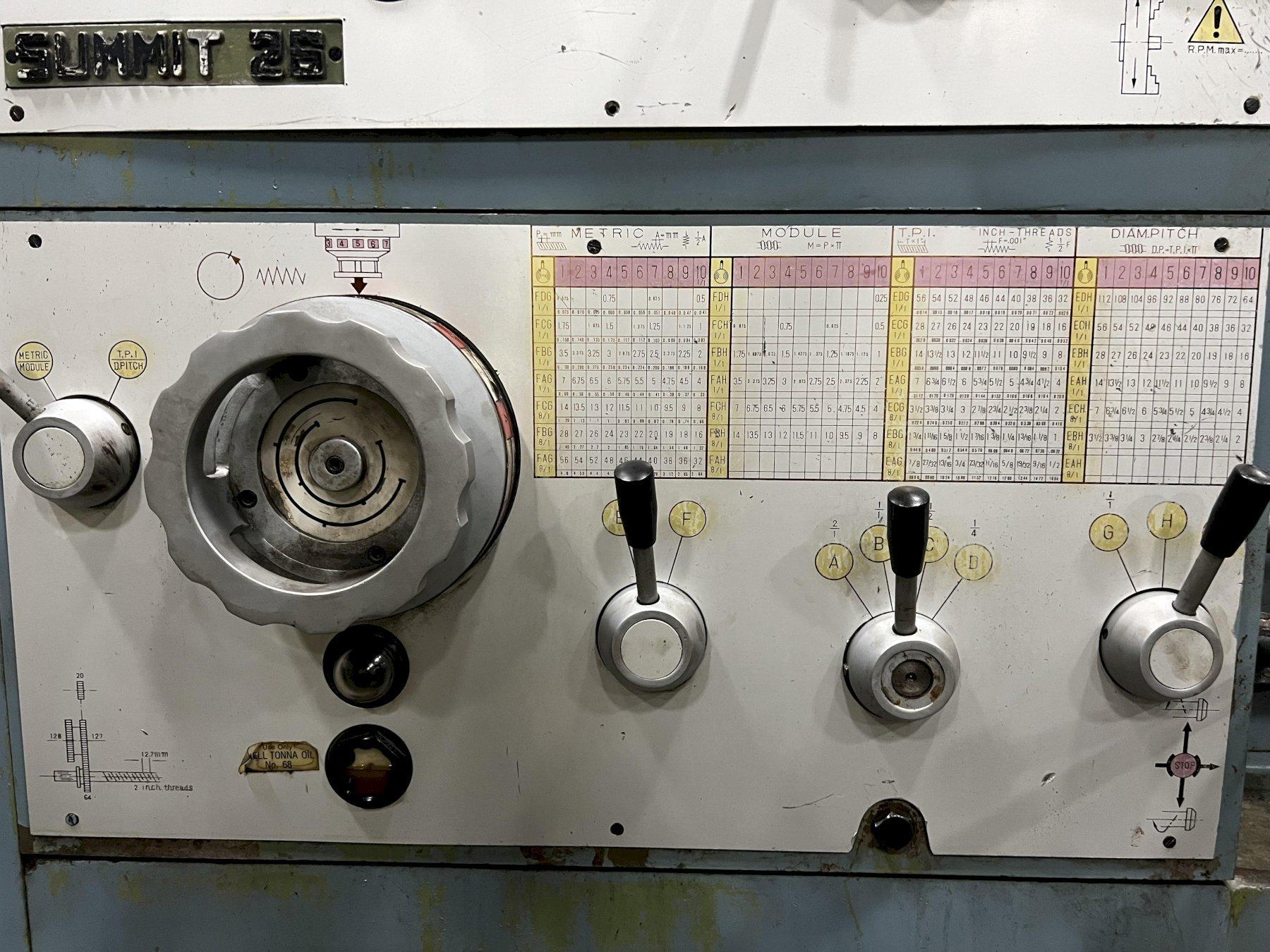

THREADS PER INCH........ (70) .5-56
METRIC THREADS.......... (61) .5-56
LONG. FEEDS............. (70) .0014-.1664
CROSS FEEDS............. (70) .0007-.0830
CROSS SLIDE TRAVEL...... 19"
TAILSTOCK BARREL TRAVEL. 7.5"
TAILSTOCK CENTER........ #5 MT

EQUIPPED WITH:

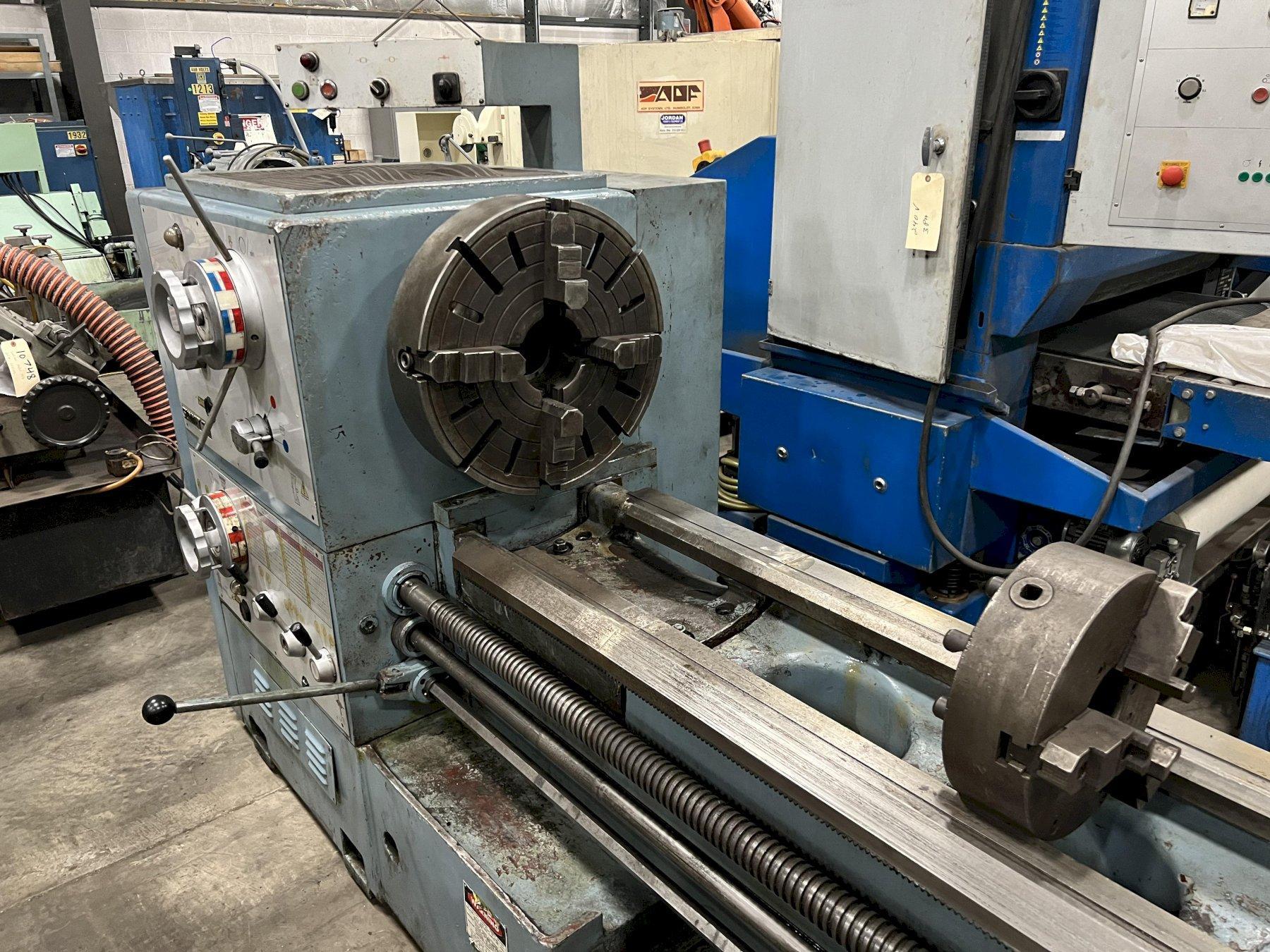

12" 3 JAW CHUCK

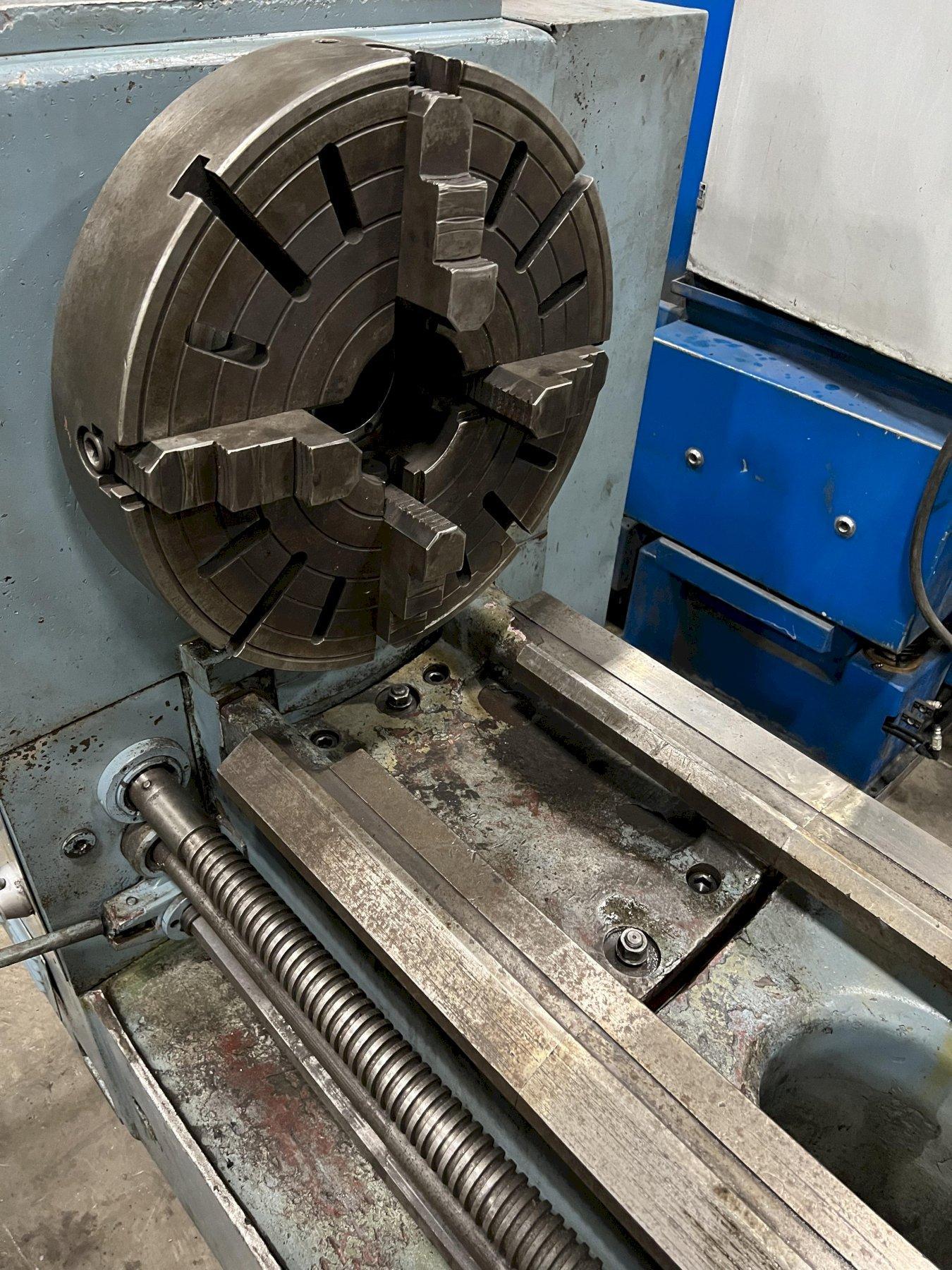

20" 4 JAW CHUCK

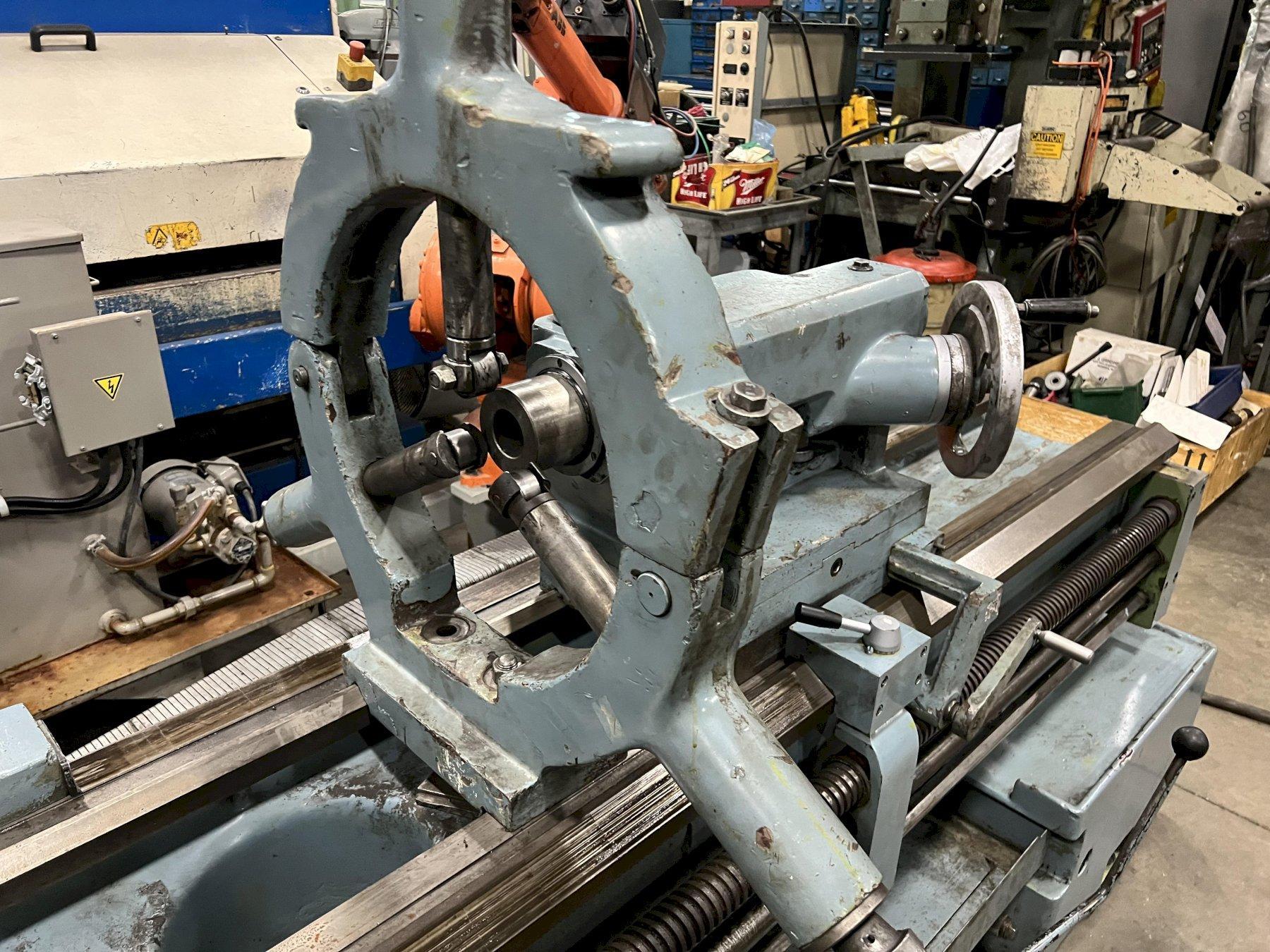

STEADY REST

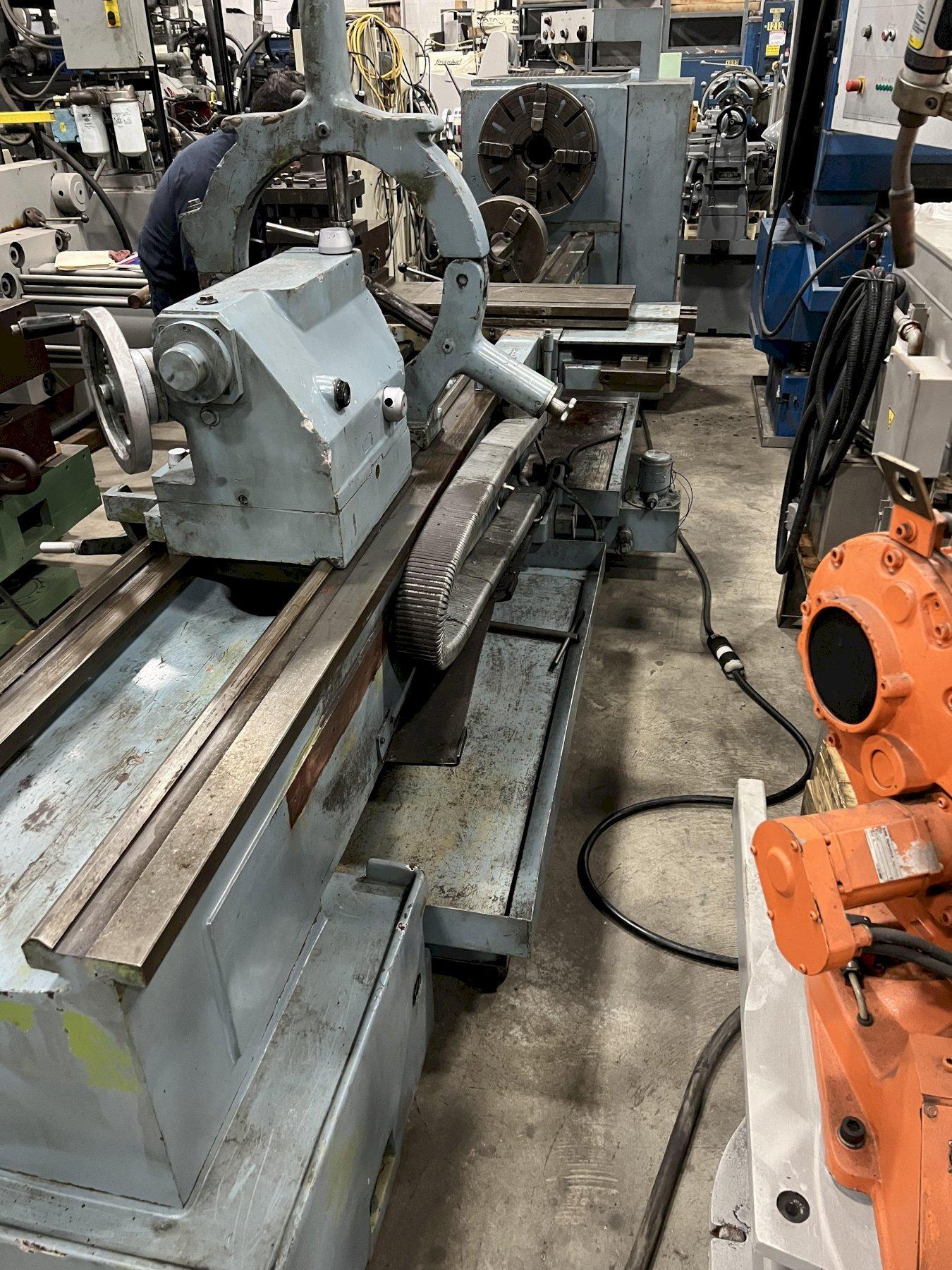

TAILSTOCK
TAPER ATTACHMENT

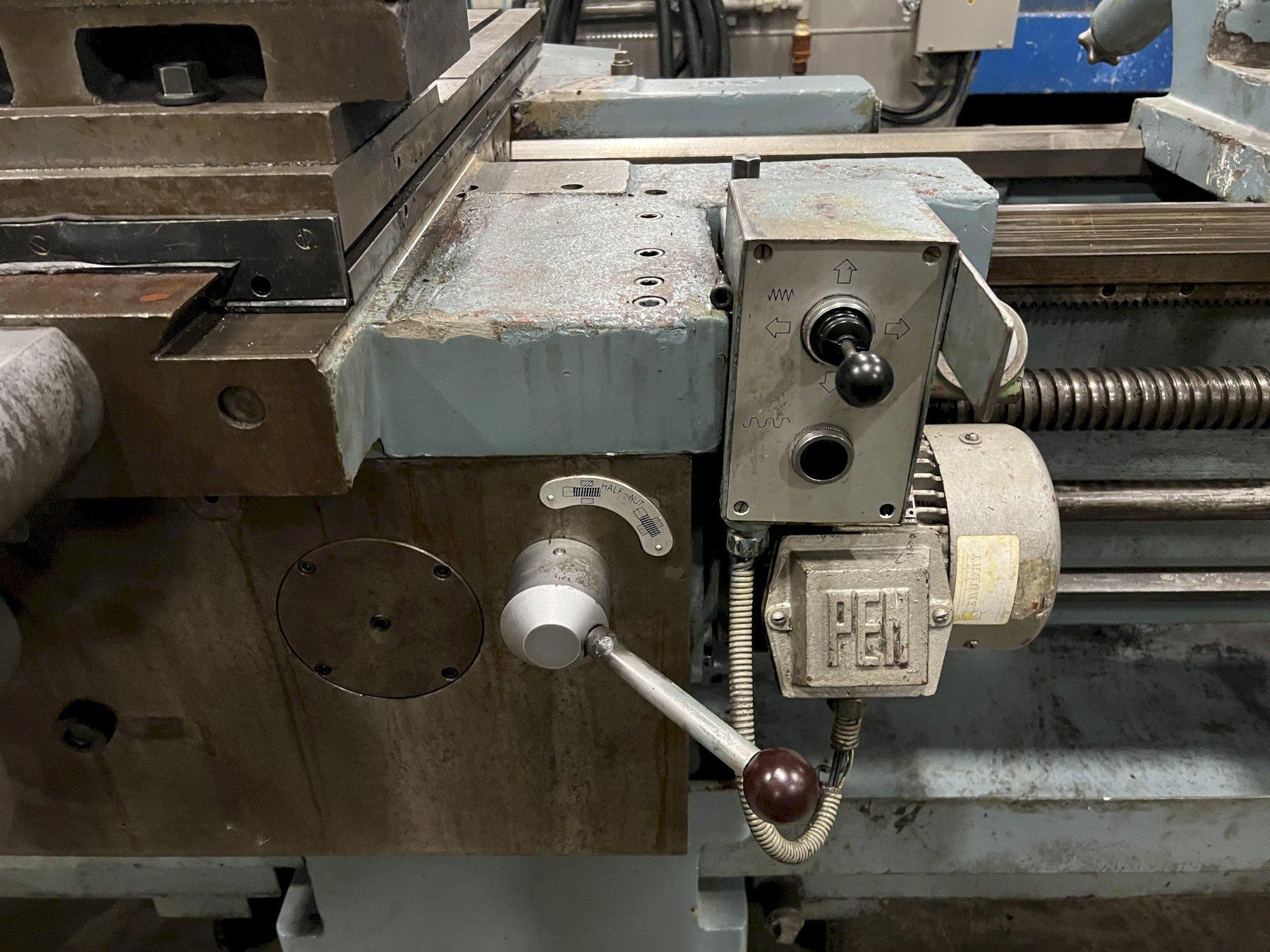

RAPIDS


SPECIFICATIONS SUBJECT TO VERIFICATION
