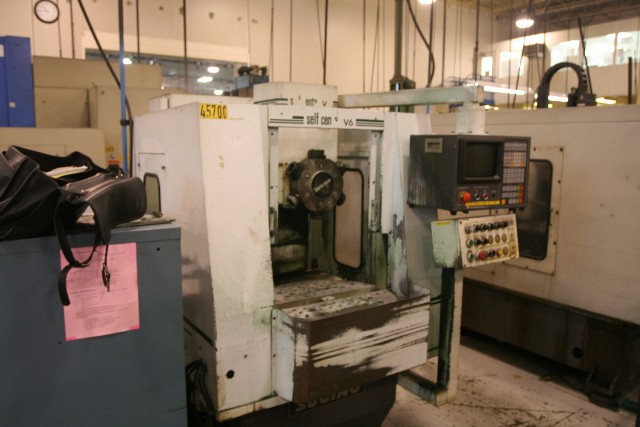

SUGINO SCV-622, 19.68" X 11.81" TABLE, 6000 RPM, 3HP, BT 30 TAPER, 6 TOOL TURRET

GENERAL SPECIFICATIONS:
MODEL SELF CENTER V6
TABLE SIZE 19.68" X 11.81"
TABLE LOAD CAPACITY 660 LBS
TRAVELS (X) 11.81"
(Y) 9.84"
(Z SPINDLE) 9.84"
DISTANCE SPINDLE TO COLUMN 19.09"
RAPIDS (X,Y,Z) 780 IPM
SPINDLE TAPER BT 30
SPINDLE SPEEDS 6,000 RPM
SPINDLE DRIVE MOTOR 3 HP
TOOL TURRET 6 TOOLS
FLOOR SPACE 65" X 93"
HEIGHT 77"
WEIGHT 3520 LBS

EQUIPPED WITH:
FANUC OM
6 POSITION TOOL CHANGER
