Specifications
Equipped With

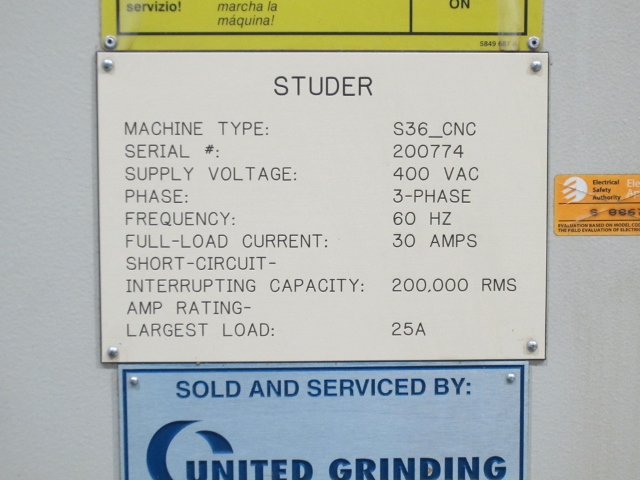

GENERAL SPECIFICATIONS:
MANUFACTURER..................... STUDER
MODEL............................ S36
AGE.............................. 2001
SERIAL NUMBER.................... 200774
CENTER HEIGHT.................... 6.9"
MAX. GRINDING DIAMETER........... 12."
MAX. GRINDING LENGTH............. 19.7"
DISTANCE BETWEEN CENTERS......... 40"
MAX. (Z) TRAVEL.................. 25.6"
SPEED................... .04"-394 IPM
MAX WORKPIECE WEIGHT............. 287 LBS
MAX (X) TRAVEL................... 10.5"
SPEED.................... .04 -197 IPM

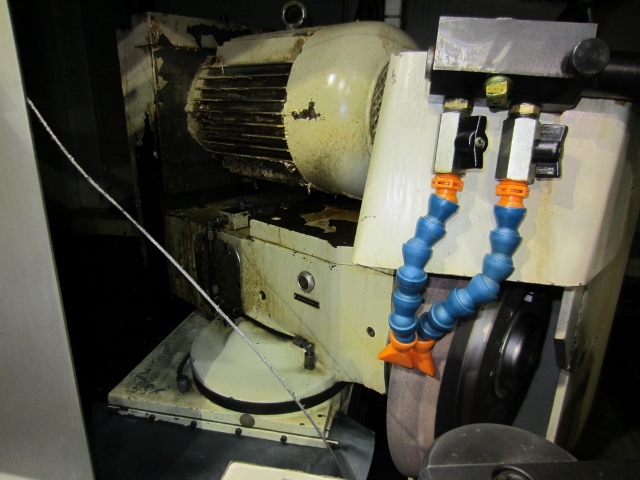

WHEELHEAD
ANGLE................... 30 DEGREES
SWIVEL RANGE............ +-8.5 DEG.
DRIVING POWER........... 10/15 HP
GRINDING WHEEL.......... 20" X 3.97" X 8"
WORKHEAD
SPEED RANGE............. 30-1000 RPM
TAPER................... MT5
TAILSTOCK
TAPER................... MT4
TRAVEL.................. 1.37"
EQUIPPED WITH:

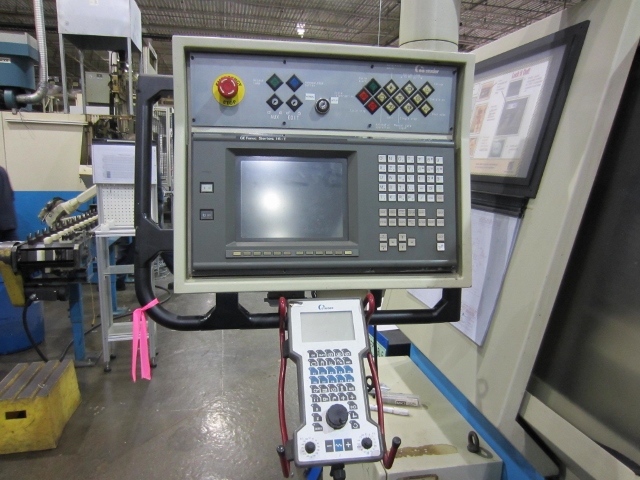

FANUC 16iTB CONTROL WITH PICTOGRAMMING
MOVOMATIC (JENOPTIK) LENGTH POSITION GAUGE USED TO SET PART POSITION FOR EACH CYCLE
MOVOMATIC OD GAUGE FOR MEASURING DIAMETER DURING CYCLE
INTERNAL COOLANT SYSTEM ON TAILSTOCK WHICH POURS ONTO TAILSTOCK CYLINDER
BODY, LINES CAN BE CONNECTED TO DIRECT COOLANT TO THE TAILSTOCK CENTER
POINT IF USING DEAD CENTER AND DRESSING DIAMOND
AIR RIDE ASSIST ON WORKHEAD AND TAILSTOCK
AUTO WHEEL BALANCING PER COOLANT IN WHEEL HUB
ACOUSTIC TOUCH FOR WHEEL TOUCH-OFF

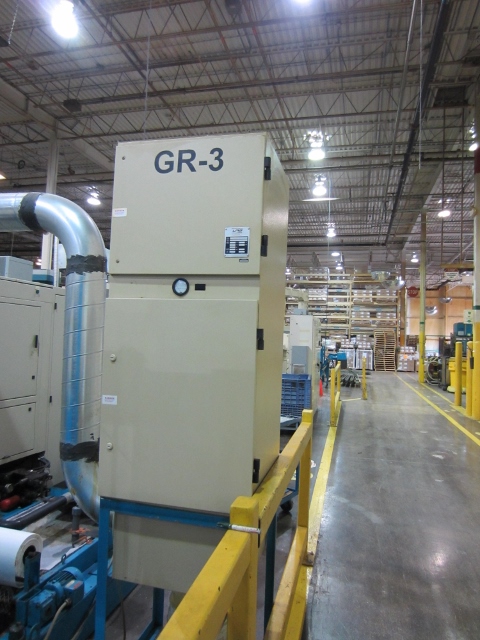

DUST COLLECTION
CYCLOTRON COOLANT/FILTRATION SYSTEM
