Specifications
Equipped With
GENERAL SPECIFICATIONS:

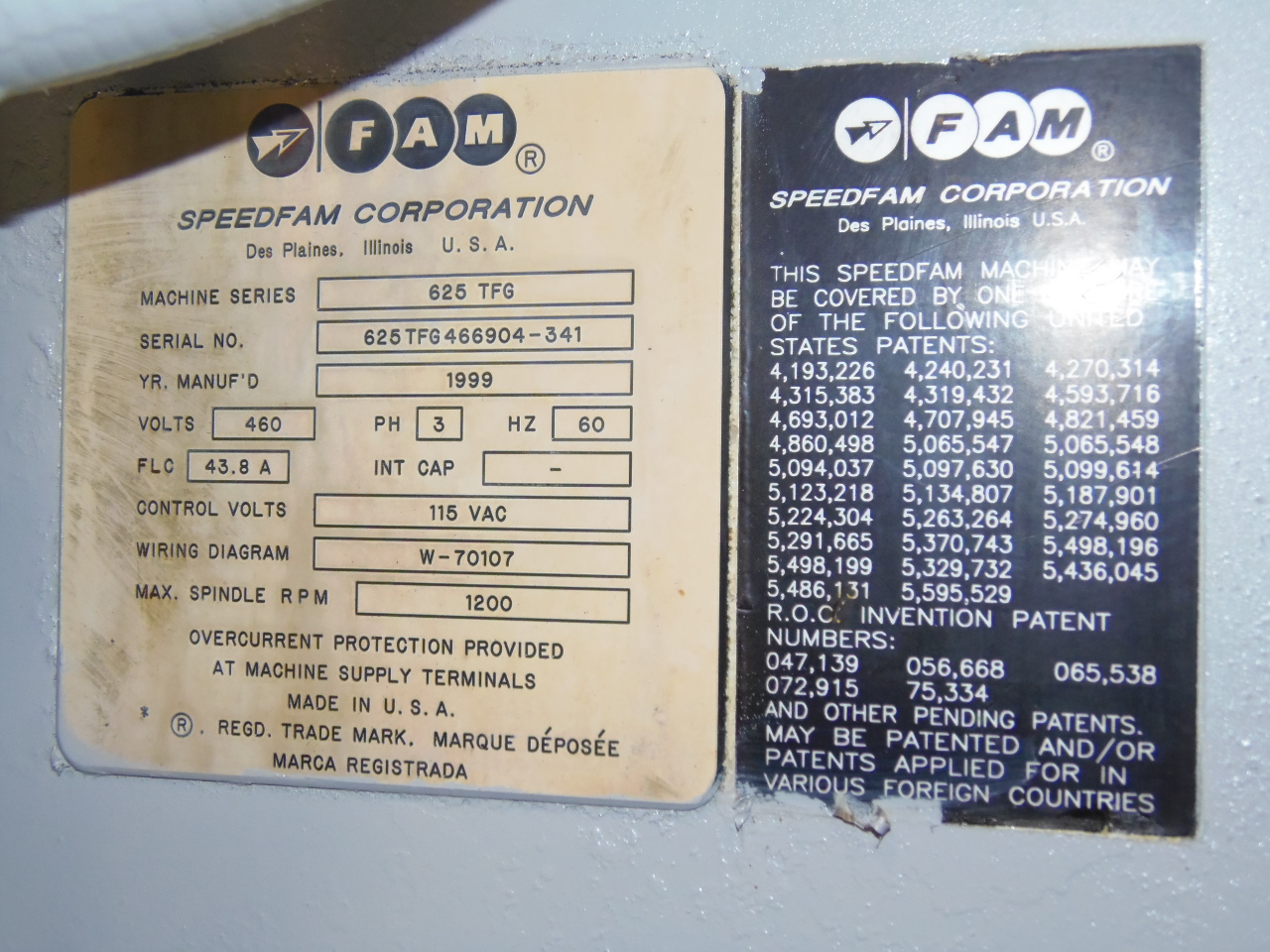

MANUFACTURER....................... SPEEDFAM
MODEL.............................. 625TFG
SERIAL NUMBER...................... 625TFG-341
NEW................................ 6/1999
PARTS CAPACITY
MINIMUM......................... 1/2" WIDE X .040" THICK
MAXIMUM......................... 6" WIDE X 6" THICK
PARTS LENGTH....................... 1/2" TO CONTINUOUS
STOCK REMOVAL PER PASS............. UP TO .100"
GRINDING WHEEL SIZE................ 18"DIA. X 3" THICK X 14" I.D.
GRINDING WHEEL SPEED............... 1200 RPM

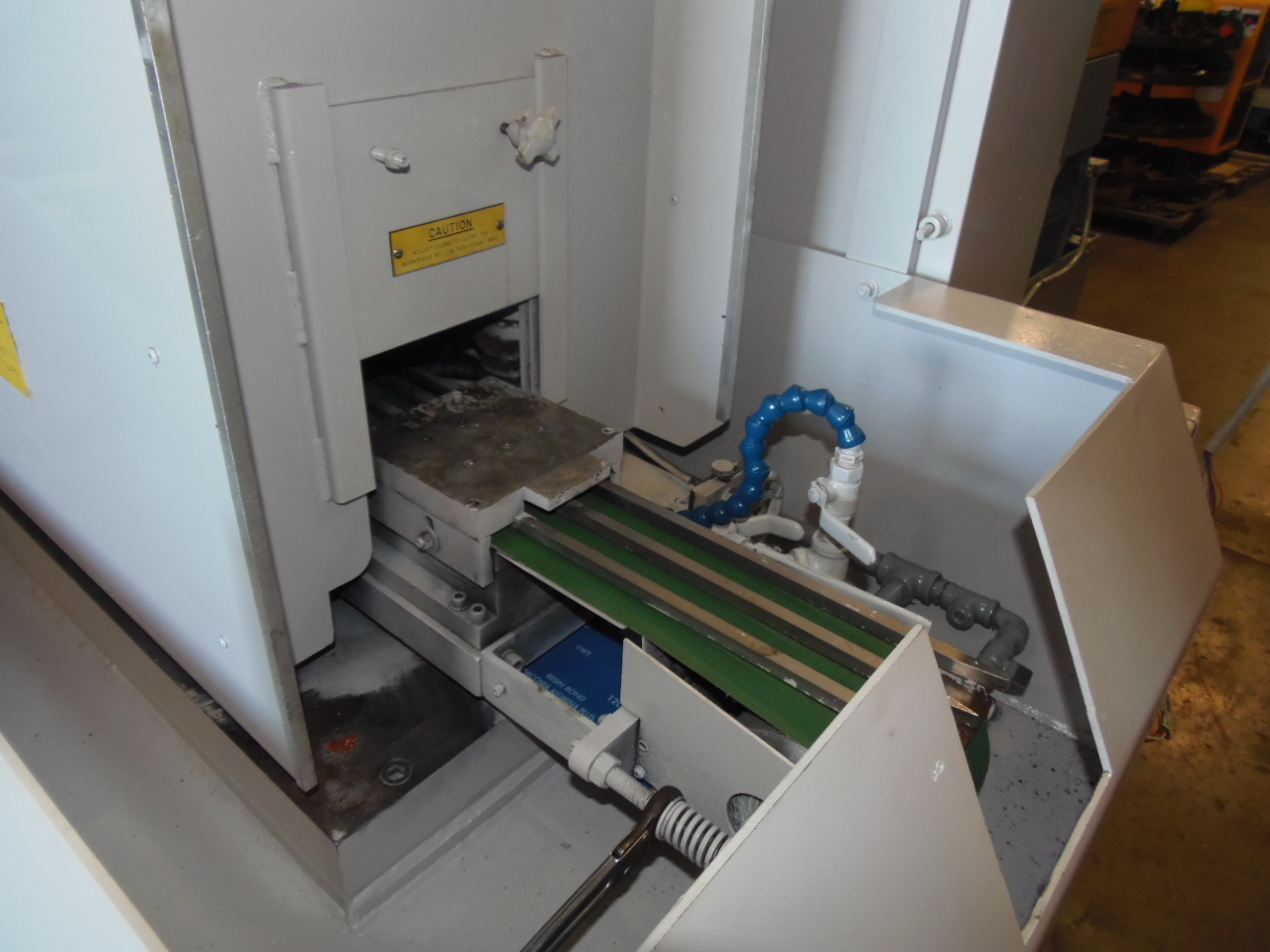

MAGNETIC CHUCK DIMENSIONS.......... 6" X 36" PERMANENT
FEED DRIVE SPEED................... 0 - 36 FPM
FEED DRIVE CONTINUOUS BELT SIZE.... 6" WIDE X 132" LONG
EQUIPPED WITH:

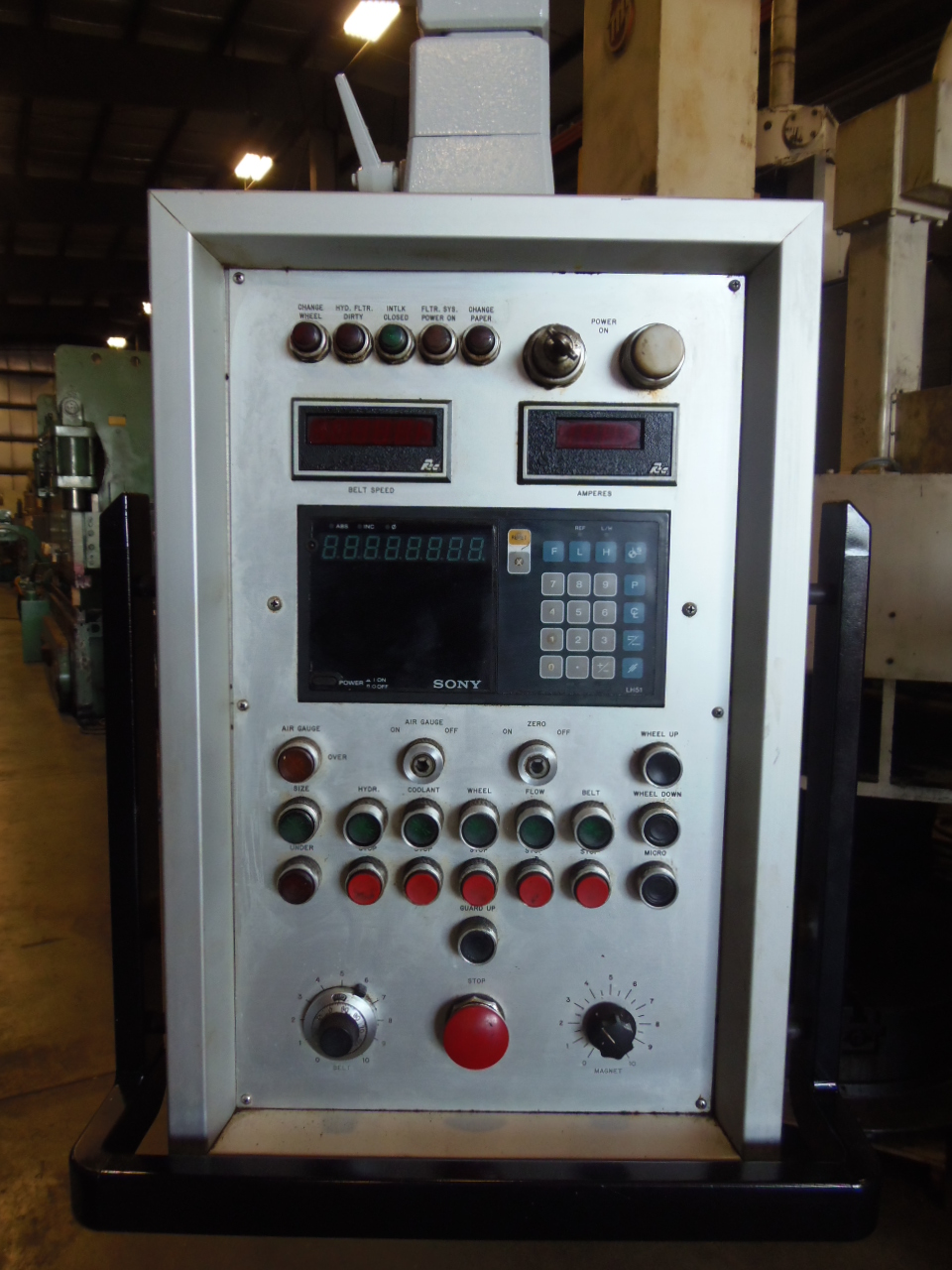

OPERATOR CONTROL WITH ALL FUNCTIONS
AIR GAUGE SIZING
CONTINUOUS AUTOMATIC WHEEL WEAR COMPENSATION
MISC. SPARE PARTS
MISC. MANUALS
APPROXIMATE DIMENSIONS 82" L/R X 57" F/B X 85" HIGH
