| Tank Size | 80 gal. |
| Overall Height | 50" |
| Overall Length | 68 in |
| Tank Size - Air Compressor | 80 gal |
| Overall Width | 25 in |
| Inlet Size | 3/4 in |
| Air Tank Size | 80 gal |
| Outlet Size | 3/4 in |
| Phase | 3 |
| HP | 5 HP |
| Voltage | 220/440 |
| Tank Type | Horizontal |
| Max. Pressure | 175 psi |
| Includes | Initial Fill of Compressor Oil, Manual Drain Valve, Oil Site Glass, On/Off Pressure Switch, Precision Bearings, Pressure Gauge, Pressure Relief Valve |
| Compressor Type | Tank Mounted |
| Free Air CFM @ Max. Pressure | 14 cfm |
| Lubrication Type | Splash Lubricated |

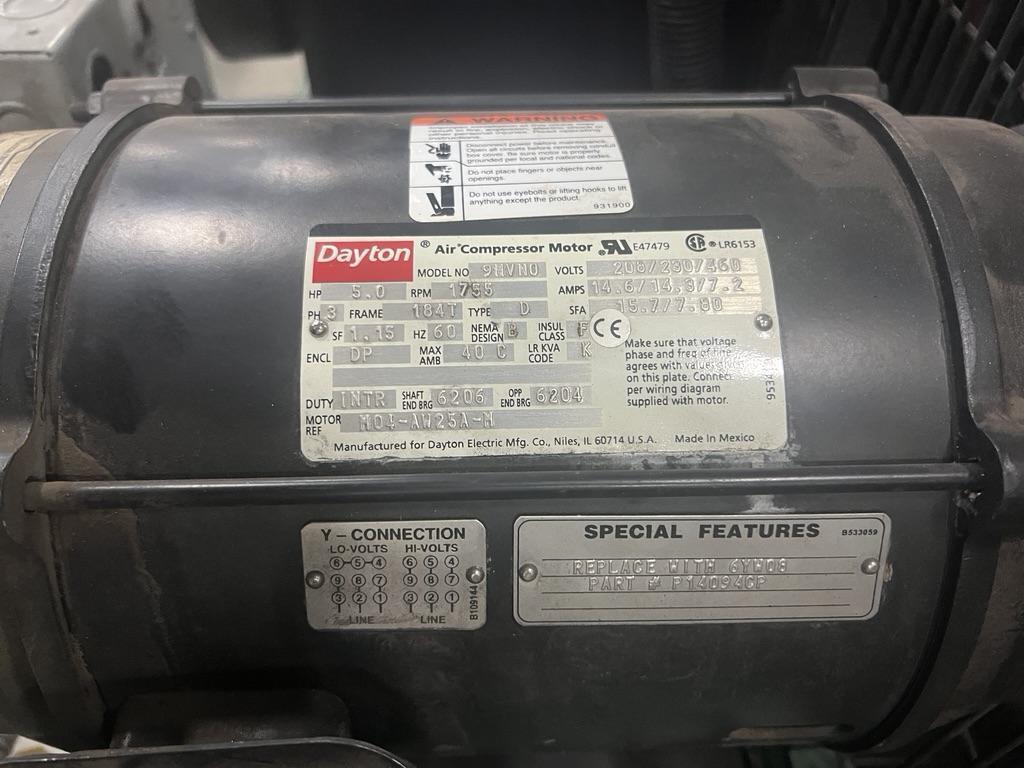

| Motor Type | Induction |
| Compressor Package Type | Base Model |
| Standards | CSA |
| HP - Air Compressor | 5.0 hp |
| Tank Style - Air Compressor | Horizontal |
| Hz | 60 |
| Item | Electric Air Compressor |
| Lubrication Type - Air compressor | Splash Lubricated |
| Free Air CFM @ Max. Pressure - Air Compressor | 14.0 |
| Pump Location - Air Compressor | Tank Mounted |
| Number of Stages - Air Compressor | 2 |
| Cylinder Material | Cast Iron |
| Amps | 22A |
| ASME Tank | Yes |
| Item - Air Compressor | Stationary Air Compressor |
| Finish | Powder Coated |
| On Pressure Switch Setting | 145 psi |
| Input Voltage - Air Compressor | 220 AC |
| Phase - Electrical | 3 |
| (F)NPT Outlet | 3/4 in |
| Control | Pressure Switch |
| Style - Air Compressor | Simplex |
| Off Pressure Switch Setting | 175 psi |
| Pump Oil Capacity | 40 fl oz |
| dBA @ 3 Feet | 84 |
| Enclosure | Open Drip Proof |
| Pump RPM | 1,190 |
| Pump Type | Reciprocating |
| Number of Stages | 2 |
| Duty Cycle | Continuous |
| Free Air Flow Rate @ Maximum Pressure | 14 cfm |
| Sound Level Range | Standard (70 dBA or more) |
| Control Type | Pressure Switch |
| Maximum Operating Pressure | 175 psi |
| Input Voltage | 220 |
| Maximum Speed | 1,190 RPM |
| Sound Level | 84 dBA |
| Current Rating | 22 A |
| Pump Location | Top Mount |
| Max Operating Pressure | 175 psi |
| Pump Style | Simplex |
| Enclosure Type | Open Dripproof |
| Outlet Gender | Female |
| Output Power | 5 hp |
| Free Air Flow Rate @ Max Pressure | 14 cfm |
| Compressor Voltage | 220V AC |
| Outlet Type | NPT |
| Frequency | 60 Hz |
| Motor Design | Induction |
| Air Tank Style | Horizontal |
| Compressor Motor Type |
