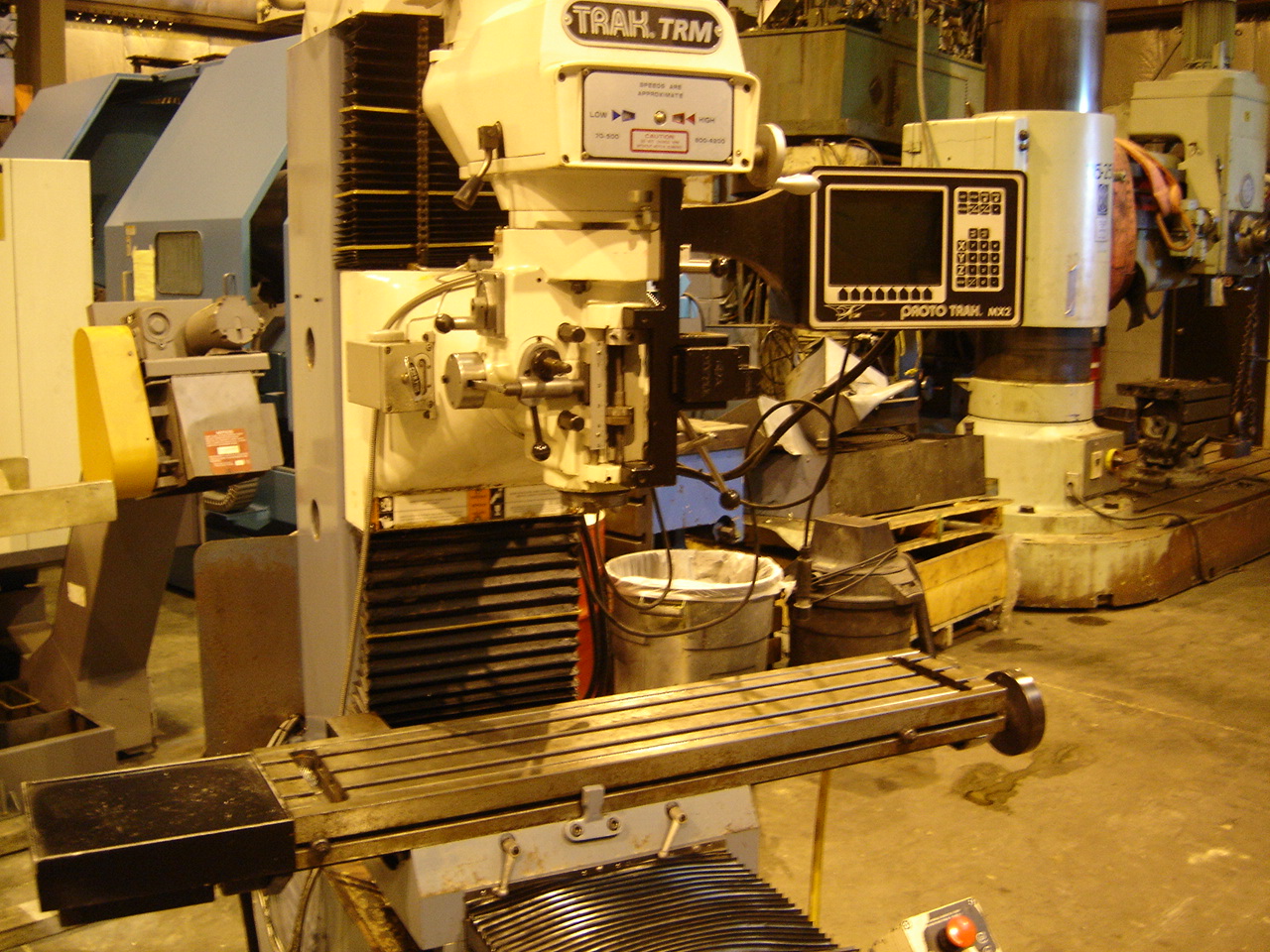

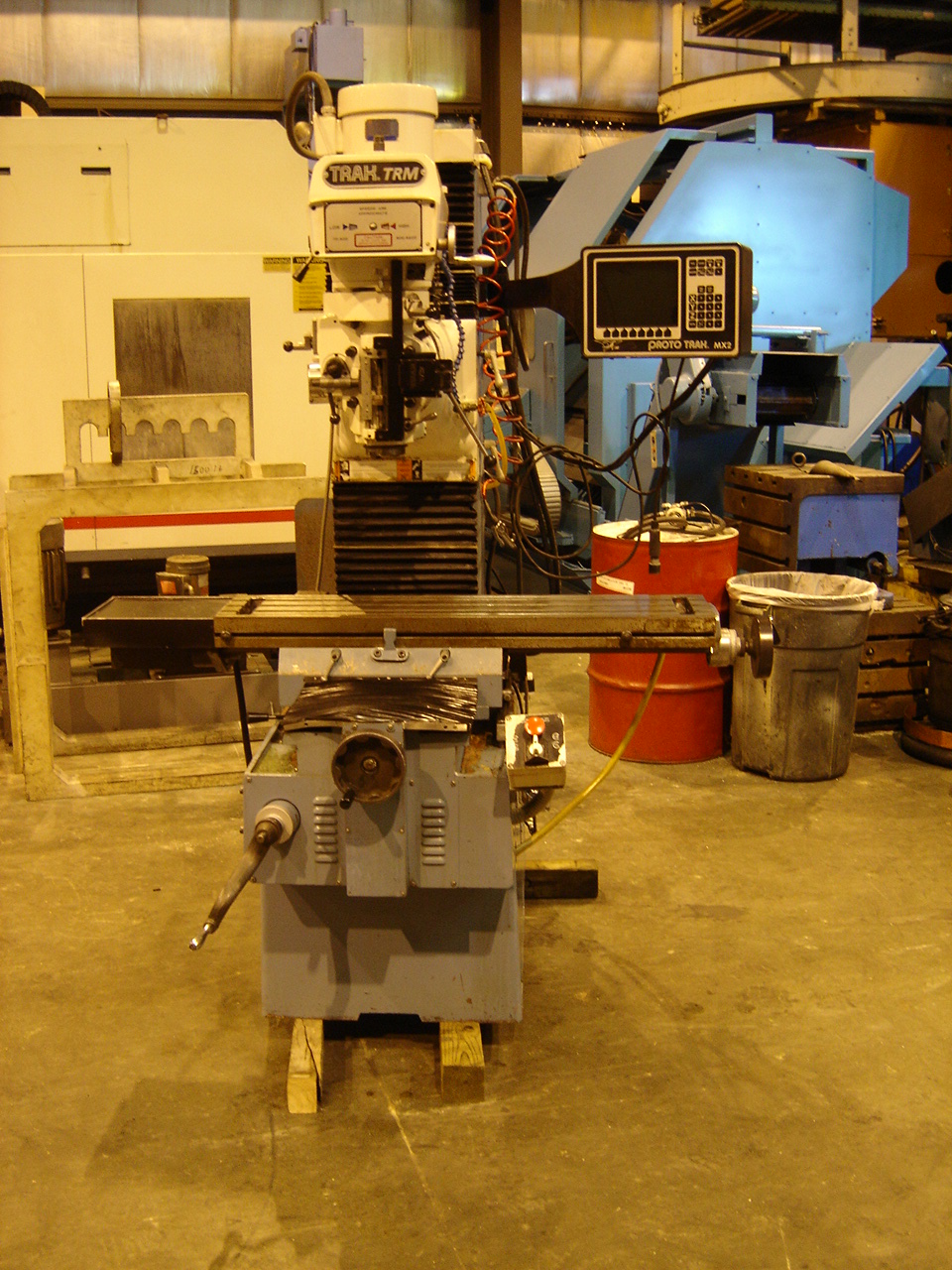

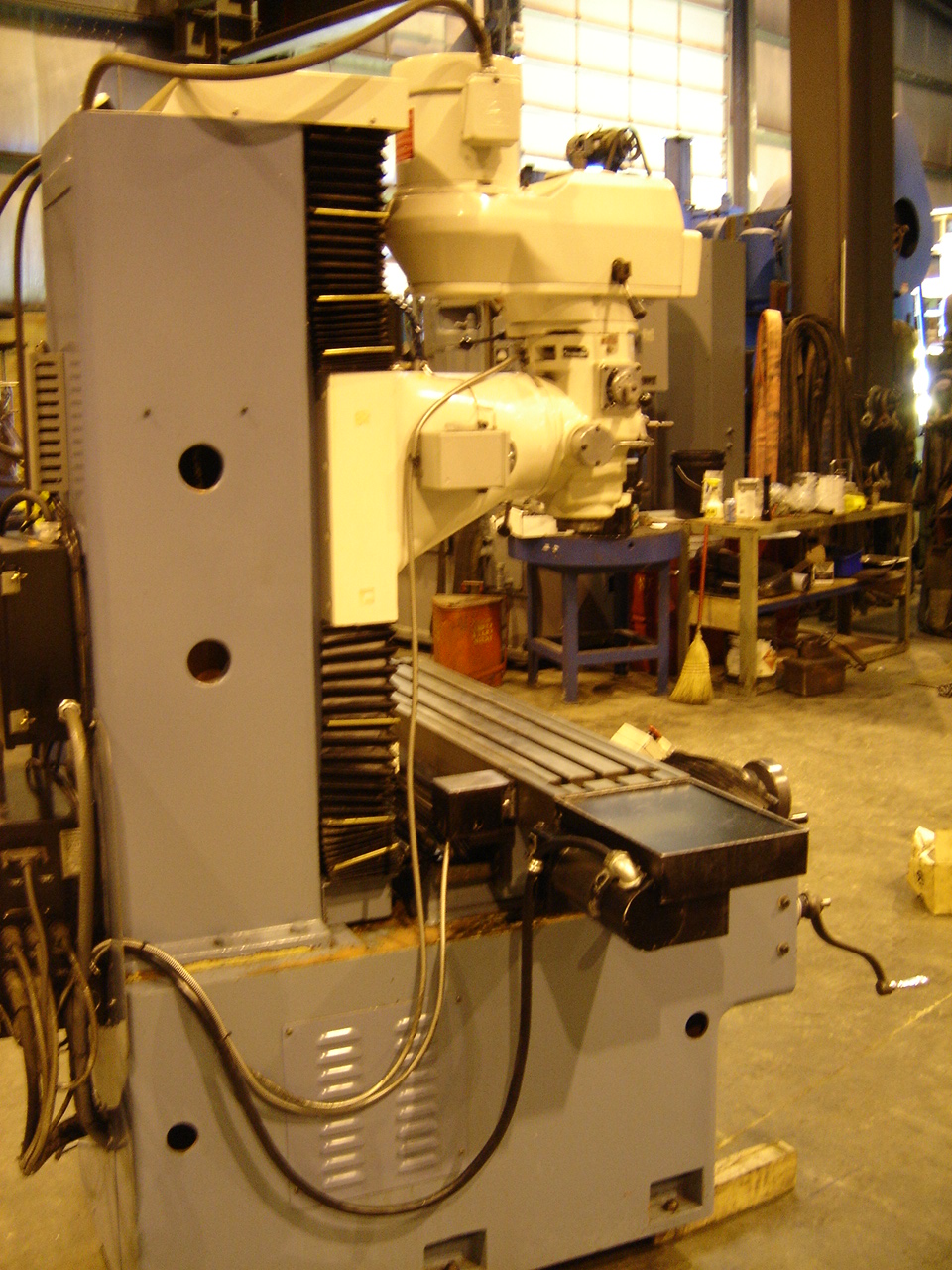

SOUTHWESTERN TRAK DPM, 45" x 10" TBL, 26.5"-X, 17"-Y, 5"-QUILL TRVL, 3.9" QUILL DIA., #40 NST, PROTOTRAK MX2 CTRL

GENERAL SPECIFICATIONS:
MANUFACTURER SOUTHWESTERN INDUSTRIES
MODEL TRAK DPM
SERIAL # 94-345
NEW (APPROX.) 1994
TABLE SIZE 45" x 10"
X TRAVEL 26.5"
Y TRAVEL 17"
Z TRAVEL 23.5"
QUILL TRAVEL 5"
QUILL DIAMETER 3.9"
SPINDLE TAPER #40 NST
SPINDLE SPEED 70 - 4200 RPM
SPINDLE MOTOR 3 HP
SPINDLE NOSE TO TABLE 24"
HEAD SWIVEL (LEFT & RIGHT) 90 DEG.
ELECTRICS 220/440/3PH/60HZ
WEIGHT (APPROX.) 4,300 LBS

EQUIPPED WITH:
PROTOTRAK MX2 CONTROL
9" CRT
CANNED CYCLES
AUTOMATIC OR MANUAL OPERATION
TOOL INFORMATION AND PART GRAPHICS
MATH HELP
PROGRAM IN/OUT
POWER DRAW BAR
CHIP PAN
