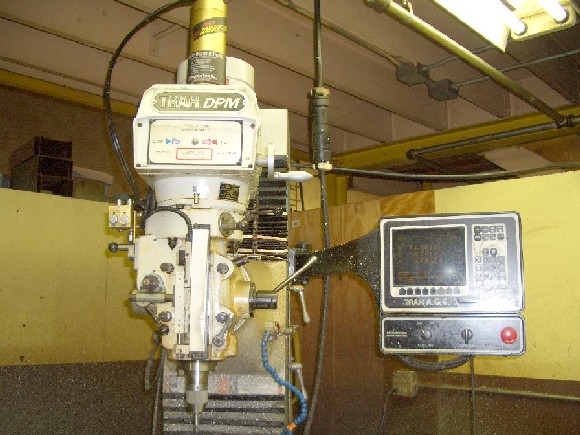

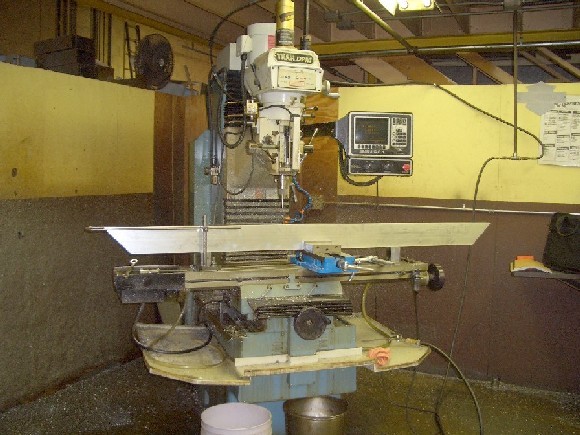

SOUTHWESTERN TRACK TRM, 3-AXIS, 50" x 12" TBL, 31"-X, 17"-Y, 23.5"-Z, 5" QUILL TRVL, 3.9" QUILL DIA., #40 NST TAPER

GENERAL SPECIFICATIONS:
MANUFACTURER SOUTHWESTERN INDUSTRIES
MODEL TRAK TRM
NEW (APPROX.) 2000
TABLE SIZE 50" x 12"
X TRAVEL 31"
Y TRAVEL 17"
Z TRAVEL 23.5"
QUILL TRAVEL 5"
QUILL DIAMETER 3.9"
SPINDLE TAPER #40 NST
SPINDLE SPEED 70 - 4200 RPM
SPINDLE MOTOR 3 HP
SPINDLE NOSE TO TABLE 25"
HEAD SWIVEL (LEFT & RIGHT) 90 DEG.
ELECTRICS 220/440/3PH/60HZ
WEIGHT (APPROX.) 4,500 LBS

EQUIPPED WITH:
3-AXIS TRAK A.G.E. CONTROL
POWER DRAW BAR
CHIP PAN
GLASS SCALES
