Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER.................... SOUTHWEST INDUSTRIES

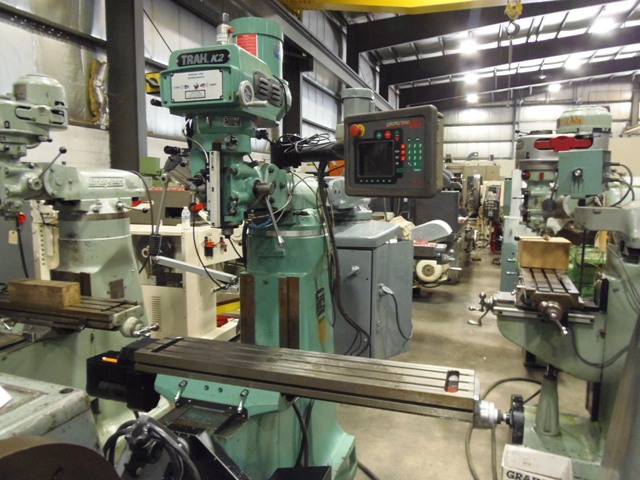

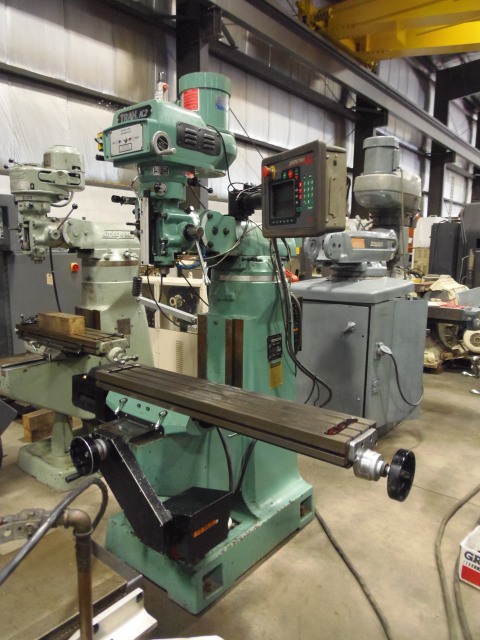

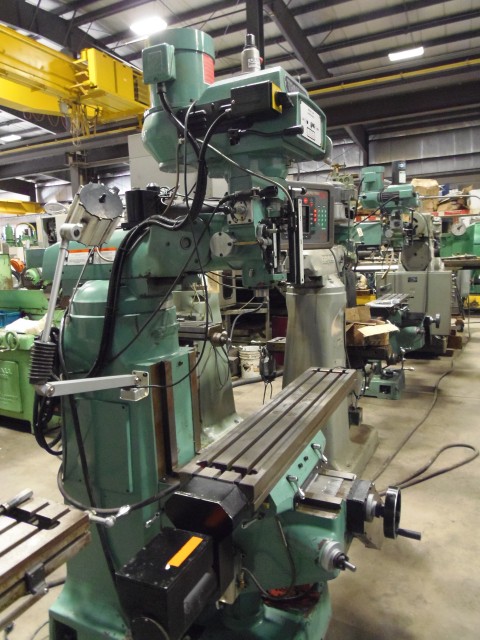

MODEL........................... TRAK K2E
SERIAL#......................... 06175
AGE APPROXIMATELY............... 2004
TABLE SIZE...................... 9" X 49"
TRAVELS (X)..................... 33"
(Y)..................... 12"
(Z)..................... 16"
QUILL TRAVEL.................... 5"
QUILL DIAMETER.................. 3.3/8"
SPINDLE SPEEDS.................. 60-4200 RPM
THROAT DEPTH.................... 8" - 20"
SPINDLE MOTOR................... 3 HP
ELECTRICS....................... 220V/60HZ/3PHS
WEIGHT APPROXIMATELY............ 2500 LBS.
DIMENSIONS...................... 6' X 6' X 66"
EQUIPPED WITH:

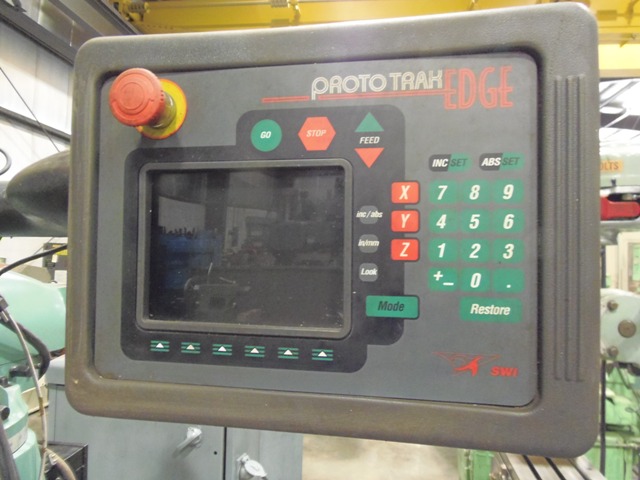

SOUTHWEST INDUSTRIES EDGE CONTROL
7.4" LCD
2 AXIS CNC / 3 AXIS DRO
POWER DRAW BAR
ULTRON SNAP CHANGE R8 TOOL SYSTEM W/TOOL HOLDERS (CAN BE REMOVED AND YOU CAN USE THE NORMAL R8 COLLETS)
