Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER..................... SOUTH BEND
MODEL............................ CLC 187ZB
SERIAL NUMBER.................... 18162RKX
SWING............................ 10"
BED LENGTH....................... 36"
HP............................... 3/4

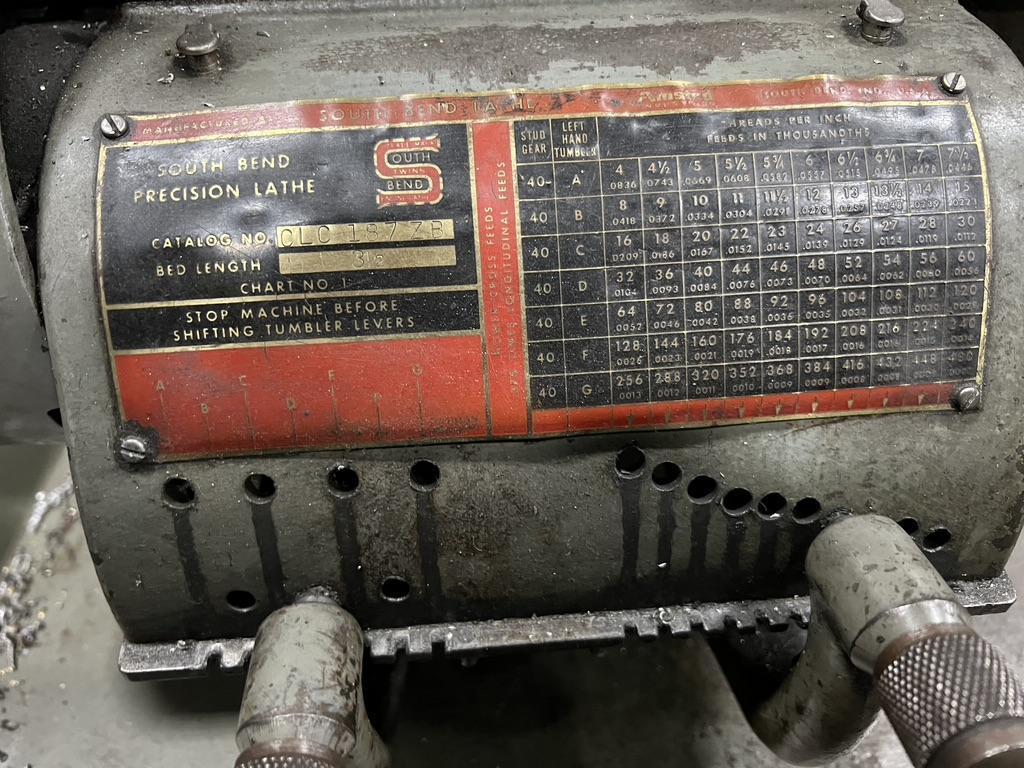

THREAD RANGE..................... 4 TO 480 TPI
FEED RANGE....................... .0007 TO .0836 K
RPM RANGE (DIRECT DRIVE)......... 304 TO 1400 RPM
RPM RANGE (BACK GEARED).......... 55 TO 250 RPM
APPROXIMATE WEIGHT............... 1000 LBS
EQUIPPED WITH:
TAPER ATTACHMENT
POWER FEED
INCH THREADING
3 JAW CHUCK
5C COLLET CHUCK
QUICK CHANGE TOOL POST
TAILSTOCK
