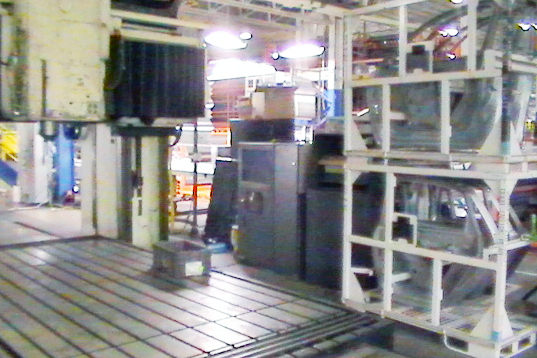

Specifications
Equipped With

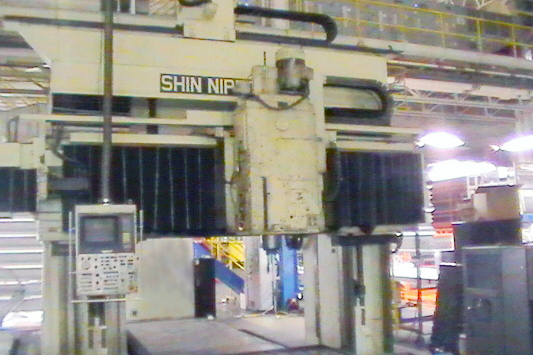

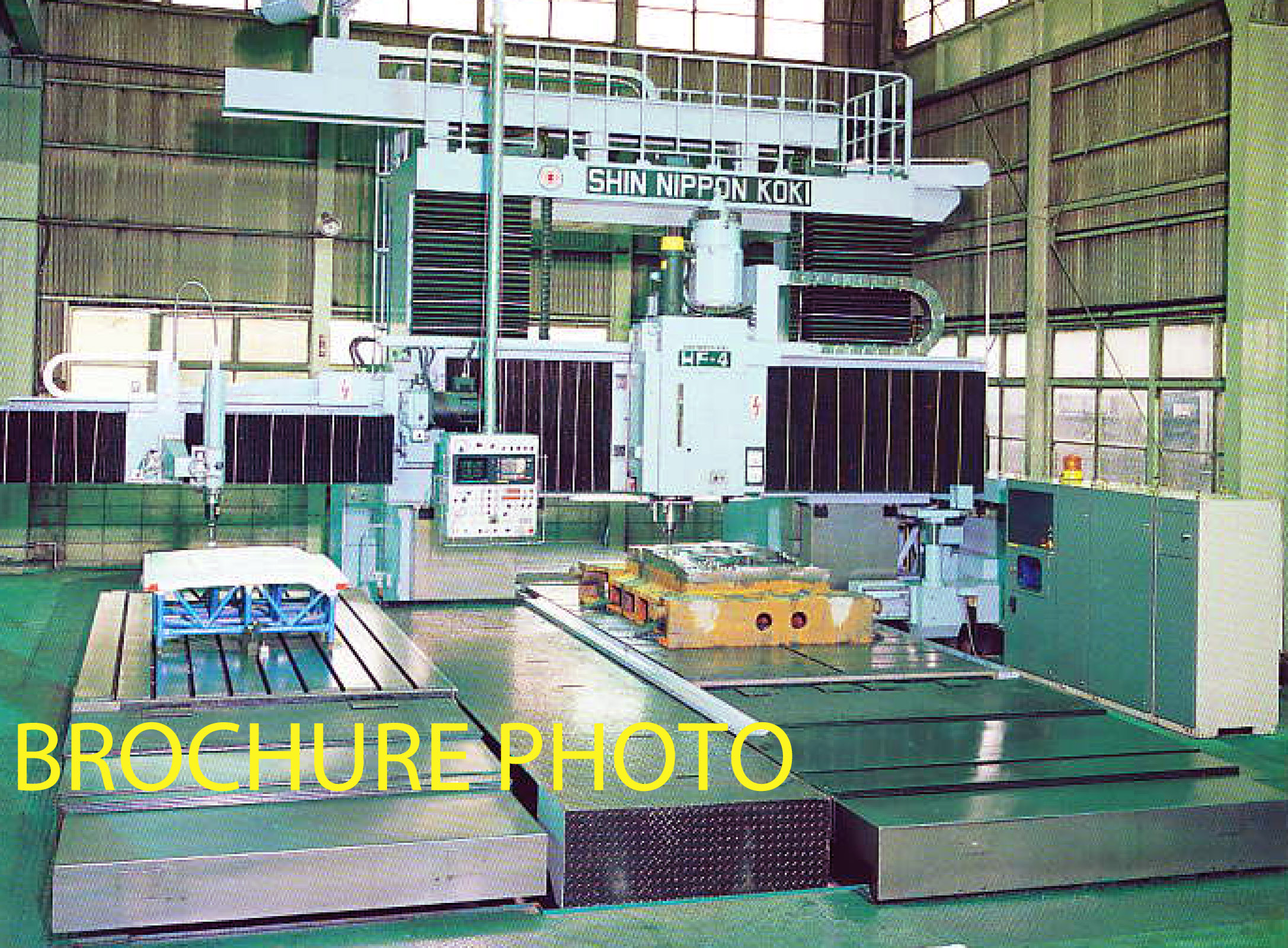

MANUFACTURER................... SNK (SHIN NIPPON KOKI)
MODEL.......................... HF-4PK
AGE............................ 1985
WIDTH BETWEEN COLUMN........... 110" (2800 MM)
DISTANCE SPINDLE TO TABLE...... 59" (1500 MM)
TRAVEL OF X AXIS (TABLE)....... 157" (4000 MM)
TRAVEL OF Y AXIS (HEAD)........ 98" (2500 MM)
TRAVEL OF Z AXIS (CROSS RAIL).. 55" (1400 MM)
COPY MILLING X AXIS............ 157" (4000 MM)
COPY MILLING Y AXIS............ 78" (2000 MM)
COPY MILLING Z AXIS............ 23" (600 MM)
PAYLOAD OF MAIN TABLE.......... 33,000 LBS (15000 KG)
PAYLOAD OF SUB TABLE........... 3,300 LBS (1500 KG)
DIA. OF SPINDLE................ 5.5" (140 MM)
DIA. OF QUILL.................. 9.75" (250 MM)
TAPER OF SPINDLE NOSE.......... N.T 50
SPINDLE SPEEDS................. 17-850 RPM (18 STEPS)
RAPID FEED OF QUILL............ 29.5"/MIN (750 MM/MIN)
FEED RATE OF QUILL............. .001"-.02"/REV (.028-.65MM)
TRAVEL OF QUILL................ 17.75" (450 MM)
RAPID FEED RATE OF HEAD (R/L).. 157"/MIN (4000 MM/MIN)
JOG FEED RATE OF HEAD (R/L).... .25"-47.25"/MIN (5-1200 MM/MIN)

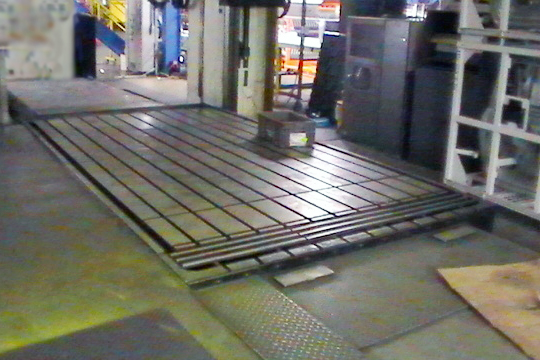

TABLE SIZE..................... 98" X 185" (2500 X 4700 MM)
TABLE WORKING AREA............. 98" X 157" (2500 X 4000 MM)
SUB TABLE SIZE................. 78" X 165" (2000 X 4205 MM)
RAPID FEED RATE................
OF TABLE (X AXIS).............. 157"/MIN (4000 MM/MIN)
JOG FEED RATE..................
OF TABLE (X AXIS).............. .25" - 47"/MIN (5-1200 MM)
MAIN DRIVE MOTOR............... 30 HP (22 KW)
EQUIPPED WITH:

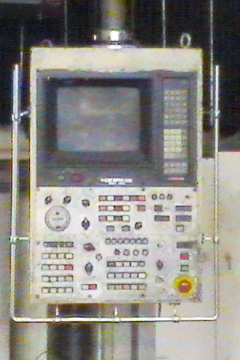

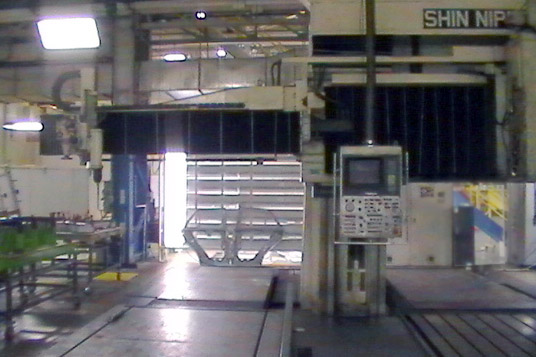

FANUC 12M CONTROL UPDATED 1990
RS-232 PORT
COPY/TRACER HEAD

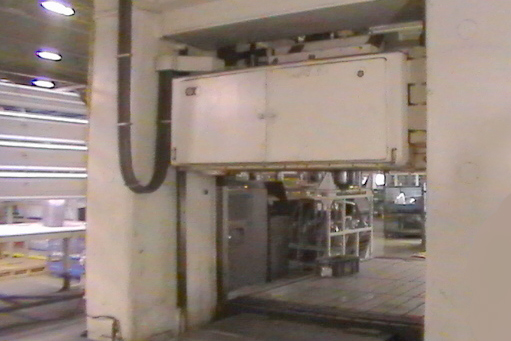

ADJUSTABLE RAIL HEAD
MACHINE IS DISMANTLED AND READY FOR LOADING
**SPECIFICATIONS SUBJECT TO VERIFICATION**
