Specifications
Equipped With
GENERAL SPECIFICATIONS:

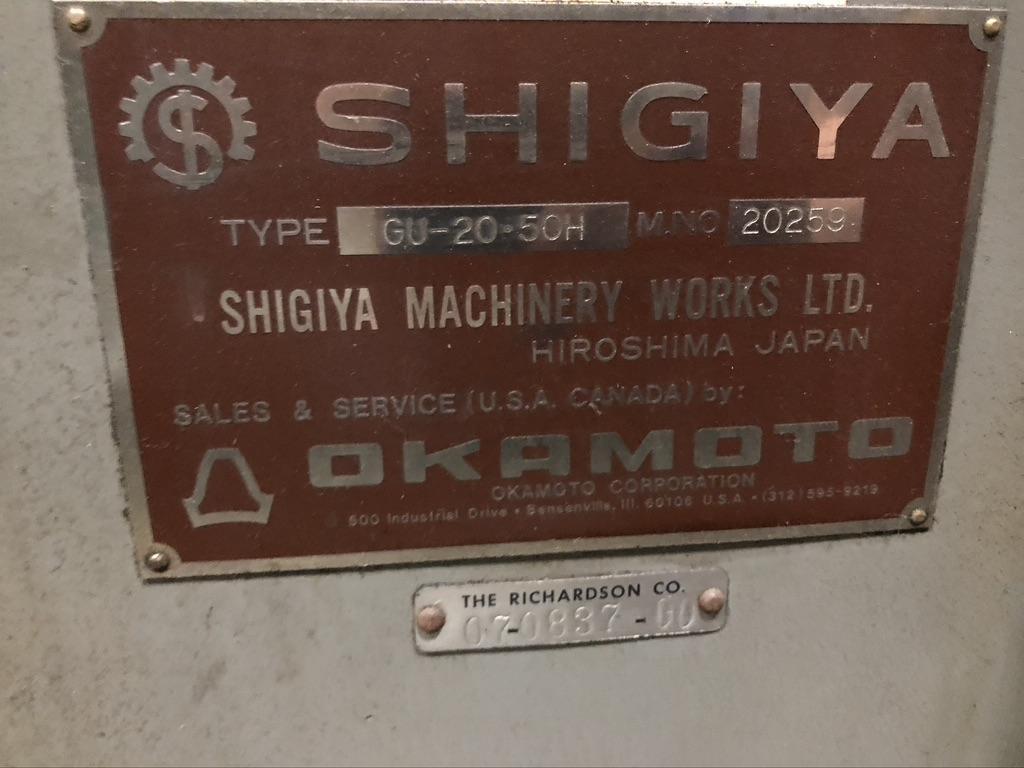

MANUFACTURER...................... SHIGIYA MACHINERY WORKS
MODEL............................. GU-20-50H
SERIAL NUMBER..................... 20259
SWING............................. 8"
CENTER DISTANCE................... 20"
MAX. GRINDING DIAMETER............ 8"
MAX. WORK PIECE WEIGHT............ 44 LBS
SWIVEL ANGLE...................... + OR - 30 DEGREES
WHEEL SIZE........................ 12" X 1" X 5" BORE
TOTAL WHEEL TRAVEL................ 7.25"
HYDRAULIC RAPID INFEED............ .78"
WORK SPINDLE...................... LIVE/DEAD
WORK ROTATION..................... 3 - 257 RPM
CENTER HOLE TAPER................. 2 MT
TABLE SWIVEL CCW.................. 9 DEGREES
CW................... 4 DEGREES
AUTOMATIC FEED SPEED.............. 2 - 157 IPM
MANUAL FEED....................... .6 PER REVOLUTION
APPROX. WEIGHT.................... 3600 LBS

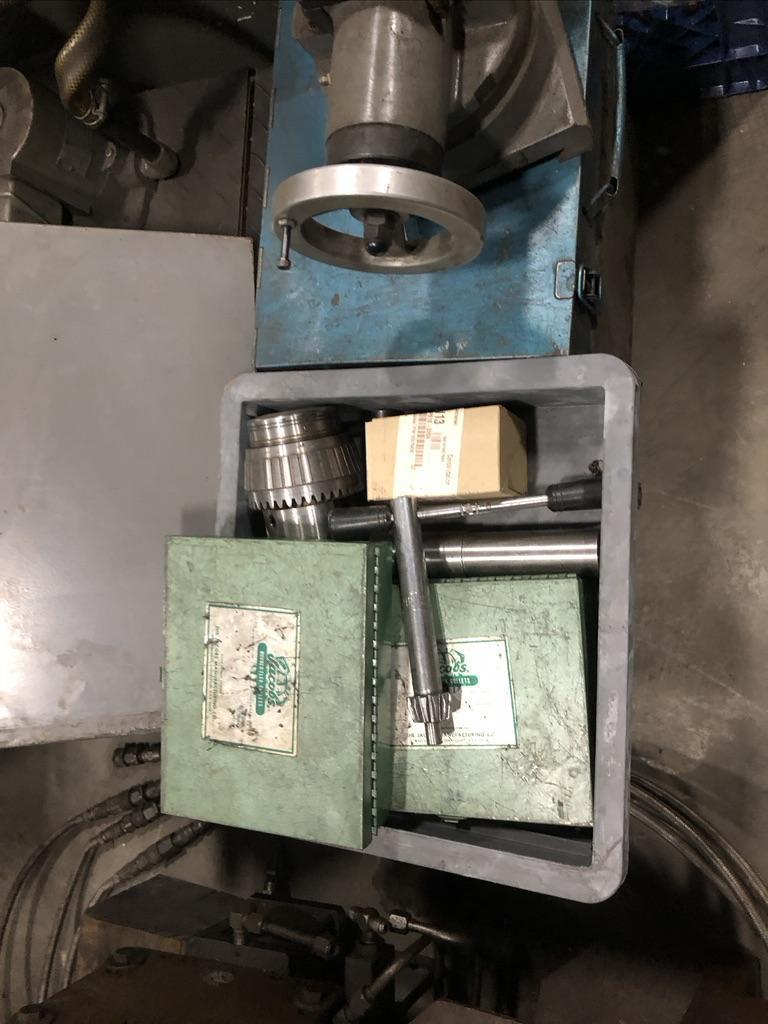

EQUIPPED WITH:
WHEEL WITH FLANGE
COOLANT SYSTEM
SWING DOWN INTERNAL GRINDING SPINDLE

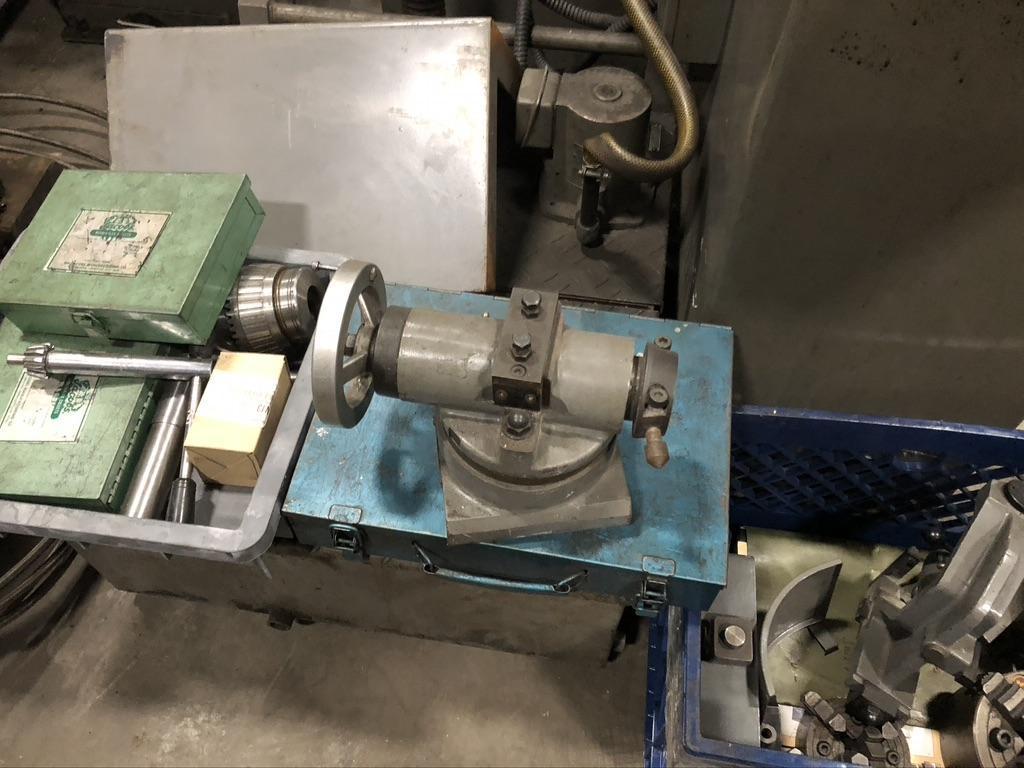

RADIUS WHEEL DRESSER

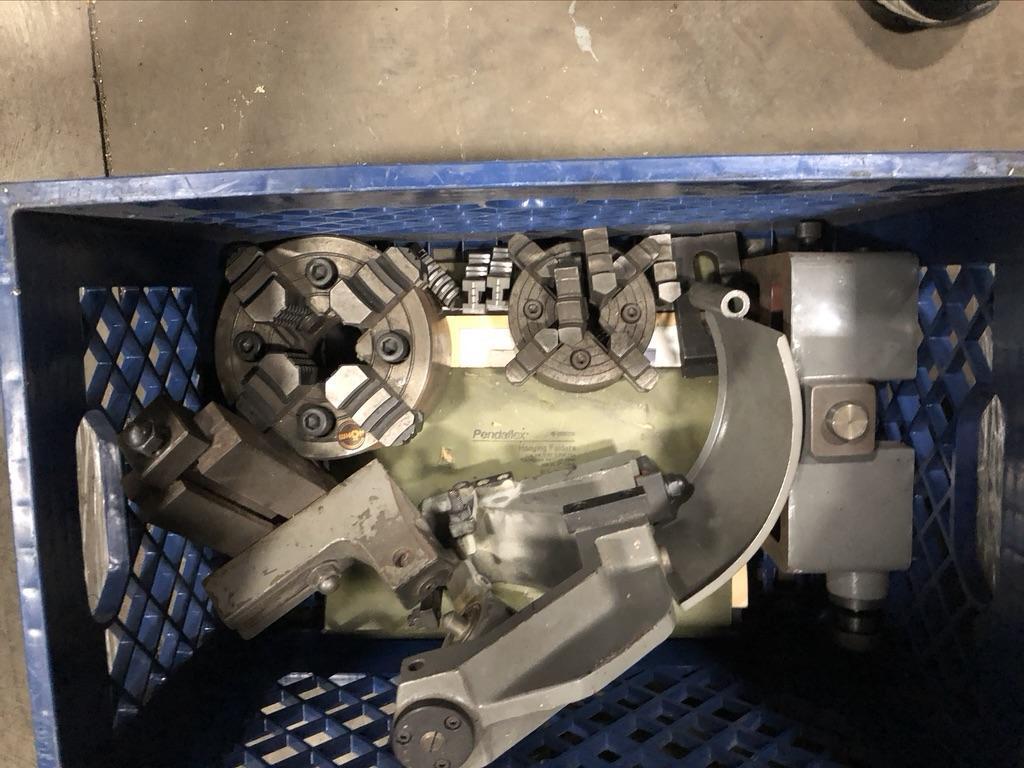

3 JAW AND 4 JAW CHUCKS
