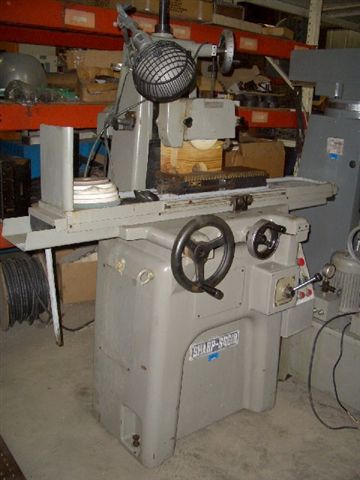

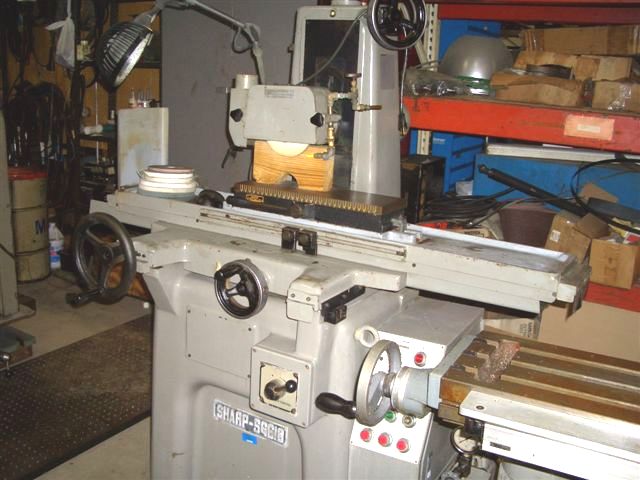

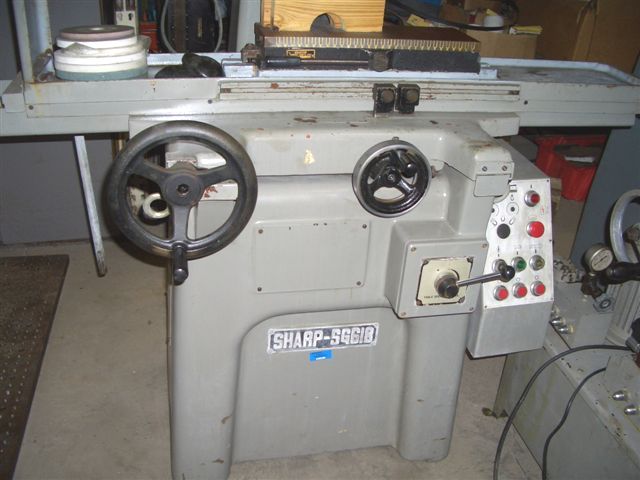

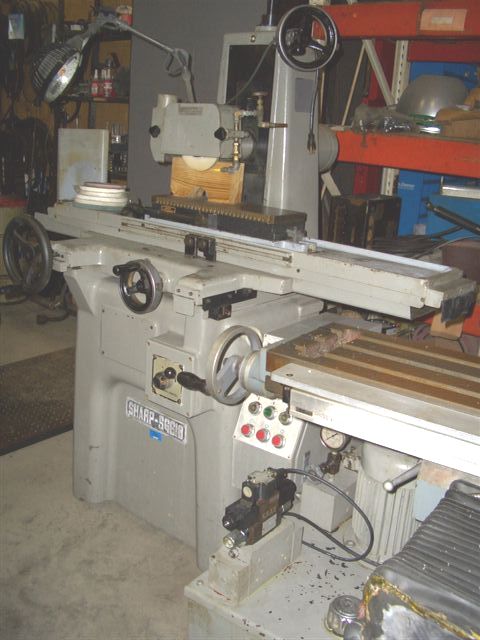

SHARP SG618, 6X18 MAGNETIC CHUCK, HYDRAULIC FEED, EXTRA WHEELS

GENERAL SPECIFICATIONS:
Manufacturer sharp
Age 1990
Model sg-618
Serial number 79B07L
Table Size: 6" x 18.3"
Table Travel (Longitudinal) 18.9"
Table Travel (Cross): 7"
Maximum Height Table to Spindle Center: 16"
Hand Feed per Revolution: 4.2"
Hand Feed per Revolution: .2"
Graduation of Hand Wheel: .001"
Hand Feed per Revolution: .05"
Graduation of Hand Wheel: .0001"
Spindle Motor: 1.5 HP
Spindle Speed: 3,400 RPM
Wheel Size: 8" x .63" x 1.25" Bore

EQUIPPED WITH:
MAGNETIC CHUCK
HYDRAULIC SYSTEM
EXTRA WHEELS
COOLANT
