GENERAL SPECIFICATIONS:

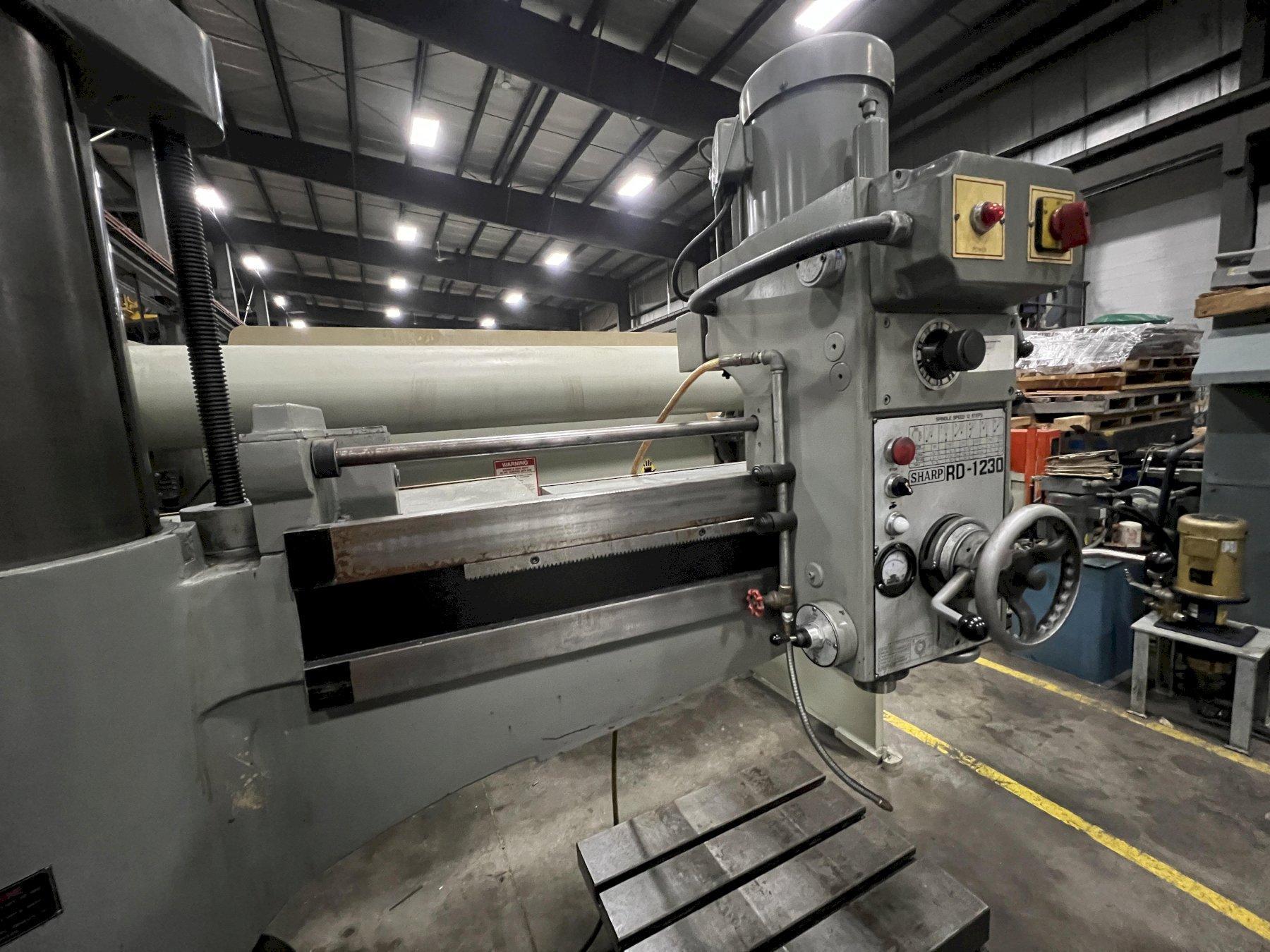

MAKE................................... SHARP
MODEL.................................. RD1230

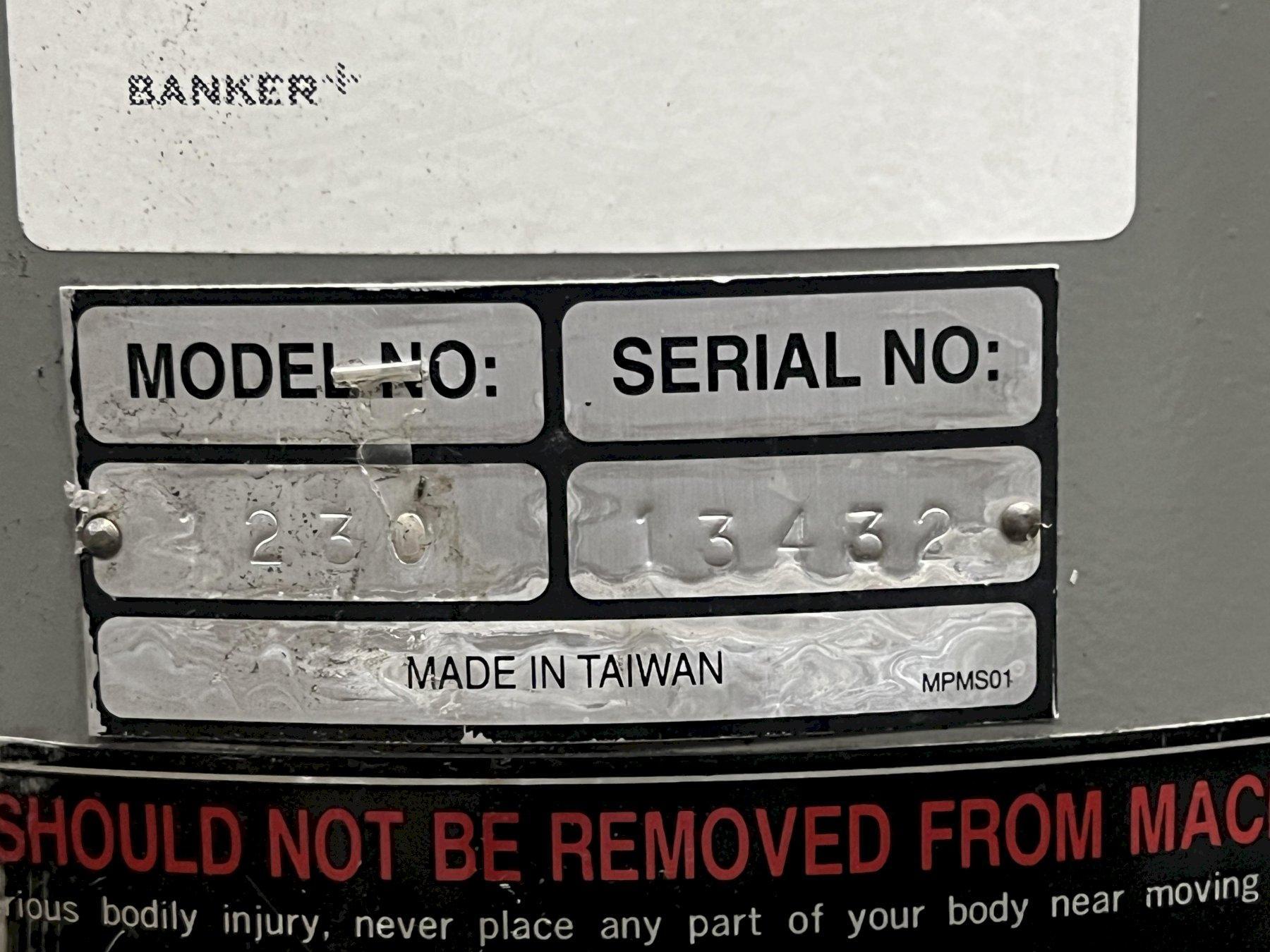

SERIAL NUMBER.......................... 12432

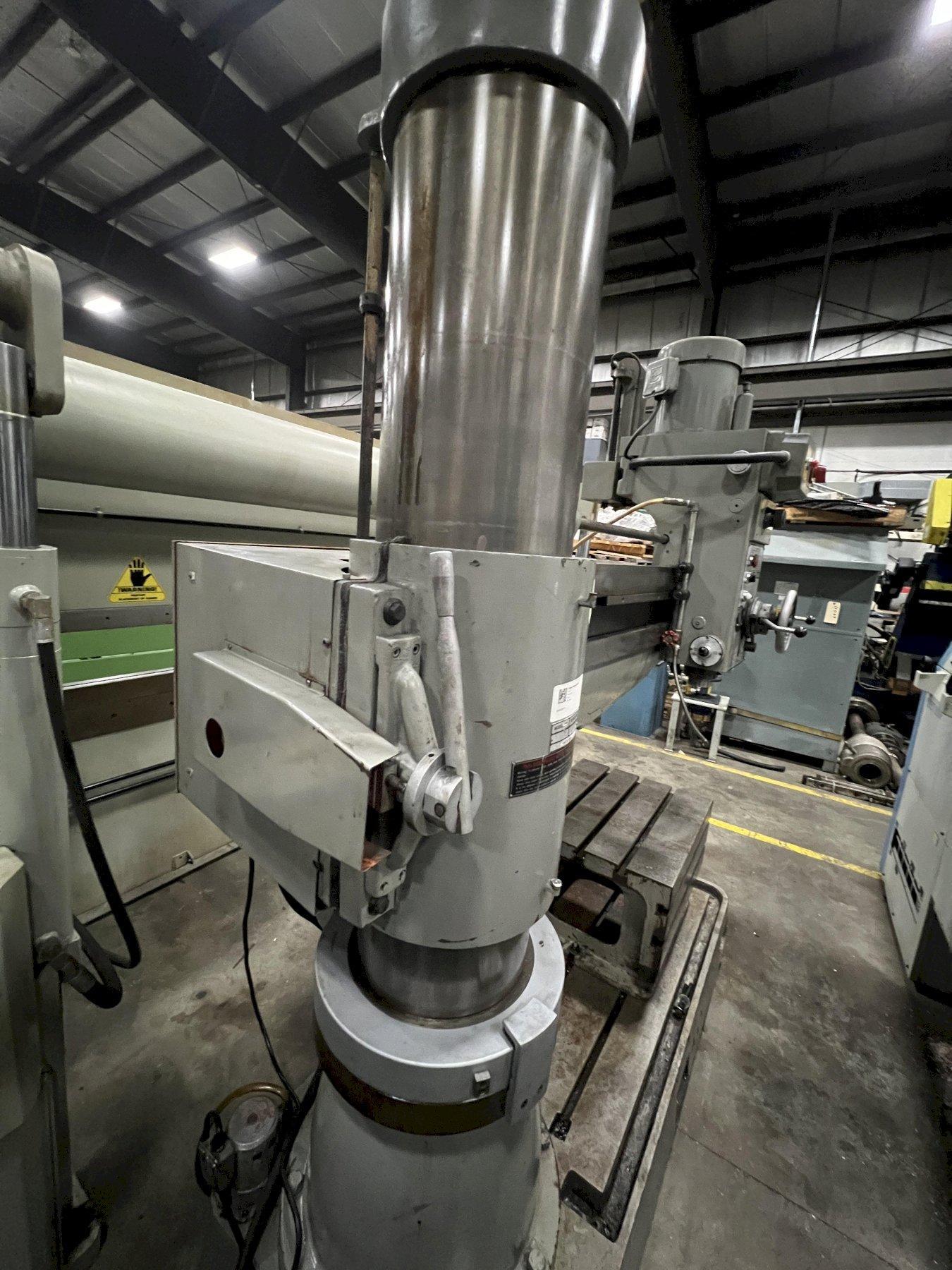

COLUMN DIAMETER........................ 11"
DIST COLUMN TO SPINDLE CENT MAX........ 48"
DIST COLUMN TO SPINDLE CENT MIN........ 13 3/8"
TRAVEL OF SPINDLE HEAD................. 35"
DIST. BASE SURFACE TO SPINDLE END MAX.. 54"
DIST. BASE SURFACE TO SPINDLE END MIN.. 19 3/8"
ELEVATING HEIGHT OF ARM................ 34 5/8"
SPINDLE TAPER.......................... MT #4
SPINDLE STROKE......................... 9 7/8"

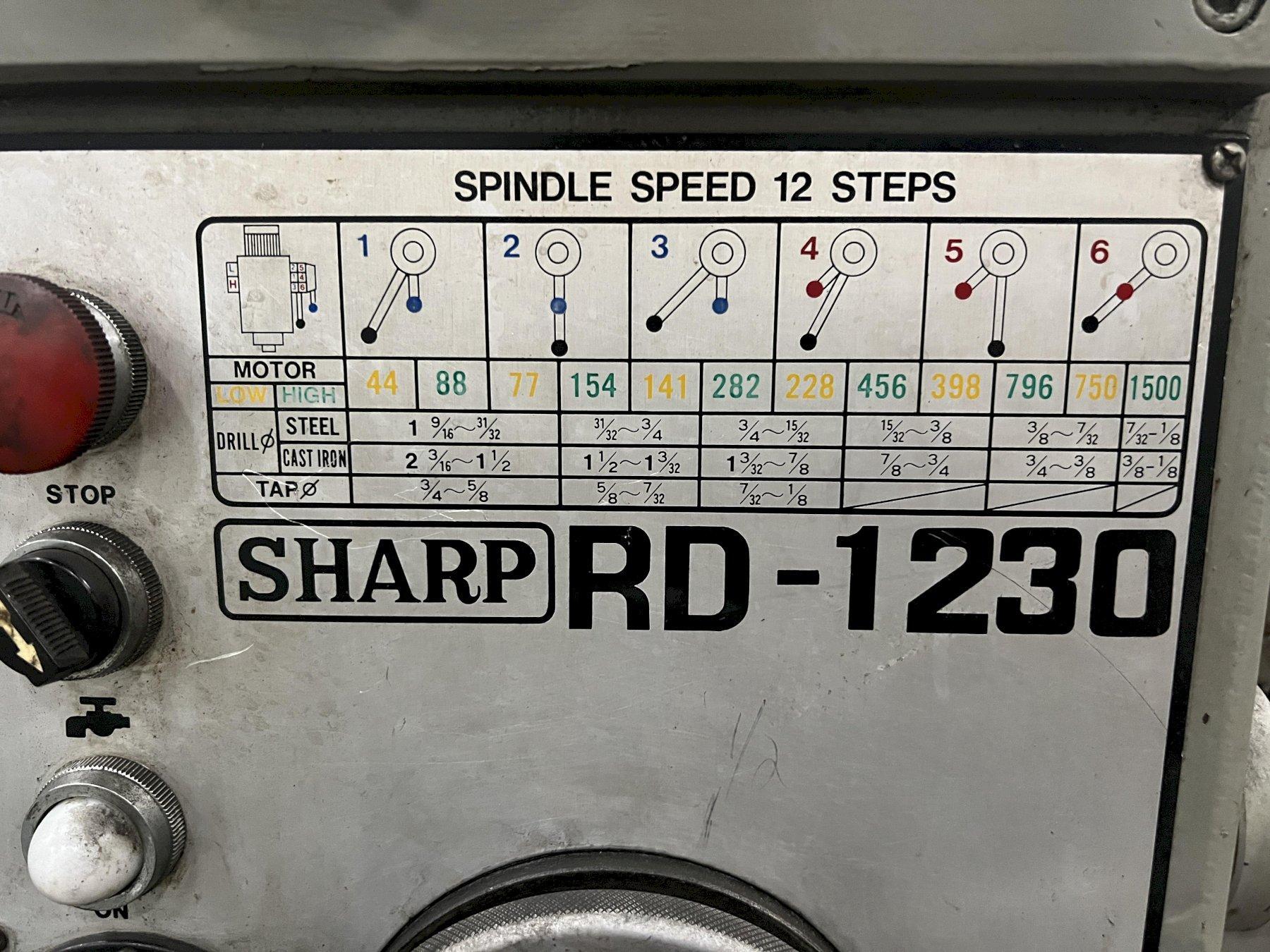

SPINDLE RPM............................ 44-1500 RPM

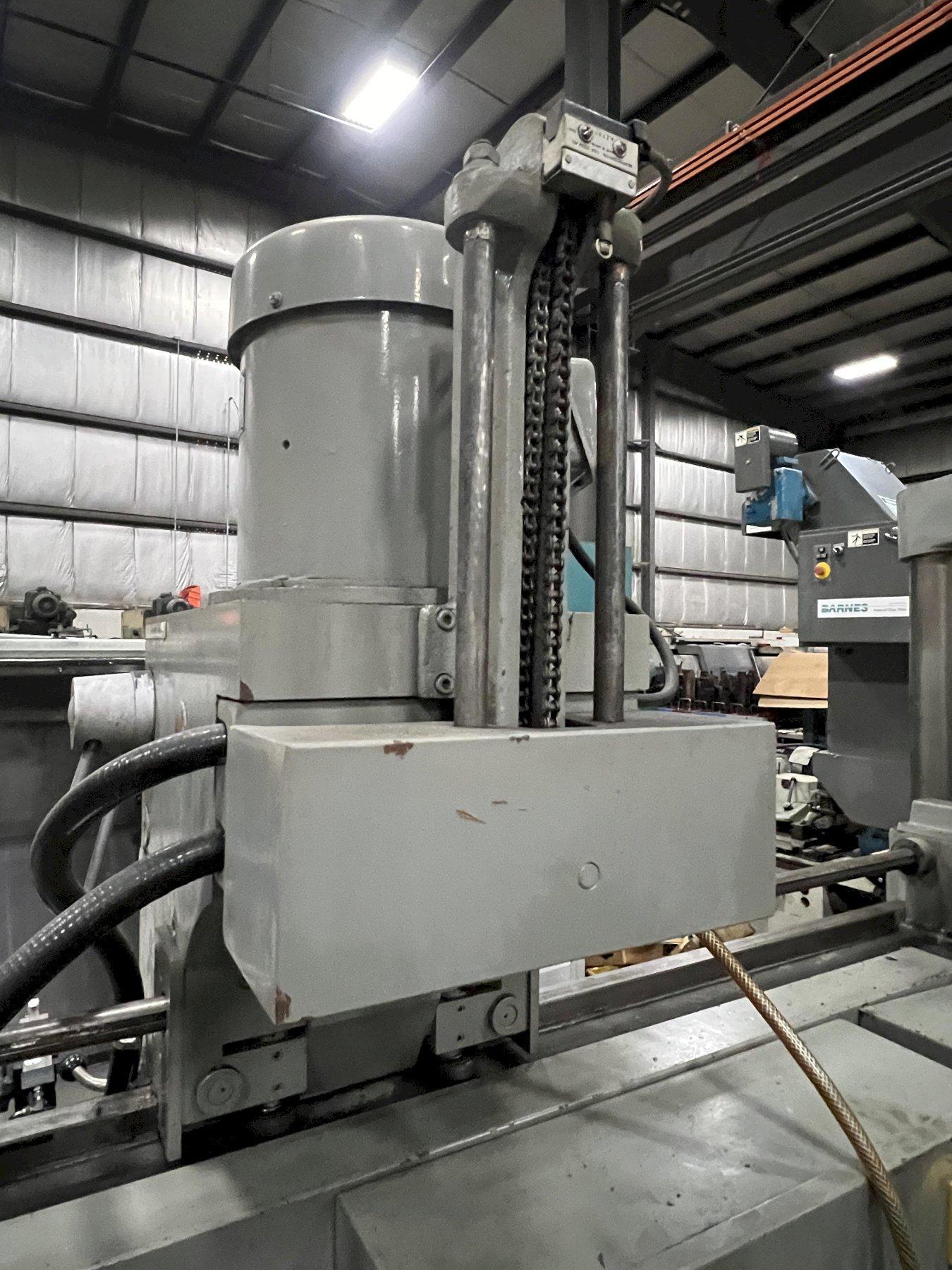

MAIN POWER MOTOR....................... 2 HP
WEIGHT APPROX.......................... 5000 LBS
DIMENSIONS............................. 78" X 36" X 89" H
ELECTRICS..............................
EQUIPPED WITH:

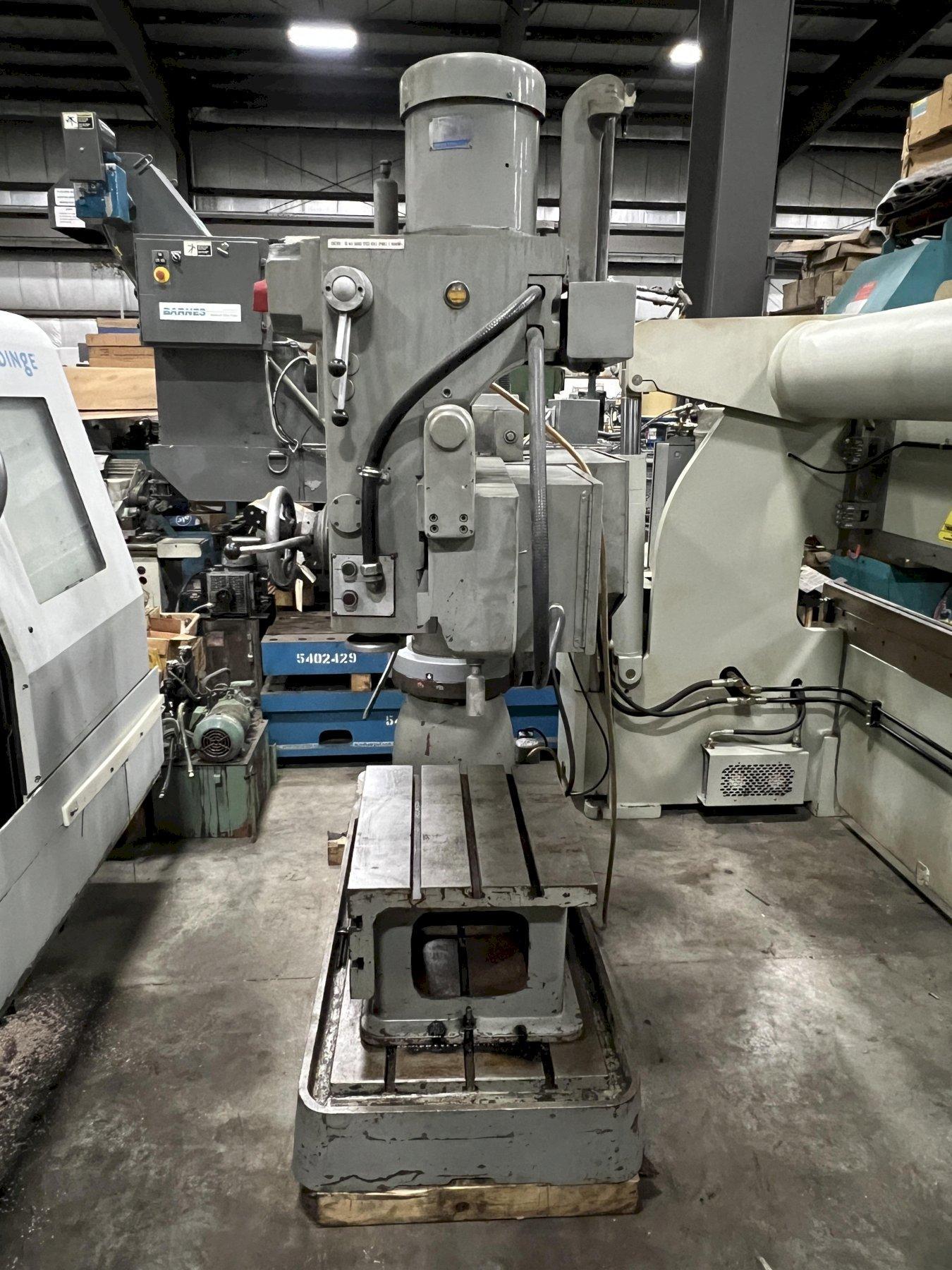

BOX TABLE

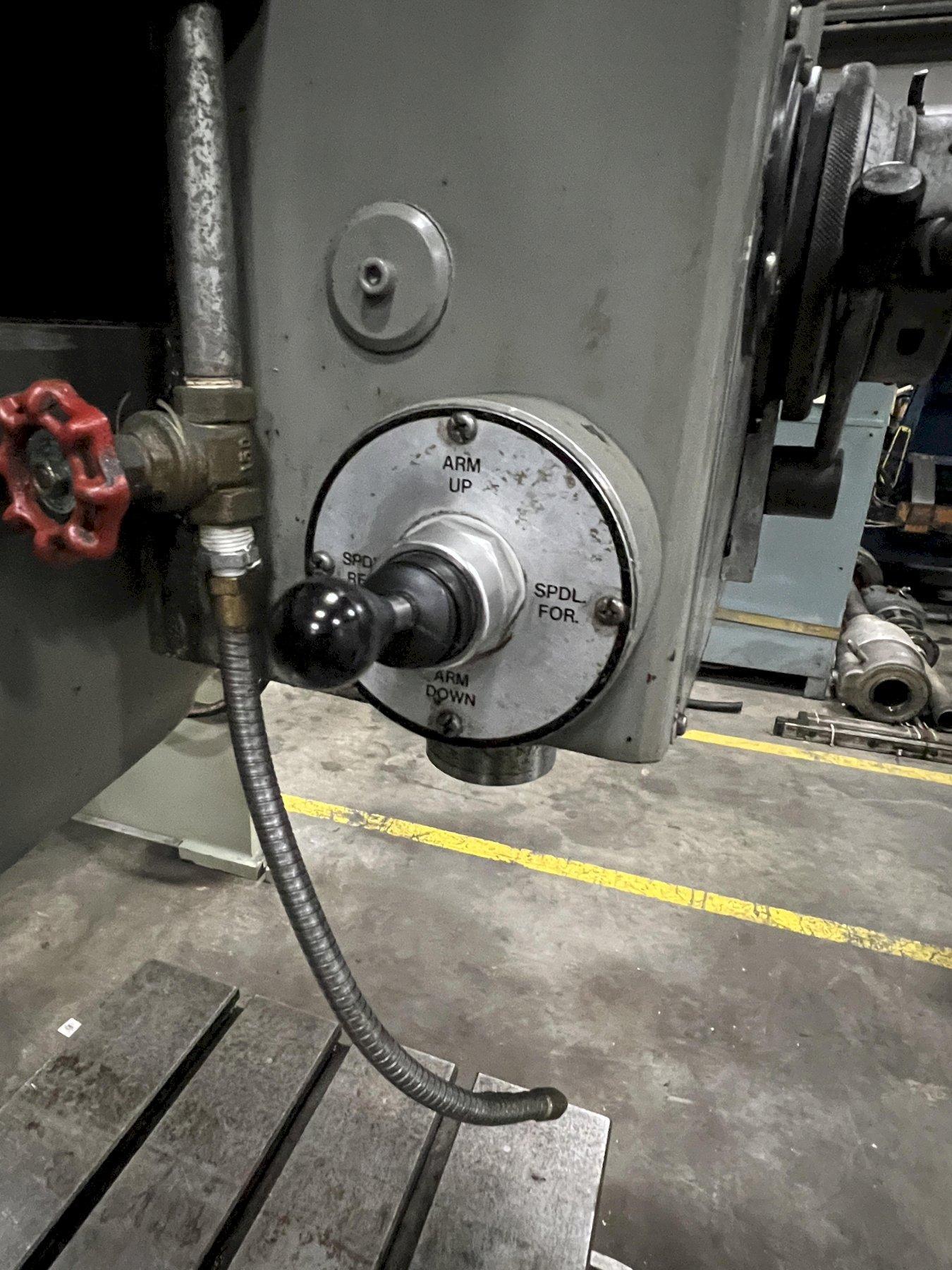

POWERED ARM ELEVATION
SPECIFICATIONS SUBJECT TO VERIFICATION
