Specifications
Equipped With
GENERAL SPECIFICATIONS:

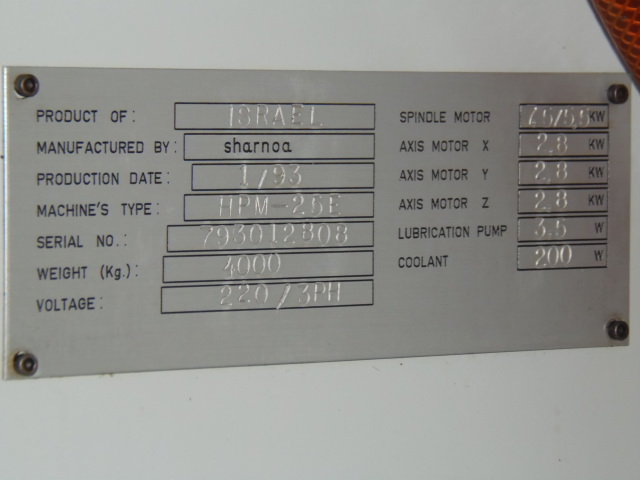

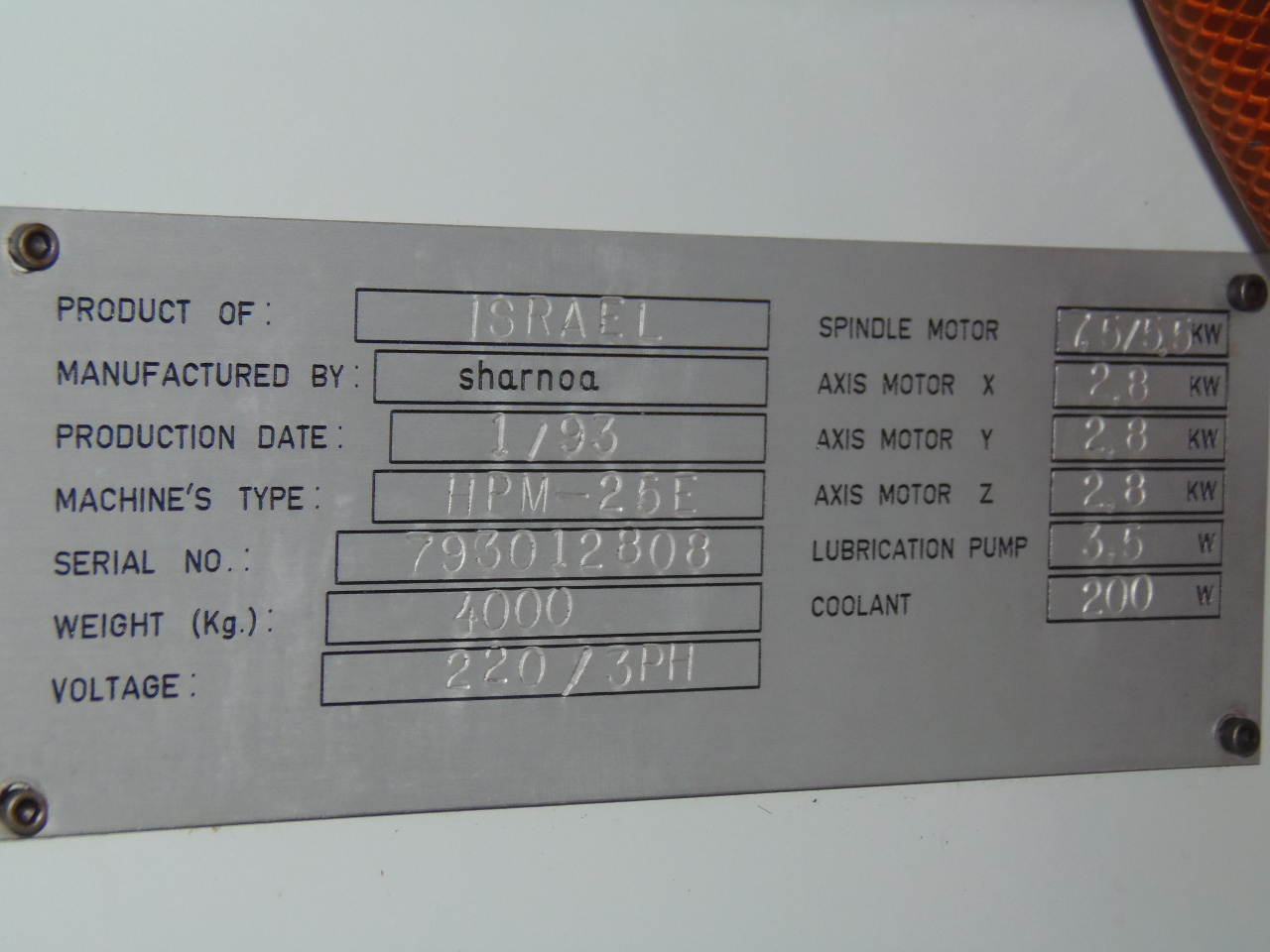

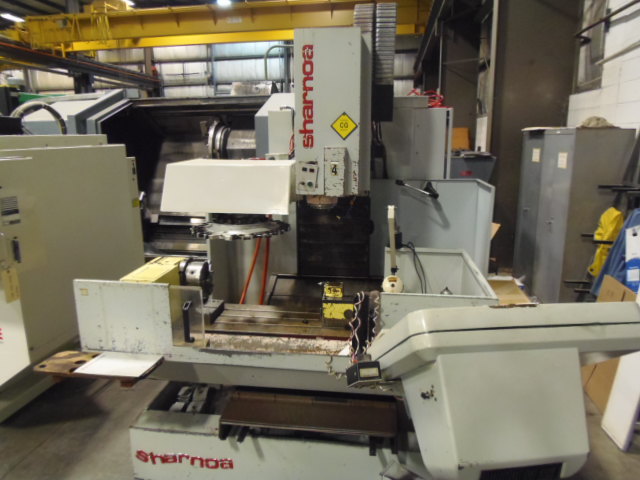

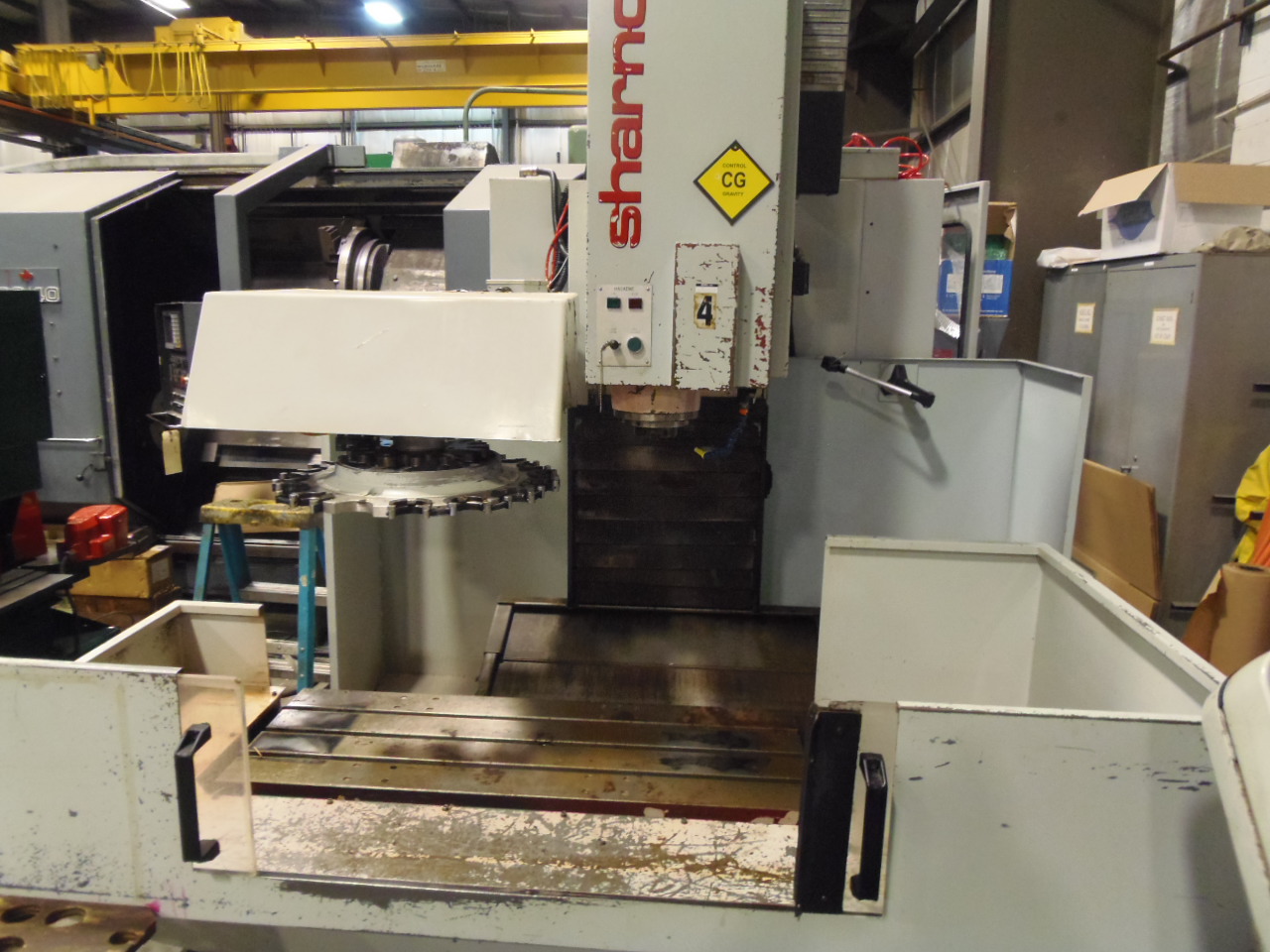

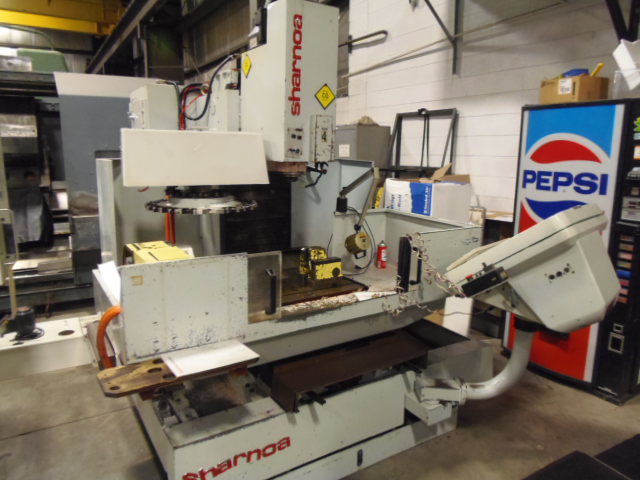

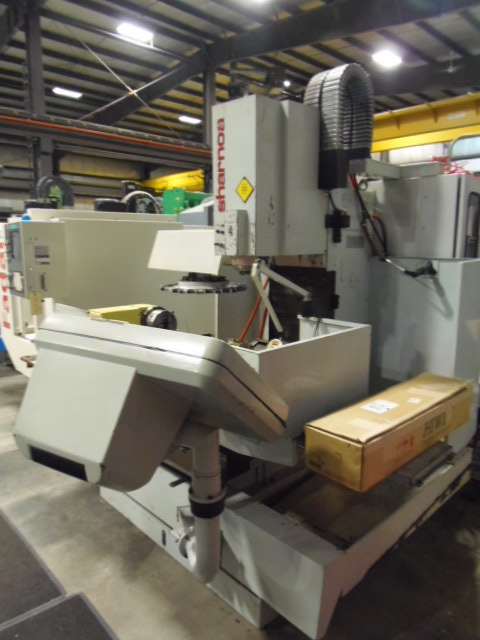

MAKE.................... SHARNOA
MODEL................... HPM-25E
SERIAL NUMBER........... 793012808
AGE..................... 1993

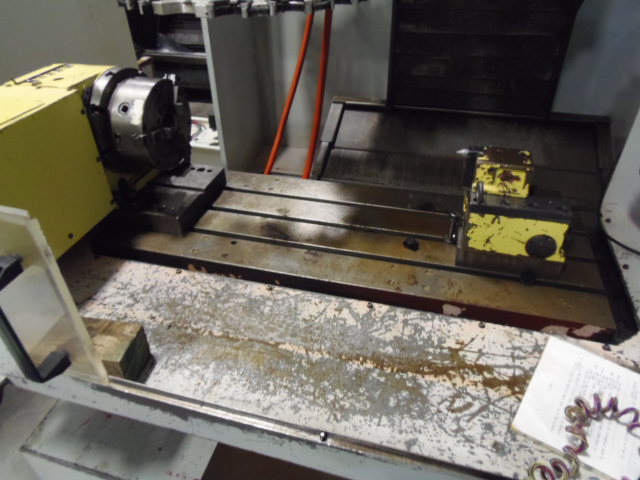

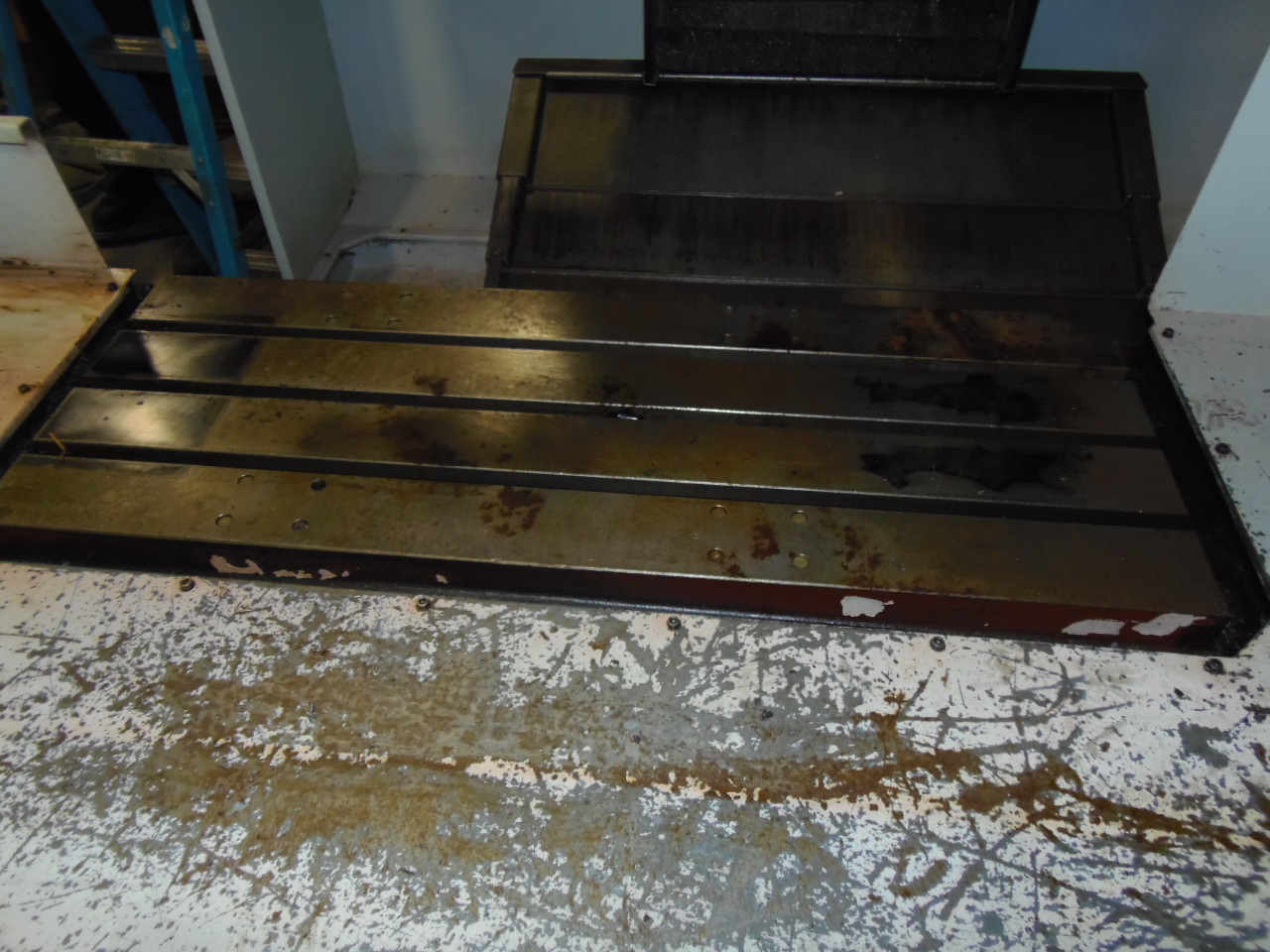

TABLE SIZE.............. 43.25" X 15.75"
TRAVELS (X)............. 25"
TRAVELS (Y)............. 16"
TRAVELS (Z)............. 20"
TABLE LOAD.............. 660 LBS.
SPINDLE MOTOR........... 10 HP

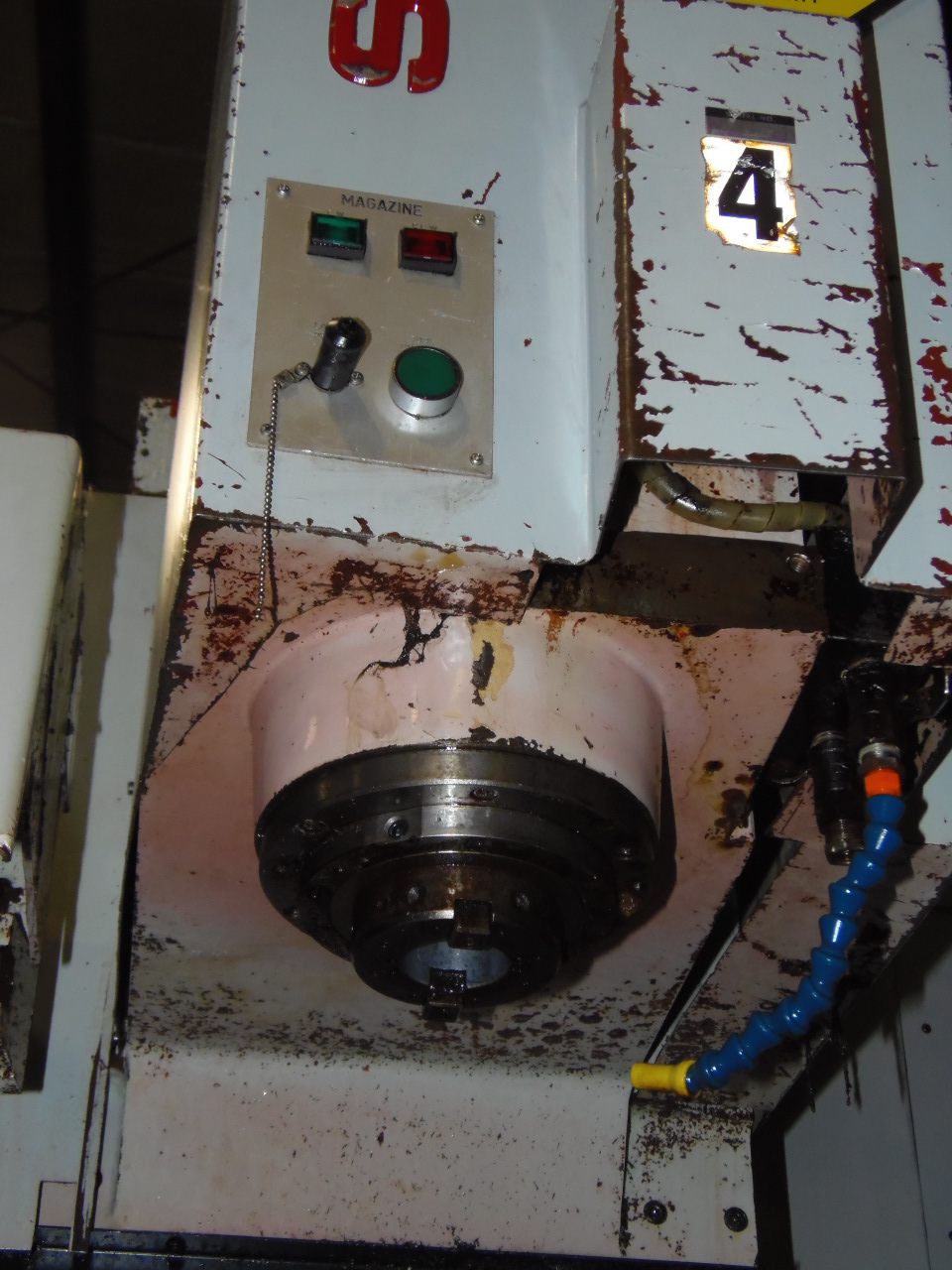

SPINDLE SPEED........... 10,000 RPM

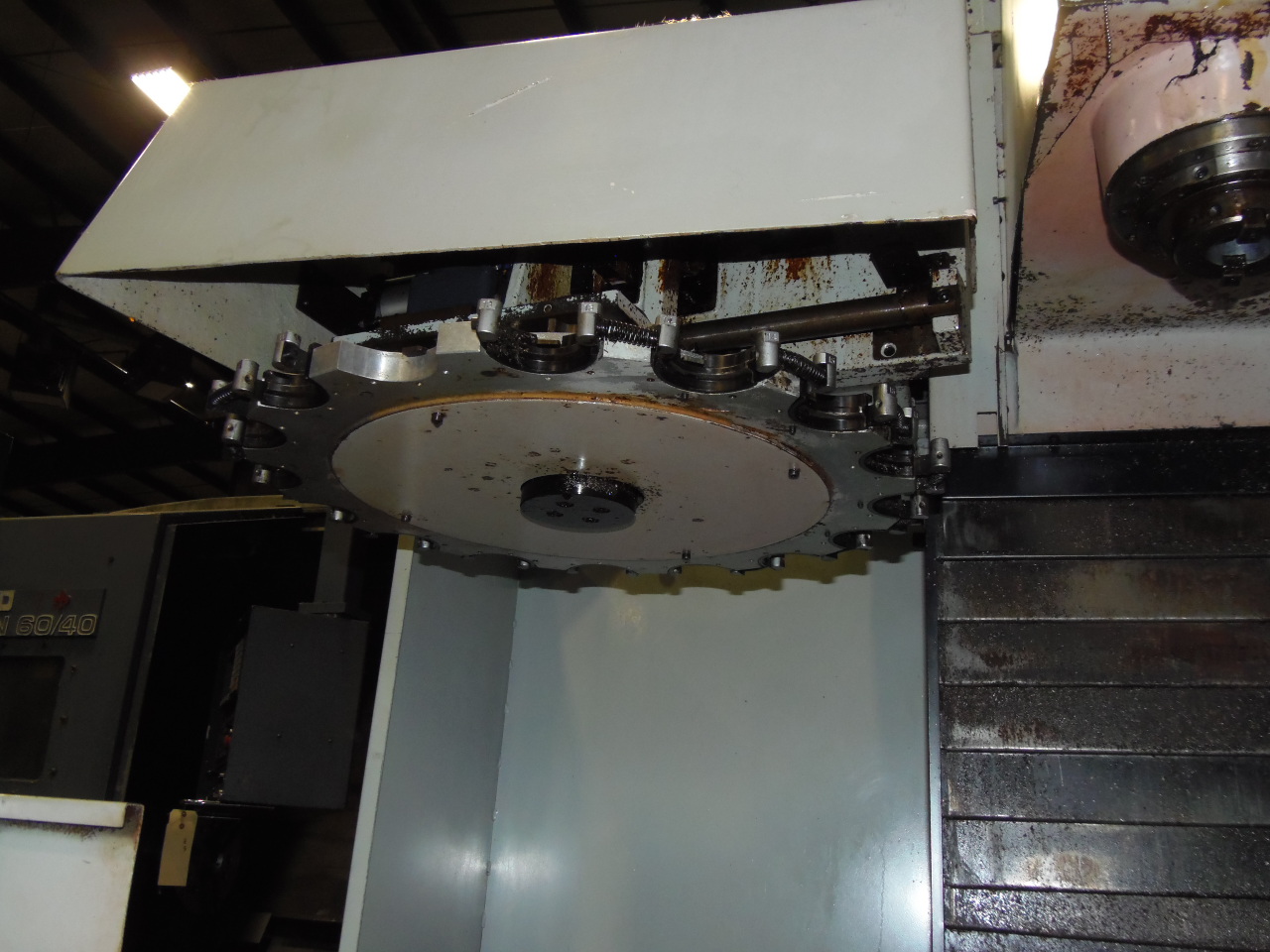

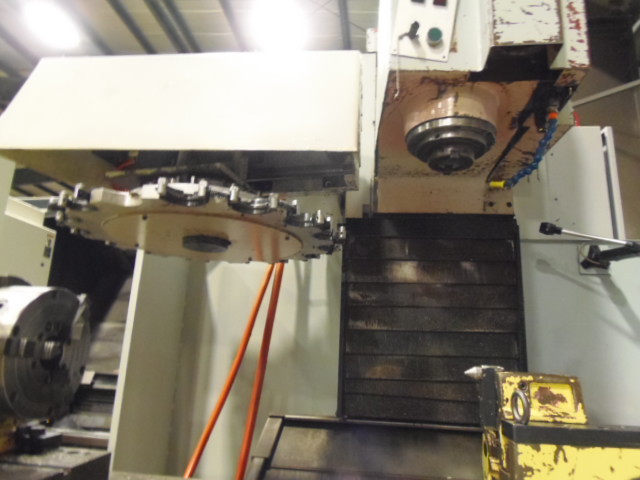

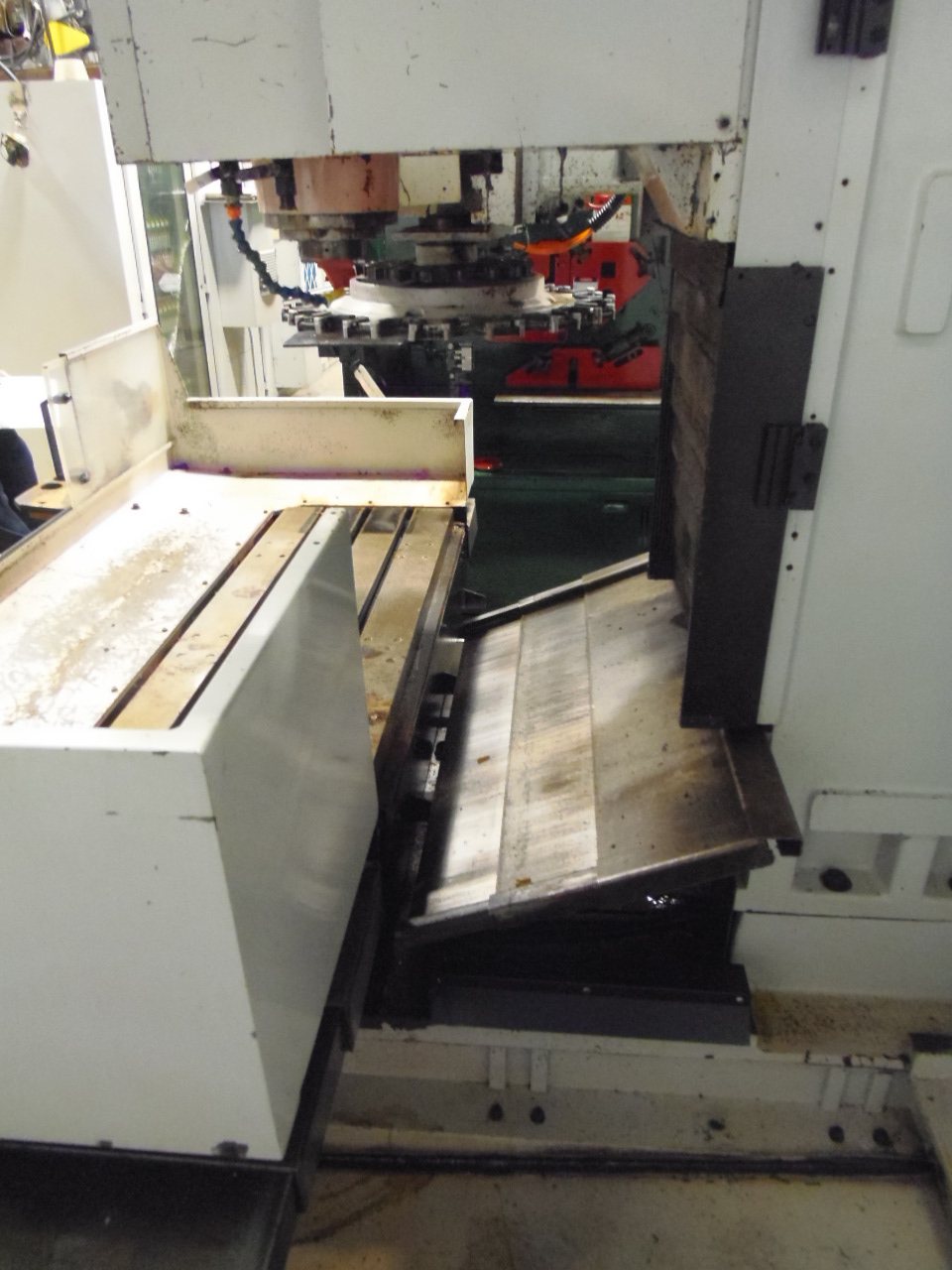

TOOL CHANGER............ 16 TOOLS
MACHINE WEIGHT.......... 8800 LBS.
DIMENSIONS.............. 87" X 135" X 109"

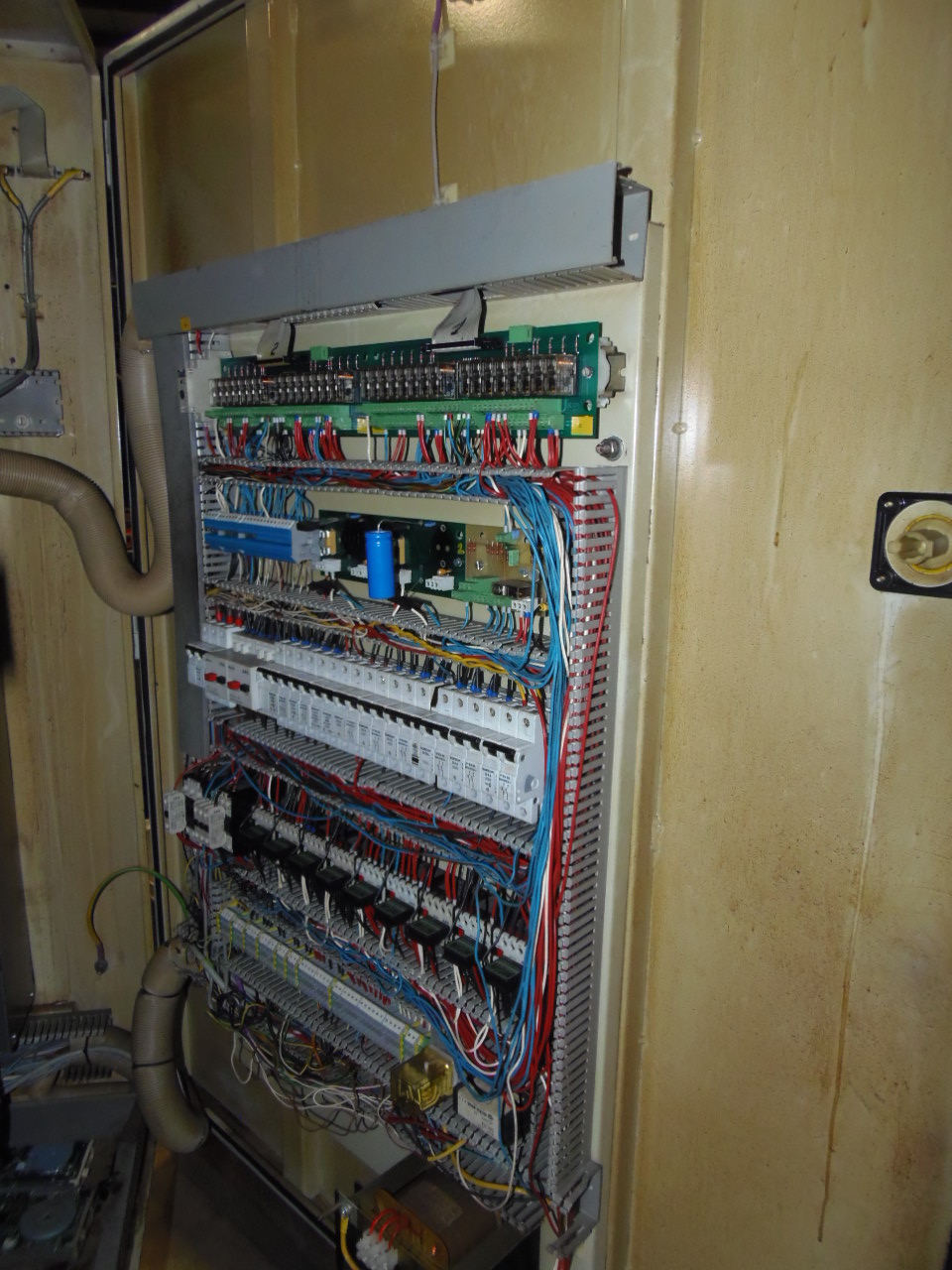

ELECTRICS............... 220V / 3PH
EQUIPPED WITH:

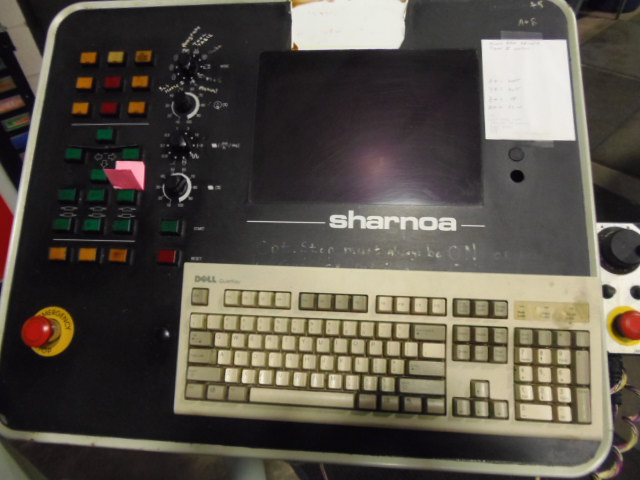

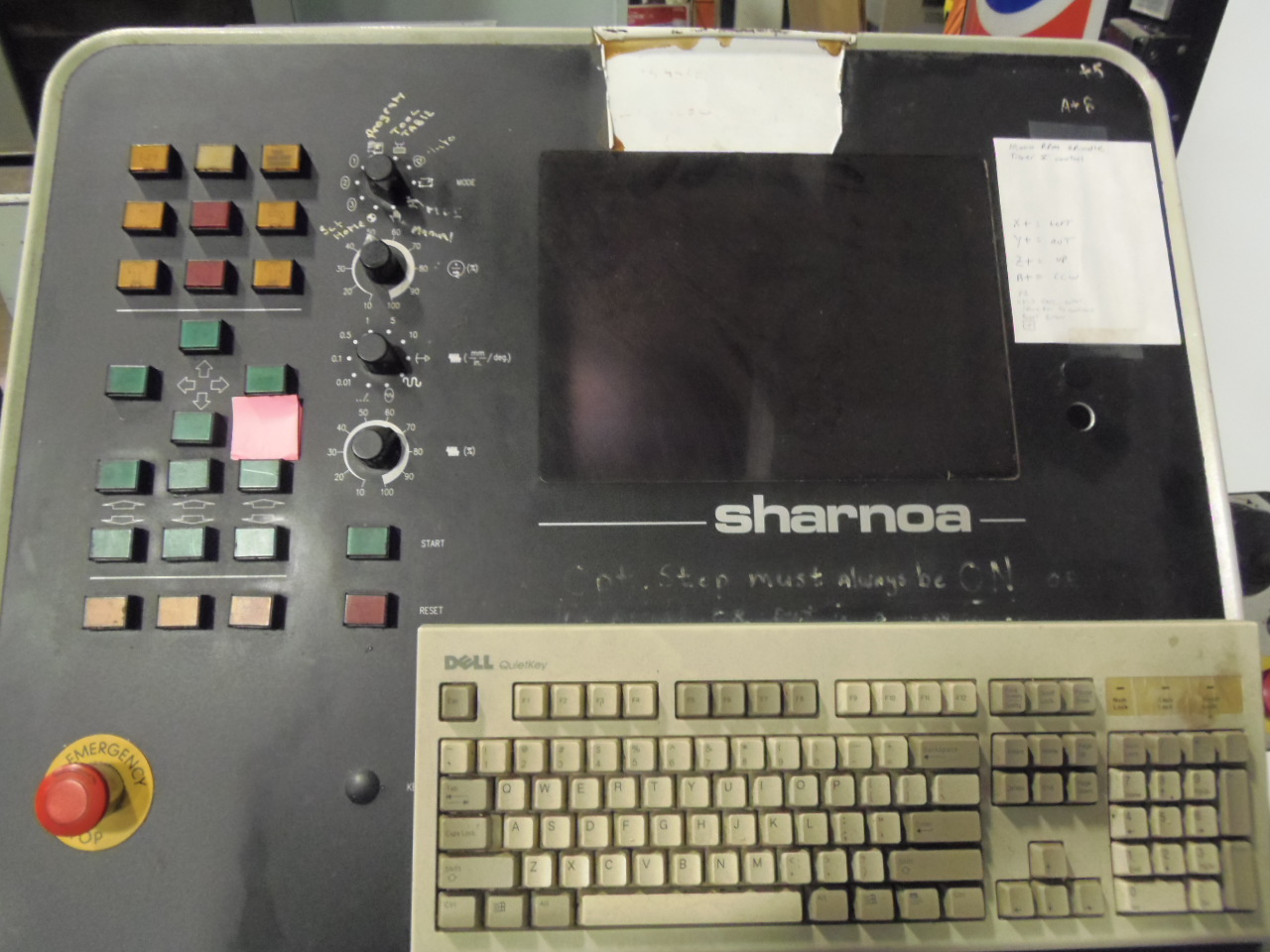

TIGER V CONTROL
SPECIFICATIONS SUBJECT TO VERIFICATION
