Specifications
Equipped With
GENERAL SPECIFICATIONS:

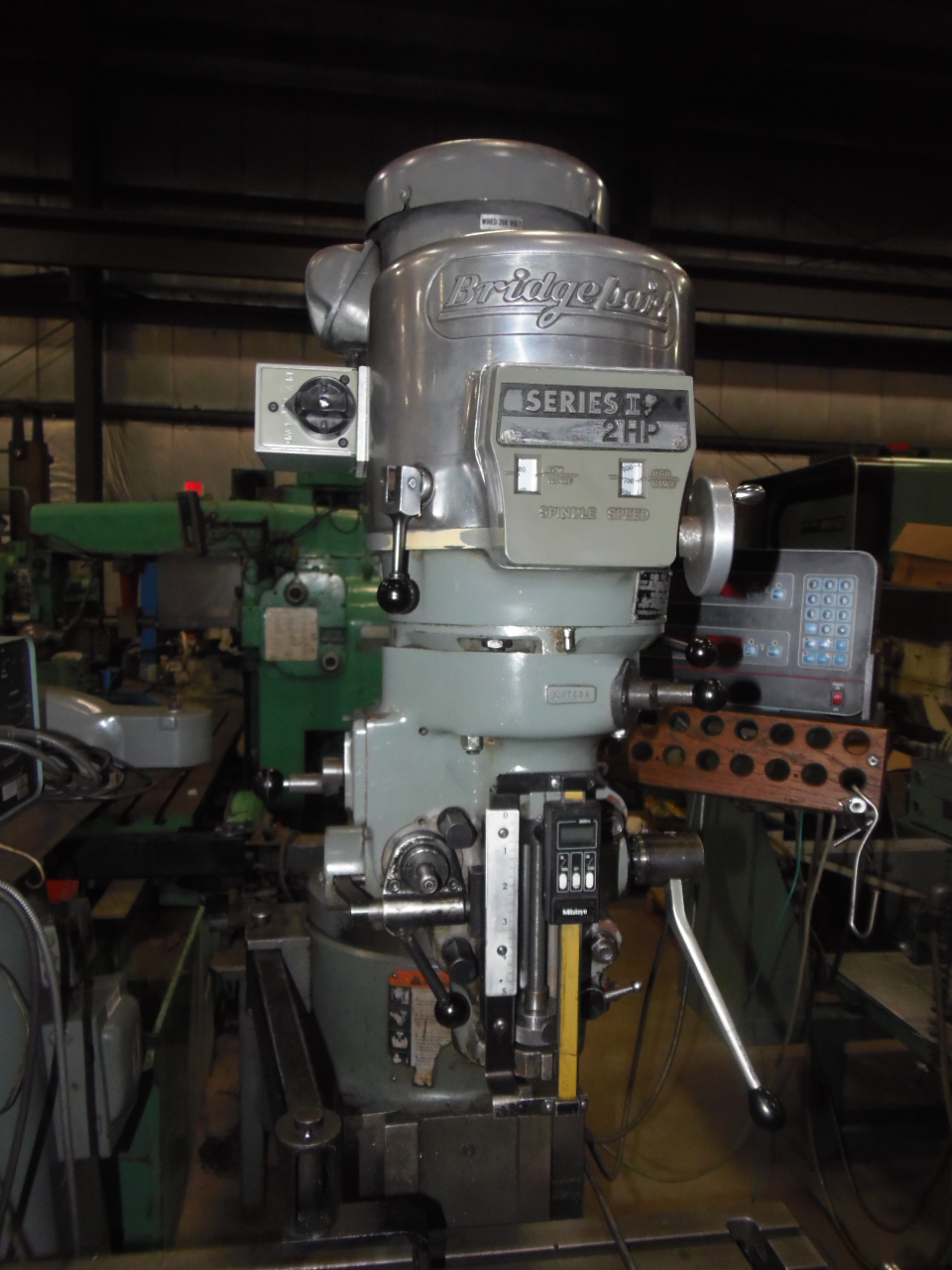

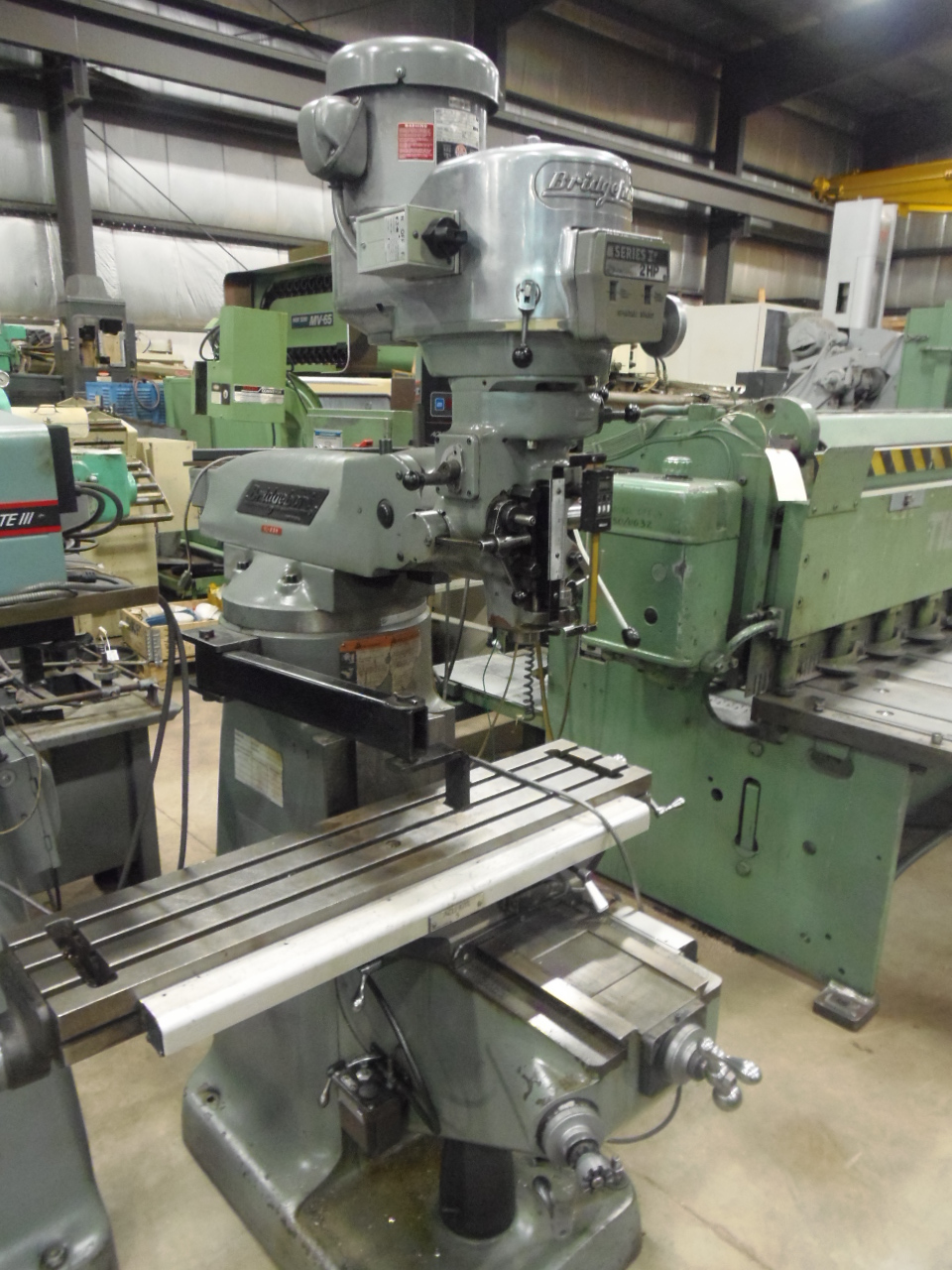

MANUFACTURER................... BRIDGEPORT

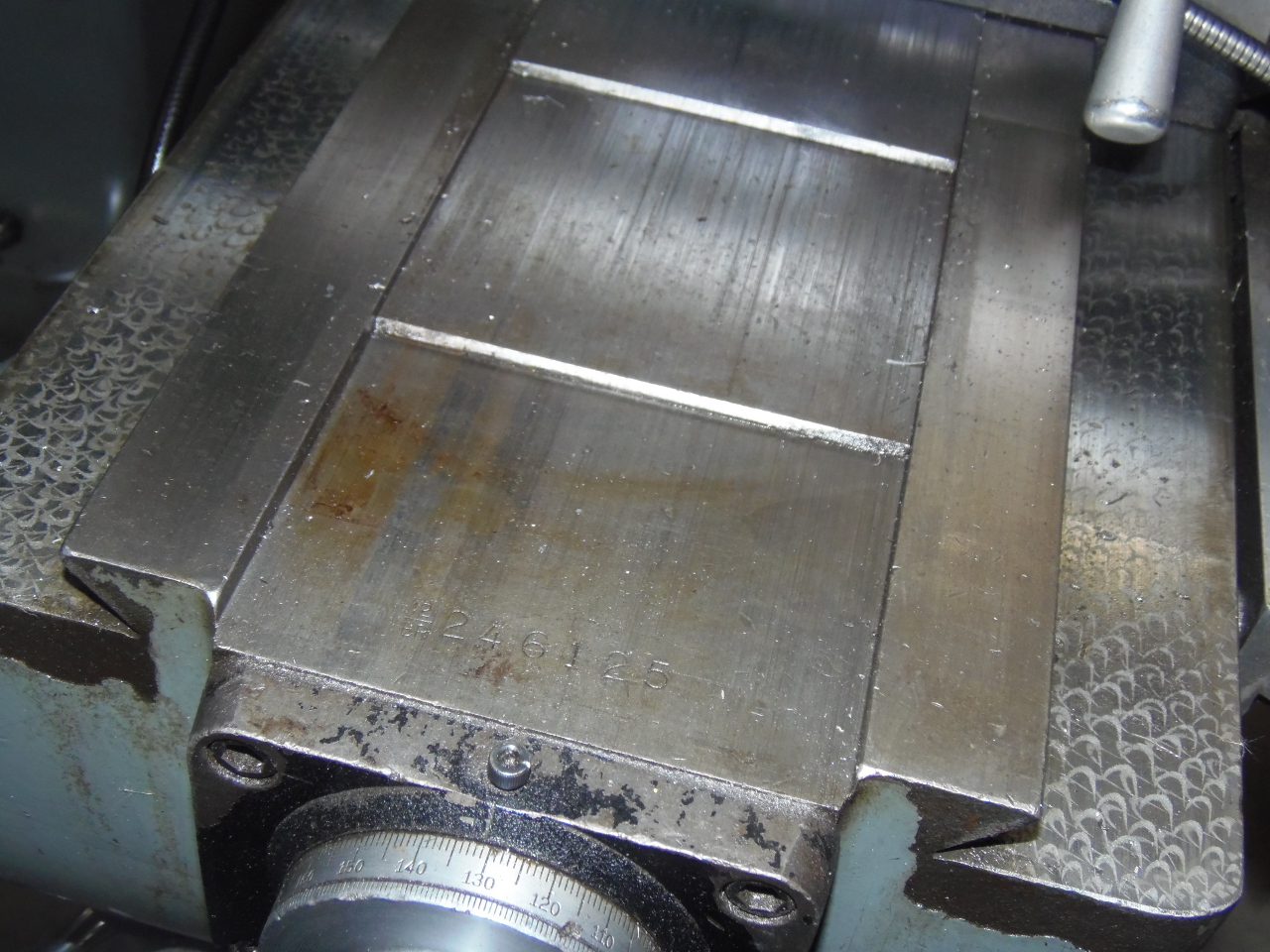

SERIAL......................... 246125
NEW APPROXIMATELY.............. 1986
RANGE:
TABLE TRAVEL X AXIS............ 30"
SADDLE TRAVEL Y AXIS........... 12"
QUILL TRAVEL Z AXIS............ 5"
KNEE TRAVEL (MANUAL)........... 16"
RAM TRAVEL..................... 12"
THROAT DISTANCE................ 6-3/8 TO 18-3/8"

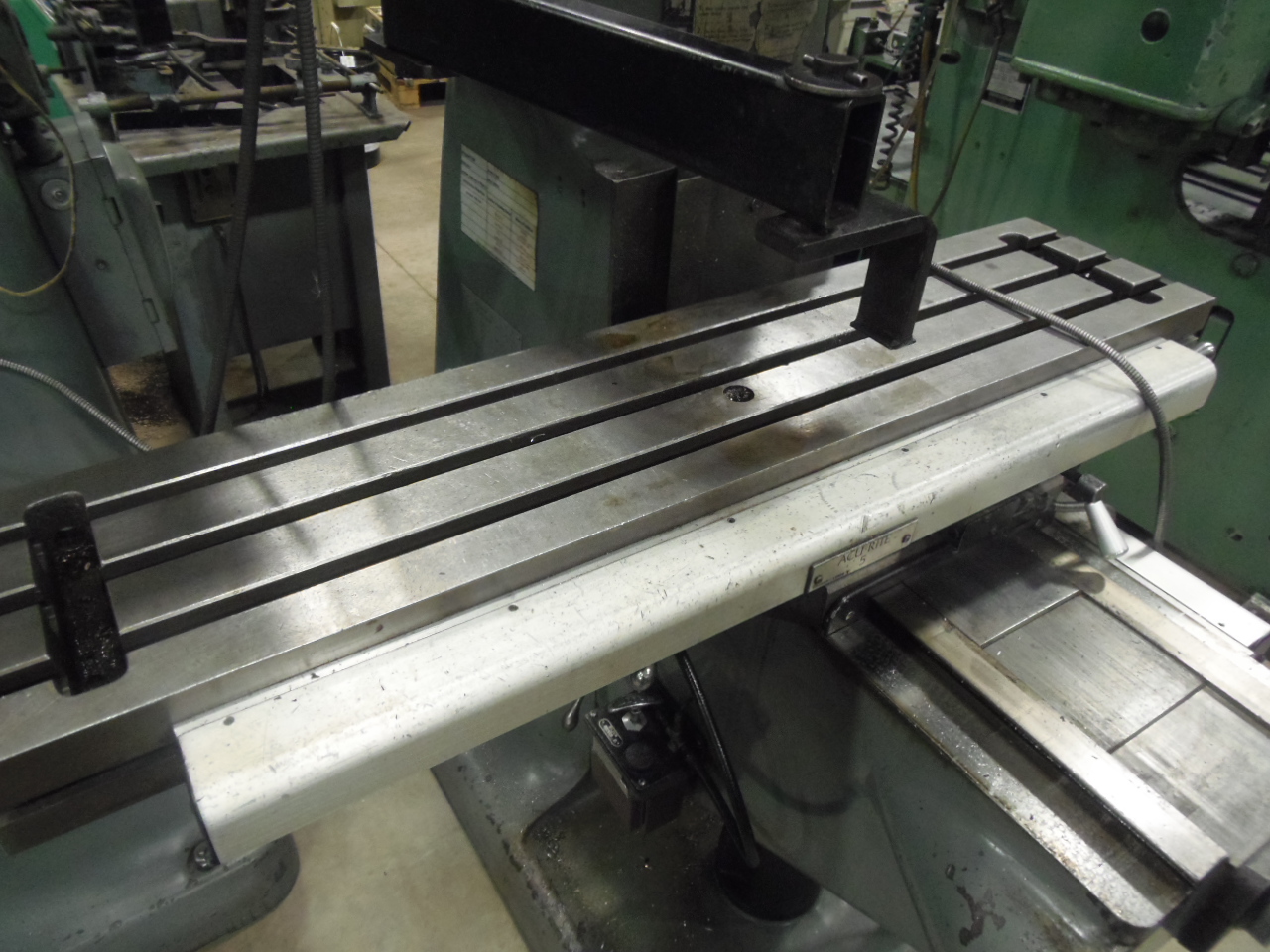

TABLE:
OVERALL SIZE................... 9" X 48"
MAX. VERTICAL LOAD............. 300 LBS.
T-SLOTS........................ 3 ON 2-1/2" CENTERS
T-SLOTS SIZE................... 5/8"
HEIGHT ABOVE FLOOR MAX......... 47-3/4"
SPINDLE:
MOTOR RATING 30 MIN. DUTY...... 3 HP
CONTINUOUS..................... 2 HP
TAPER.......................... R-8
SPEED RANGE HI................. 500-4200 RPM
LOW............................ 60-500 RPM
RAPID APPROACH RATE Z AXIS..... 100 IPM
DRILLING CAPACITY MILD STEEL... 3/4"
MILLING CAPACITY MILD STEEL.... 1.5 CU IN./MIN.
BORING RANGE................... 4"
SPINDLE DIAMETER............... 1-7/8"
QUILL DIAMETER................. 3-3/8"
EQUIPPED WITH:

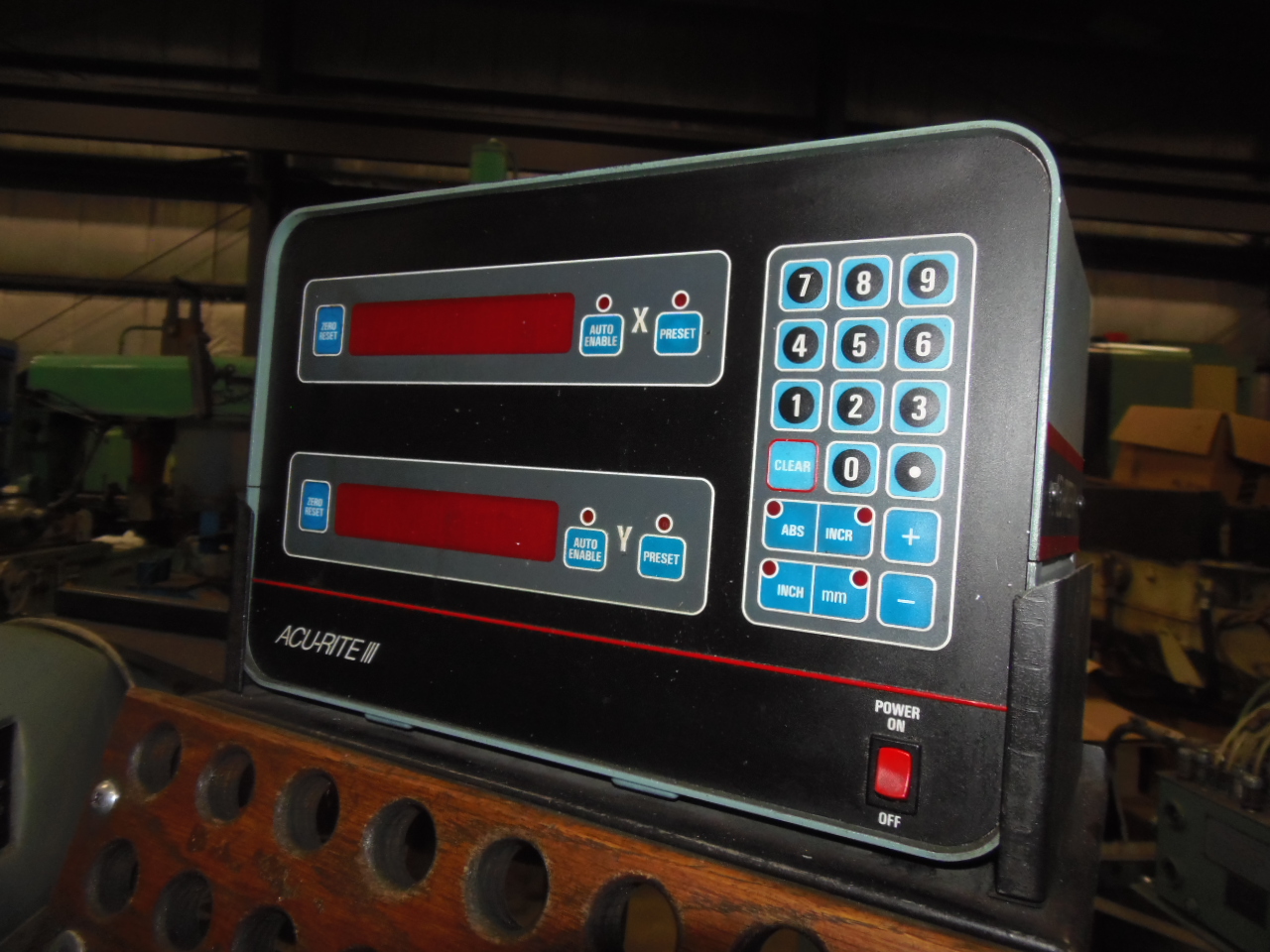

2 AXIS DIGITAL READOUT
CHROME WAYS
COLLETS
