Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE.............................. SENECA FALLS
MODEL............................. CS LO-SWING
DIAMETER CAPACITY MIN............. .75"
DIAMETER CAPACITY MAX............. 5"
DISTANCE BTWN CENTERS MAX......... 42"
SPINDLE QUILL STROKE MAX.......... 2.5"
SPINDLE-CENTER TO BED WAYS........ 9.25"
SPINDLE HOLE FOR DRILL ADAPT. DIA. 2.5"
SPINDLE MOTORS.................... 5 HP (EACH)
DIMENSIONS........................ 9'6" X 2'6"
WEIGHT (APPROX)................... 4600 LBS.
ELECTRICS......................... 380V/3PH/50HZ
EQUIPPED WITH:

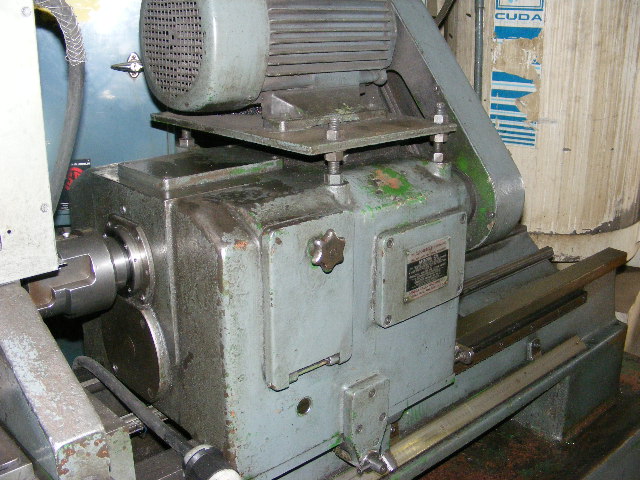

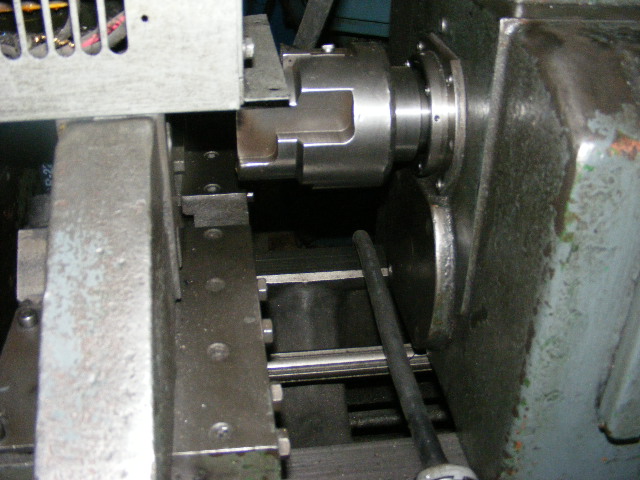

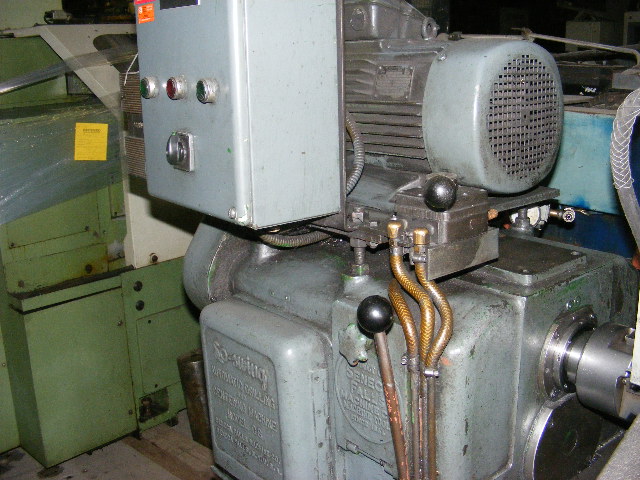

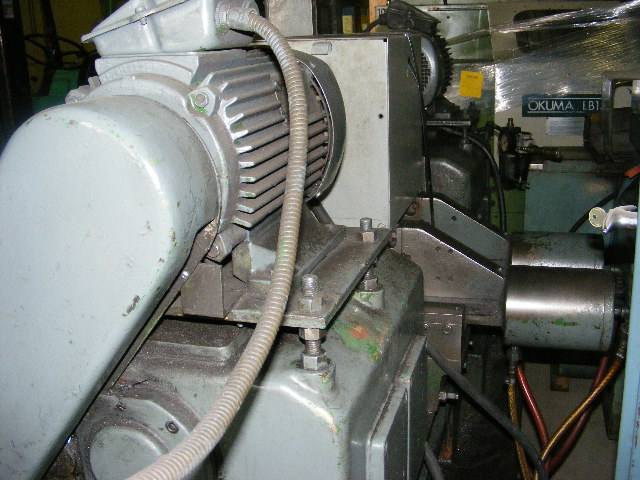

2 CENTERING HEADS 5 HP EACH

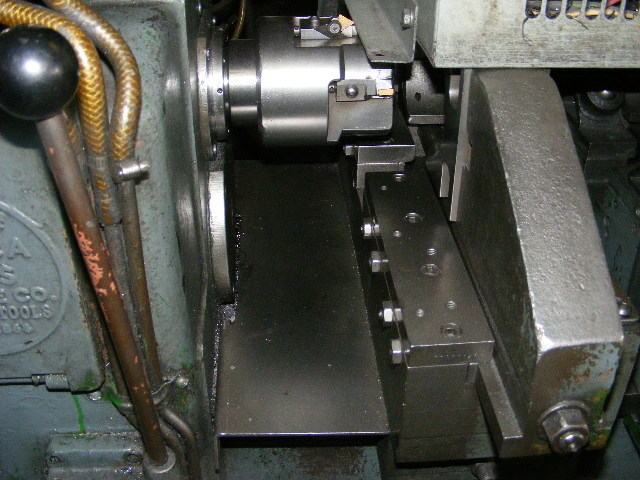

2 SELF CENTERING AIR-OPERATED VISES
SPECIFICATION SUBJECT TO VERIFICATION
