Specifications
Equipped With
GENERAL SPECIFICATIONS:

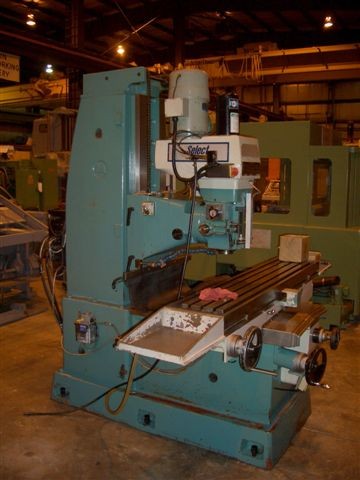

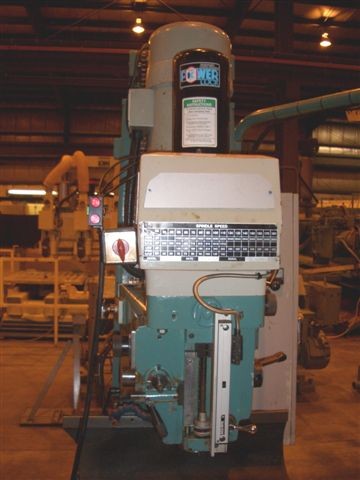

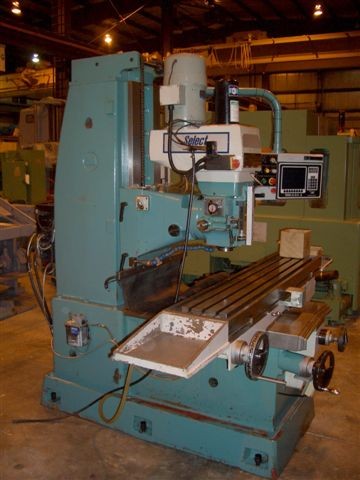

MANUFACTURER SELECT
MODEL 6BVS
NEW (APPROX.) 1995
TABLE SIZE 12" x 60"
TRAVEL (LONGITUDINAL) 42"
TRAVEL (CROSS) 20"
TRAVEL (VERTICAL) 20"
TRAVEL (QUILL) 6"
SPINDLE MOTOR 5 HP
SPINDLE TAPER ISO 40
HEAD SWIVEL (R & L) 90 DEG.
CONTROLLED AXIS 3
QUILL DIAMETER 4.33"
WEIGHT (APPROX.) 6,160 LBS.
EQUIPPED WITH:

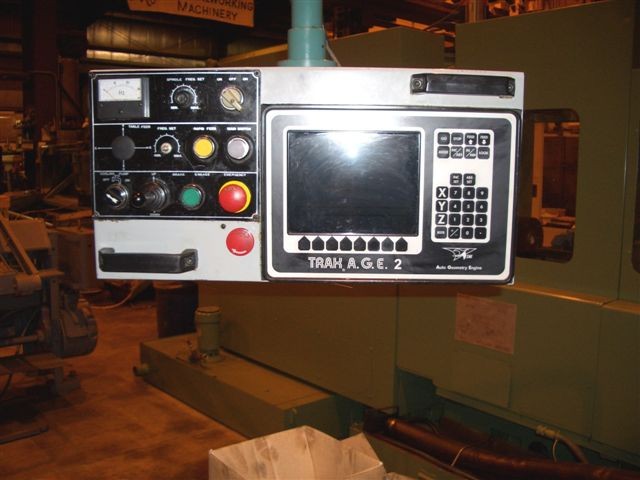

PROTOTRACK AGE-2 CNC CONTROL
CONVERSATIONAL PROGRAMMING
GRAPHICS
COOLANT
RS232
POWER DRAW BAR
GLASS SCALES
5 TOOL HOLDERS
5 COLLETS
TEACH FUNCTION
NOTE: CAN ALSO BE USED AS A MANUAL MILL W/2-AXIS DRO TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
