Specifications
Equipped With
GENERAL SPECIFICATIONS:

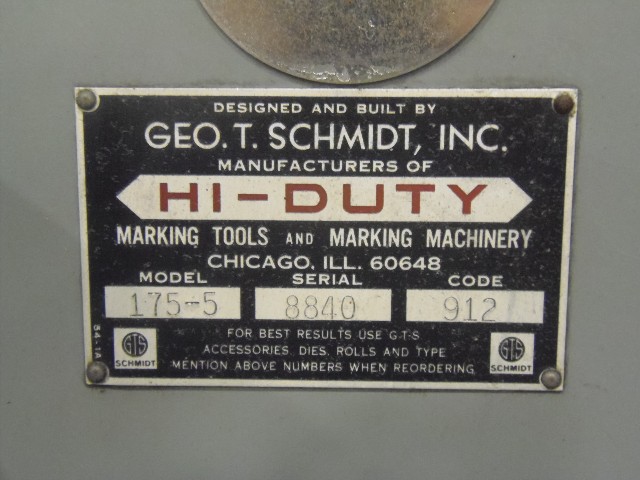

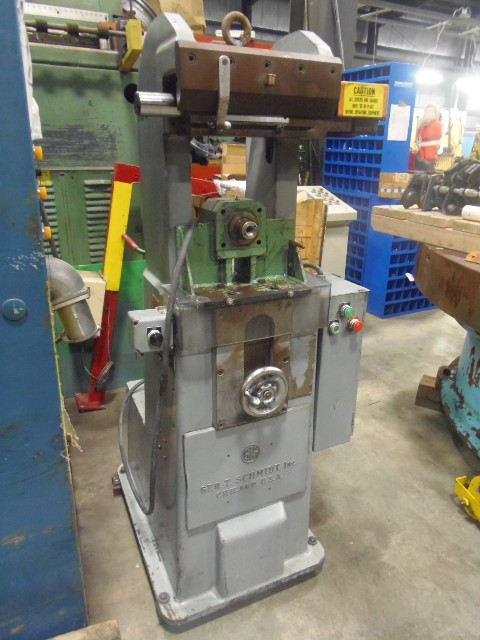

MAKE........................ SCHMIDT
MODEL....................... 175-5 HIGH DUTY
SERIAL NUMBER............... 8840
AGE (YEAR).................. 1979
TABLE PRESSURE ADJUSTABLE... UP TO 12,000 LBS.
DISTANCE BETWEEN UPRIGHTS... 10"
TABLE RISE HYDRAULIC-HAND... 1/2"-4"
DIE SPACE FROM TABLE TO FACE OF DIE SIDE: 14"
(EXTRA HIGH DIE SPACE)

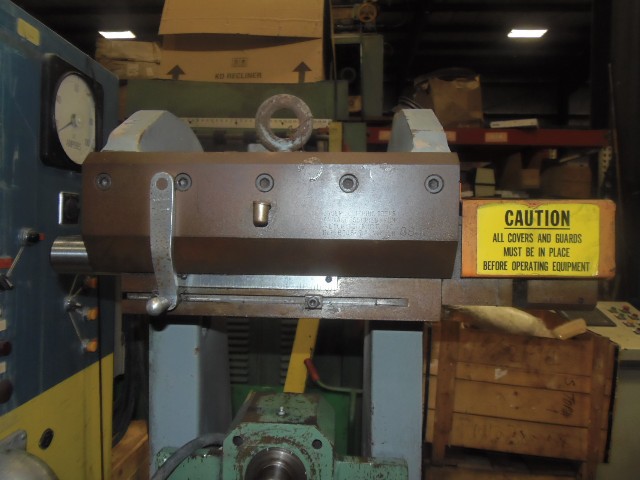

DIE SLIDE (ADJ. STROKE)..... 3/8 TO 7"
DIE SLIDE SPEED (VARI.)..... 90-1" STROKES TO 15-6" STROKES
THROAT...................... 3 1/2"
TABLE SIZE.................. 4 1/2" X 10"
TABLE HEIGHT................ 41 3/4"
WEIGHT (APPROX)............. 2250 LBS
MARKING CAPACITIES:
3 LINES OF 1/4" CHARACTERS
4 LINES OF 3/16" CHARACTERS
5 LINES OF 1/8" CHARACTERS
7 LINES OF 1/16" CHARACTERS
EQUIPPED WITH:

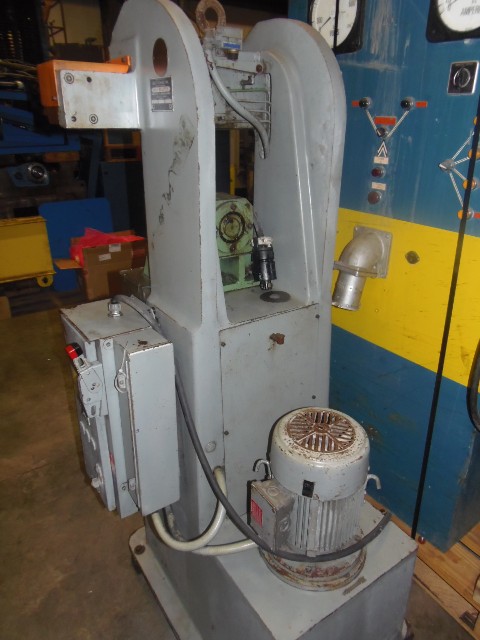

3 HP MOTOR
DUAL PALM BUTTON OPERATION
SPECIFICATIONS SUBJECT TO VERIFICATION
