GENERAL SPECIFICATIONS:
MANUFACTURER............................ SCHIESS

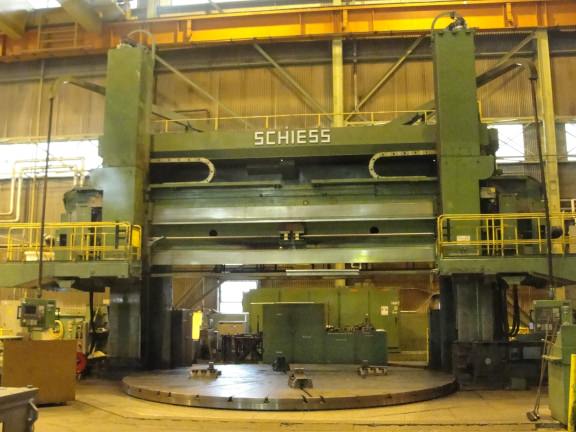

MODEL................................... TYPE K
AGE (YEAR).............................. 2006
TABLE DIAMETER.......................... 283.46"
TURNING DIAMETER WITH VERTICAL RAMS..... 295.27"
TURNING DIAMETER WITH SIDE HEAD......... 283.46"
MAXIMUM TURNING HEIGHT.................. 110.23"
MAXIMUM STROKE OF VERTICAL RAMS......... 78.74"
RAM CROSS SECTION....................... 13.78" X 13.38"
VERTICAL TRAVEL OF CROSS RAIL........... 86.61"
TABLE LOAD CAPACITY..................... 264,555 LBS
TABLE SPEED RANGES...................... 4
TABLE SPEEDS............................ 0.1 TO 18.6 RPM
RAPID TRAVERSE OF CROSS RAIL............ 14.17 IPM
CROSS ELEVATION MOTOR................... 40.23 HP
VERTICAL RAM FEEDS...................... 0 TO 120 IPM
HORIZONTAL RAM FEEDS.................... 0 TO 120 IPM
ELECTRICS............................... 460/3/60 CYCLE
EQUIPPED WITH:

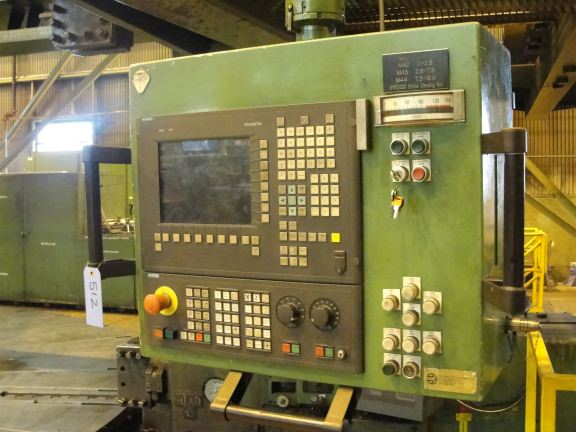

SIEMENS 840D CNC CONTROL NEW 2006
DUAL PENDANT OPERATED CONTROLS

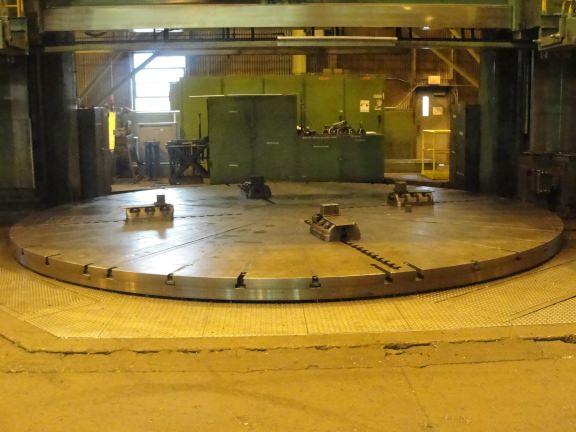

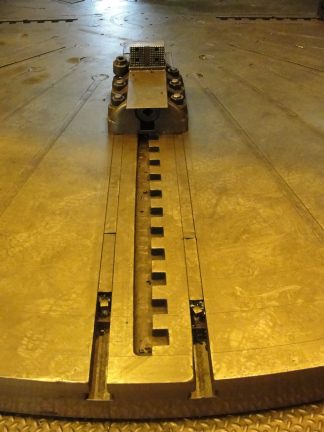

283.46" DIAMETER T-SLOTTED TABLE
2-VERTICAL CNC CONTROLLED RAMS
MANUAL HORIZONTAL SIDE HEAD, PENDANT OPERATED
DUAL OPERATOR PLATFORMS
4-HEAVY DUTY FACE PLATE JAWS
HEIDENHAIN SCALES
HEIDENHAIN ENCODER & DRO FOR TABLE INDEXING
JORGENSON CHIP CONVEYOR SYSTEM
150 HP TABLE DRIVE MOTOR

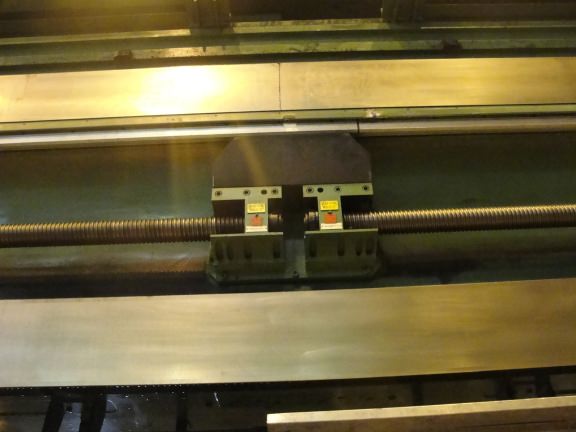

REBUILT & CNC RETROFIT IN 2006, NEW BALL SCREWS, REFITTED COLUMN, SADDLE AND RAMS, NEW HYDROSTATIC TABLE SYSTEM, NEW DRIVES, BALL SCREWS, ELECTRICS
SPECIFICATIONS SUBJECT TO VERIFICATION
