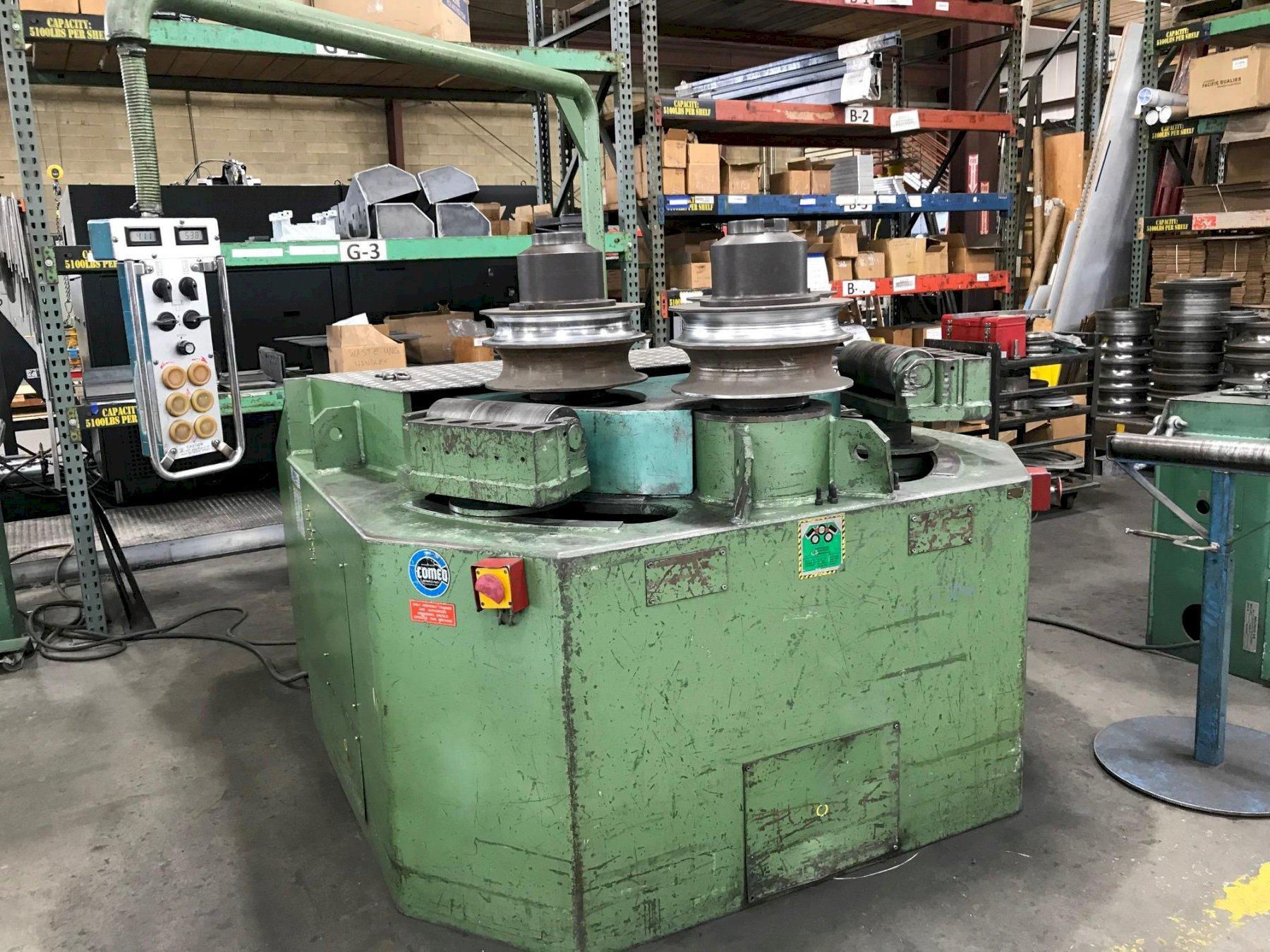

ROUNDO HYDRAULIC ANGLE BENDING ROLL, MODEL R6, 6" X 6" X 5/8", 1993, TOOLING

ROUNDO ROLLS R-6-S ( TOOLS 16 )

MODEL: R-6-S

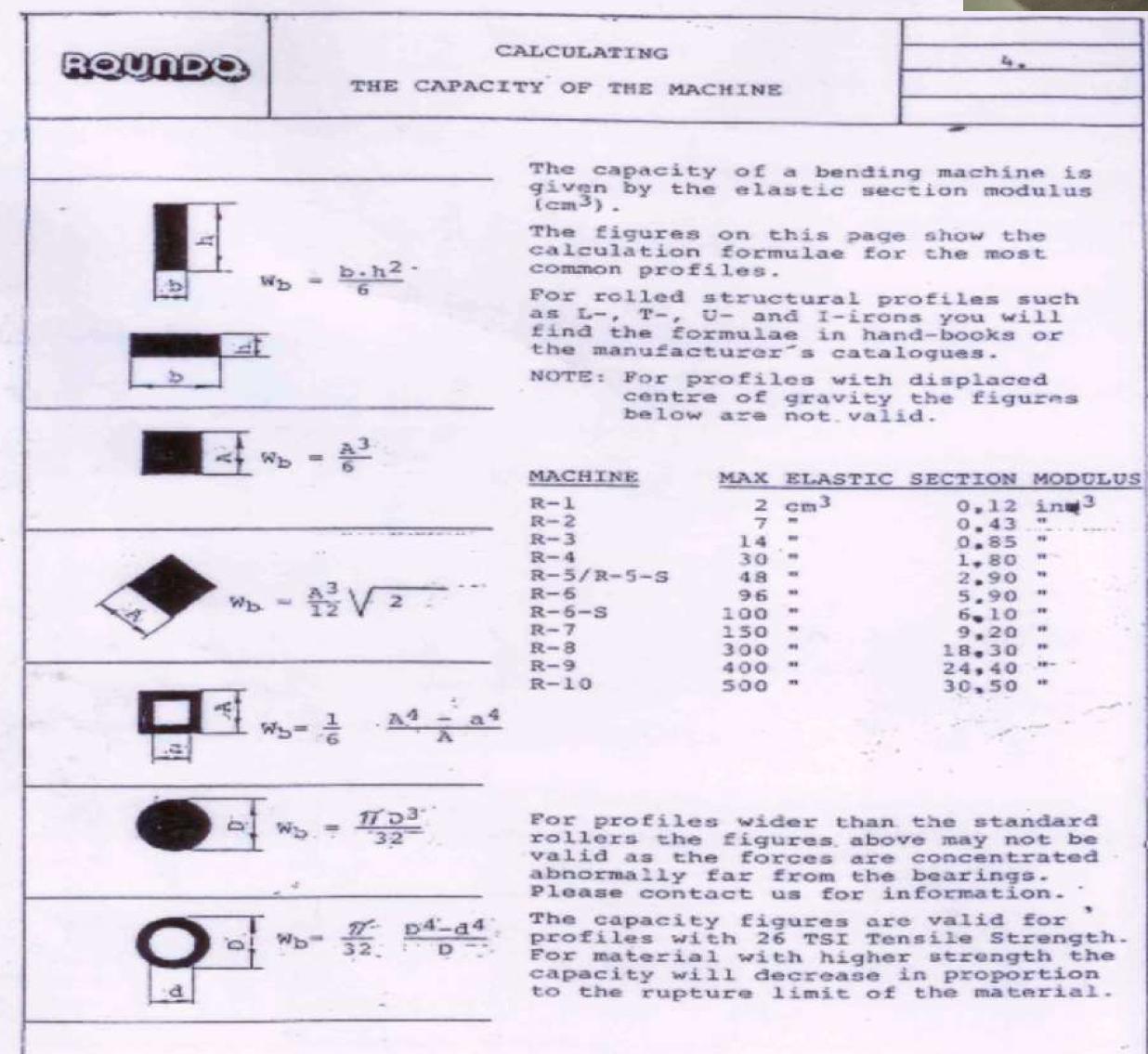

CAPACITIES:

ANGLES: LEG OUT MAXIMUM 6 X 6 X 5/8 ( MINIMUM DIA. 100" )

MINIMUM 1-1/2 X 1-1/2 X 1/4 ( MINIMUM DIA. 26" )

( WITH SPECIAL TOOLING MINIMUM DIA 16: )

LEG IN MAXIMUM 5 X 5 X 3/4 ( MINIMUM DIA. 85" )

MINIMUM 1-1/2 X 1-1/2 X 1/4 ( MINIMUM DIA. 85" )

( WITH SPECIAL TOOLING MINIMUM DIA. 18" )

MINIMUM BEND RATIOS for Diameters:

 LEG OUT= 14X (LEG WIDTH PARRALELL WITH PLANE OF BEND)

LEG IN= 18X(LEG WIDTH PARRALELL WITH PLANE OF BEND)

SS 2 x 2 x 3/16, LEG-IN, MIN O.D. = 60”

TEES: LEG OUT MAXIMUM ST6WF36 ( MINIMUM DIA 85" )

( MINIMUM DIA 20" )

LEG IN MAXIMUM ST5WF36 ( MINIMUM DIA. 60" )

( MINIMUM DIA. 20" )

FLAT BAR: HARDWAY MAXIMUM 1-1/4 X 5 ( MINIMUM DIA. 48" )

MINIMUM 1-1/4" X 1--1/2" ( MINIMUM DIA. 20" )

 ( WITH SPECIAL TOOLING 16" )

Note: 6”wide rolled the Hardway is possible at Larger Radius(240” or bigger)

EASYWAY MAXIMUM 1-1/4" X 10" ( MINIMUM DIA. 50" )

( MINIMUM DIA. 20" )

SQUARE BAR: MAXIMUM 3" X 3" ( MINIMUM DIA. 50" )

( MINIMUM DIA. 20" )

ROUND BAR: MAXIMUM 3-1/2" DIA. ( MINIMUM DIA. 75" )

SEE PIPE/TUBE DIE LIST FOR DIA. CAPABILITY.

( MINIMUM DIA. 20" )

PIPE: MAXIMUM 5-1/2" STD. PIPE/ 6”OD ( MINIMUM DIA. 75" )

( MINIMUM DIA. 20" )

WF / IBM: HARDWAY MAXIMUM SMALL PROFILES ( MIN. DIA TEST REQUIRED )

(WF 4” x 13# can be rolled to a 96” inside radius before flange distortion of ¼”)

EASYWAY MAXIMUM WITH TOOLING 12” X 6-3/8” (WF 12 X 22#)

( MINIMUM DIA. 75" ) MINIMUM WITH SPEC. TOOLING

3” X 2” X 3/8” ( MINIMUM DIA. 20" )

CHANNEL: LEG OUT MAX. SMALL PROFILES (TEST BEND REQ'D.)

WITH SPEC. TOOLING 12 X 3 ( MINIMUM DIA. 50" )

LEG IN MAX. SMALL PROFILES (TEST BEND REQ'D.)

WITH SPEC. TOOLING 3 X 1-1/2 ( MIN. DIA. 20")

HARDWAY MAX. WITH SPECIAL TOOLING 5 X 2-1/2

( MIN. DIA. 160" ) ( MIN DIA. 60" )

 STD PIPE: 1" (1-5/16 OD) MINIMUM CENT. LINE DIAMETER: 16-1/2"

 1-1/2" (1-7/8 OD) " " " " : 18"

 2" (2-3/8 OD) " " " " : 18”

 2-1/2”(2-7/8 OD) “ “ “ “ : 20”

 3" (3-1/2 OD) " " " " : 21-1/2"

 4" (4-1/2 OD) " " " " : 28”

 TUBE: 2"OD " " " " :16-1/2”

Schd 80 Pipe: 3" (3.5 OD) MINIMUM CENT. LINE DIAMETER: 19.25"

SQUARE/RECT TUBE:

 MAXIMUM HORIZONTAL DIMENSION (HARDWAY): 6”

MAXIMUM VERTICAL DIMENSION (EASY WAY): 12”

**1 NOTE THE THICKER THE WALL THE LESS CROSS SECTIONAL DISTORTION WILL

 OCCUR IN ROLLING SQUARE OR RECTANGULAR TUBE. WHENEVER POSSIBLE

 FURNISH A SAMPLE OF THE ROLLED PC IF THE DEGREE OF DISTORTION IS IN

 IN QUESTION OR A CONCERN BEFORE ROLLING THE PRODUCTION PART. AS

 A GENERAL RULE THE RATIO FOR ROLLING IS (WIDTH OF SECTION MULTIPLIED

 BY 18 TO 20 TIMES= MINIMUM RADIUS for Steel, for Aluminum it is 38 to 45 times =MINIMUM

 RADIUS. )

 RT4 x 2 x .125 6061 T6 min Radius inside is 180”(25518-001)

 THE MINIMUM DIAMETER FOR STL ANGLE 2-1/2 X 2-1/2 X 1/4 ROLLED LEG IN

 IS 42” OD (WIDTH OF MATERIAL MULTIPLIED BY 8= MINIMUM RADIUS).

 RT 8 X 3X 1/4 WALL MINIMUM INSIDE RADIUS IS MORE THAN 69” INSIDE EASY WAY

 23X WIDTH OF MATERIAL BEING BENT
