Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER...................... RETROPLASMA
MODEL............................. PANTHER AC1600
AGE............................... 2000
EFFECTIVE CUTTING AREA............ 14' X 43'
PLASMA AMPERAGE................... 200 AMP
PLASMA MODEL...................... INNERLOGIC FINELINE 200 PC
HIGH DENSITY
RATED PLASMA CAPACITY............. 2" STEEL 1.5" STAINLESS
CONTROL........................... BURNY 10LCD PC BASED
TRAVERSE SPEED.................... 1200 IPM FOR X AND Y
BETWEEN RAILS..................... 18'
EQUIPPED WITH:

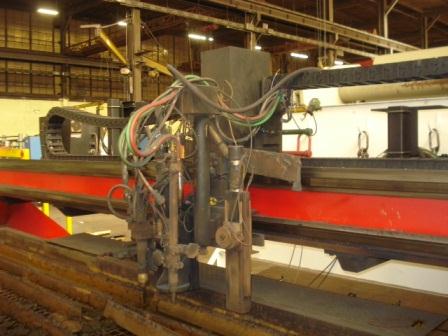

VICTOR OXYFUEL TORCH WITH AUTOMATIC TORCH IGNITER
CONFIGURED FOR UP TO 8 OXYFUEL STATIONS
INNERLOGIC INOVA PLASMA TORCH HEIGHT CONTROL
HEAVY DUTY HIGH SPEED BALL SCREW DRIVE

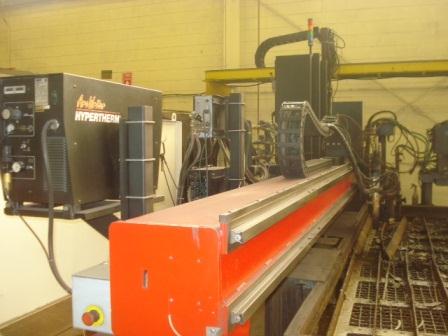

HYPERTHERM ARCWRITER PLASMA MARKING STATION

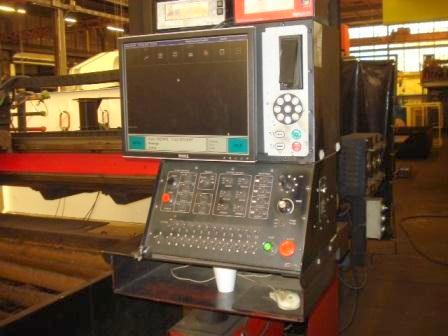

OPERATORS CONSOLE HAS A FULLY CONFIGURABLE PLC INTERFACE
2.7 HP AC SERVO MACHINE DRIVE PACKAGE
BURNY FEATURES:4.2 GB HARD DRIVE, 433 MHZ CELERON PROCESSOR, GRAPHIC PLATE ALIGNMENT, ETHERNET AND RS232 COMMUNICATIONS CAPABILITY, TRUE MULTI-TASKING, SELECTABLE KERF COMP., GENERIC SHAPE LANGUAGE, FULL COLOR 12.1" TOUCHSCREEN, WINDOWS NT-EMBEDDED OPERATING SYSTEM, RTX "REAL TIME" MOTION CONTROL, DIRECT IMPORT OF .DXF AND .DWG FILES, ROW AND COLUMN NESTING, 50 STANDARD SHAPES LIBRARY, AND PART SCALING AND MIRROR IMAGING.
50 FT OF RAIL TO ALLOW MACHINE PARKING SPACE DURING LOAD/UNLOAD
NOTE:WATER TABLE SHOWN IN PHOTOS IS NOT AVAILABLE AND NOT INCLUDED
SPECIFICATIONS SUBJECT TO VERIFICATION
