GENERAL SPECIFICATIONS:

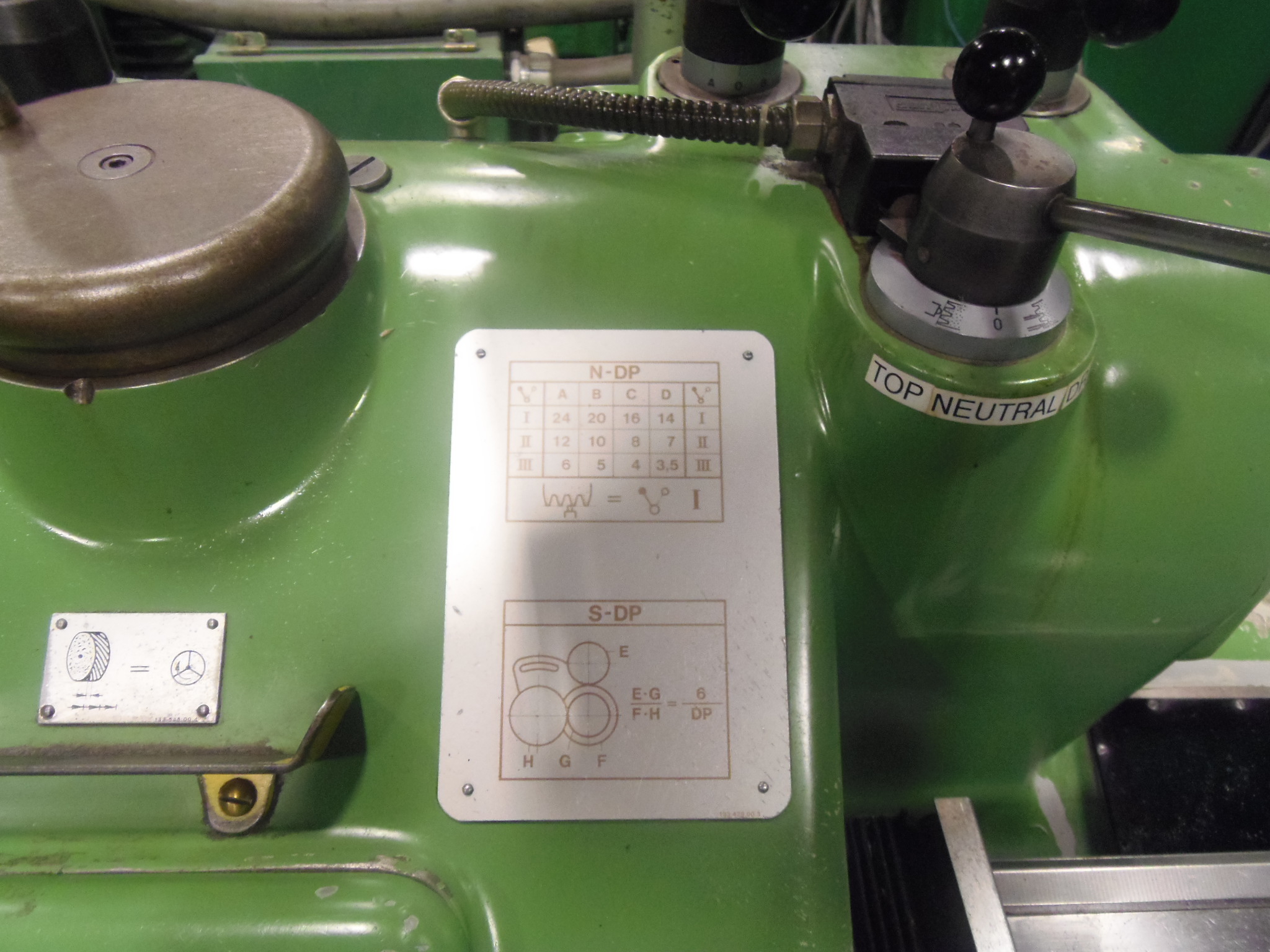

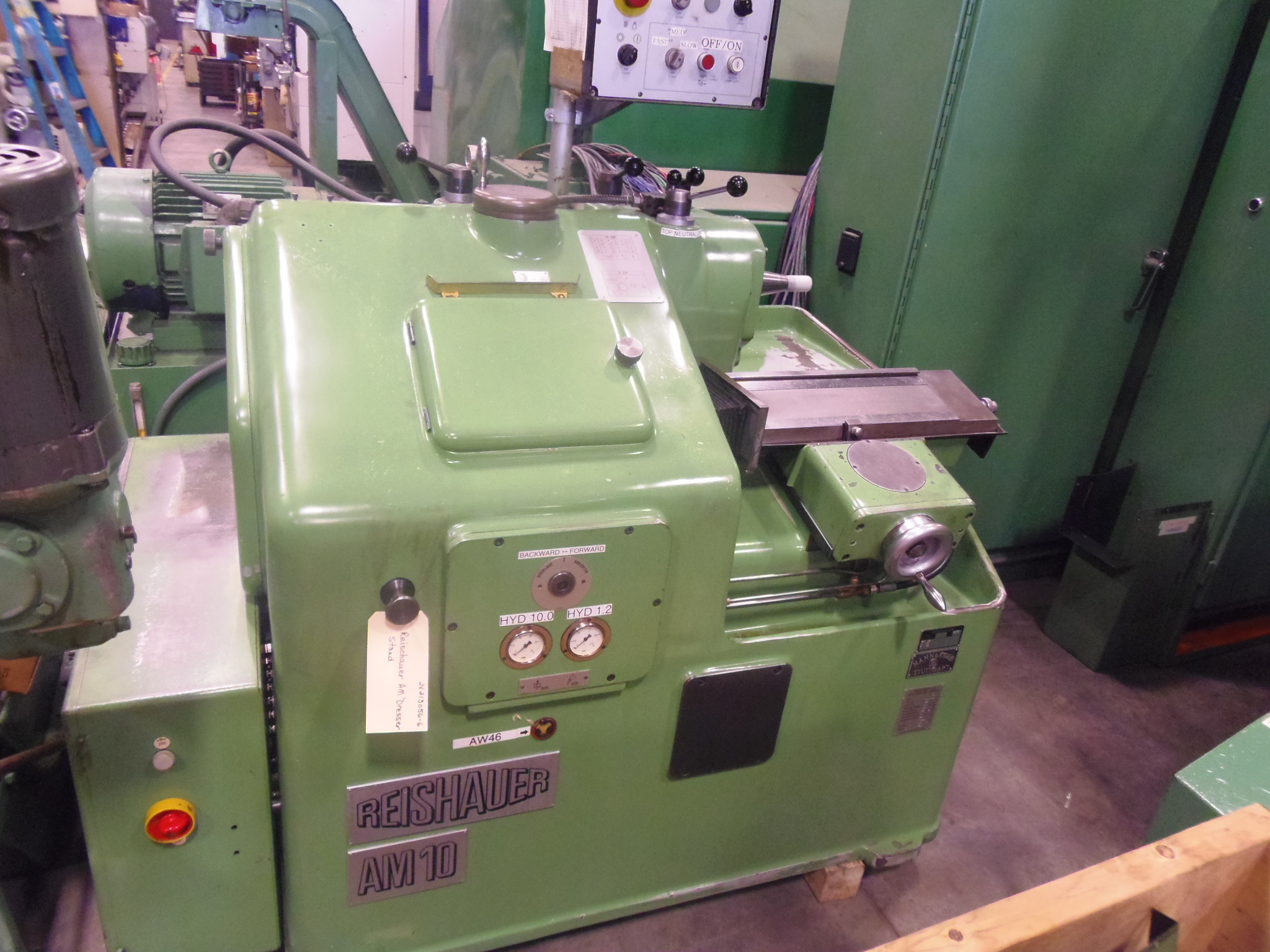

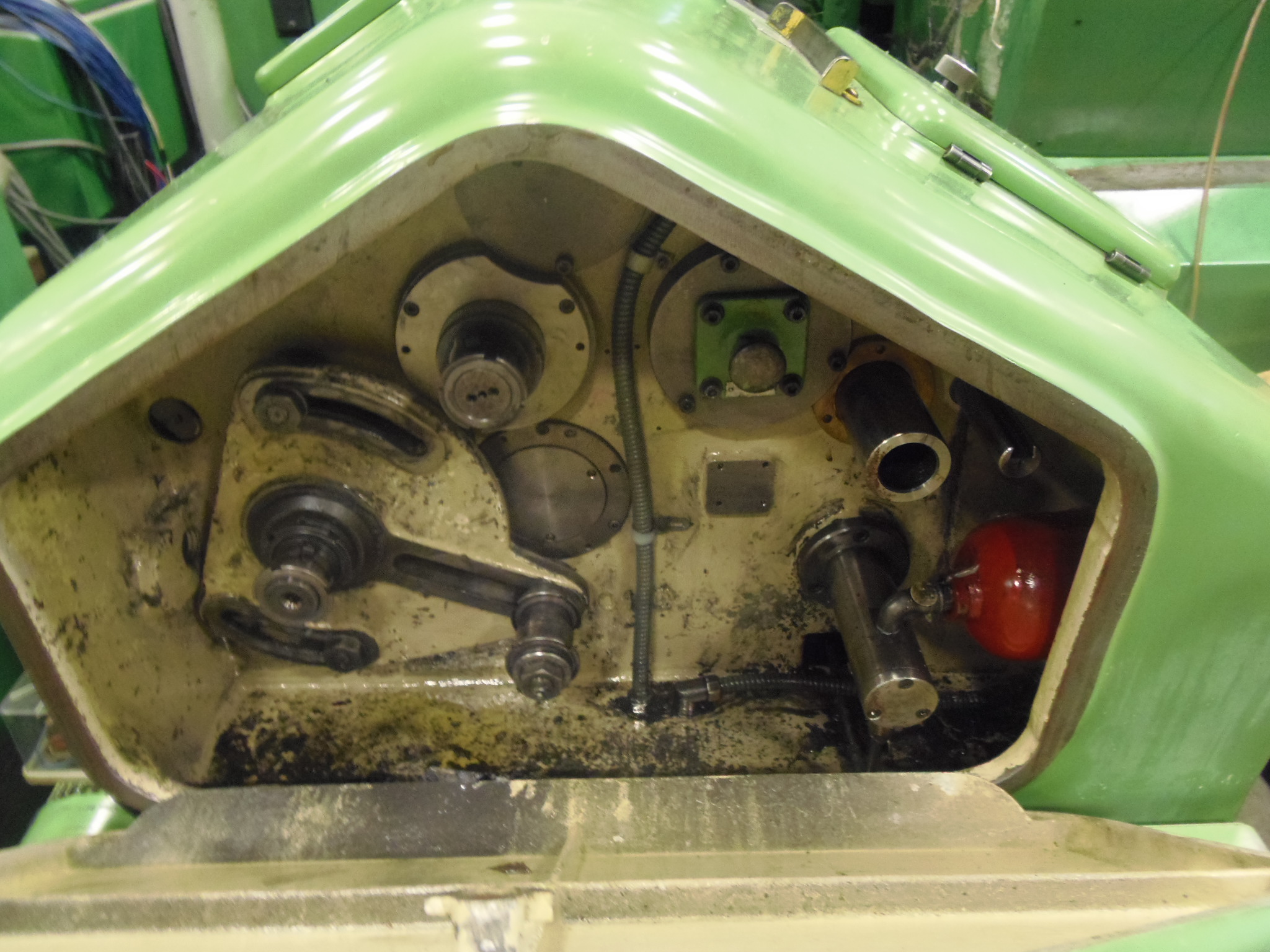

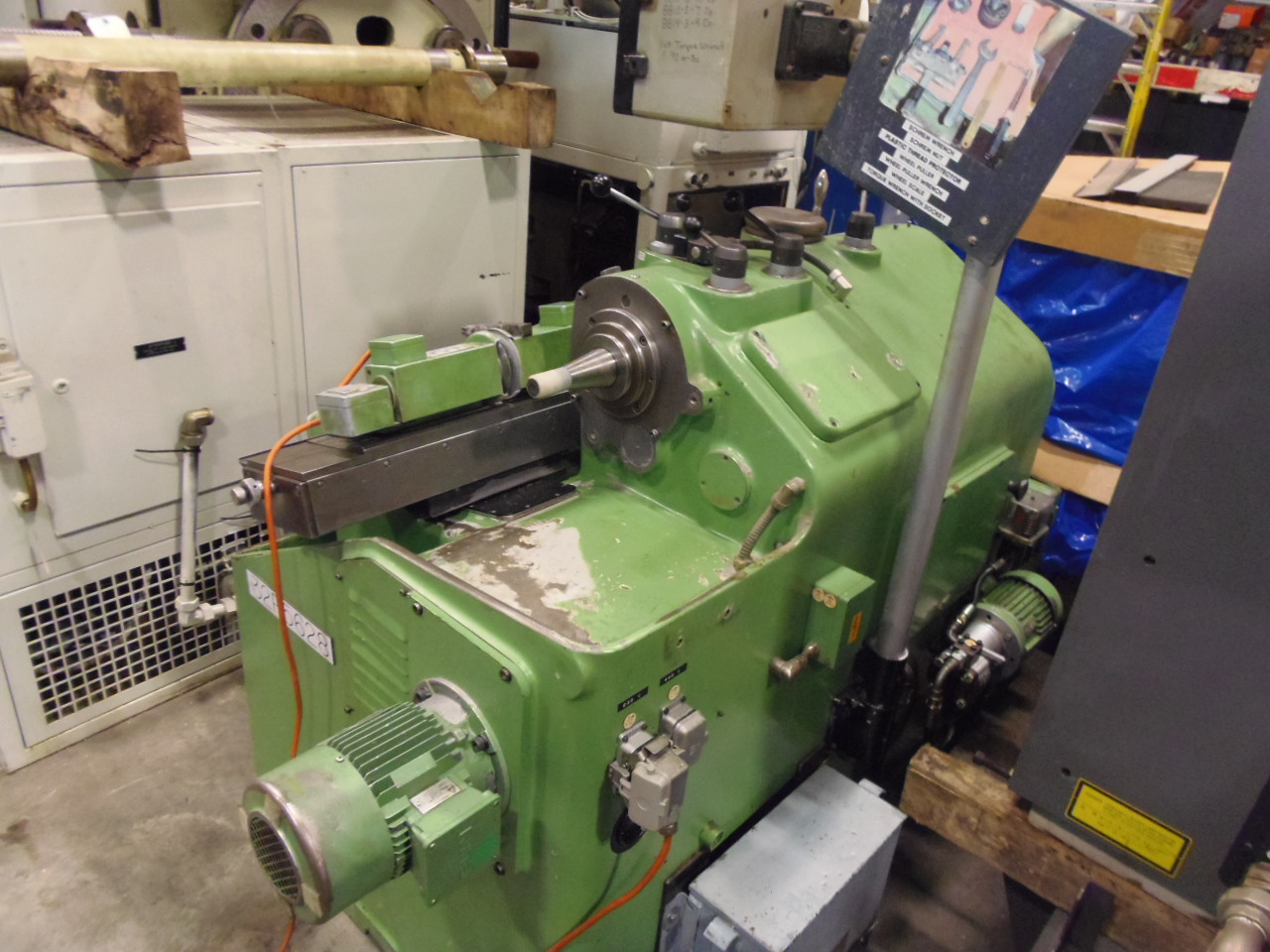

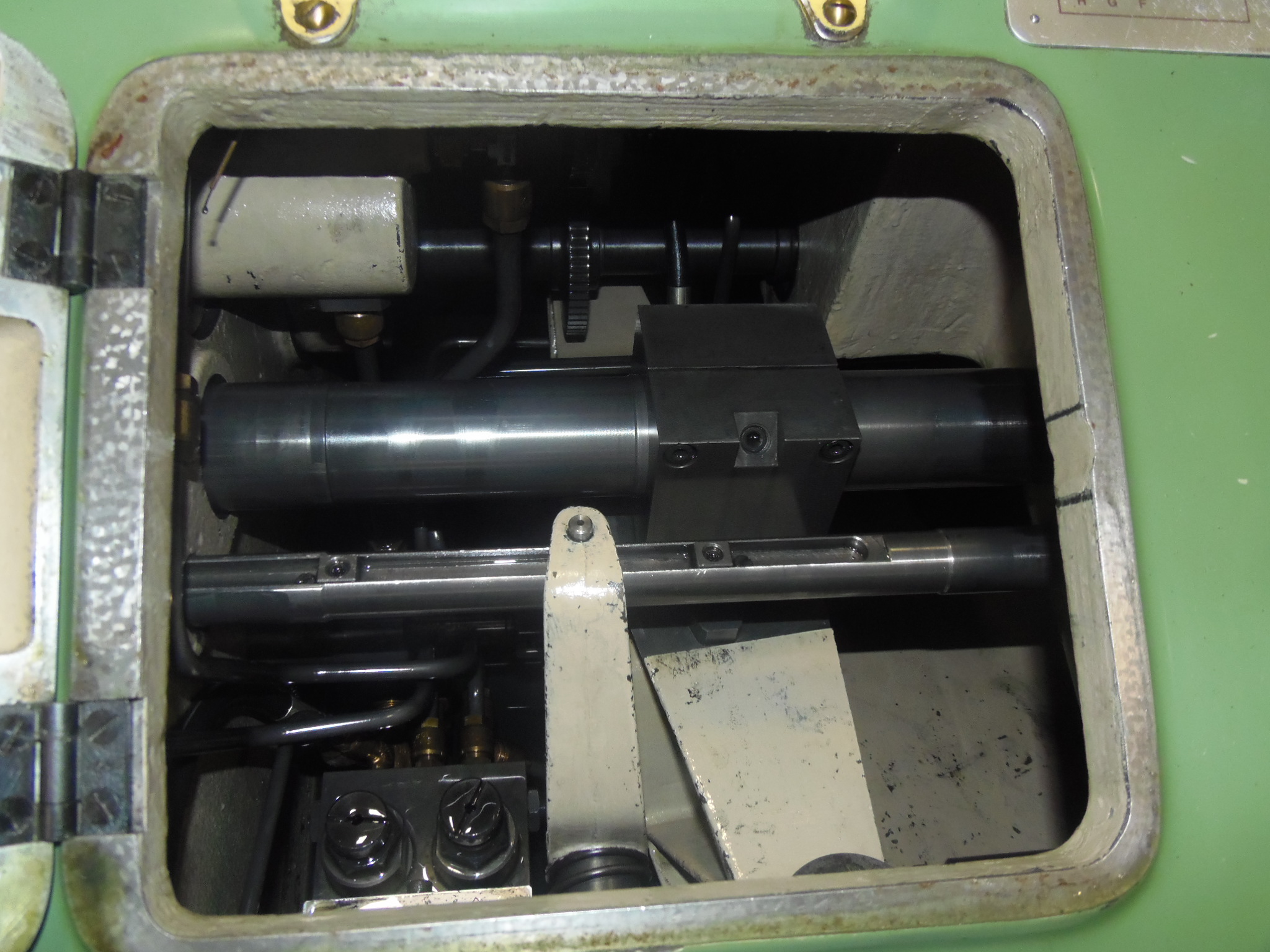

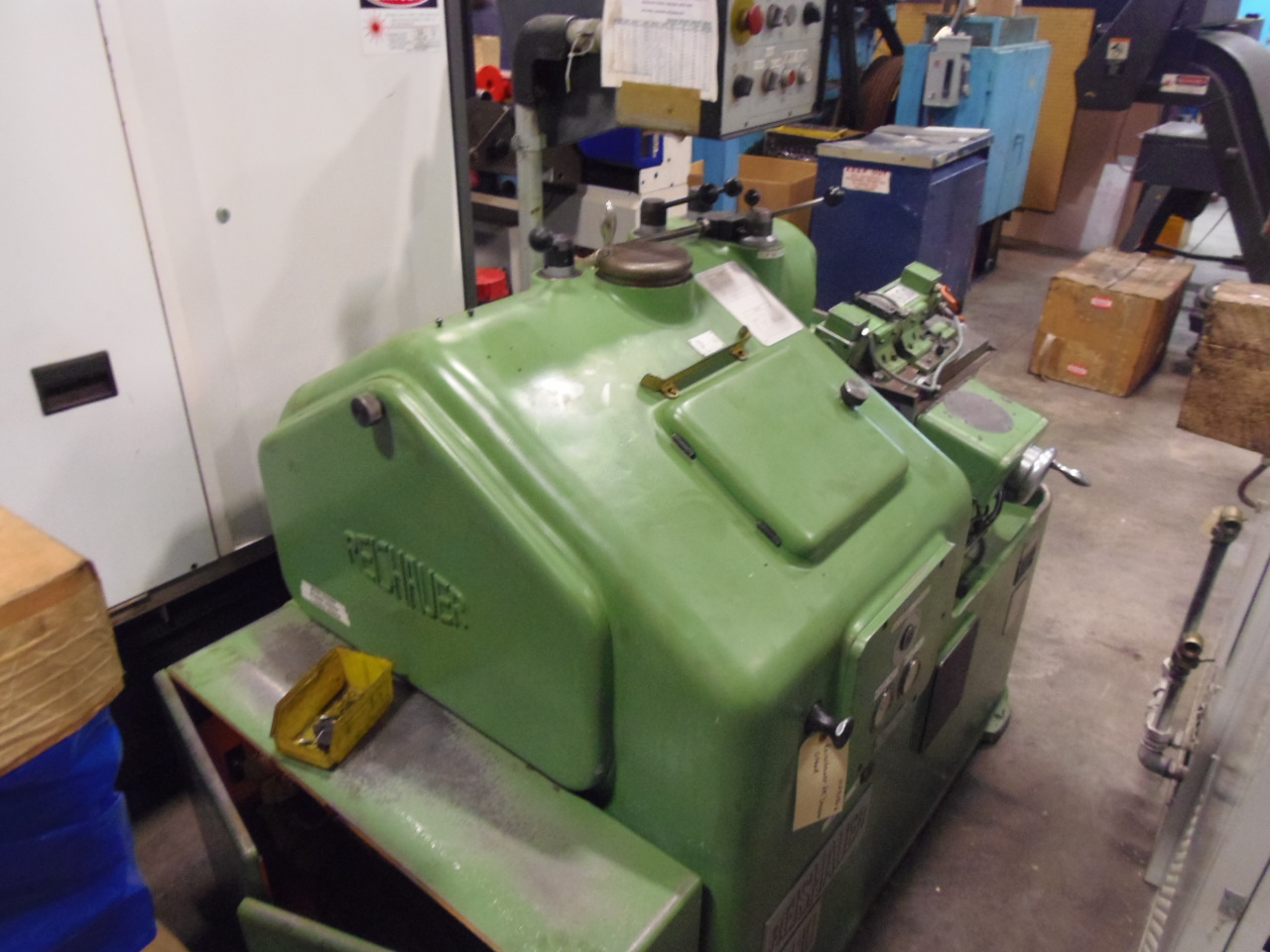

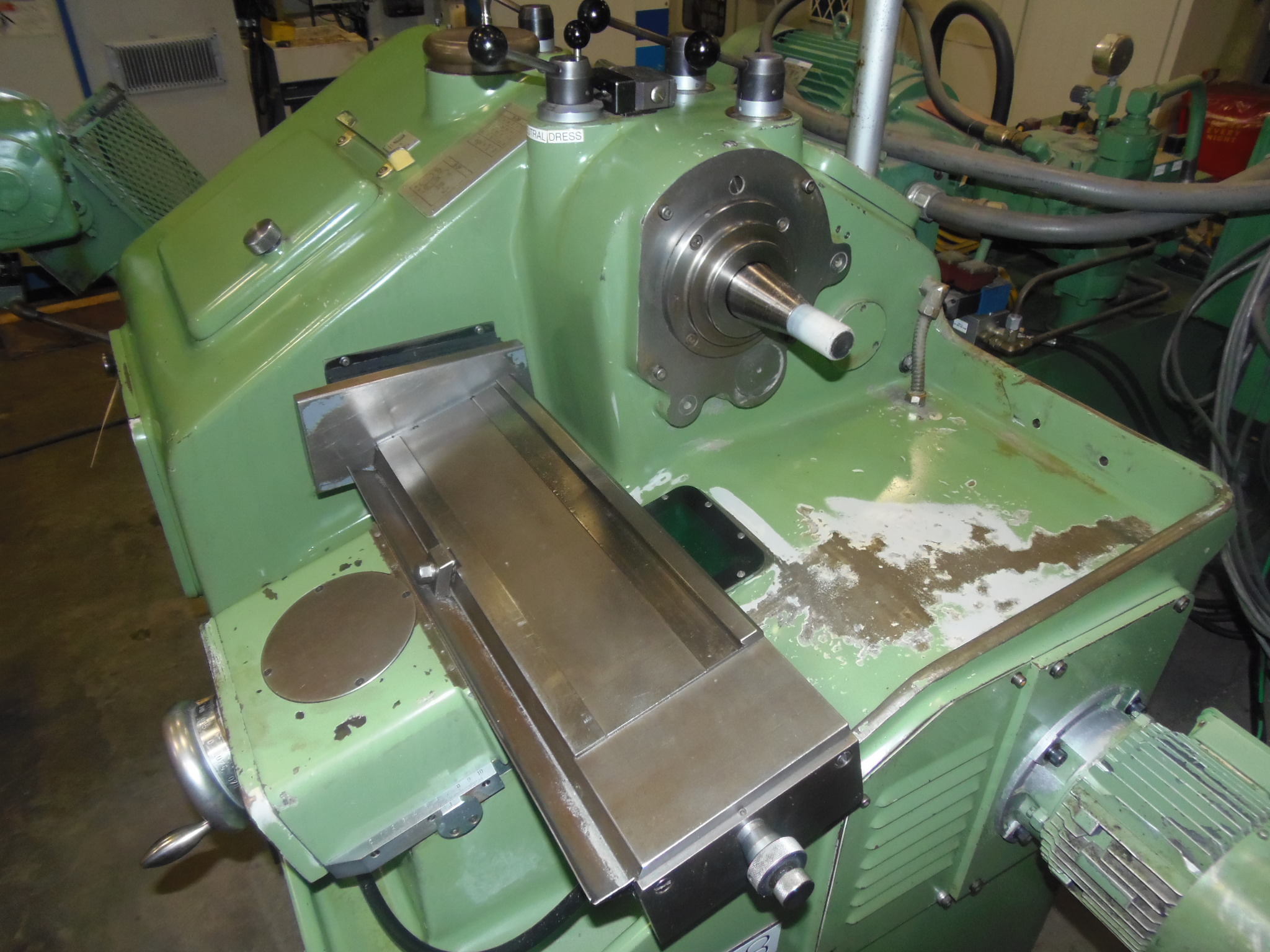

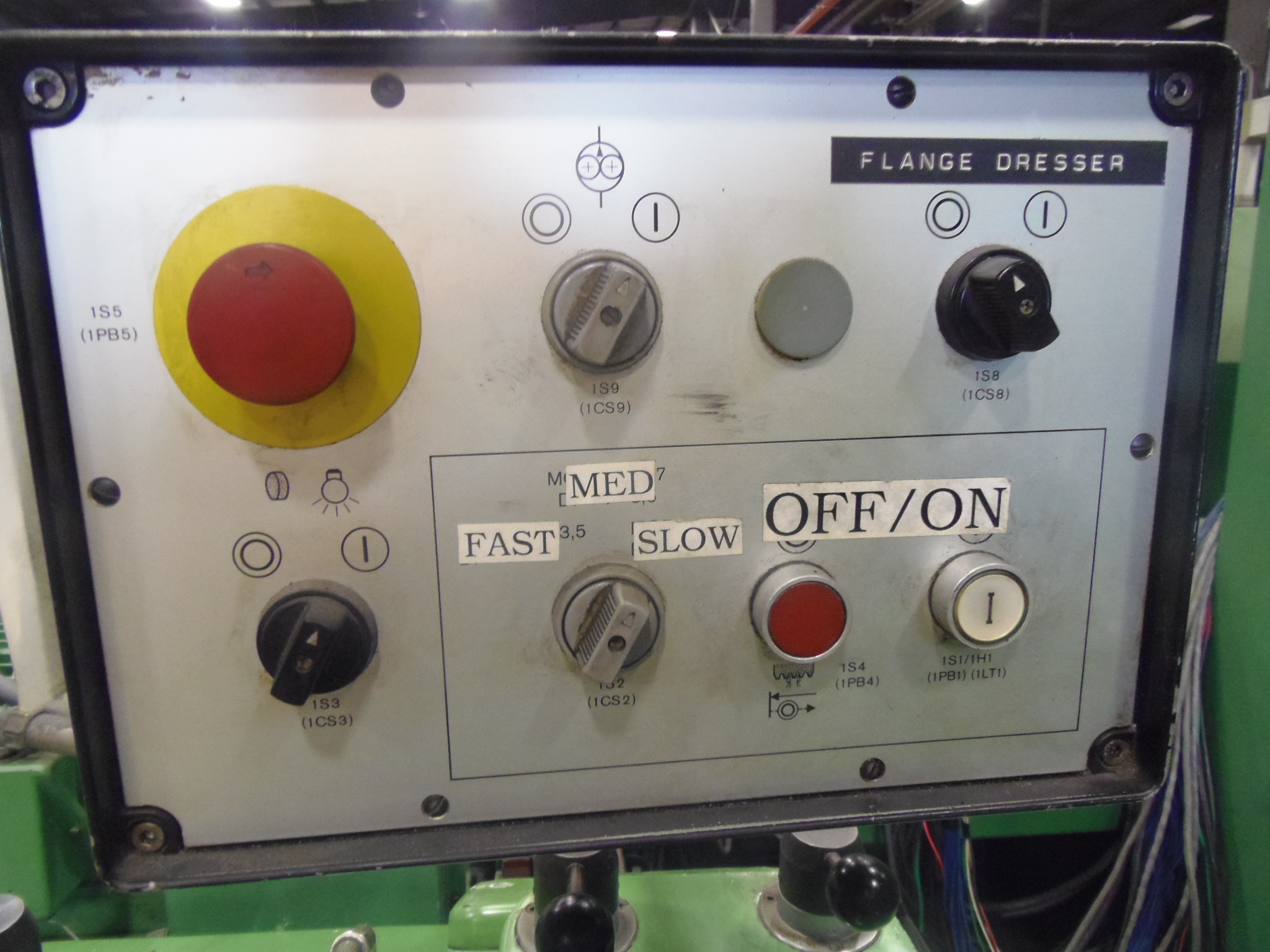

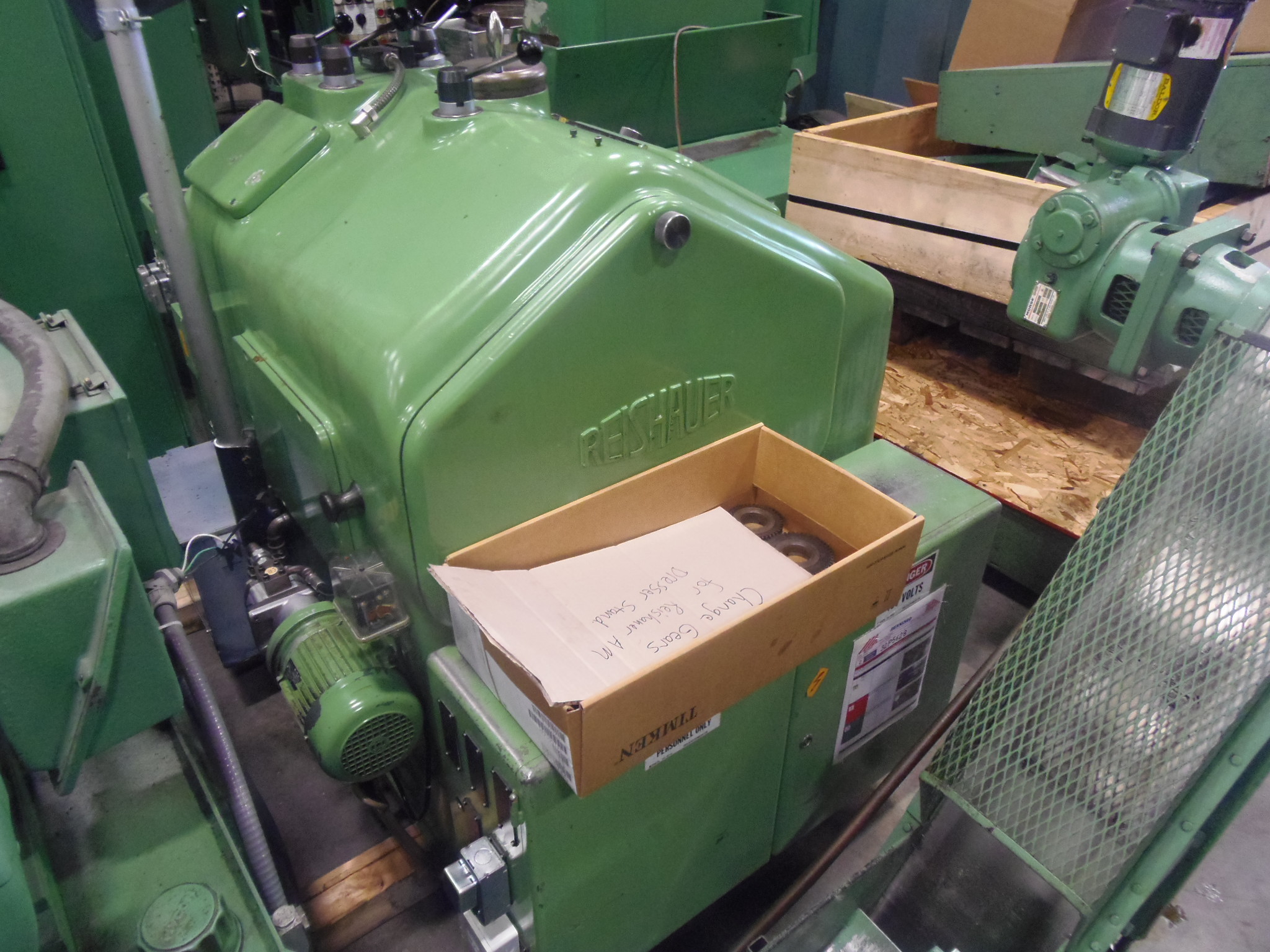

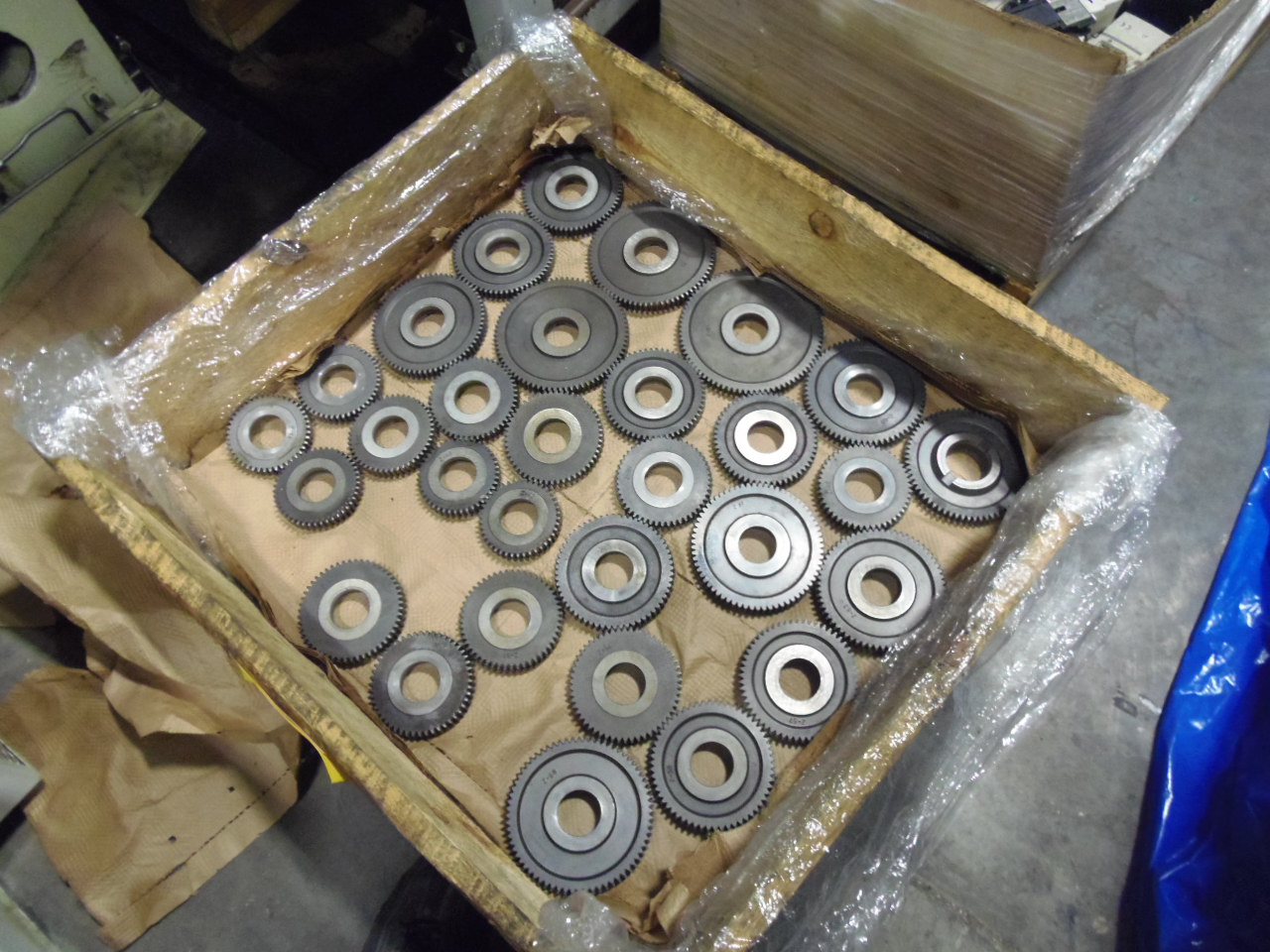

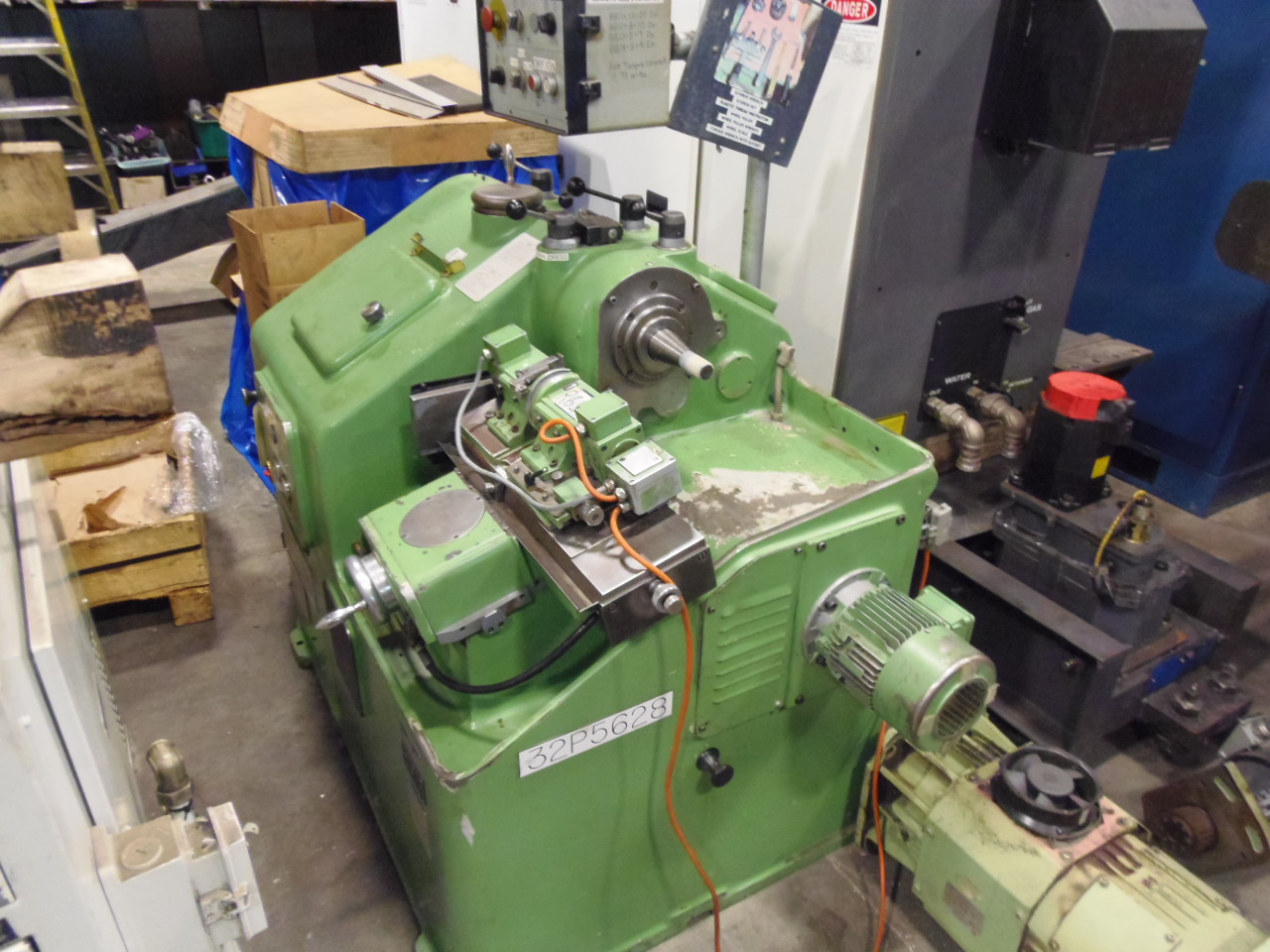

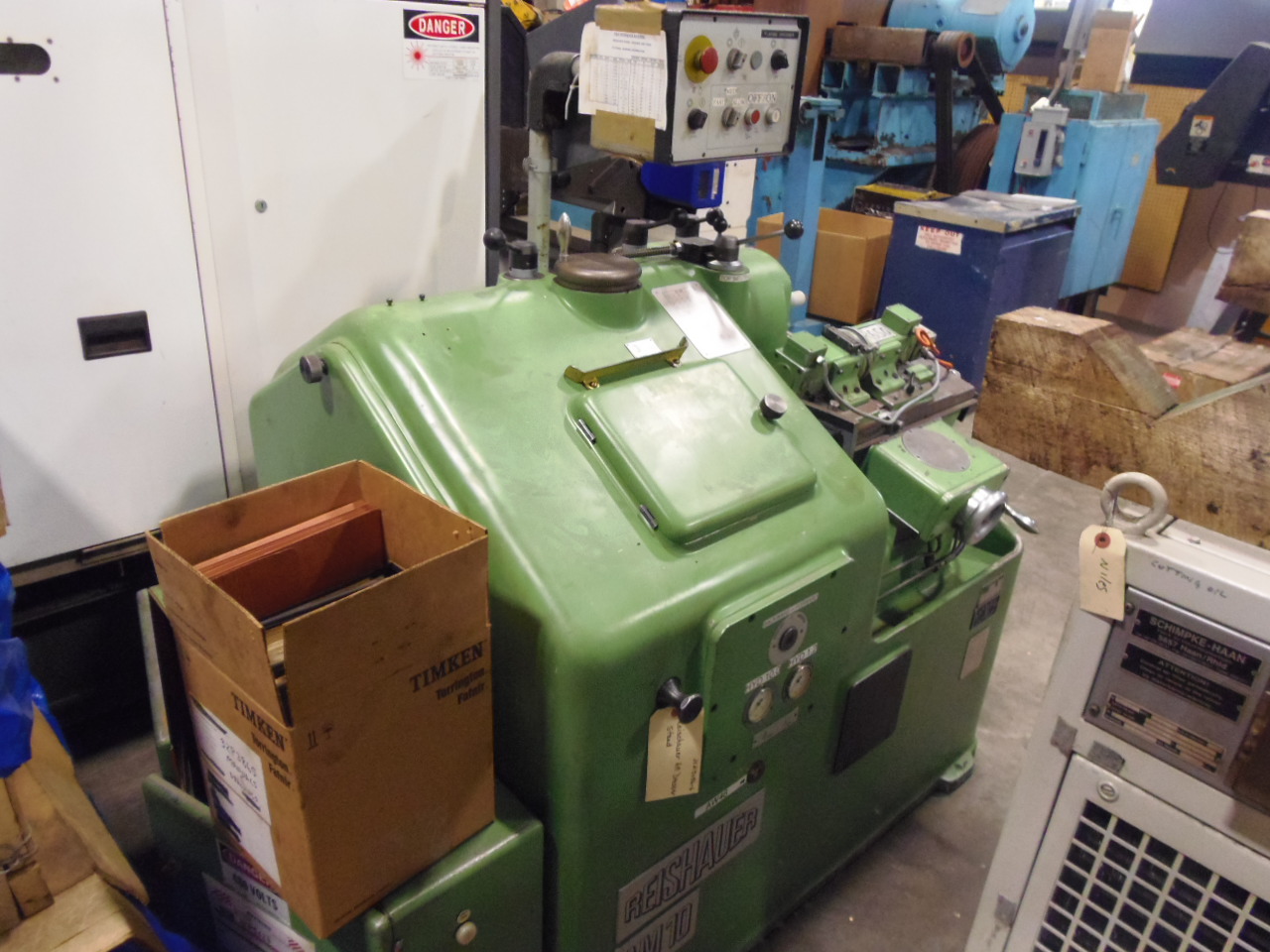

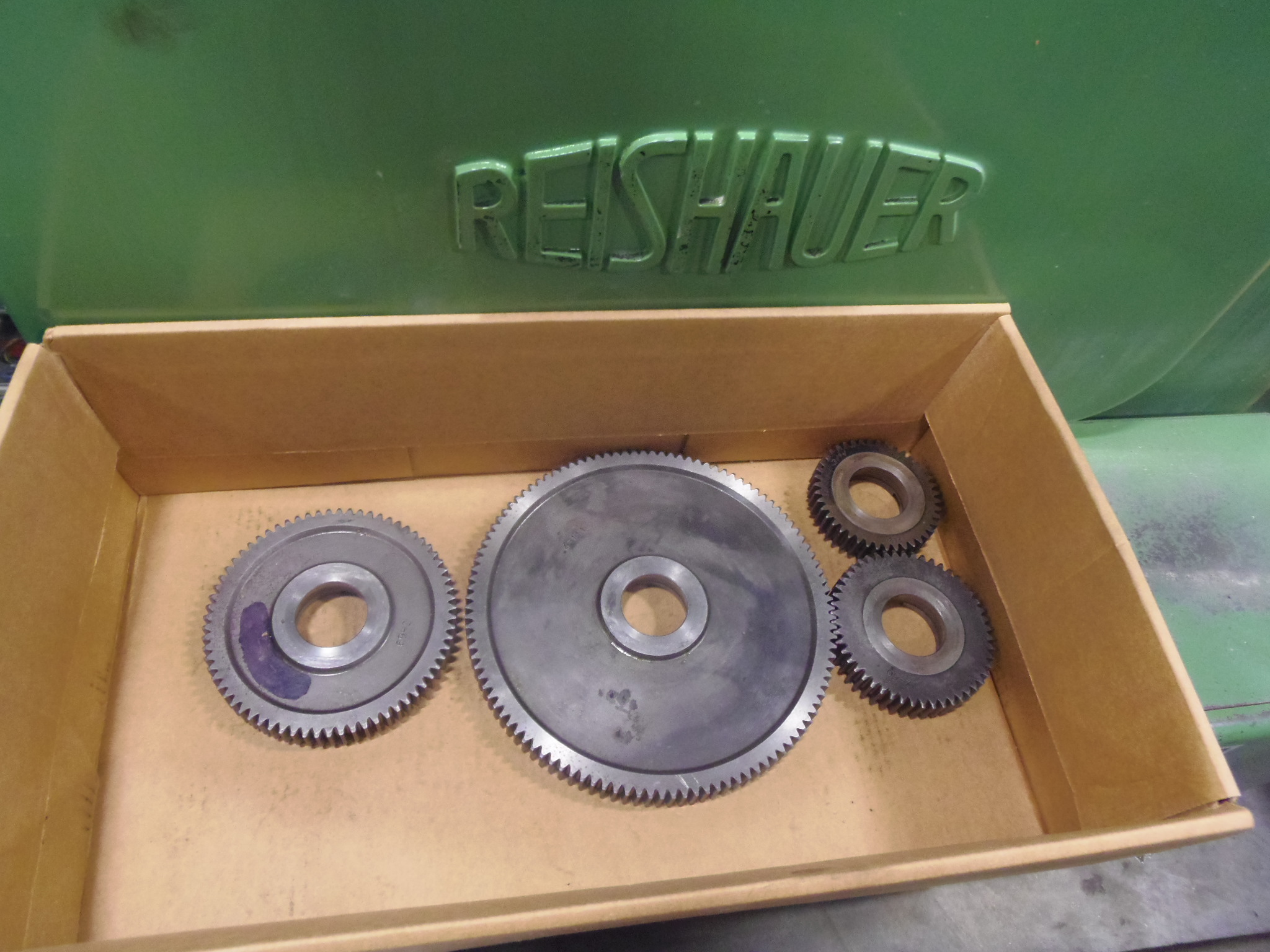

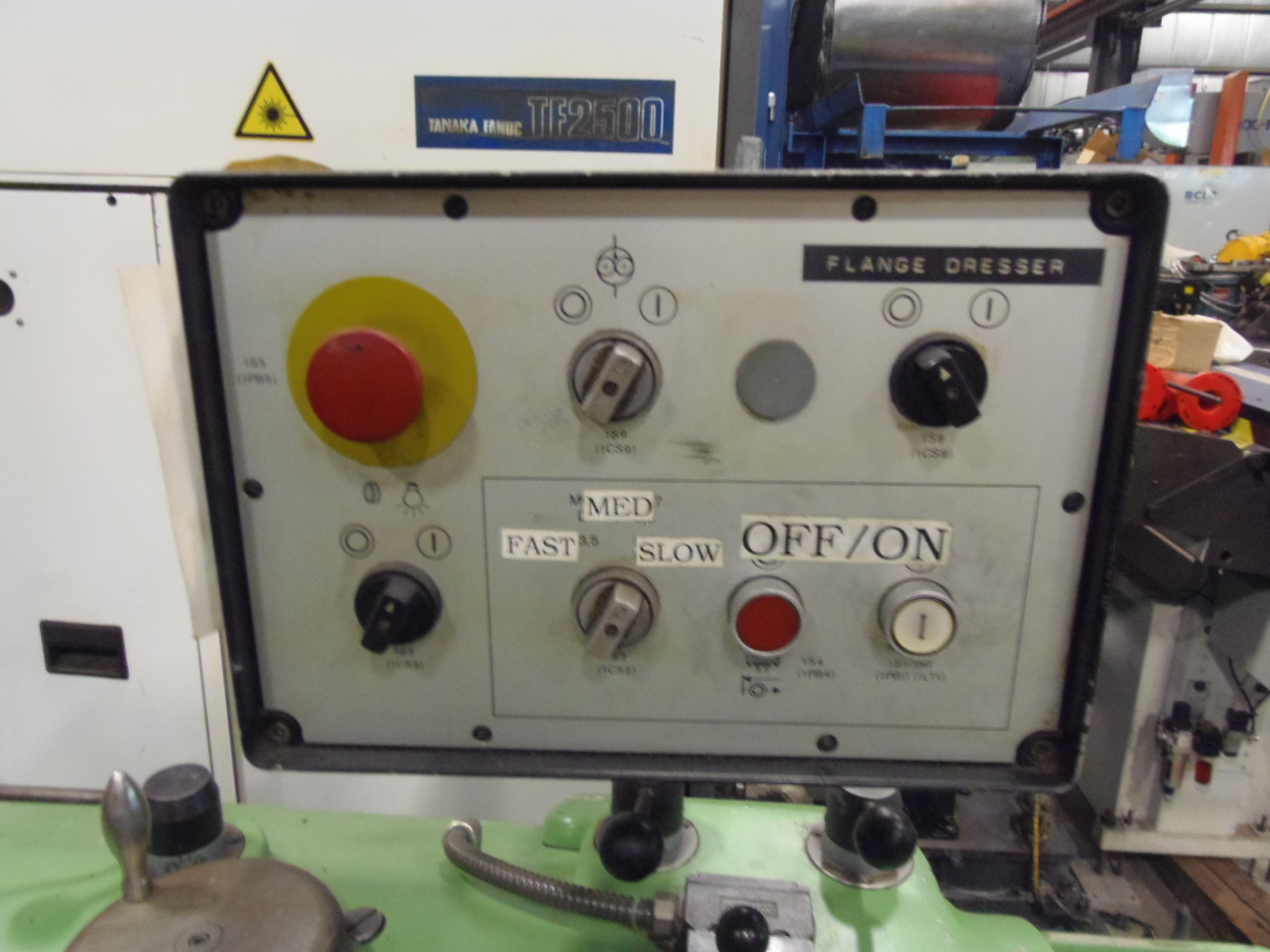

MAKE.......................... REISHAUER
MODEL......................... AM-10
SERIAL #...................... 85177-05
AGE (YEAR).................... 1966
MAX. DIAMETER OF GRINDING WORMS:
.............................. 15.75" (400 MM)
MIN. DIAMETER OF GRINDING WORMS:
.............................. 10.625" (270 MM)
STANDARD WIDTHS OF GRINDING WORMS:
.............................. 2 7/16" (62 MM)
.............................. 3 5/16" (84 MM)
.............................. 4 1/8" (104 MM)
BORE OF GRINDING WORM......... 6.3"
PITCH RANGE OF SINGLE START GRINDING WORM:
.............................. 3.2 DP - 48 DP (0.5 - 8 MODULE)
.............................. 6.4 DP - 48 DP (0.5 - 4 MODULE)
PRESSURE ANGLE................ 10 DEG. TO 45 DEG.
TOOTH PROFILE................. STRAIGHT OR MODIFIED
GRINDING WORM SPEED PROFILING. 22/42/84 RPM
...RETURN STROKE.............. 26/50/100 RPM
...DRESSING, CENTRIFUGING..... 400/770/1540 RPM
MANUAL INFEED TOOL GRADUATION. 0.0004 (0.01 MM)
AUTOMATIC WITHDRAWAL DURING RETURN STROKE:
.............................. 0.032" (0.8 MM)

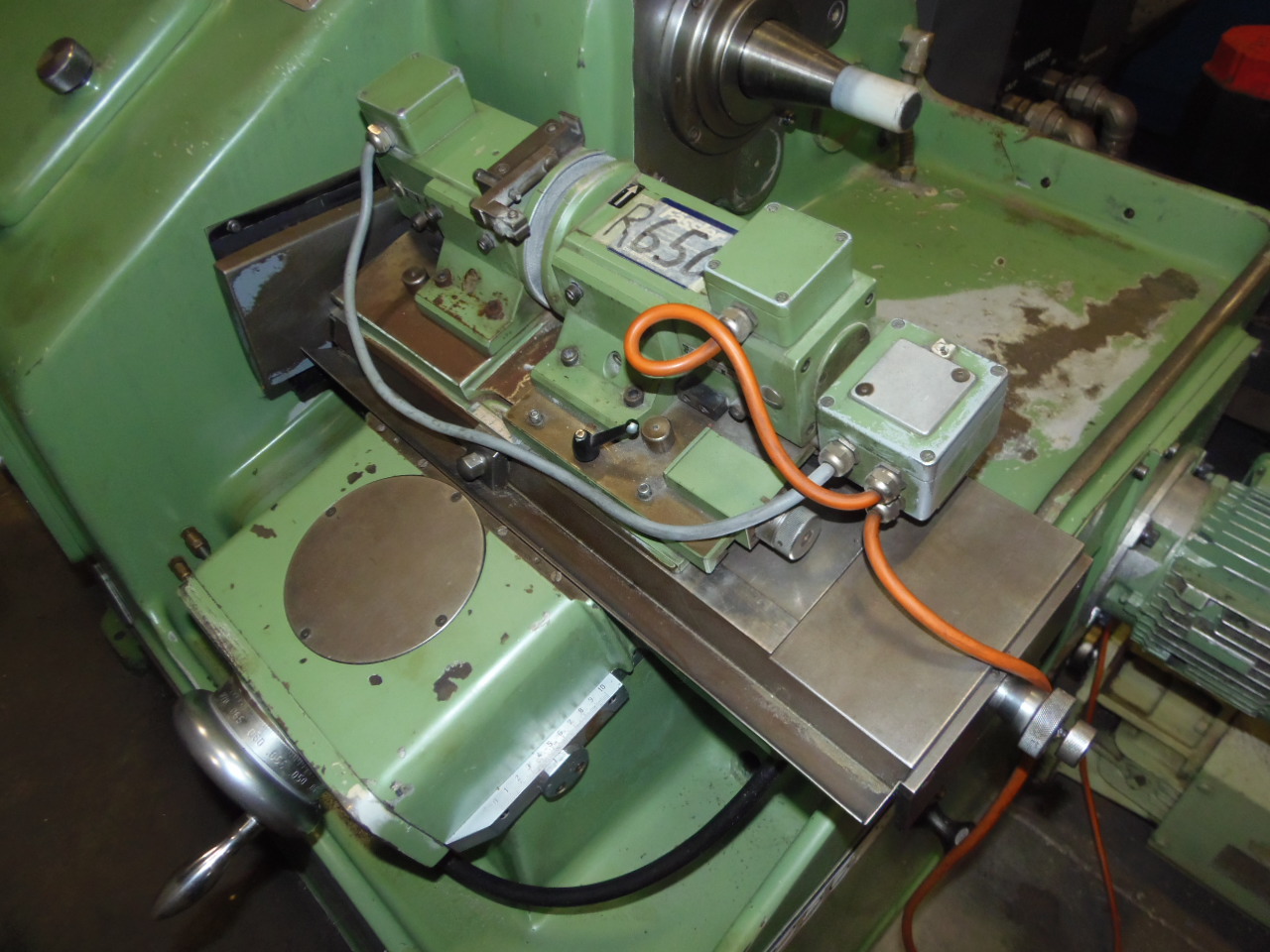

AXIAL STROKE OF THE DRESSER SLIDE:
.............................. 6"
RADIAL STROKE OF THE RADIAL SLIDE:
.............................. 3"
FLOOR SPACE................... 55" X 55" X 54" H
ELECTRICAL.................... 480V / 3PH / 60HZ
WEIGHT APPROX................. 3,300 LBS.
SPECIFICATIONS SUBJECT TO VERIFICATION
