Specifications
Equipped With
SPECIFICATIONS:
ACTUAL SWING OVER BEDWAYS . . . . . . . 100"
MAXIMUM SWING OVER CROSS SLIDE . . . . 84"
DISTANCE BETWEEN CENTERS . . . . . . . 254"
MAX WEIGHT BETWEEN CENTERS . . . . . . 19.8 TONS

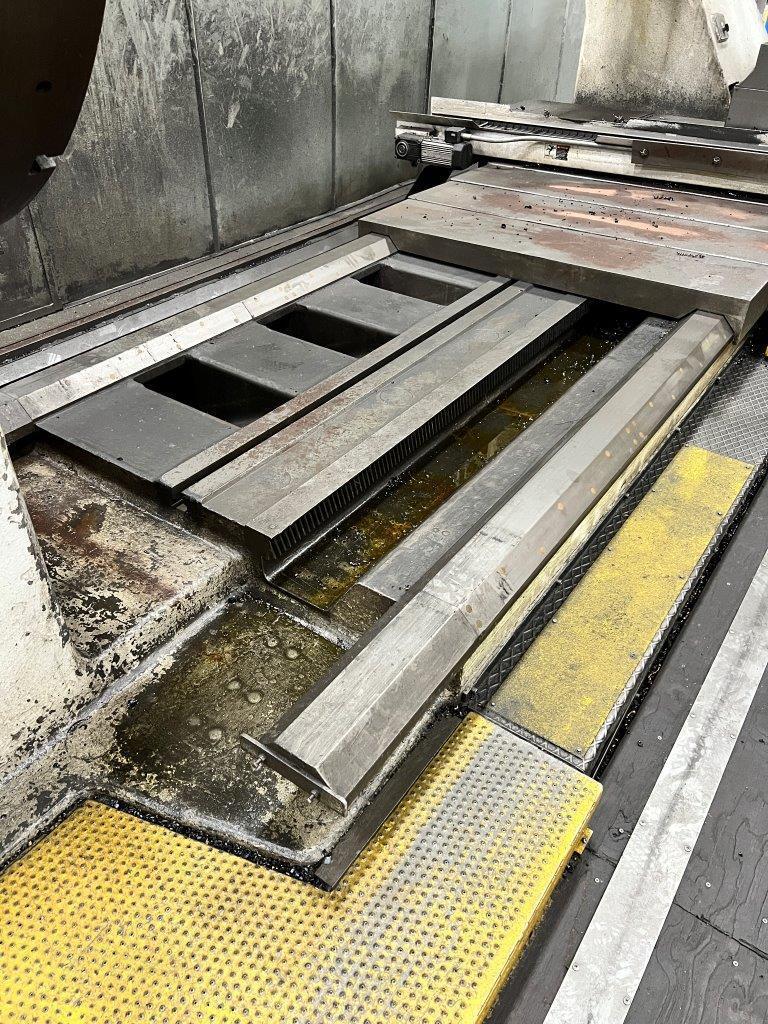

BED WIDTH . . . . . . . . . . . . . . . 53.54"
TAILSTOCK QUILL DIAMETER . . . . . . . 11"

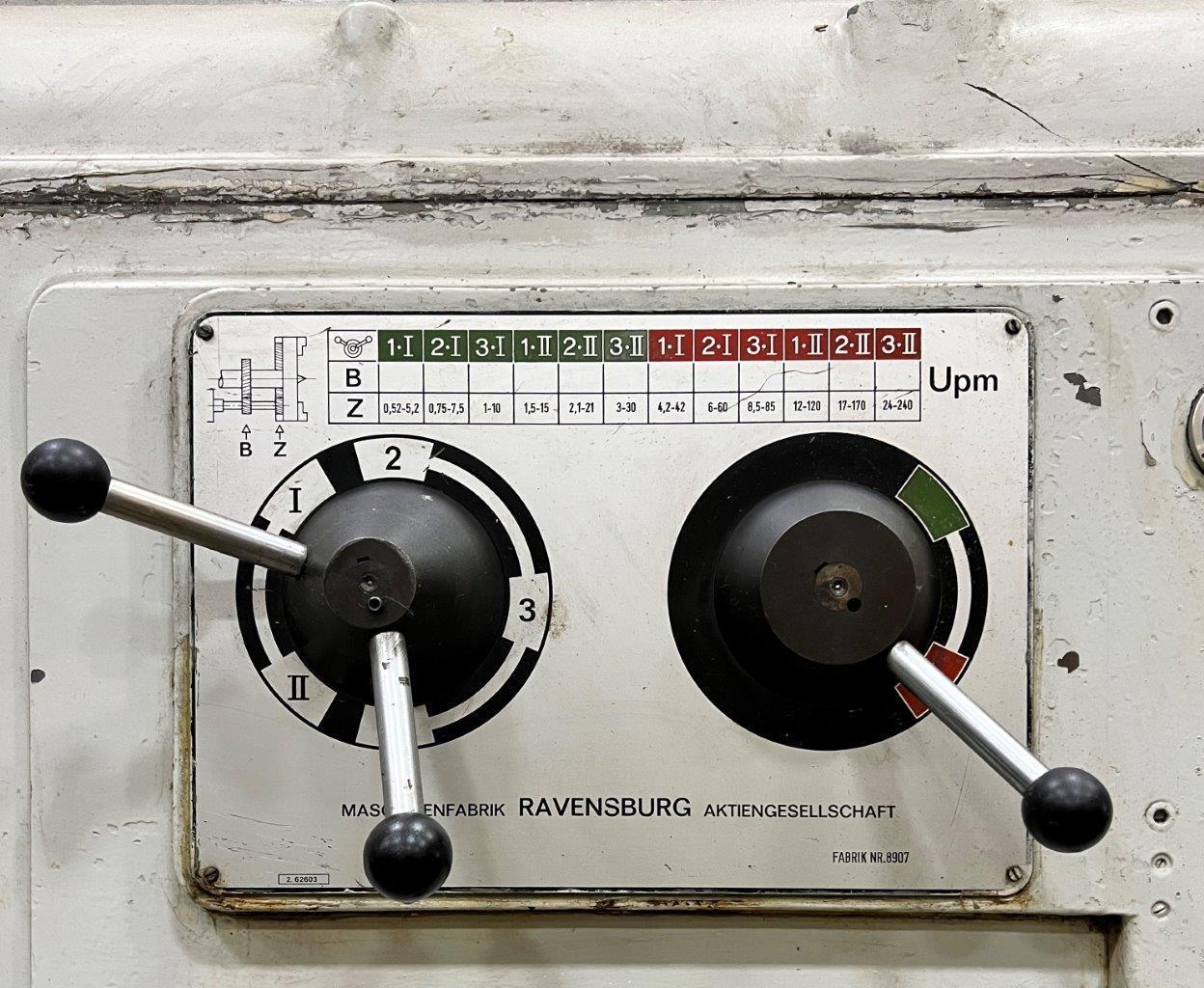

SPEEDS (24) . . . . . . . . . . . . . . .52-240 RPM
MACHINE FOOTPRINT . . . . . . . . . . . 480" X 130"
ELECTRICS . . . . . . . . . . . . . . . 460/3/60 CYCLE
EQUIPPED WITH:

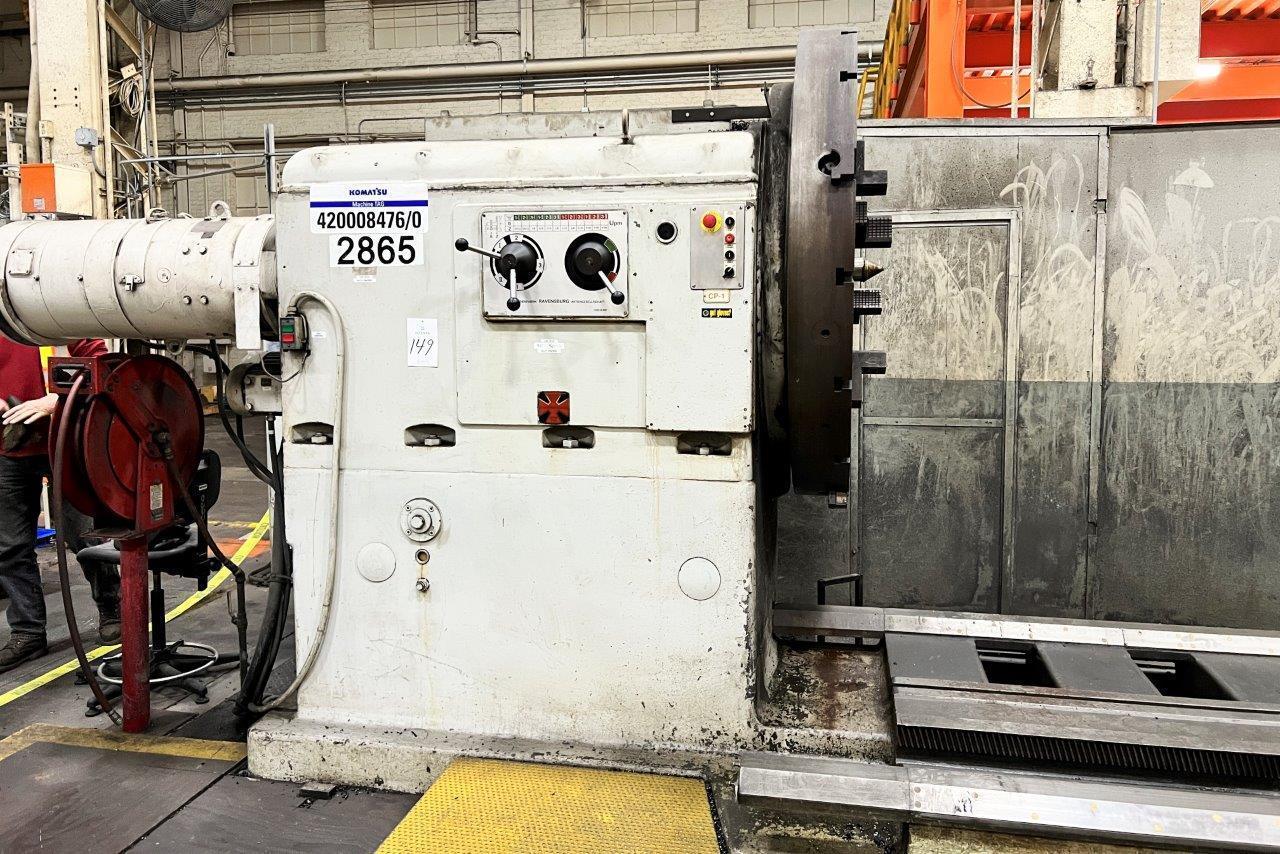

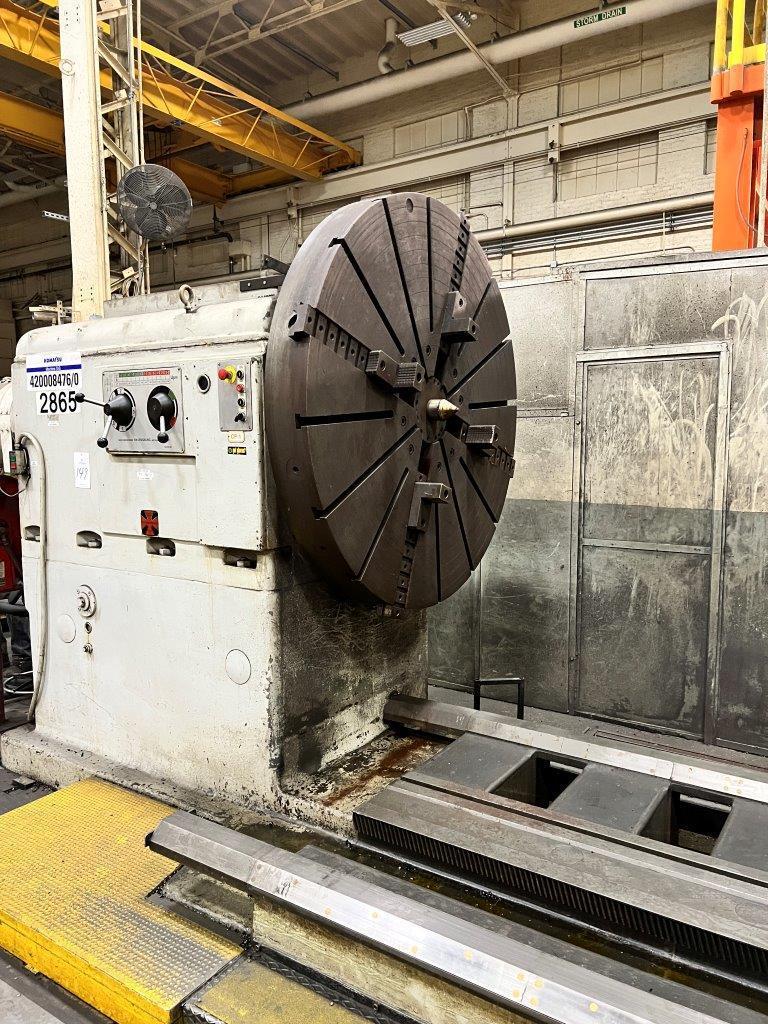

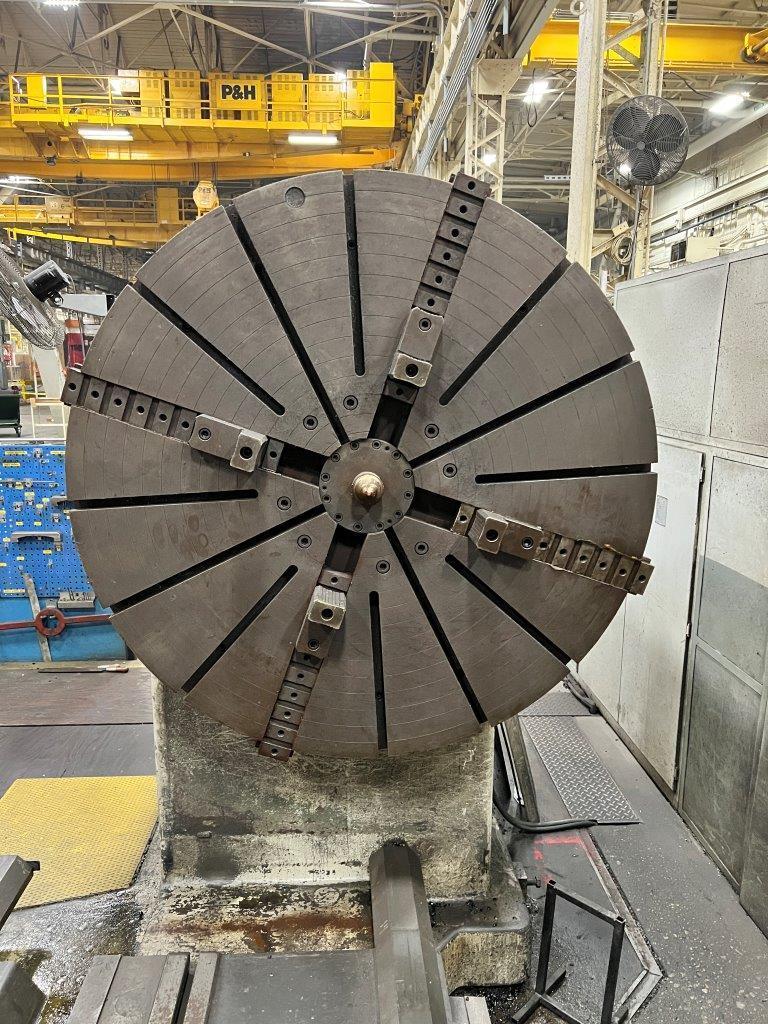

63" DIAMETER 4-JAW FACE PLATE

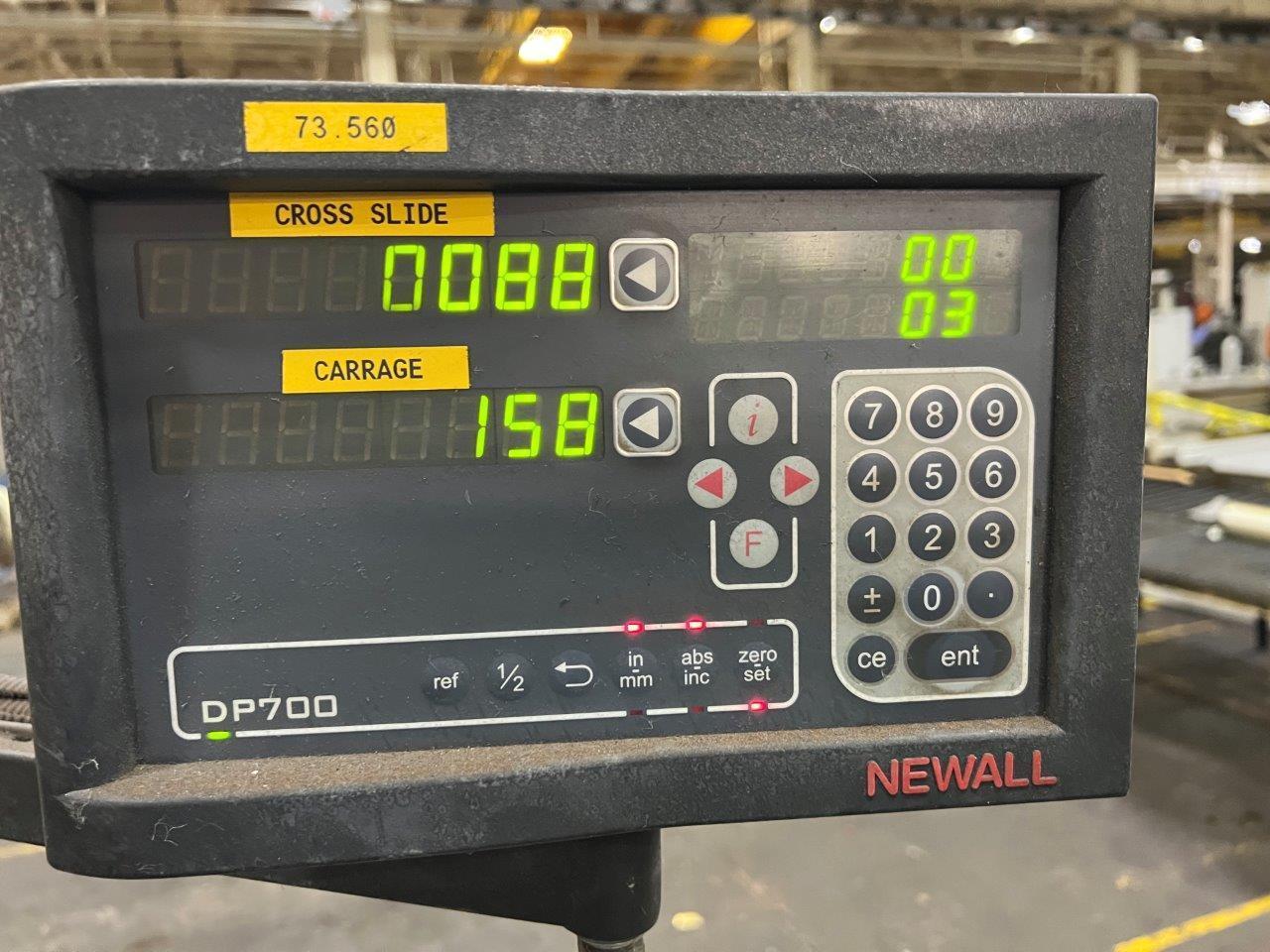

NEWALL DP700 DIGITAL READOUTS

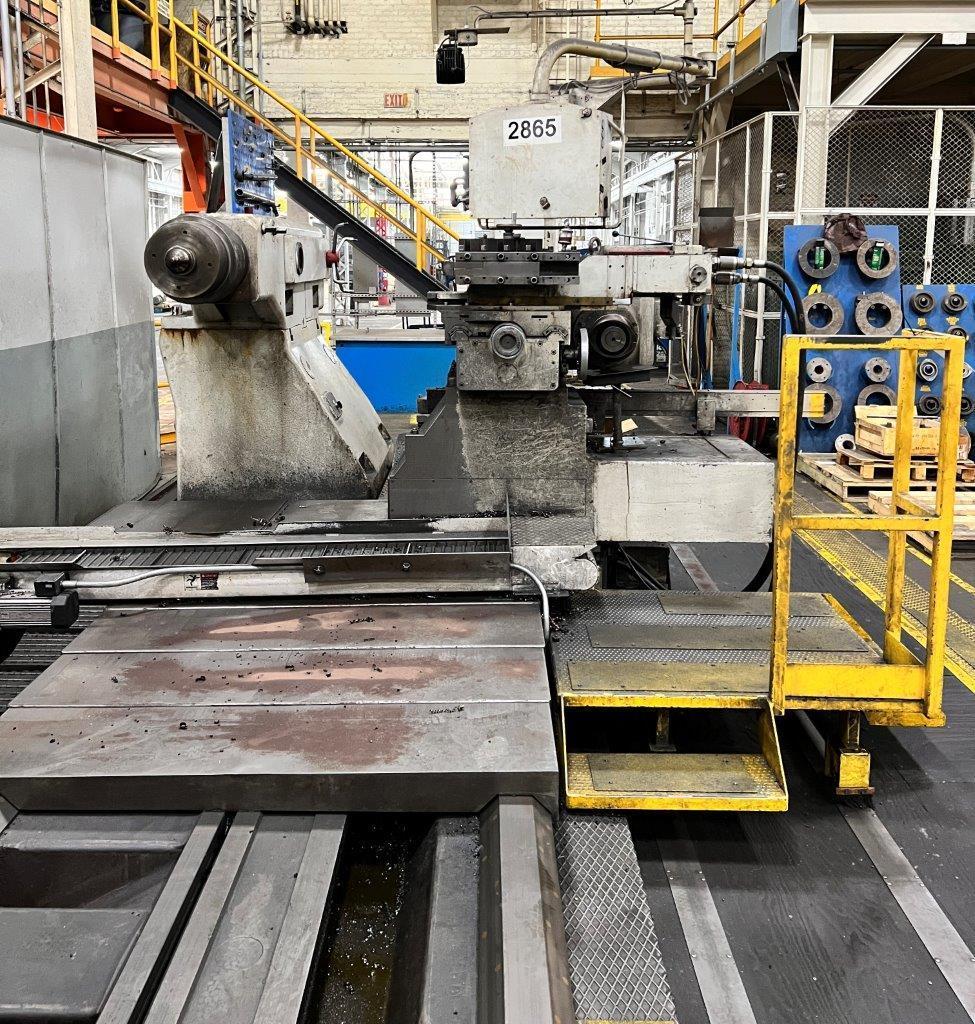

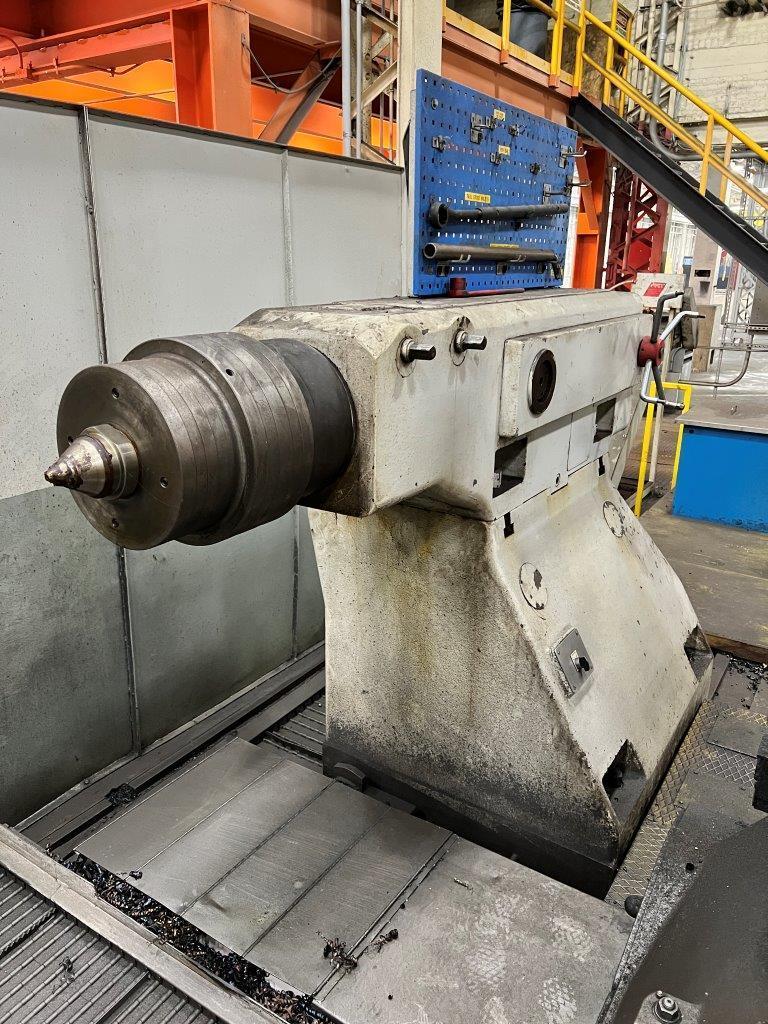

TAILSTOCK WITH LIVE CENTER

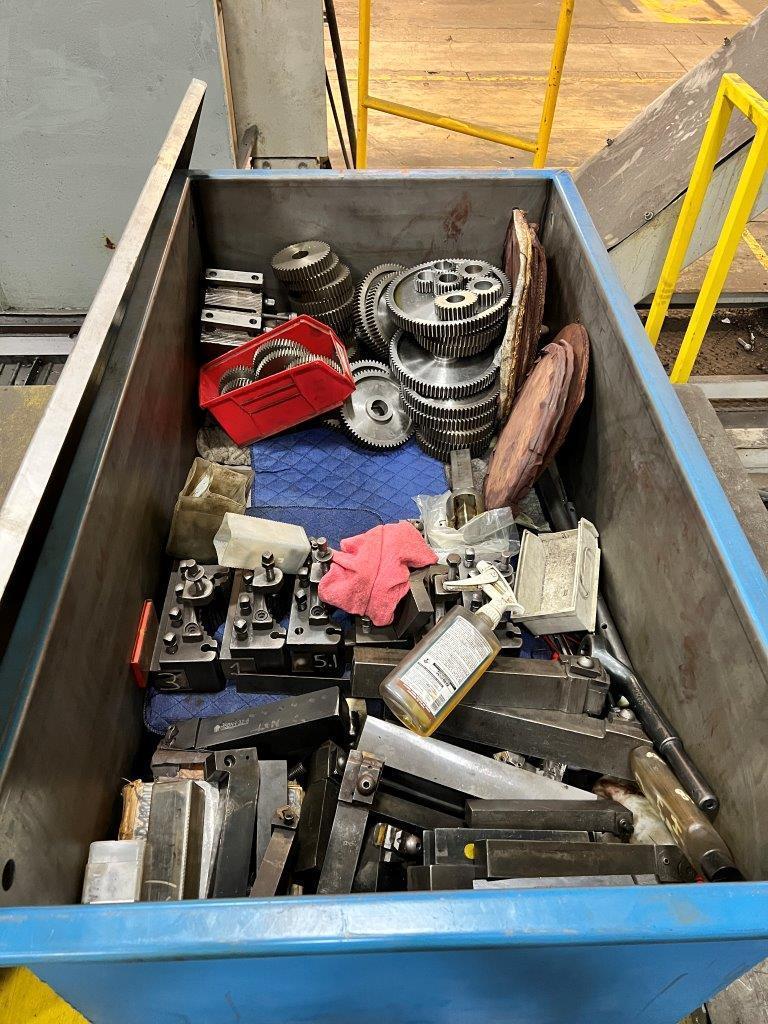

DRUM GROOVING CHANGE GEARS

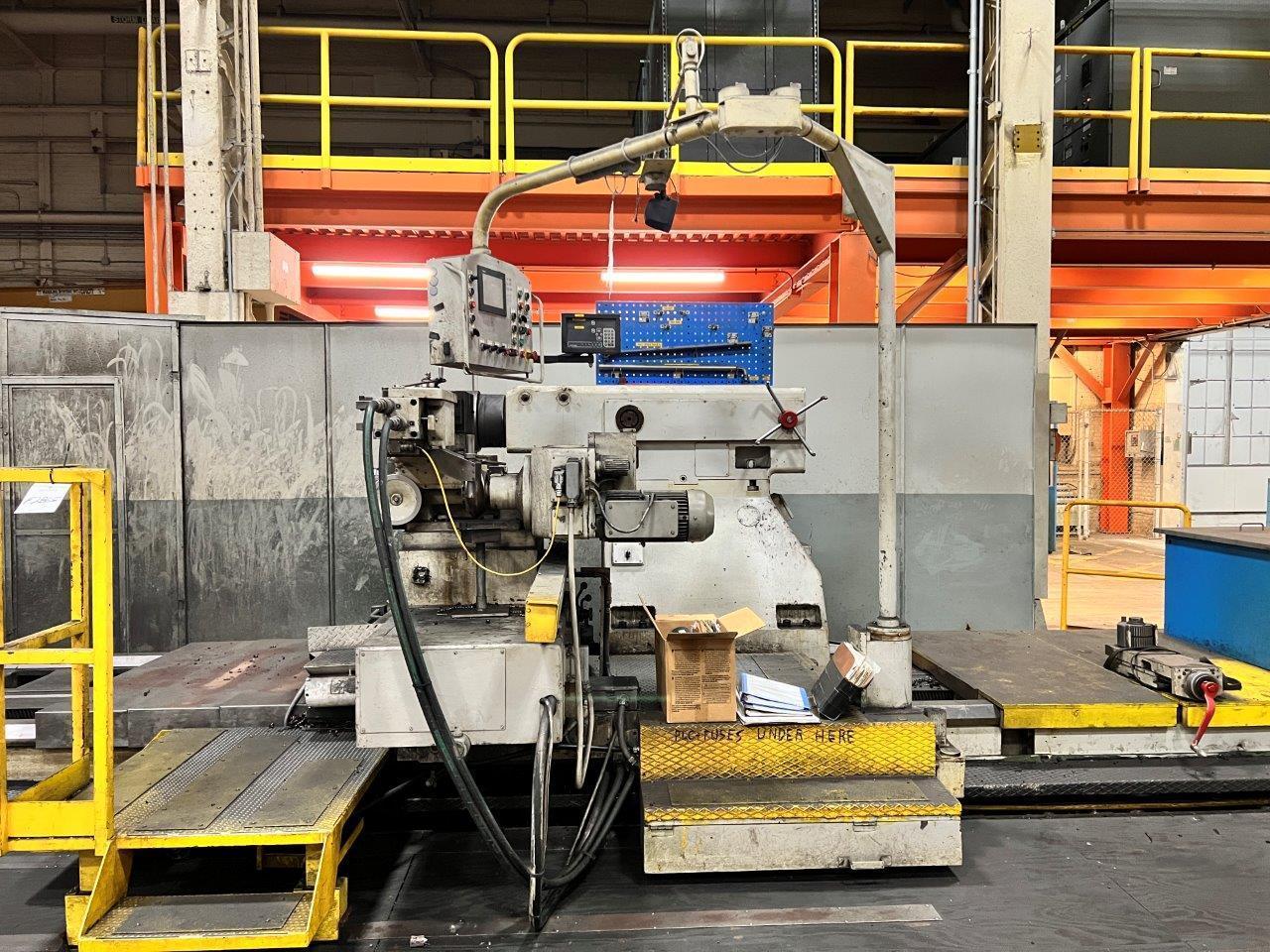

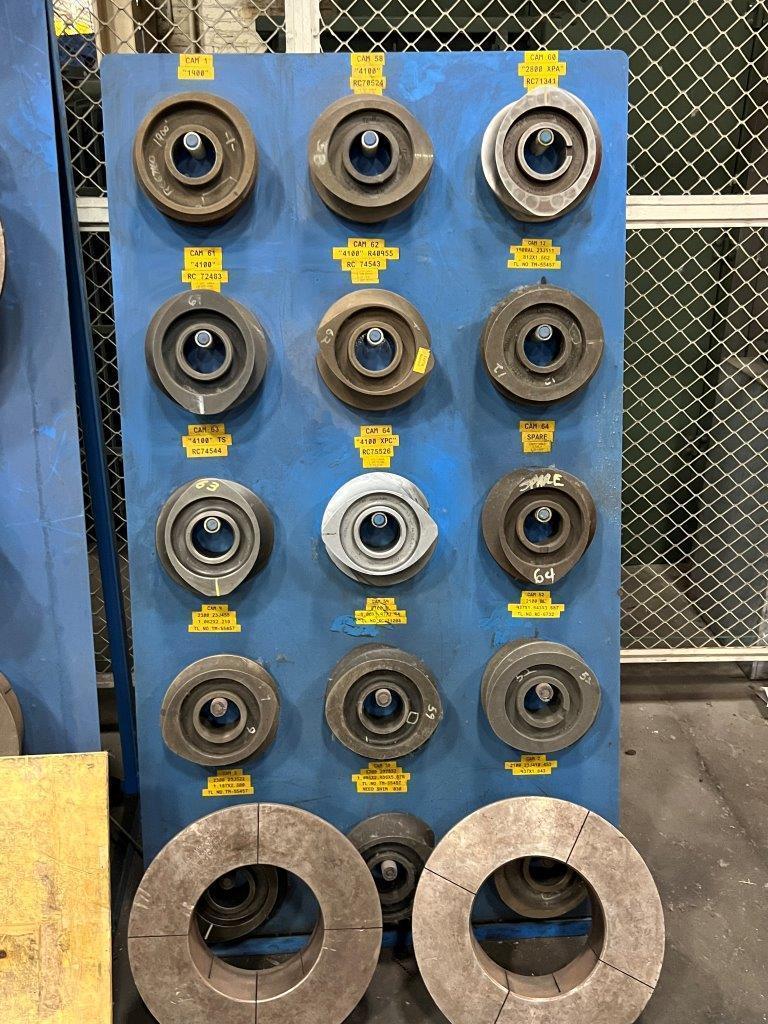

COPYING DEVICE FOR DRUM/CRANE THREADS
60 HP SPINDLE DRIVE

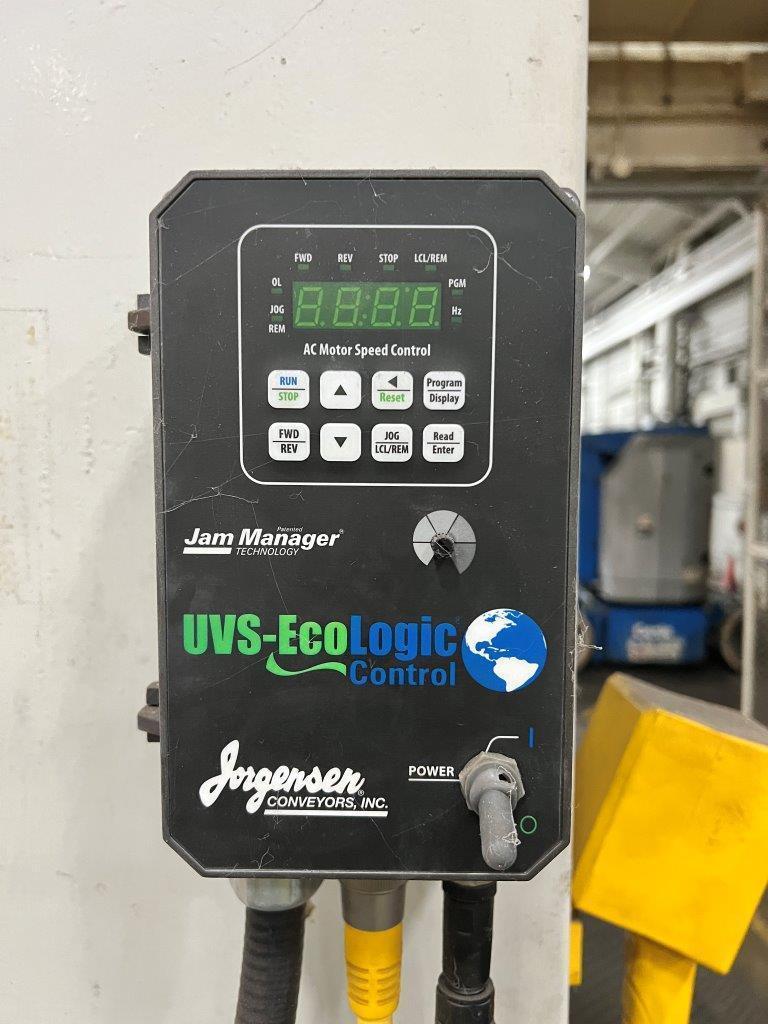

CHIP CONVEYOR
NOTE:

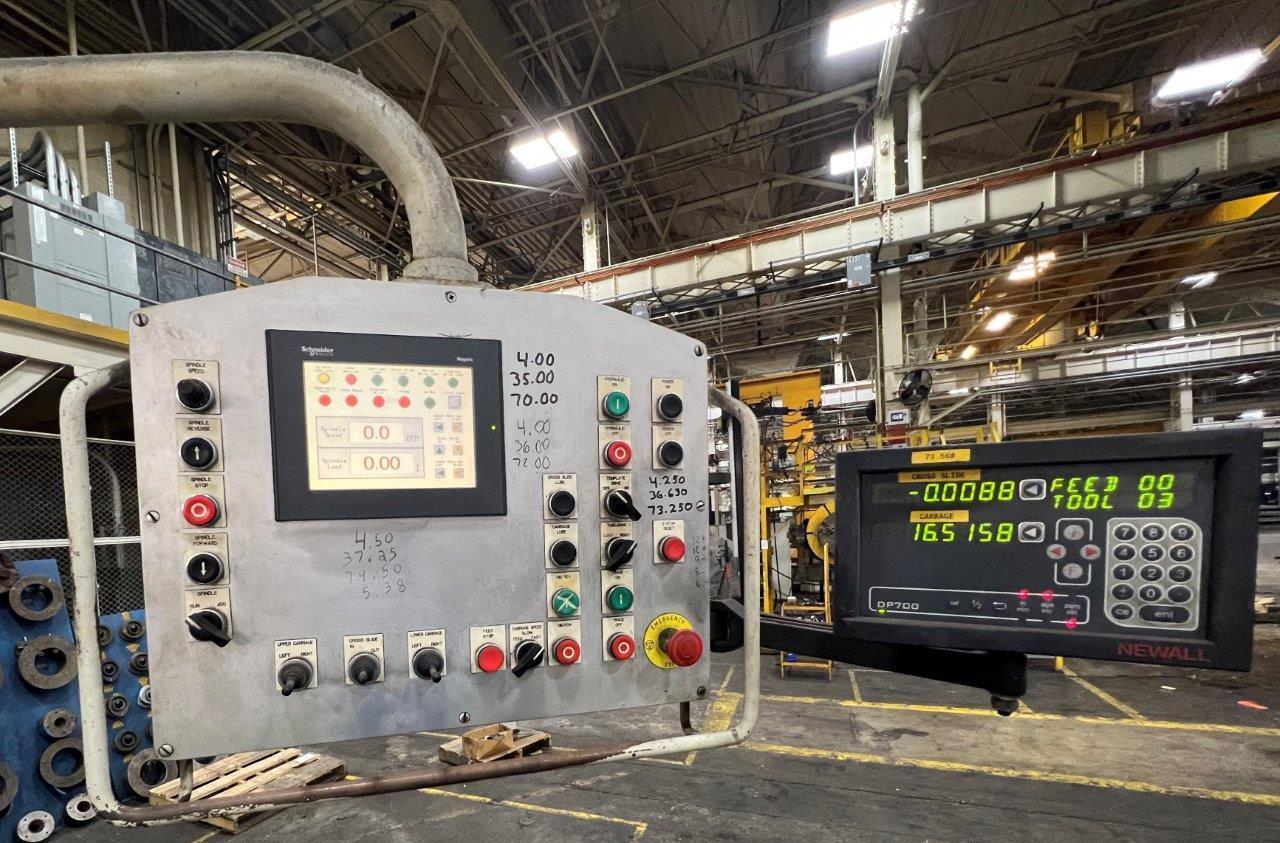

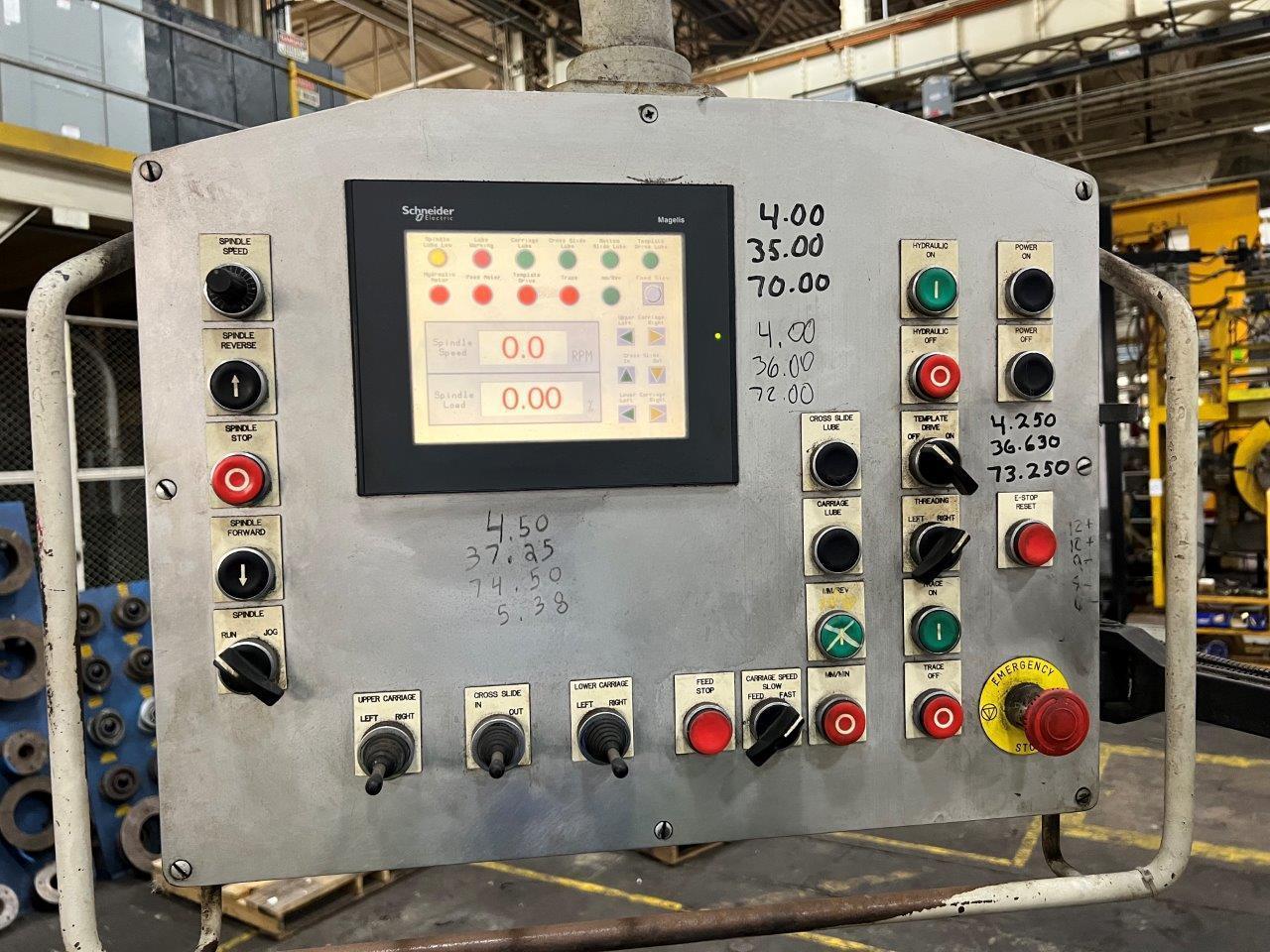

CONTROL RETROFIT IN 2010

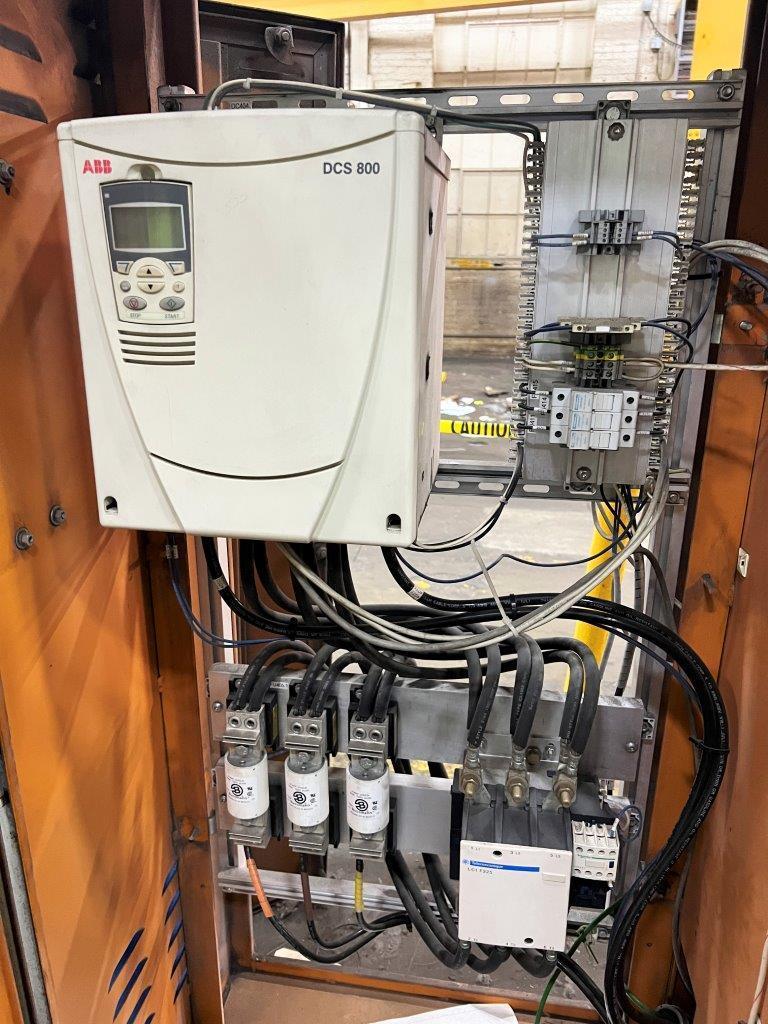

ABB DCS800 DRIVE
THEY WERE DOING CRANE DRUMS
