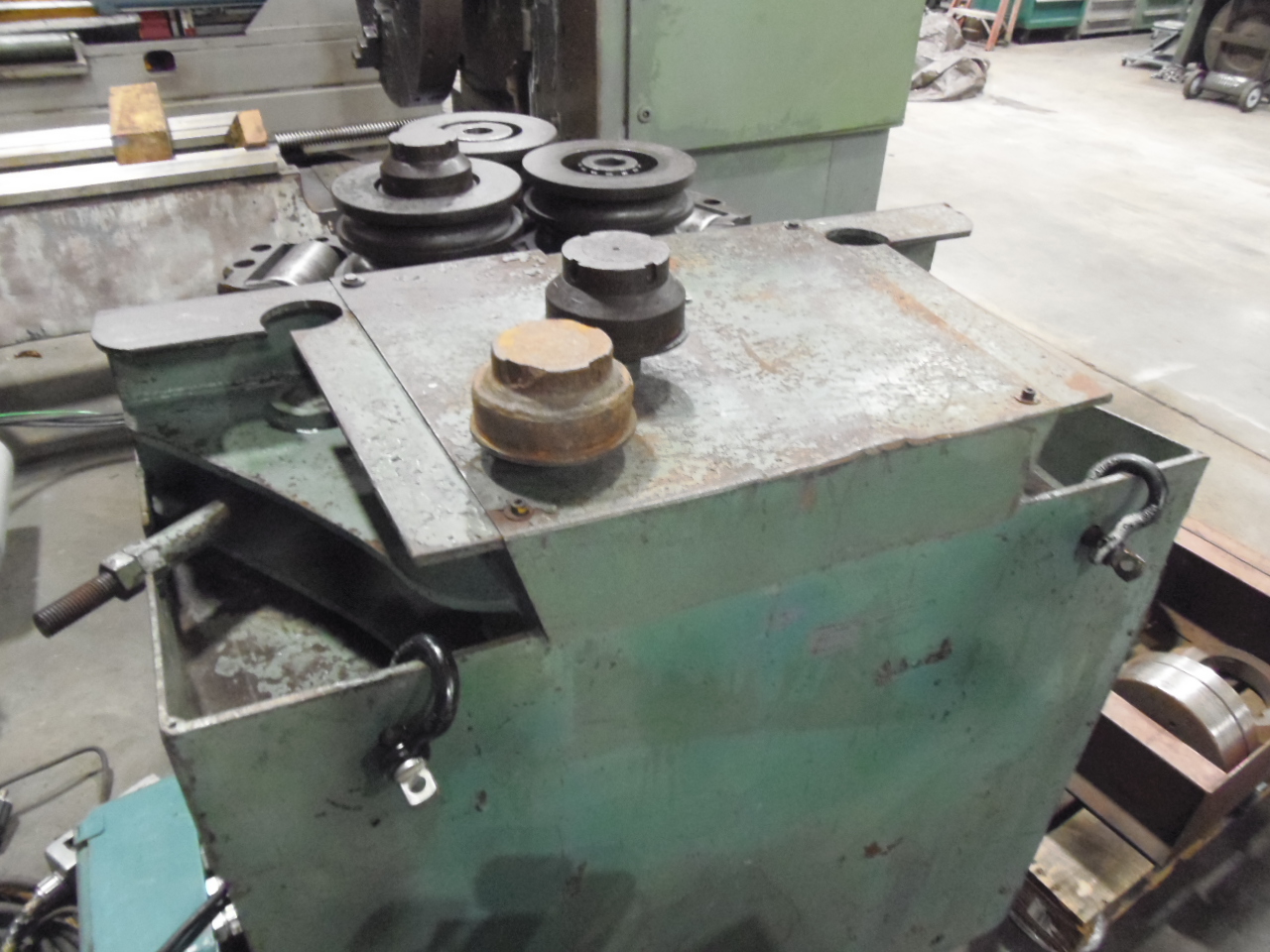

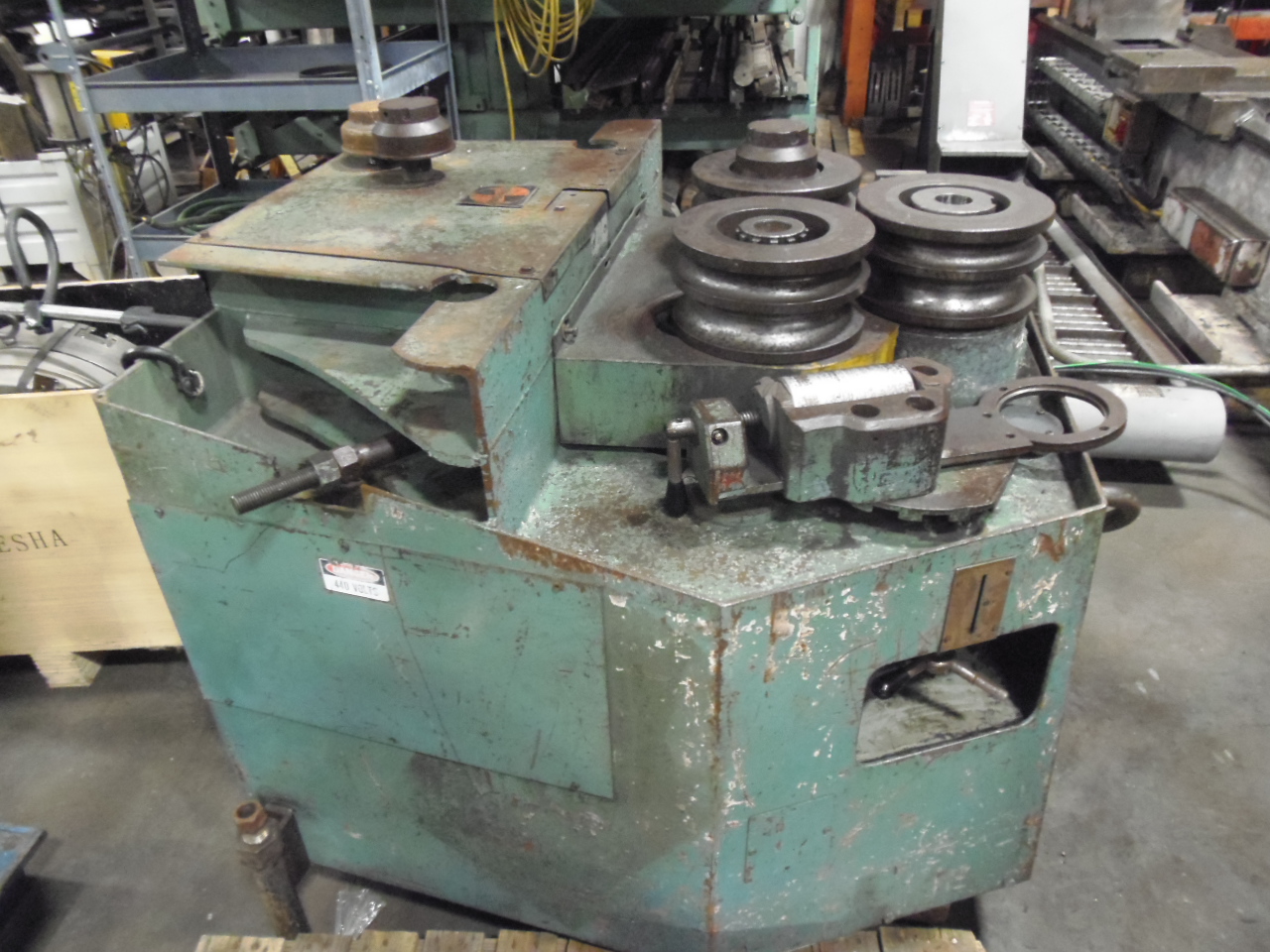

PULLMAX Z31, HORIZ/VERTICAL, 3" X 3" X 3/8", TOOLING

CATALOG SPECIFICATIONS:
Diameter of Bending Rolls...........9-13/16"
Bending Force - Maximum.............12.1 Tons
Diameter of Shafts..................3"
Feed Speed..........................20 - 25 FPM
Main Drive Motor....................6.6 HP
Hydraulic Motor.....................2.4 HP
Actual Dimensions...................45" x 45" x 50"
Actual Weight.......................3,775 Lbs.
EQUIPPED WITH:

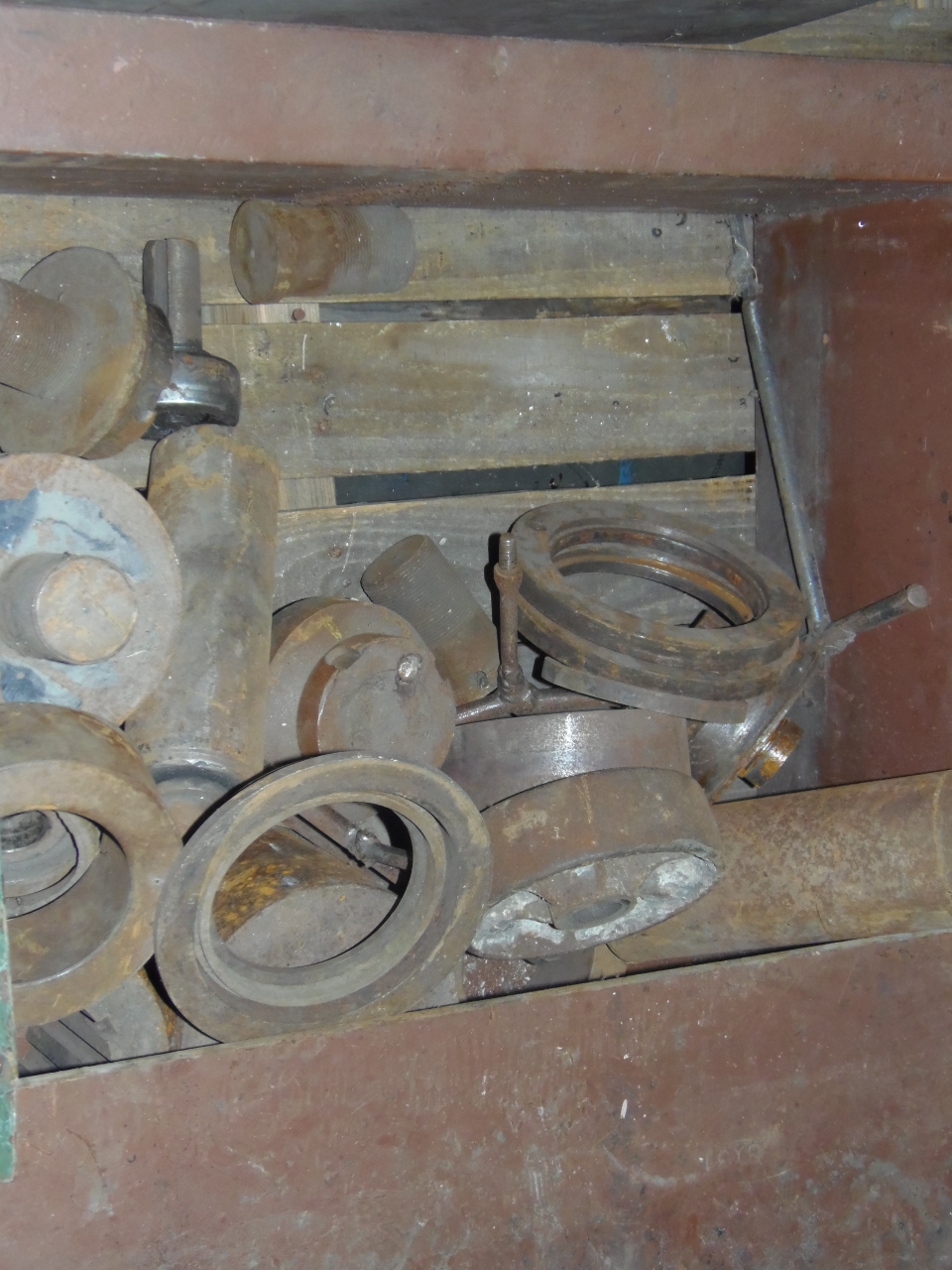

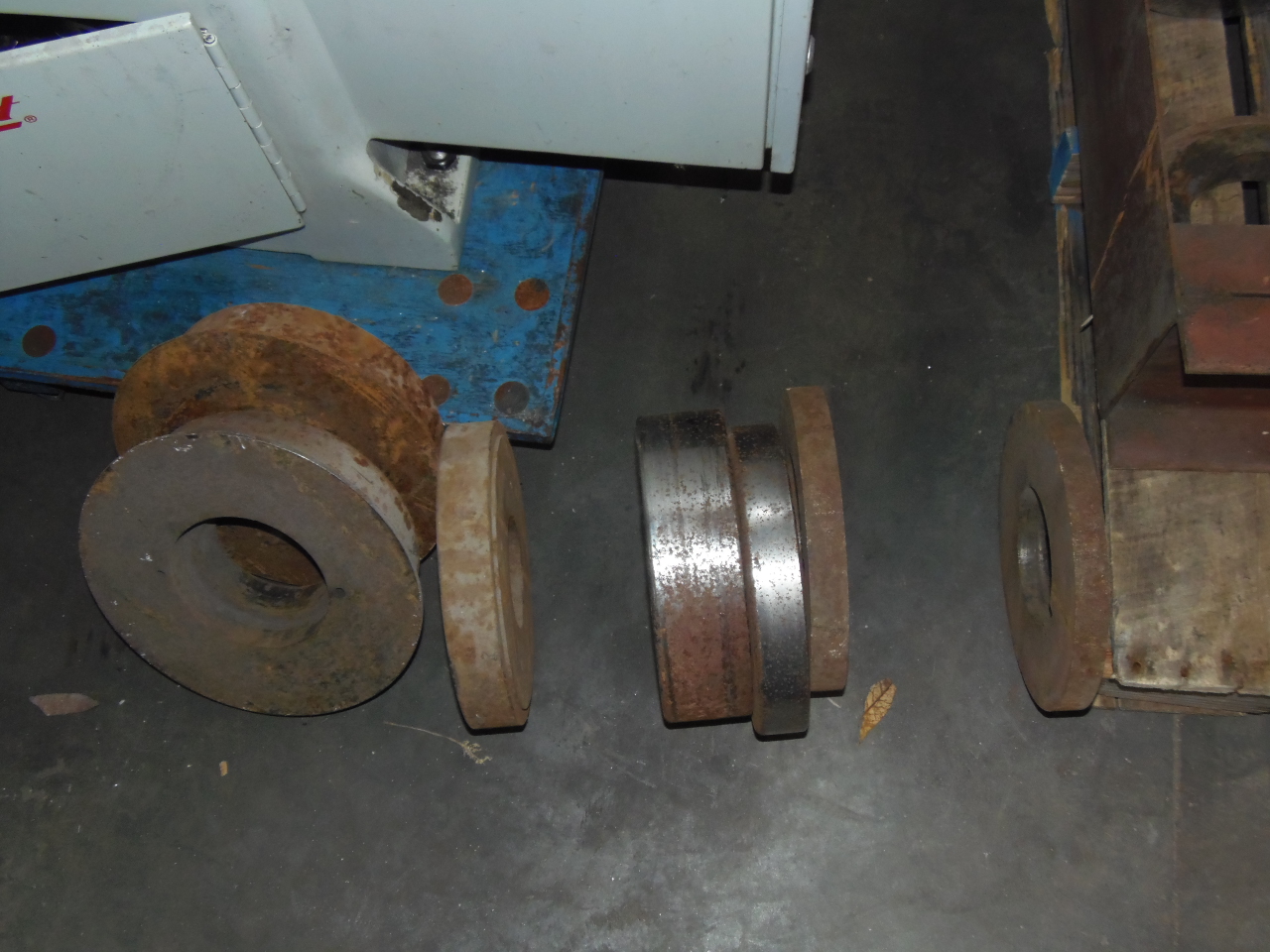

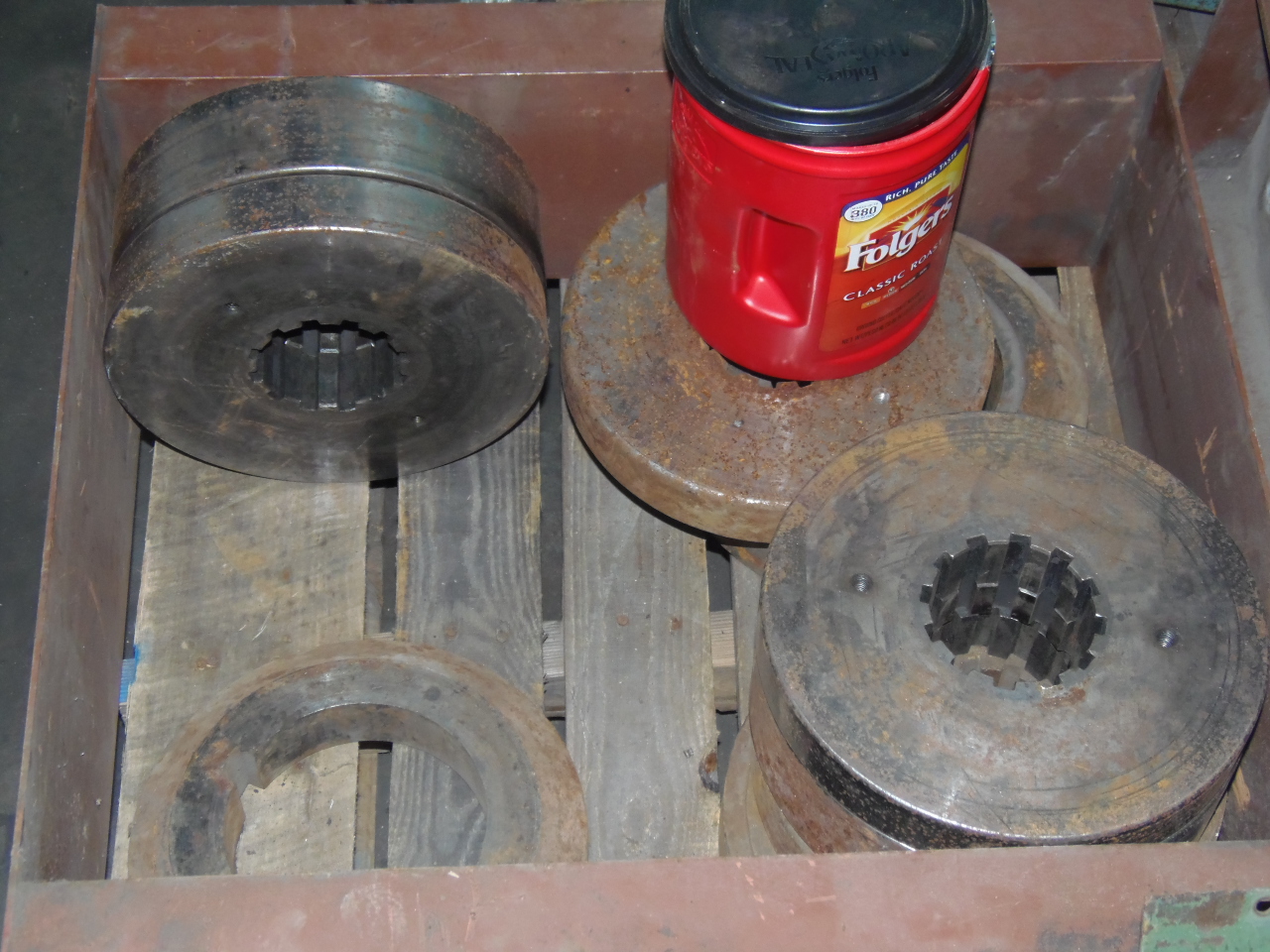

MISC. ROLLS

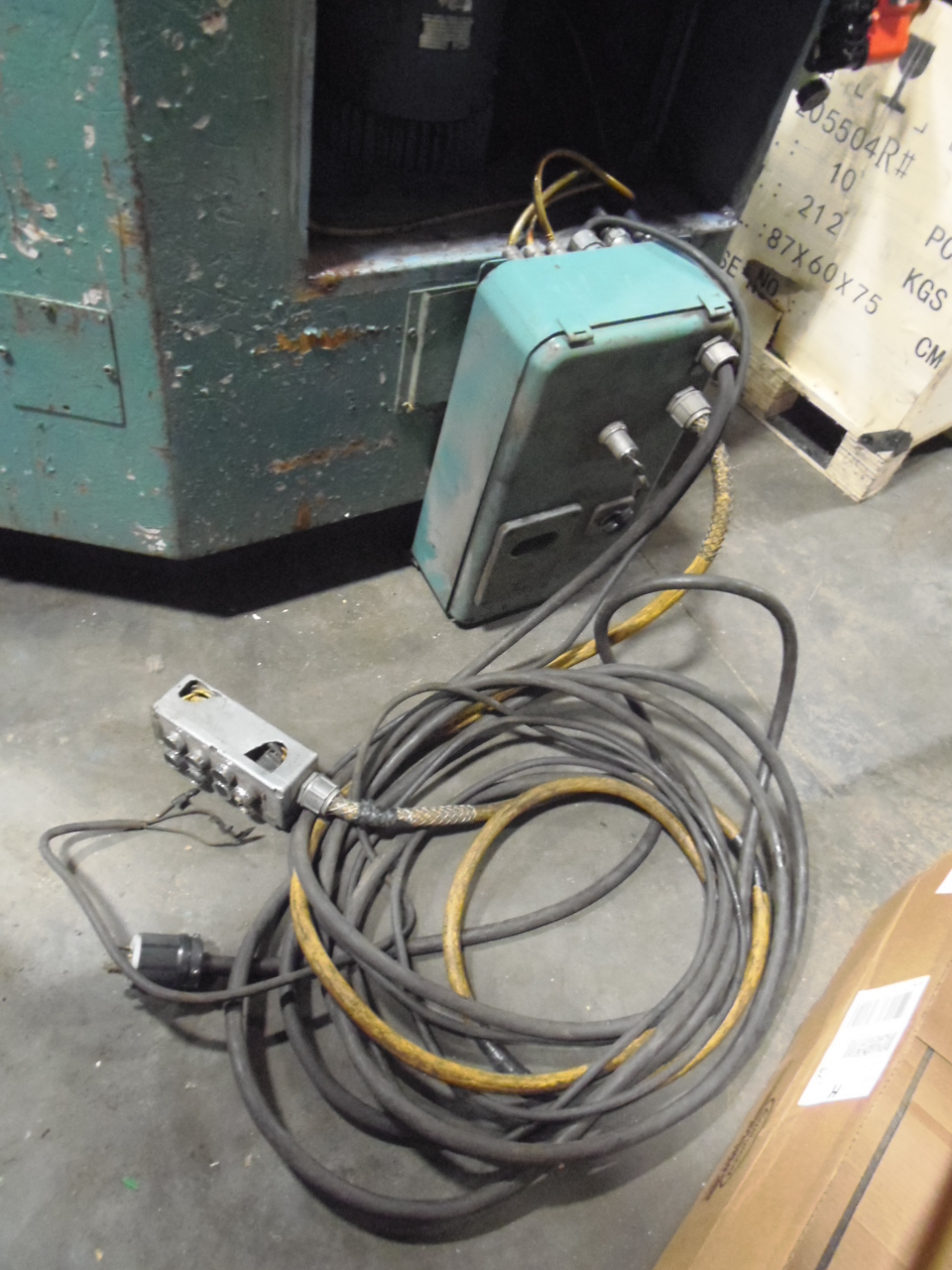

Pendant Control

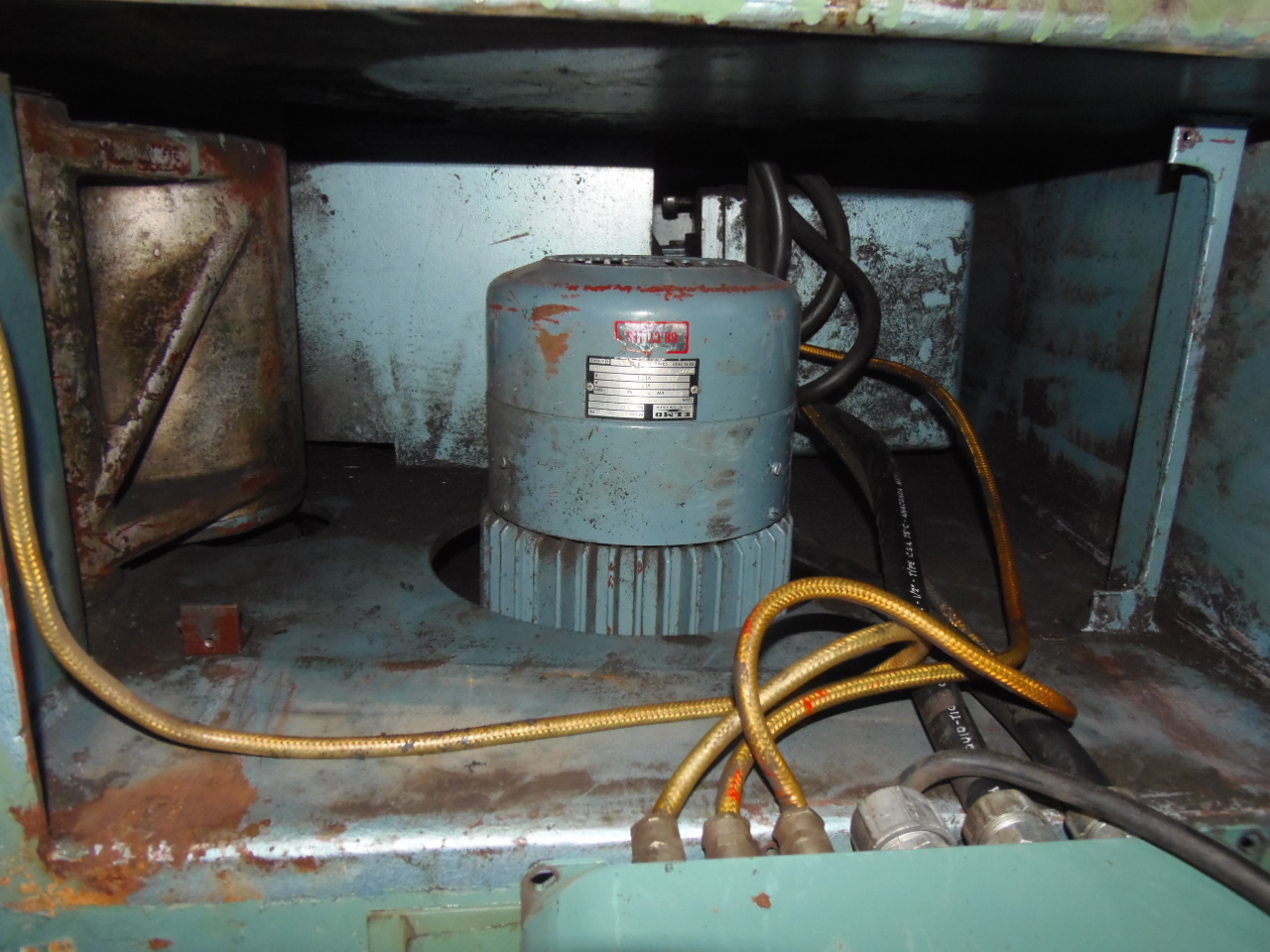

Fully Hydraulic Drive

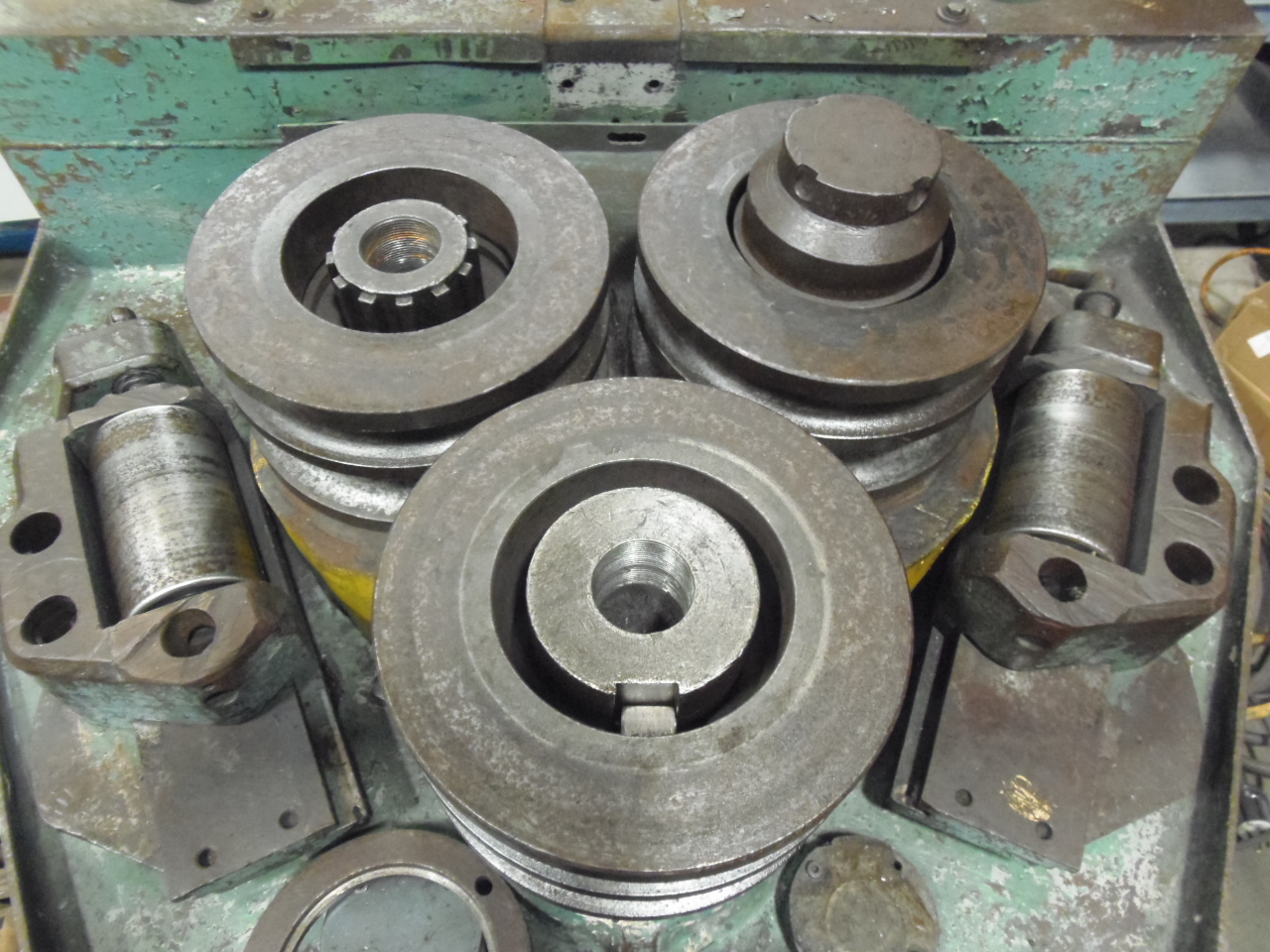

Hydraulic Adjustment to Lower Rolls
Locking Device for Angular Adjustment of the Guiding Roll
This machine is universal, it can be Mounted in Horizontal or Vertical
Sealed Hydraulic System

TYPE OF BEND........................ SIZE.........................MIN.DIA.
Equal Angles - Leg Out.............. 3" X 3" X 5/16"..............28"
Equal Angles - Leg Out.............. 1" X 1" X 1/4"...............14"
Equal Angles - Leg In............... 2-1/2" X 2-1/2" X 5/16"......40"
Equal Angles - Leg In............... 1" X 1" X 1/4"...............14"
Equal T-Bars - Web Out.............. 4" X 3" X 3/8"...............23"
Equal T-Bars - Web Out.............. 3/4" X 3/4" X 1/8"...........14"
Equal T-Bars - Web In............... 4" X 3" X 3/8"...............34"
Equal T-Bars - Web In............... 3/4" X 3/4" X 1/8"...........14"
Flats - On Edge..................... 2-1/2" X 1/2"................24"
Flats - On Edge..................... 1" X 1/4"....................14"
Flats - On Flat..................... 5" X 3/4"....................16"
Flats - On Flat..................... 1-5/8" X 3/8"................14"
Squares............................. 1-3/4" X 1-3/4"..............16"
Squares............................. 3/4" X 3/4"..................12"
Rounds*............................. 2"...........................16"
Rounds*............................. 3/4".........................12"
Tubes*.............................. 3" / 2.704"..................30"
Tubes*.............................. O.D. 3/4"....................12"
I-Beams* - Taper Flanges............ 4" X 2-5/8"..................40"
I-Beams* - Parallel Flanges......... 4" X 2-5/8"..................40"
Channels* - Flange Out.............. 5" X 1-3/4"..................32"
Channels* - Flange In............... 5" X 1-3/4"..................32"
