Specifications
Equipped With

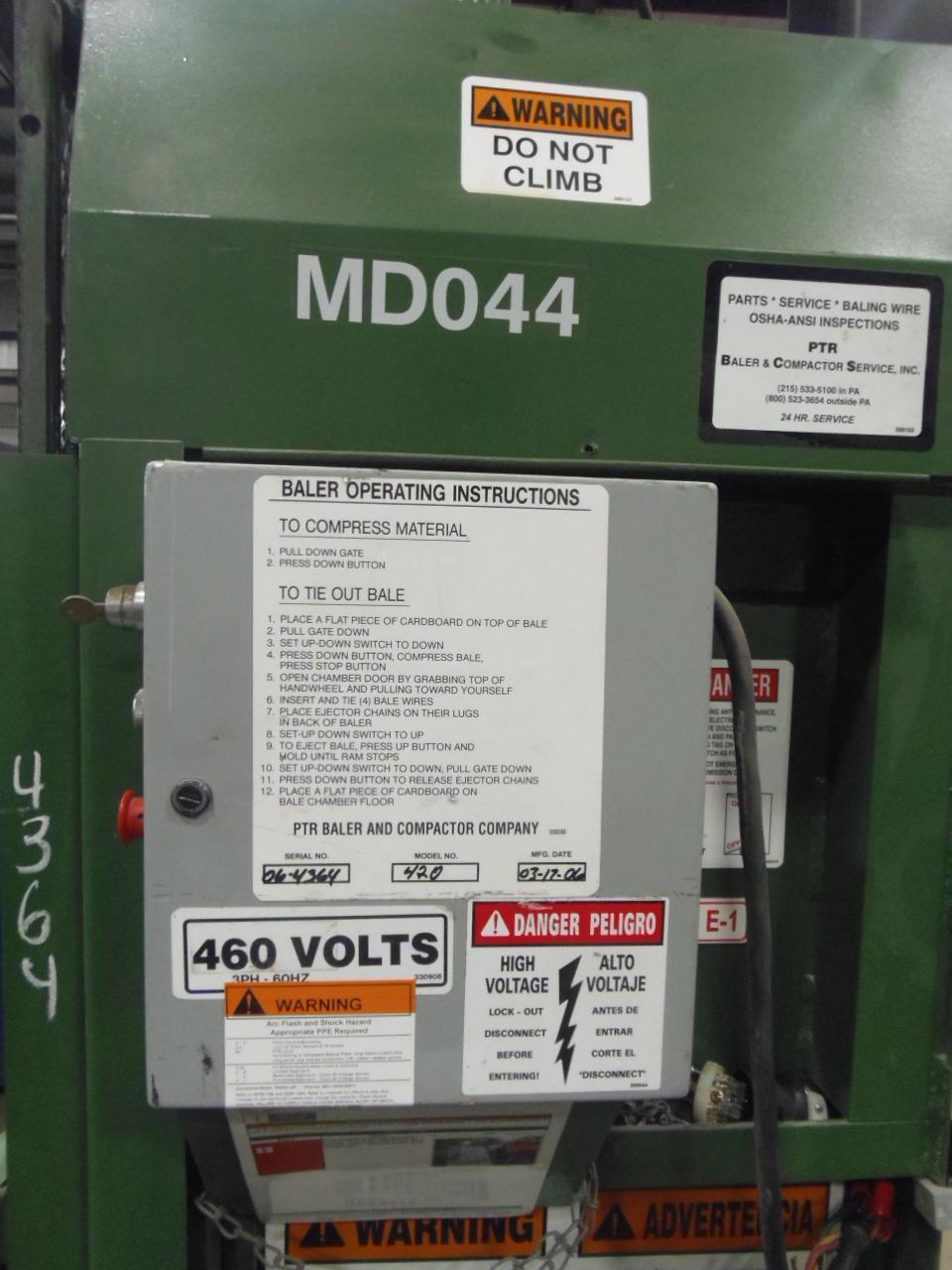

MANUFACTURER.................... PTR
MODEL........................... 420
SERIAL NUMBER................... 06-4364
AGE............................. 2006
BALE SIZE W X D X H............. 42" X 24" X 30"
BALE WEIGHT..................... 200 TO 400 LBS
BALE CHAMBER D X H.............. 24" X 30"
FEED HEIGHT..................... 32"
SYSTEM PRESSURE
WORKING PRESSURE.............. 1,600 PSI
RELIEF PRESSURE............... 1,900 PSI
PLATEN FORCE
WORKING FORCE................. 20,100 LBS
RELIEF FORCE.................. 23,870 LBS
RAM PRESSURE
NOR RAM PRESSURE.............. 19.7 PSI
MAX RAM PRESSURE.............. 23.4 PSI
SPECIFICATIONS
CYLINDER BORE................. 4"
CYLINDER ROD.................. 2.5"
ROD STROKE.................... 32"

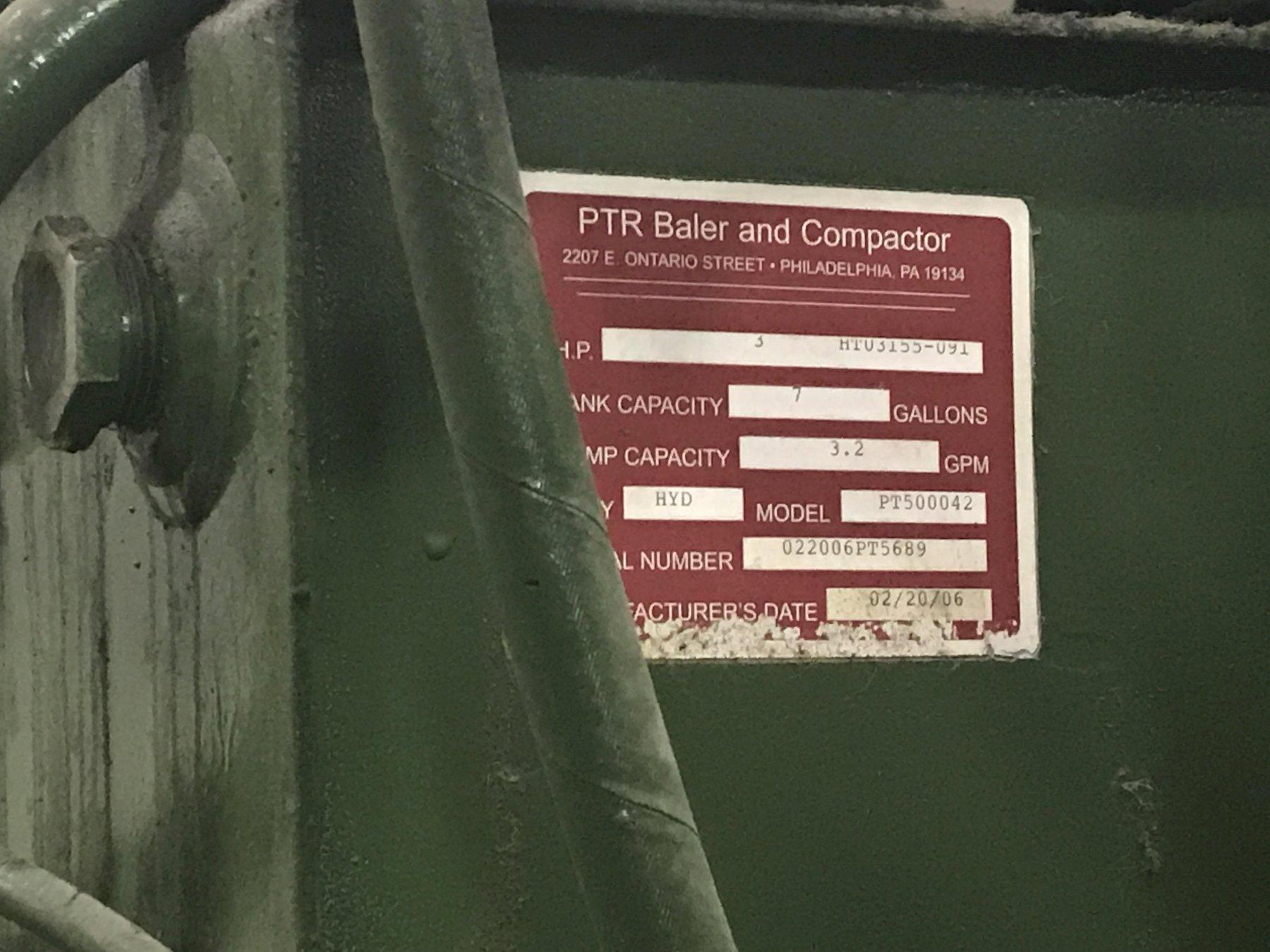

MOTOR......................... 3 HP
AVERAGE CYCLE TIME............ 53 SEC

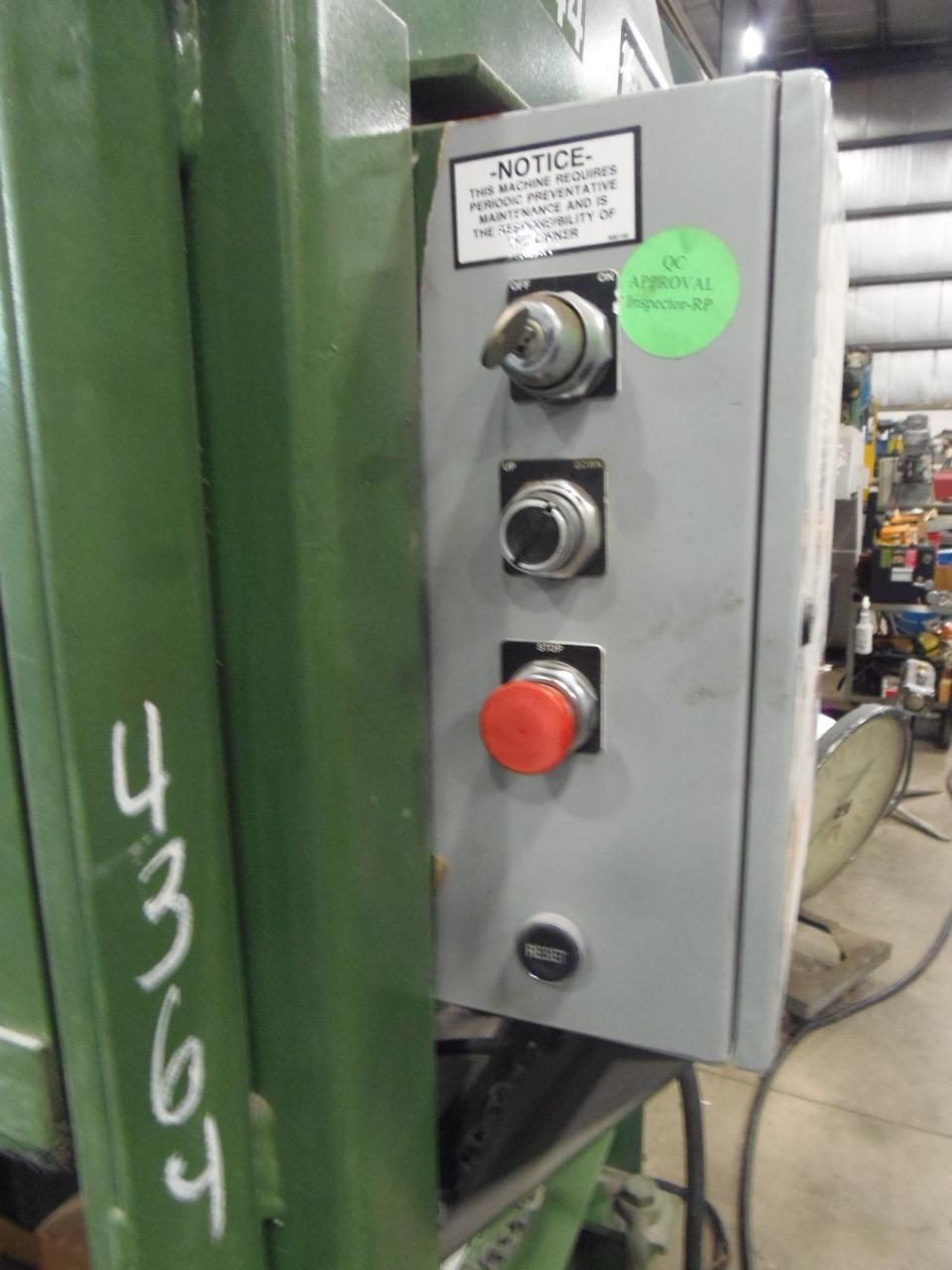

CONTROL VOLTAGE............... 110-120
ELECTRICS..................... 208/220/460 3 PHASE
CURRENT VOLTAGE............... 460V 3 PHASE
SHIPPING WEIGHT............... - LBS
OVERALL W X D X H............. 54 1/4" x 29 1/2" x 95 3/4"
NOTE: THE MACHINE SHIPS LAID DOWN
Minimum of 15 Ga galvanized steel wire approximately 9’ long with one end looped for bale tie off. Wire is to have a tensile strength of approximately 75,000 to 80,952 psi or more and a break strength of approximately 300 to 340 pounds or more.
** SPECIFICATIONS SUBJECT TO VERIFICATION **
