GENERAL SPECIFICATIONS:
MANUFACTURER........................... PRO MILL
MODEL.................................. PM-30S
SERIAL NUMBER.......................... 2406
YEAR BUILT............................. 1996
TABLE SIZE............................. 10" X 50"
TRAVELS
LONGITUDINAL........................ 30"
CROSS............................... 15"
QUILL .............................. 5"
SPINDLE HORSEPOWER..................... 3
QUILL DIAMETER......................... 4.375"
RPM RANGE.............................. 60 - 4200
SPINDLE TAPER.......................... 30 NMTBA

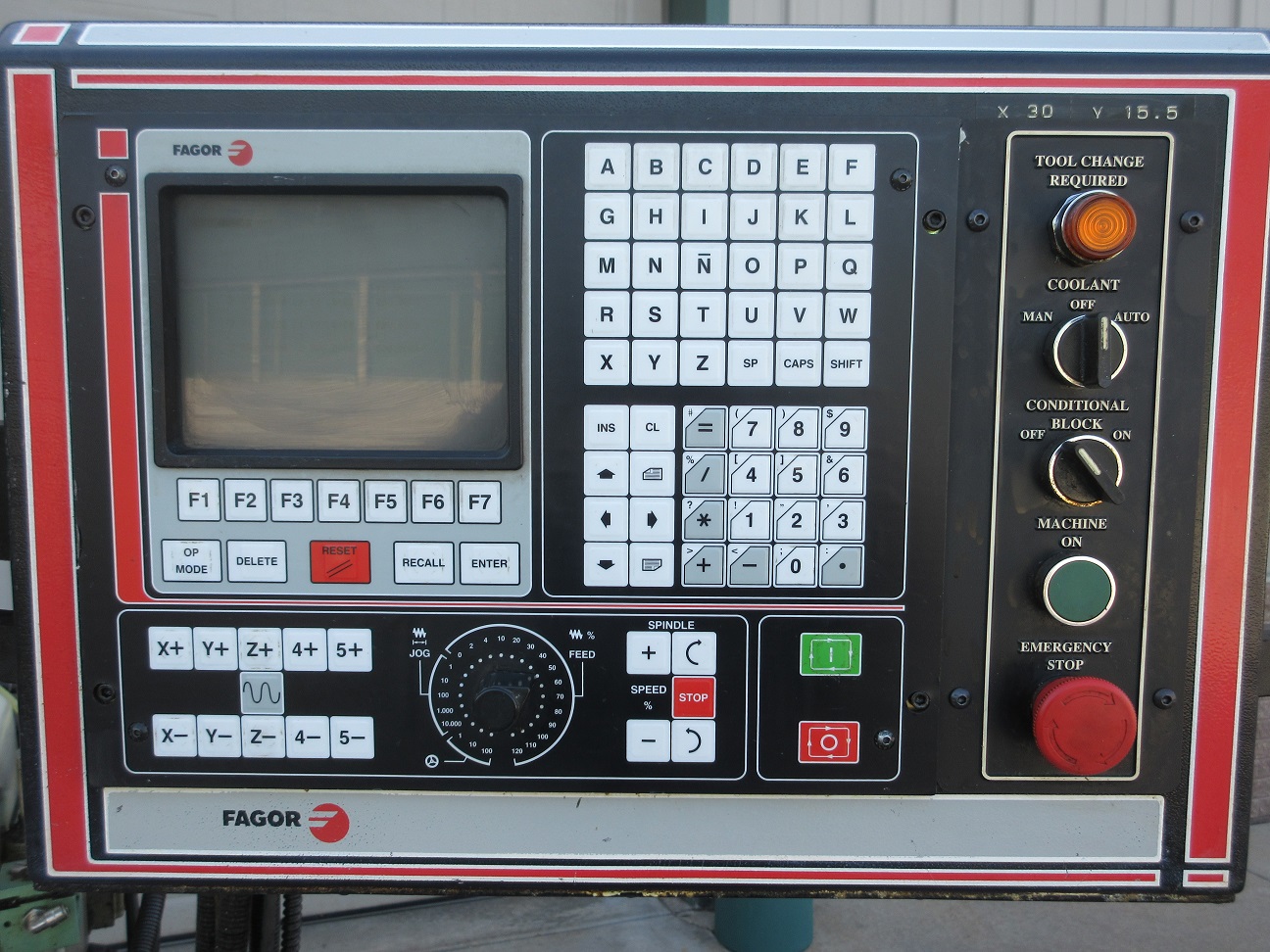

CONTROL................................ FAGOR 8025-CONVERSATIONAL
MACHINE WEIGHT......................... 3500 LBS
MACHINE VOLTAGE........................ 440/3/60
EQUIPPED WITH:
3 AXIS CONVERSATIONAL CONTROL
PNEUMATIC POWER DRAW BAR
AUTOMATIC WAY LUBRICATION
CHIP PAN
FLOOD COOLANT PUMP
SQUARE BOX WAYS
MACHINE LAMP
