Specifications
Equipped With

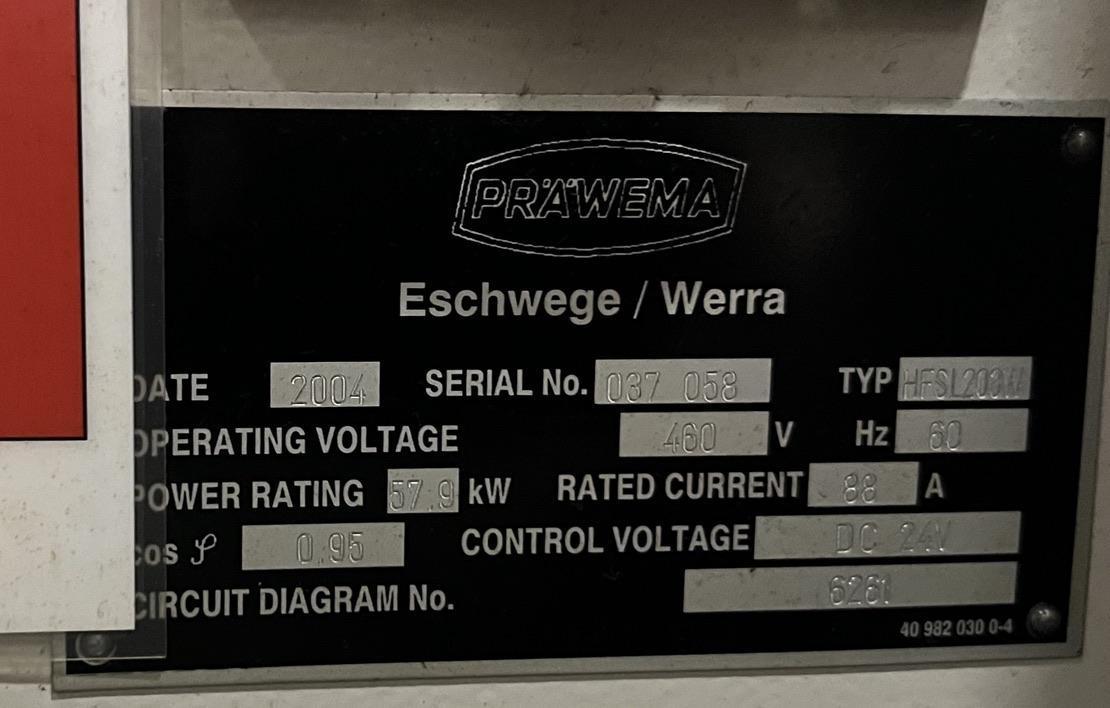

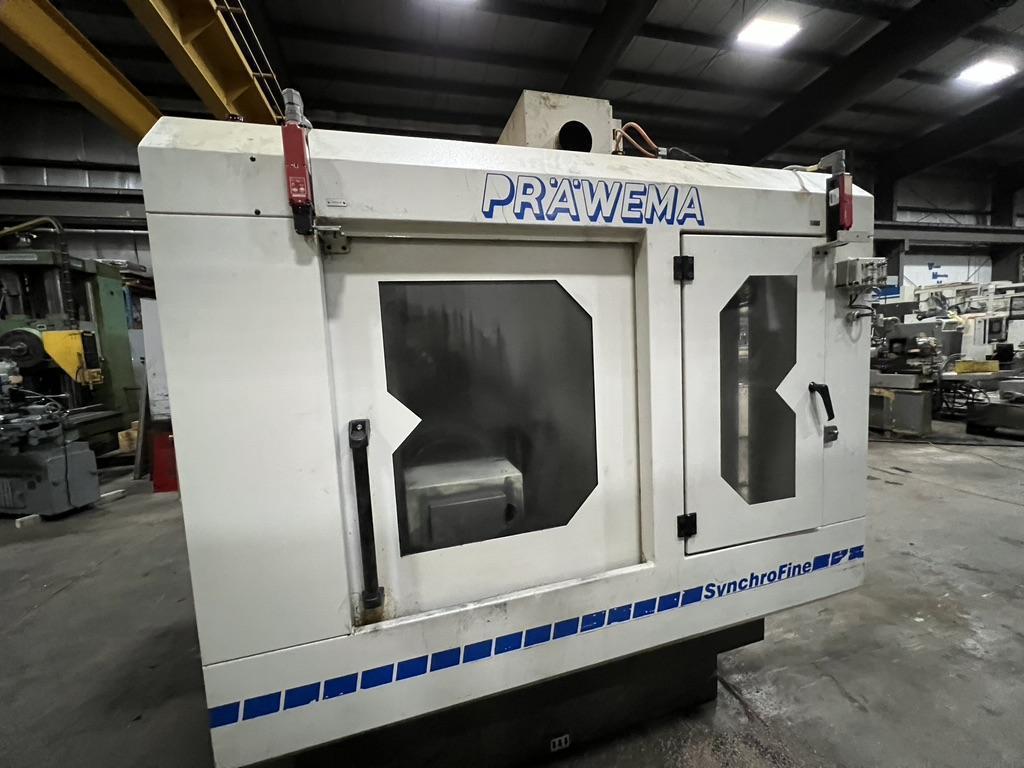

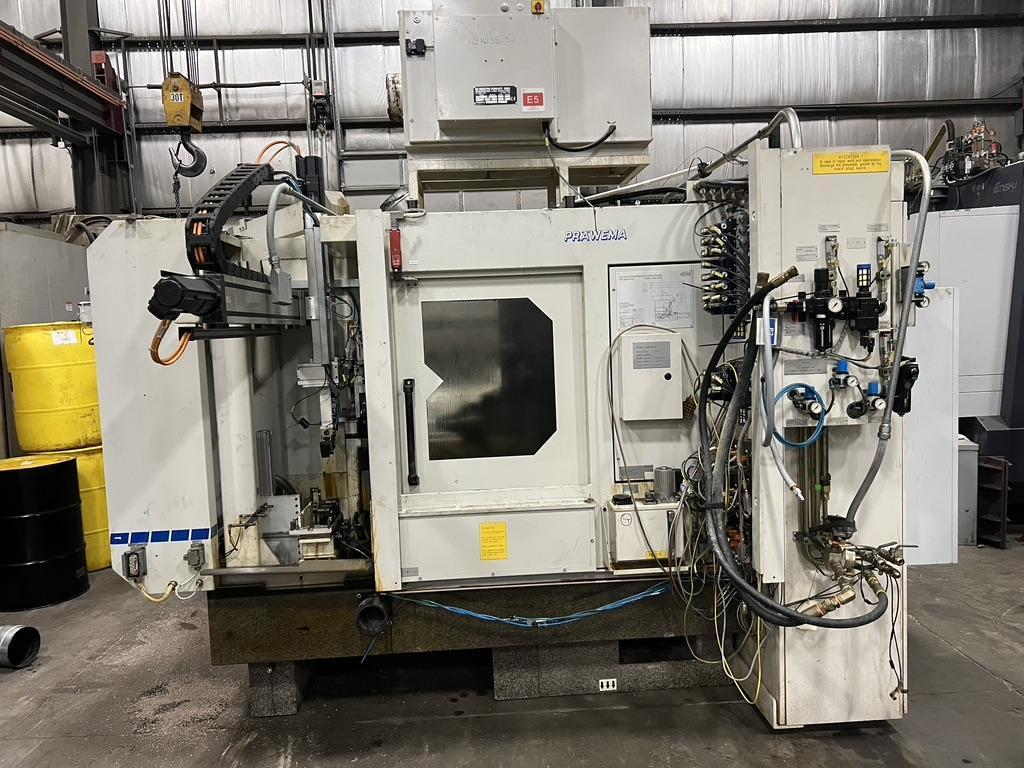

MANUFACTURER................. PRAWEMA
MODEL........................ HFSL-203W
SERIAL NUMBER................ 037 058
AGE.......................... 2004
WORK PIECE:
MAX. WORK PIECE DIAMETER..... 40-160 MM
WIDTH OF TEETH (MAX)......... 55 MM
MAX. SHAFT LENGTH TAKEN FROM
THE MIDDLE OF THE CENTER
OF TOOTH CUTTING............. 200 MM
MACHINE:
REVOLUTIONS OF TOOL.......... 0-1500 MIN-1

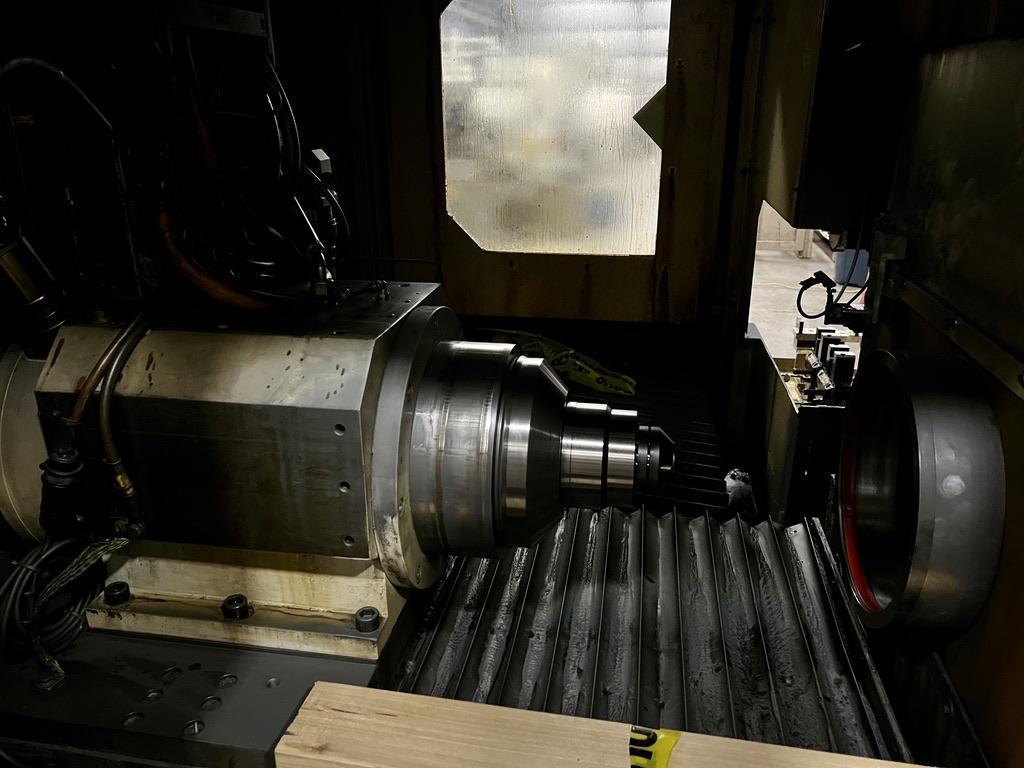

REVOLUTIONS OF WORK PIECE
SPINDLE...................... 0-6500 MIN-1
WORK PIECE SPINDLE TRAVEL X.. 1055 MM
WORK PIECE SPINDLE TRAVEL Z.. 300 MM
SWIVEL ANGLE HONING HEAD..... -10 / + 8 DEG. MAX
SMALLEST TRAVEL VALUE........ .01 MM
VOLTAGE...................... 460
DIMENSIONS APPROX............ 2.4 X 3.3 X 2.4 M
WEIGHT....................... 9500 KG
EQUIPPED WITH:
MISC. CONVEYORS

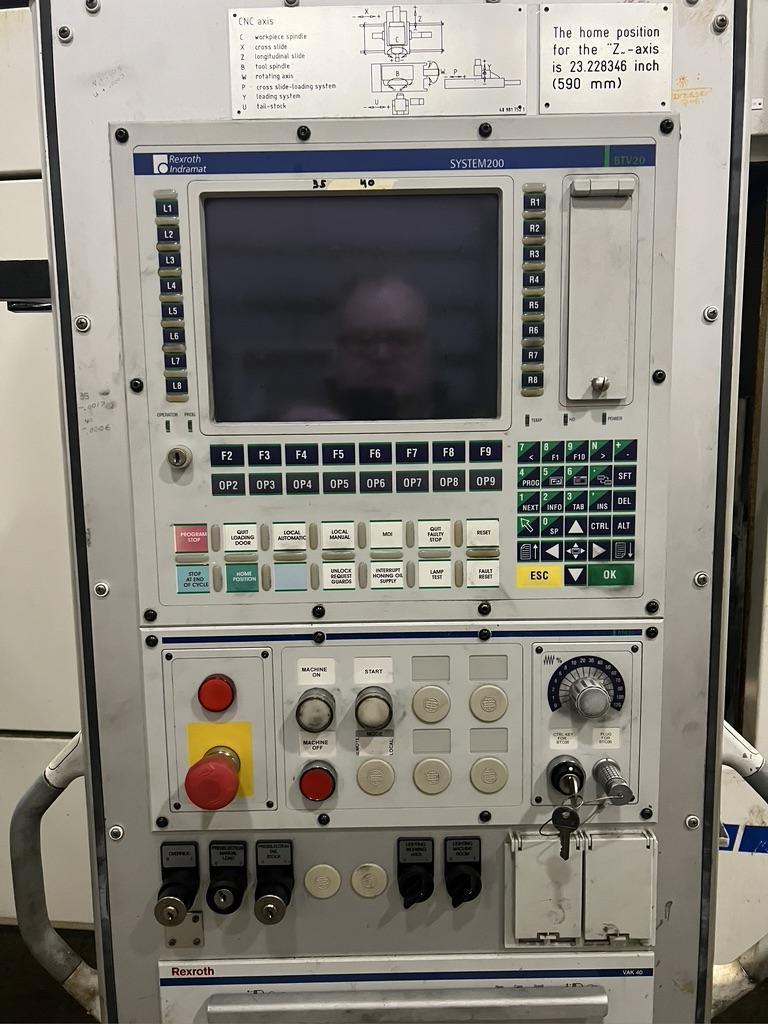

REXROTH INDRAMAT SYSTEM 200 CONTROL
PARTS LOADER

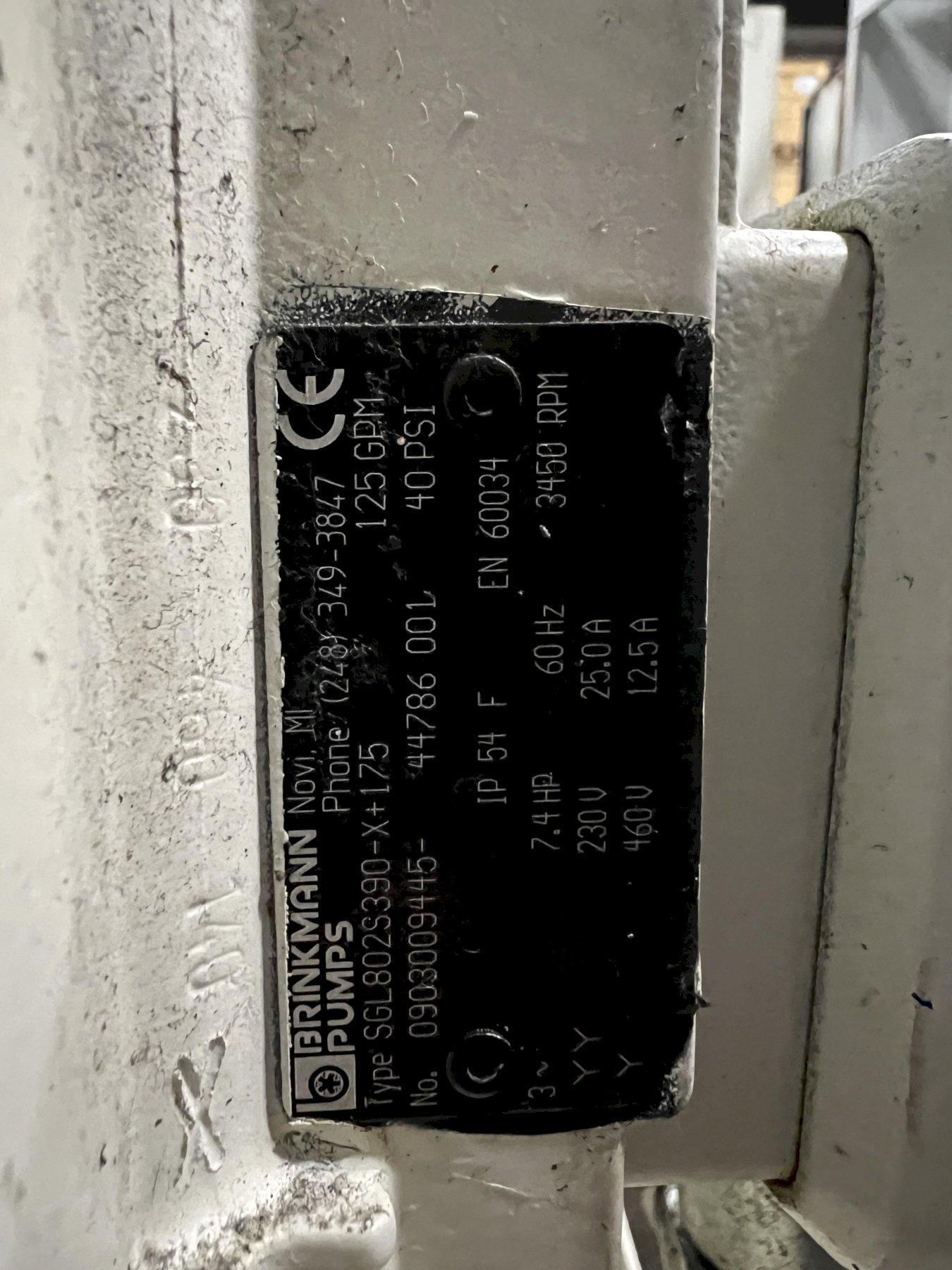

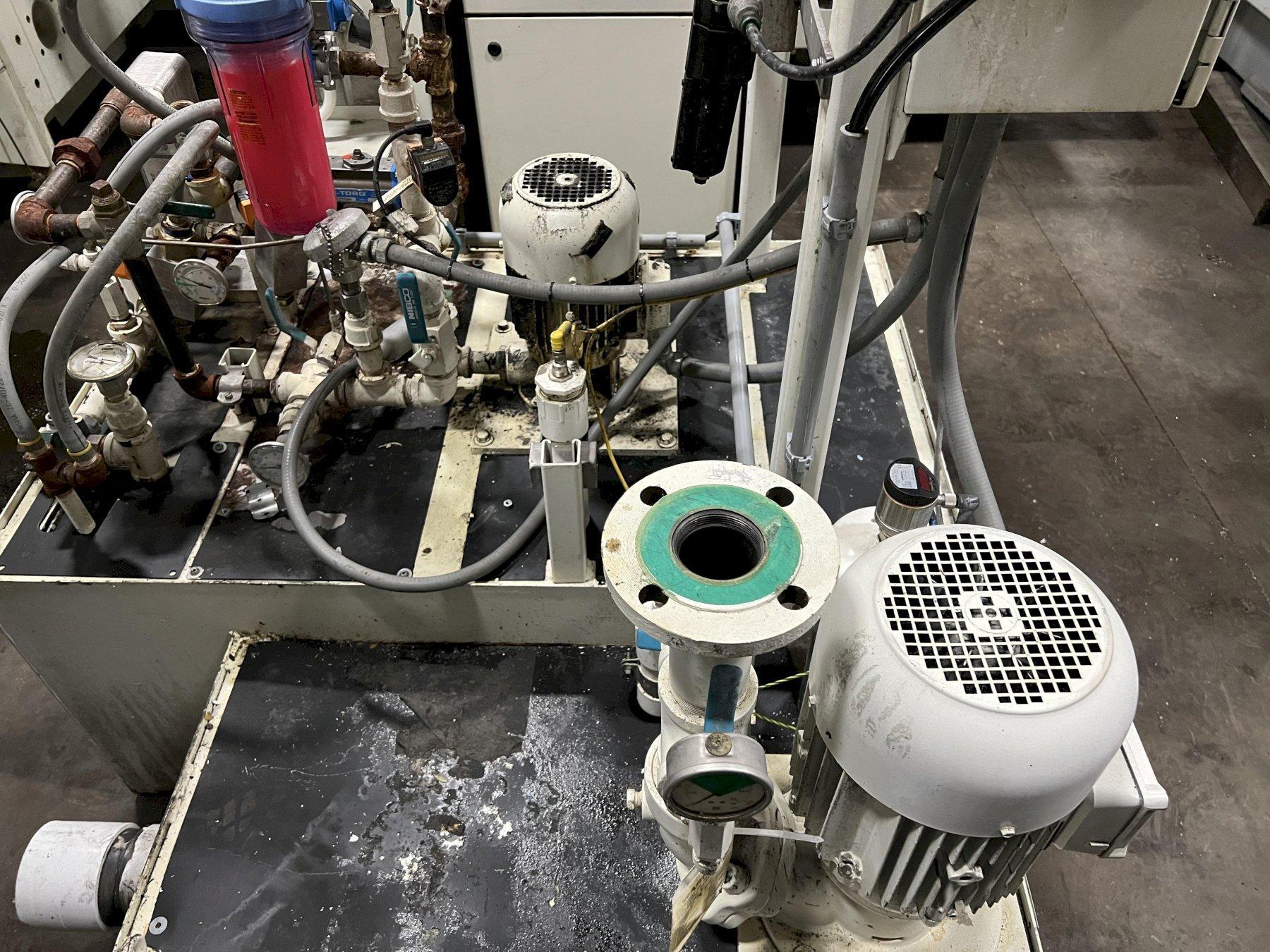

OBERLIN SUMP COOLANT SYSTEM
MISC. MANUALS
