Specifications
Equipped With
GENERAL SPECIFCIATIONS:
SERIAL # MA710623
NEW APPROXIMATELY 1987
DRILLING CAP. (MILD STEEL) 0.79"
TAPPING CAP. (MILD STEEL) 0.63"
TRAVEL: TABLE LONG. (X) 19.6"
TABLE CROSS (Y) 14.9"
SPINDLE HEAD VERT. (Z) 11.8"
DIST. OF SPINDLE NOSE-TOP 9.45"-21.26"
TABLE SIZE 25.59" X 14.96"
MAX. MASS ON TABLE 195 LBS.
SPINDLE: MOTOR FANUC AC SPINDLE
MODEL 3S 5.5KW
NOSE 7/24 TAPER NO. 30
FEEDRATE UP TO 196.85"/MIN.
FEEDRATE RAPID TRAVERSE: (X,Y) 20M/MIN.
(Z) 15M/MIN.

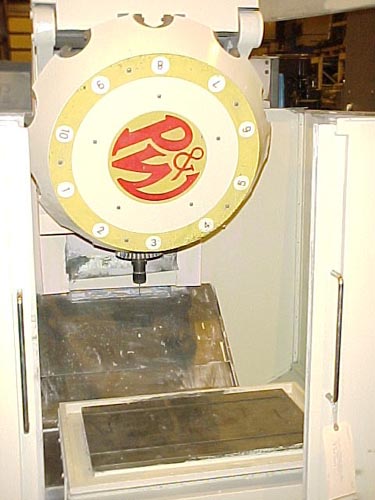

TURRET: TOOL CHANGE SYSTEM TURRET TYPE
TOOL STORAGE CAPACITY 10
MAX. CHANGEABLE TOOL LENGTH 7.87"
(MAX. DIA. 100MM)
MAX. CHANGEABLE TOOL MASS 6.60 LBS/TOOL
(TTL MASS 39.60 LBS)
TOOL SELECTION RANDOM SHORTEST PATH
TOOL CHANGE TIME: APPROX. 3.5 SEC.
TOOL SHANKS/RETENTION KNOBS MAS403 BT30/P30T-1or
DIN69871A30/SPECIAL
HEIGHT OF MACHINE 89.76"
FLOOR SPACE 77.50" X 82.25"
NEW WEIGHT (APPROX.) 3,470 LBS.
