GENERAL SPECIFICATIONS:

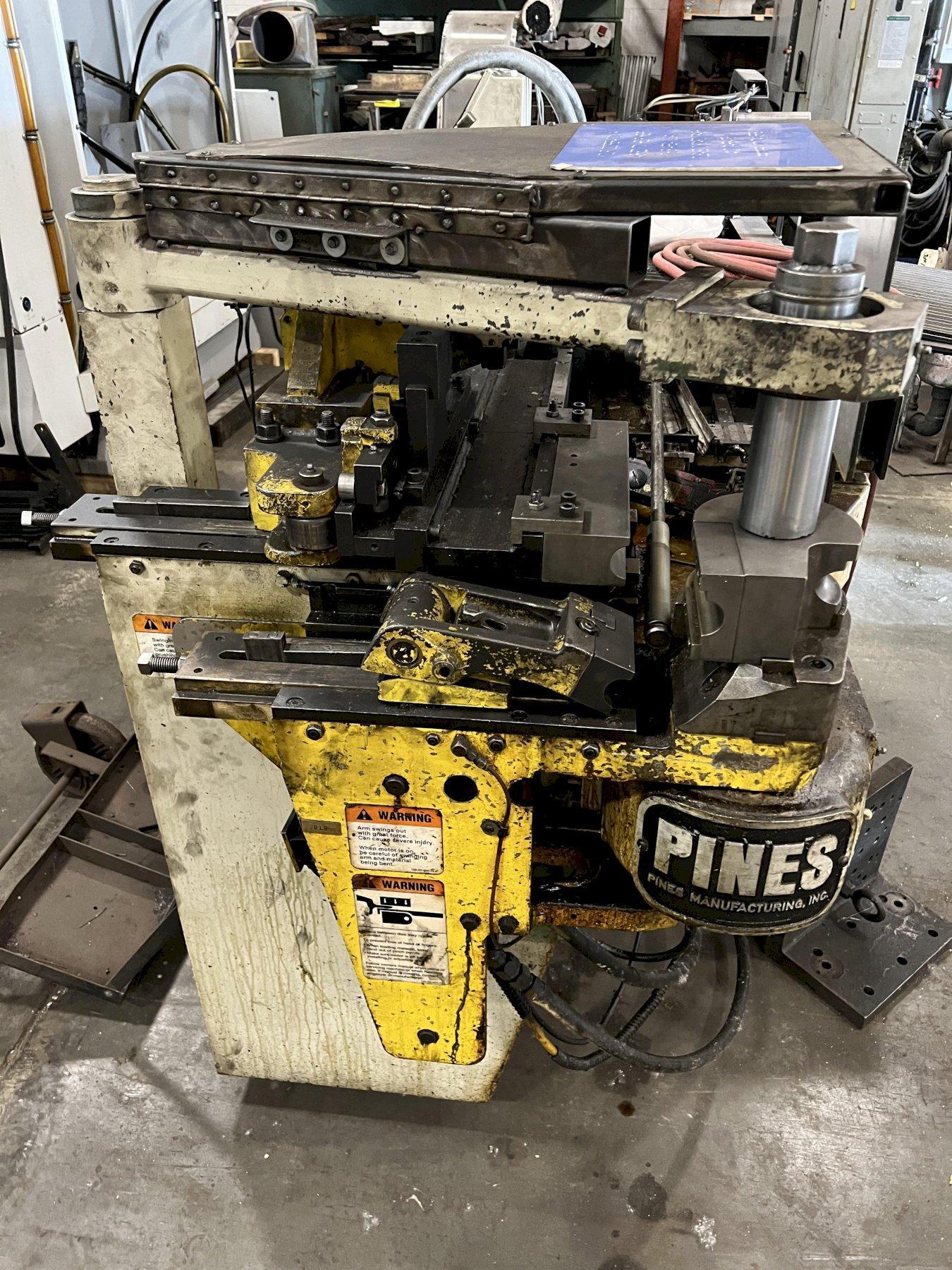

MANUFACTURER.......................... PINES
MODEL................................. #1
SERIAL NUMBER......................... 11035-96058
NEW APPROXIMATELY..................... 1996
CONTROL............................... 3 AXIS DIAL A BEND
CAPACITY:
MILD STEEL TUBE ROUND................. 1-1/2" X .109"
MILD STEEL SQUARE..................... 1-1/8" X .120"
MILD STEEL BAR ROUND.................. 1-1/8"
MILD STEEL BAR SQUARE................. 3/4"
TUBE LENGTH (OVER MANDREL)............ 9' X 11"
HP.................................... 7.5
VOLTAGE............................... 440-3-60
APPROXIMATE DIMENSIONS 12' L X 4' W X 3' H
APPROXIMATE WEIGHT 2,600 LBS.
EQUIPPED WITH:

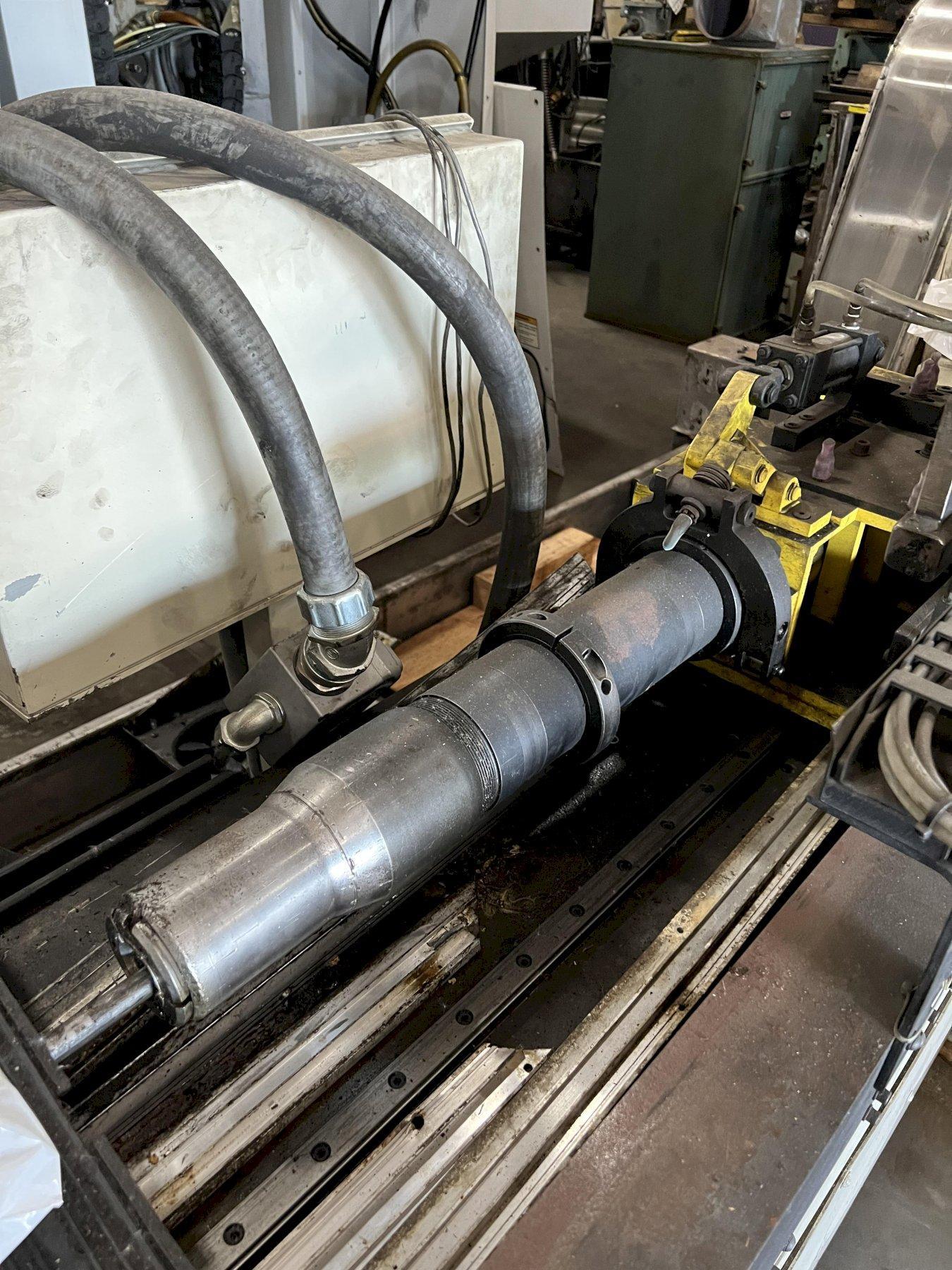

MANDREL EXTRACTOR

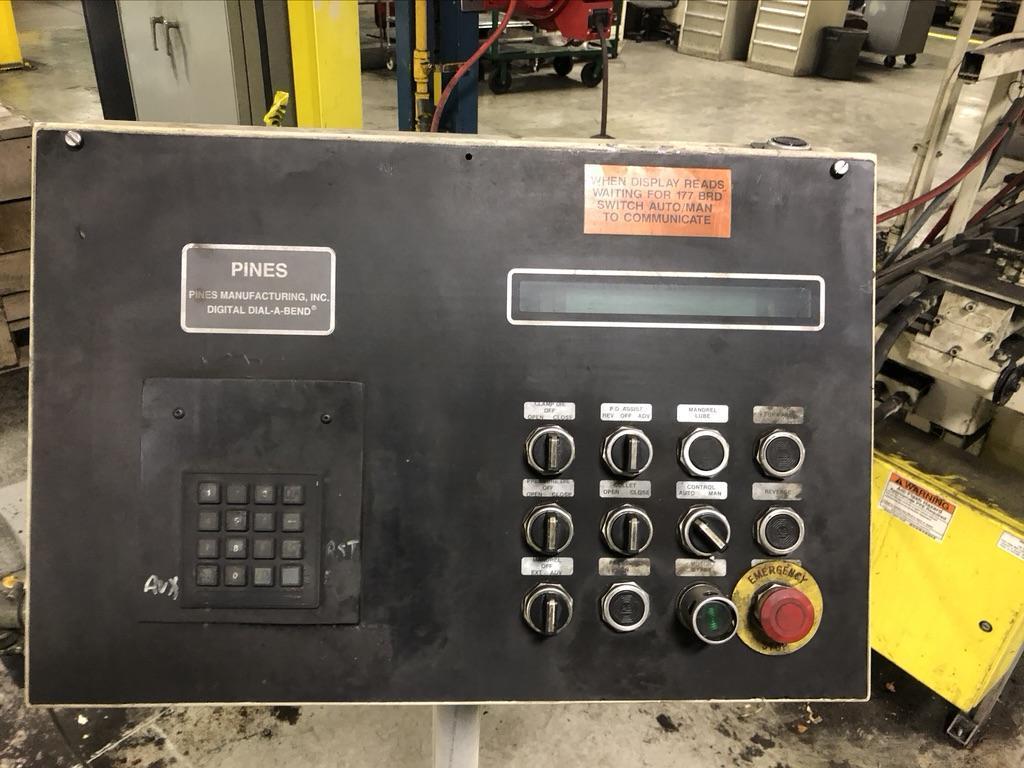

DIGITAL DIAL A BEND

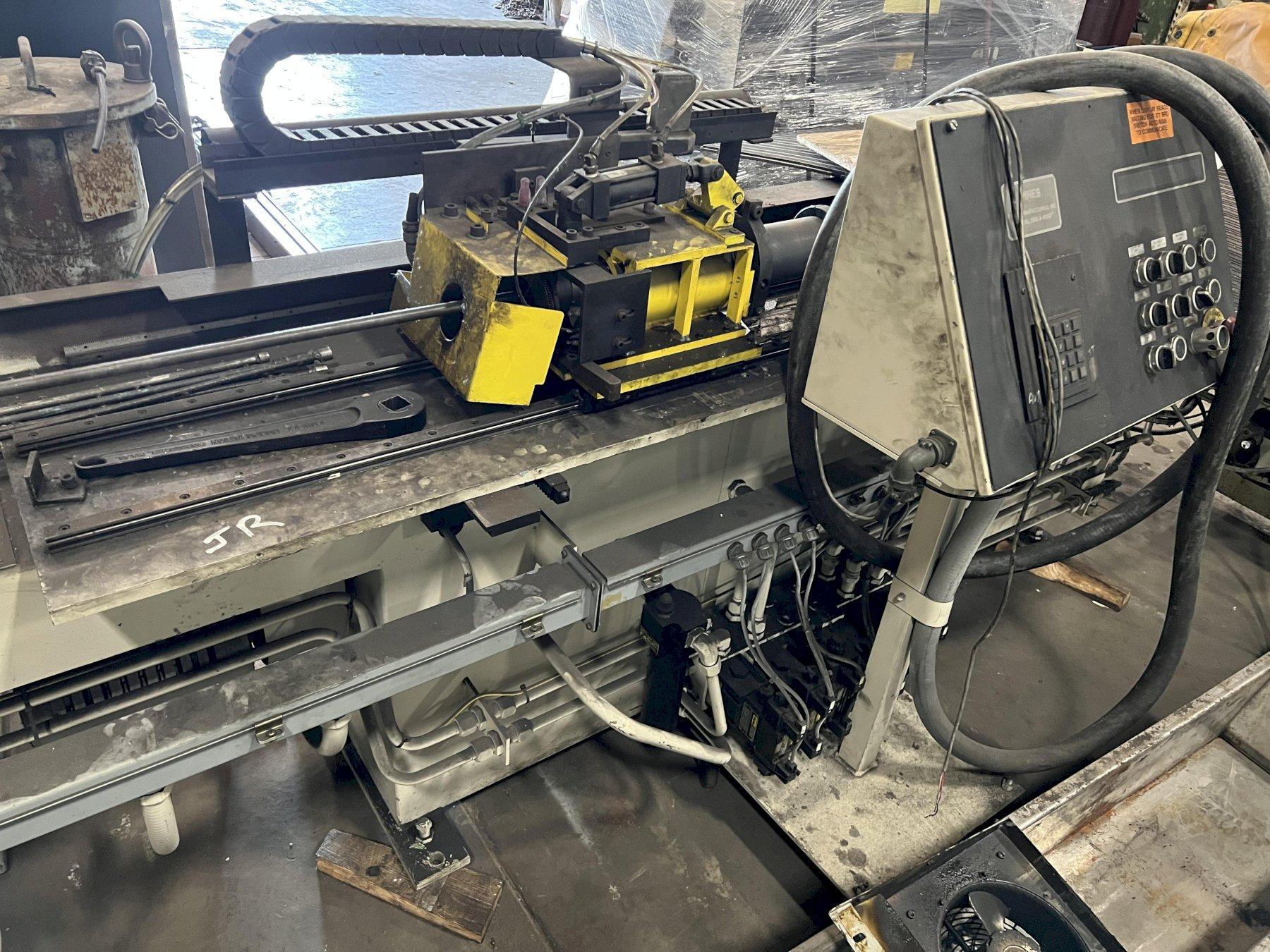

PEDESTAL CONTROL
OVERHEAD TIE BAR
MISC. MANUALS AND PRINTS
GOOD COMPLEMENT OF TOOLING
