Specifications
Equipped With
GENERAL SPECIFICATIONS:

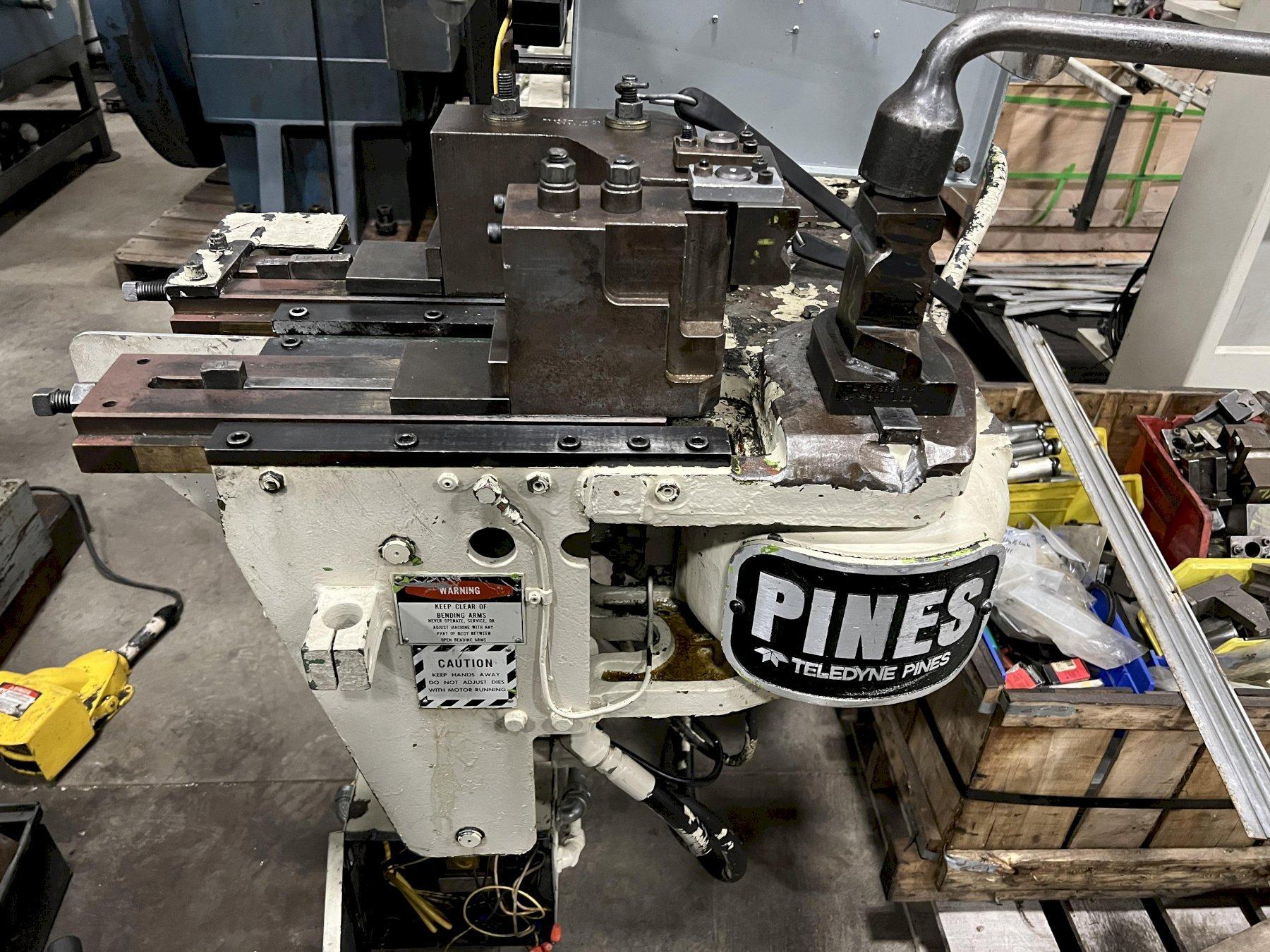

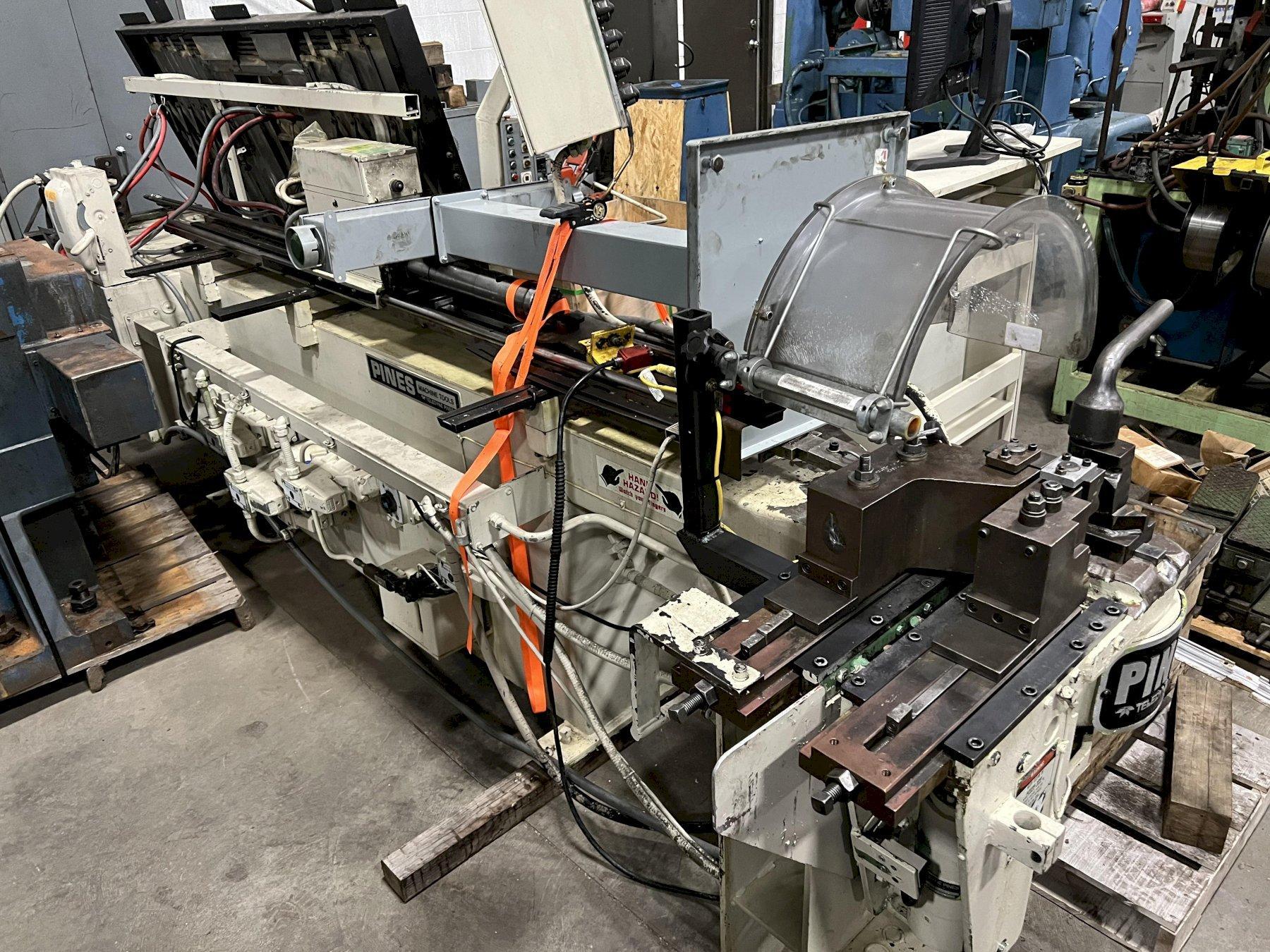

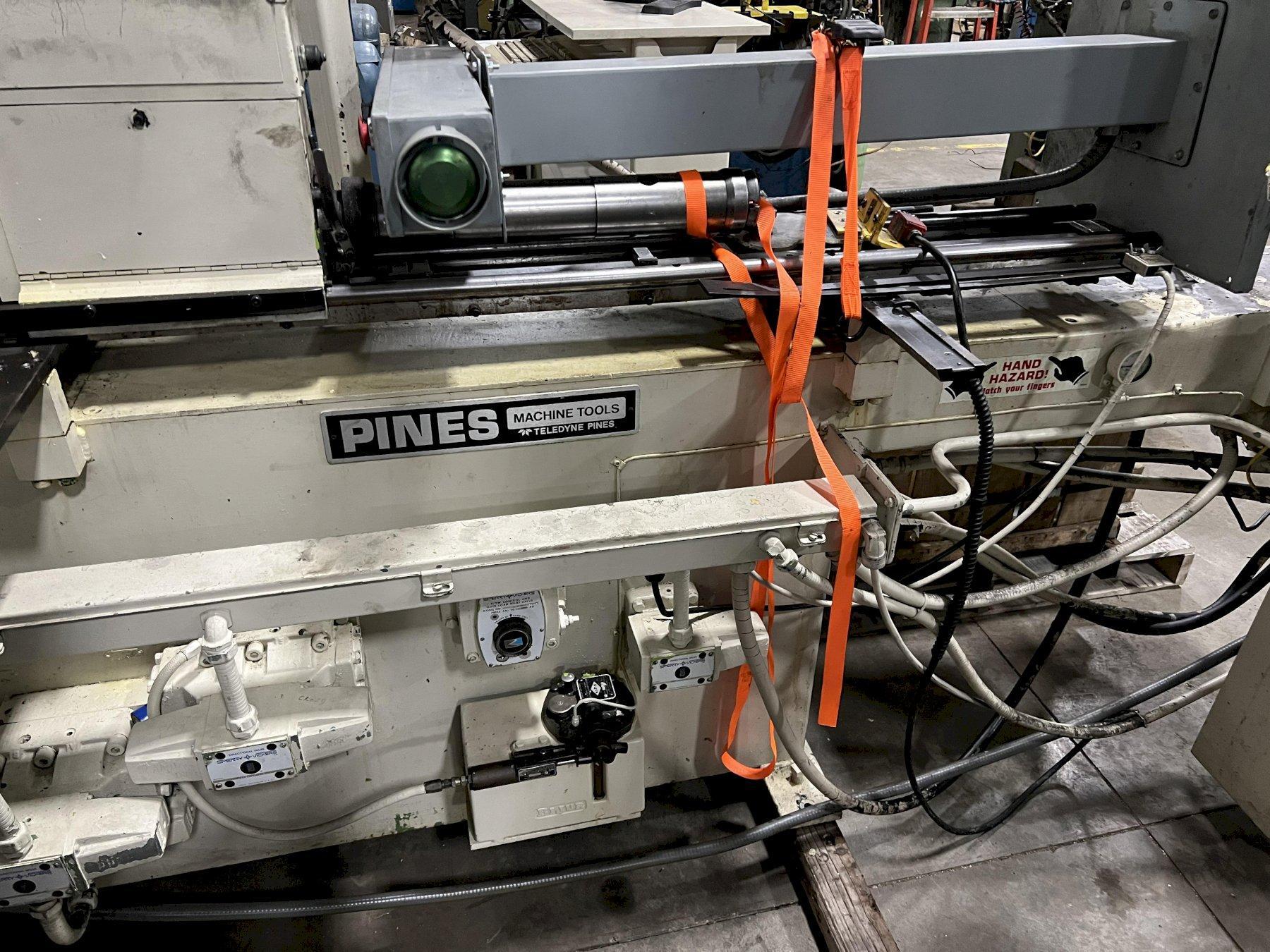

MANUFACTURER.......................... PINES
MODEL................................. #1

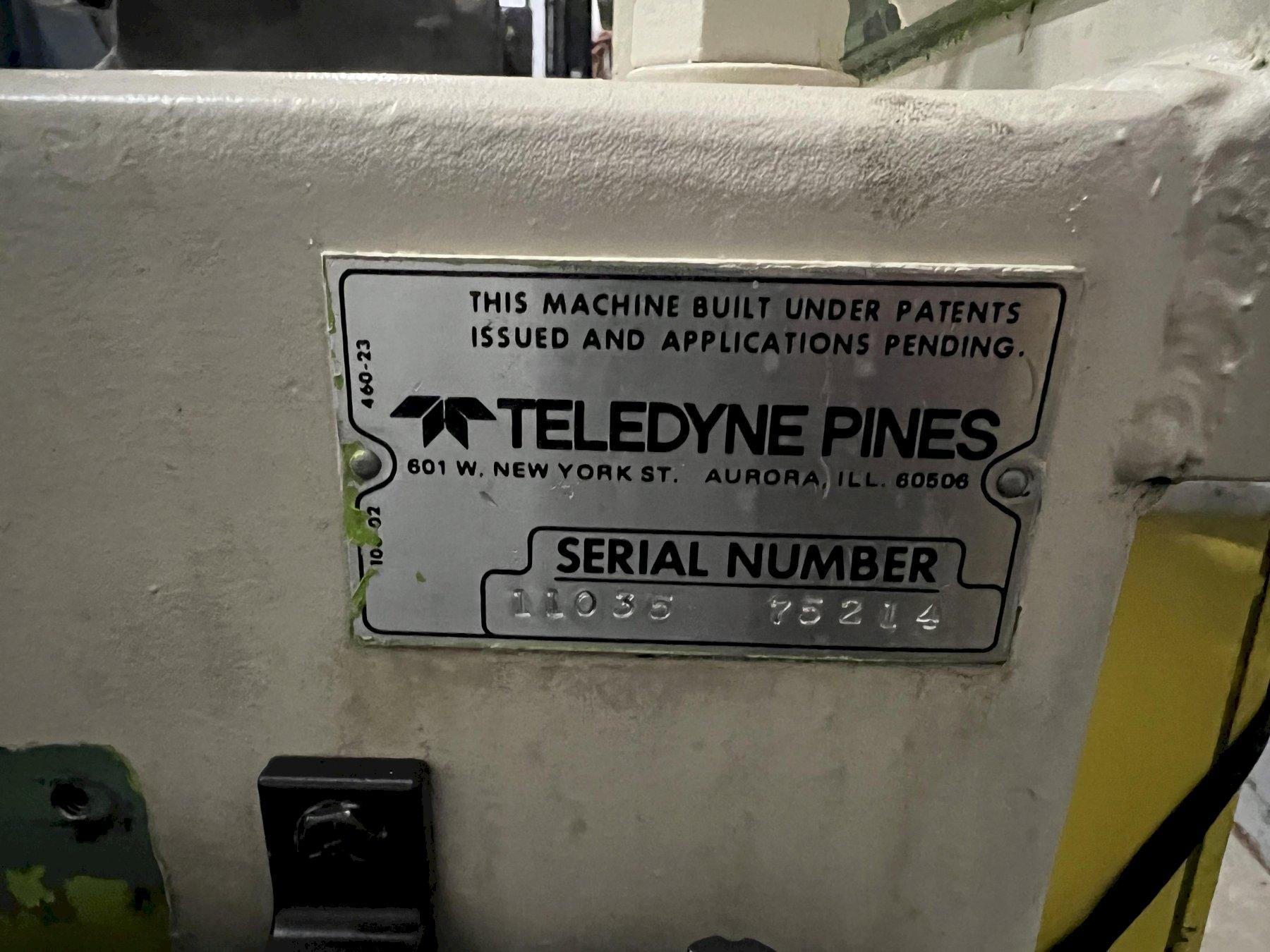

SERIAL NUMBER......................... 11035-75214
NEW APPROXIMATELY..................... 1975
CONTROL............................... DIAL-A-BEND
CAPACITY:
BENDING ROTATION...................... COUNTER CLOCKWISE
MAX BEND RADIUS....................... 10"
RPM OF SPINDLE
FORWARD............................ 13.3
REVERSE............................ 21.7
SPINDLE TORQUE........................ 2527 FT. LBS
MILD STEEL TUBE ROUND................. 1-1/2" X .109"
MILD STEEL SQUARE..................... 1-1/8" X .120"
MILD STEEL BAR ROUND.................. 1-1/8"
MILD STEEL BAR SQUARE................. 3/4"

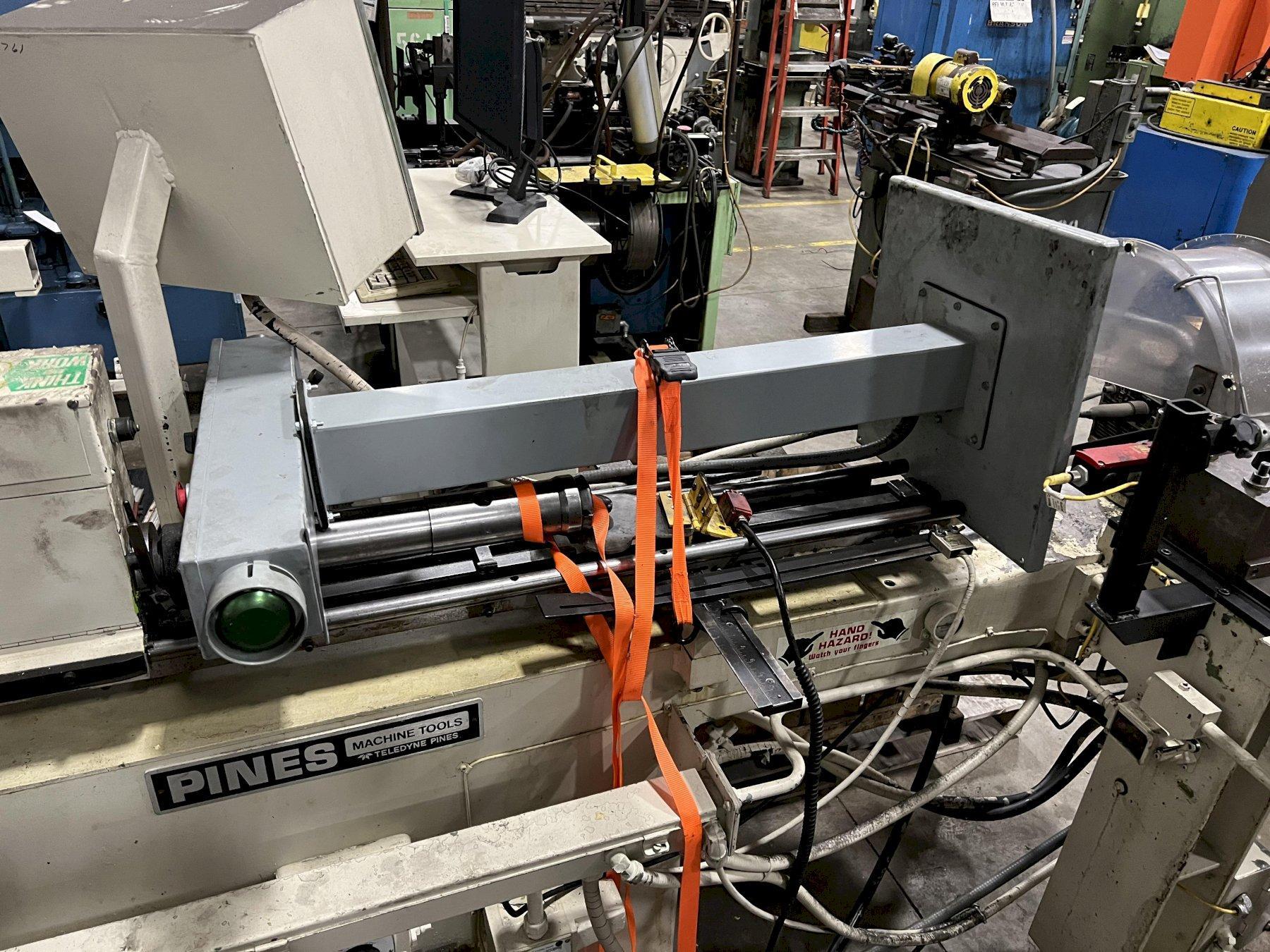

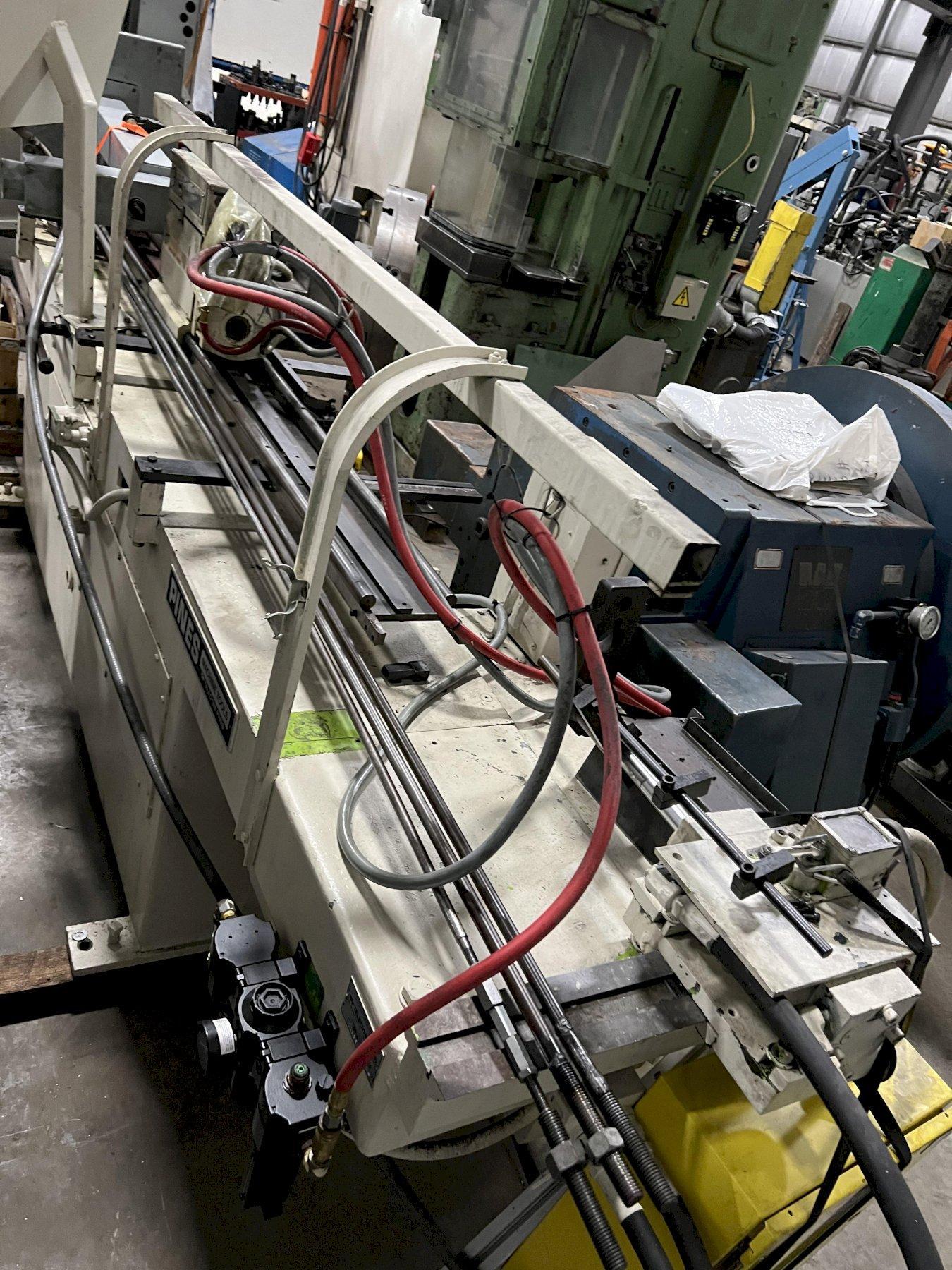

TUBE LENGTH (OVER MANDREL)............ 9' X 11"
HP.................................... 7.5
VOLTAGE............................... 440-3-60
APPROXIMATE DIMENSIONS 12' L X 4' W X 3' H
APPROXIMATE WEIGHT 2,600 LBS.
EQUIPPED WITH:
MANDREL EXTRACTOR

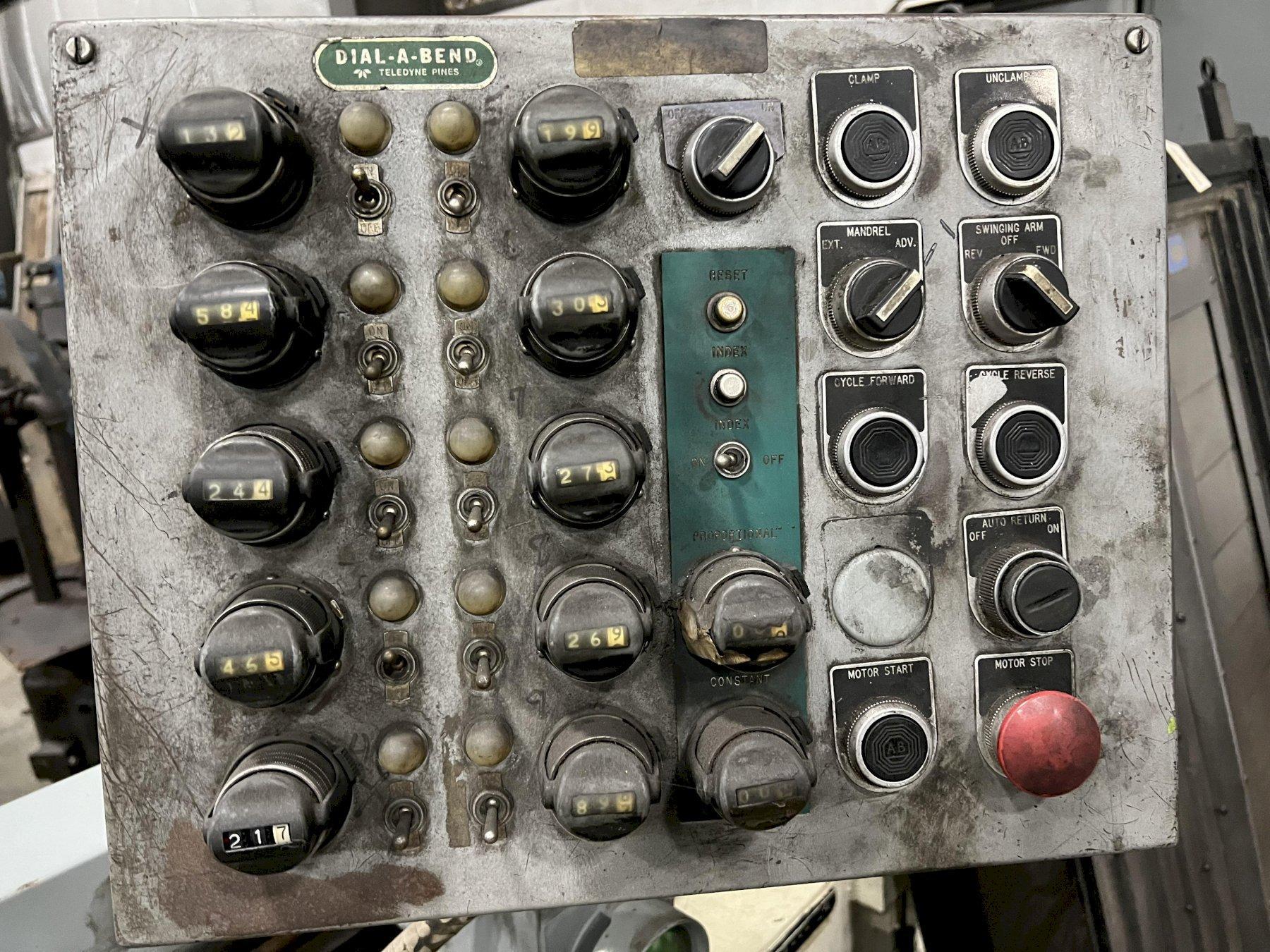

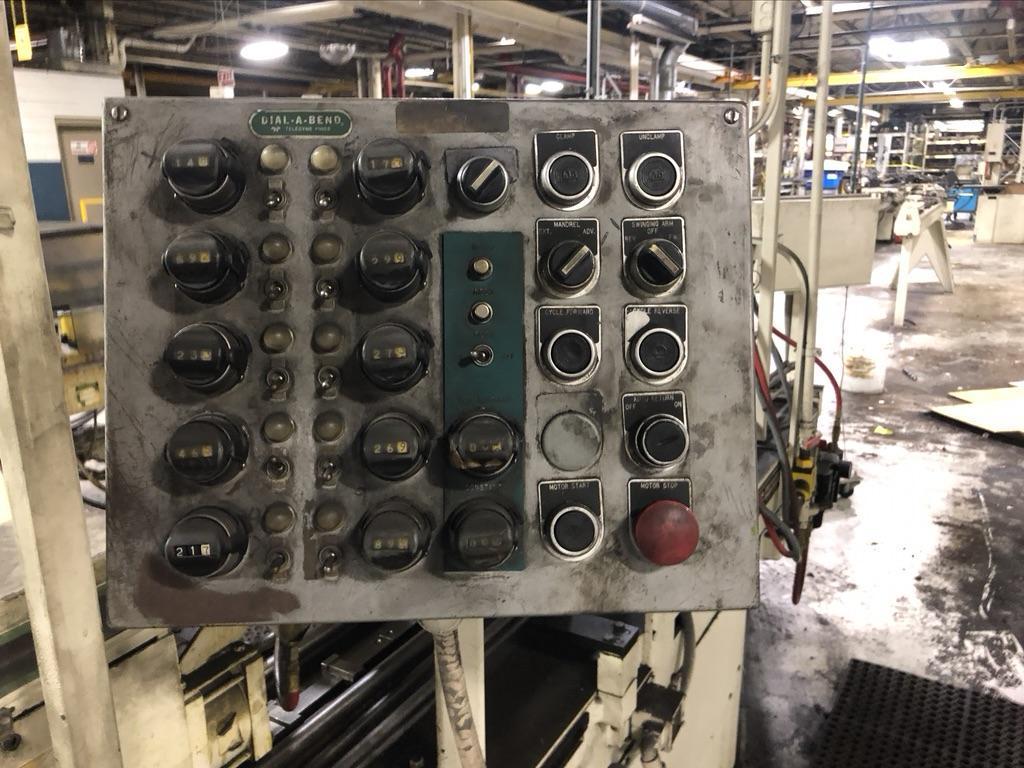

DIAL A BEND
MISC. MANUALS AND PRINTS

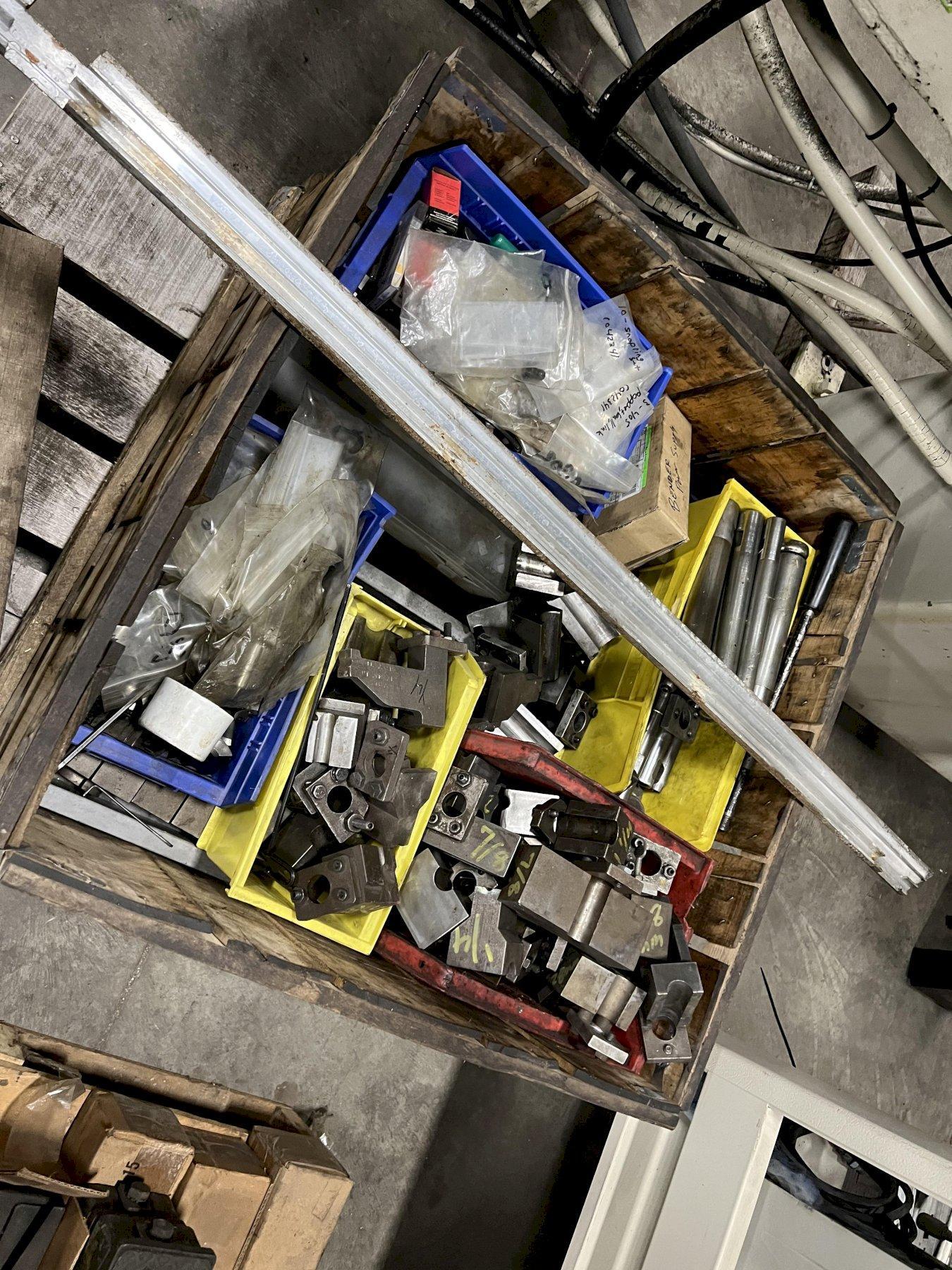

GOOD COMPLEMENT OF TOOLING
