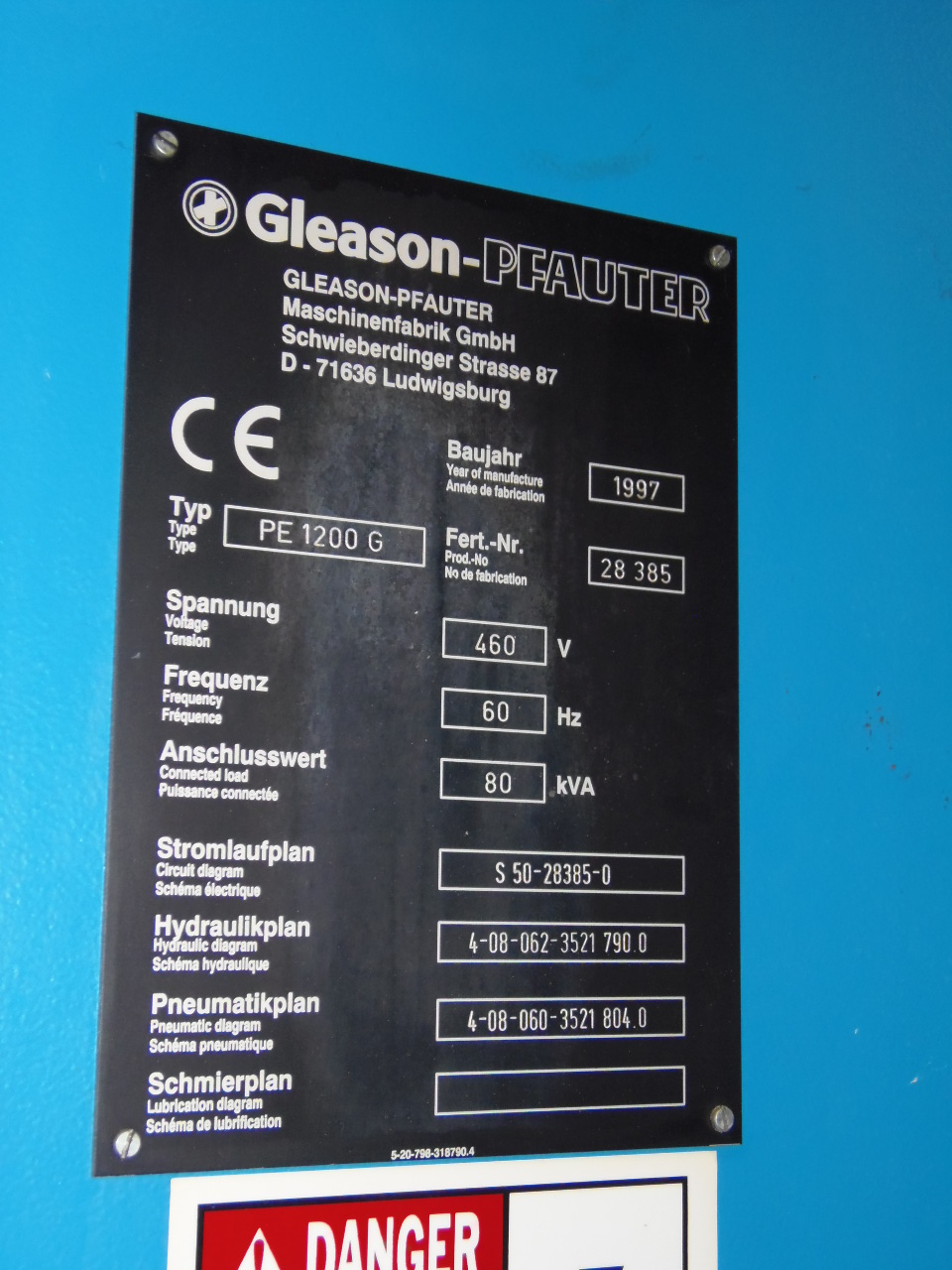

Specifications
Equipped With

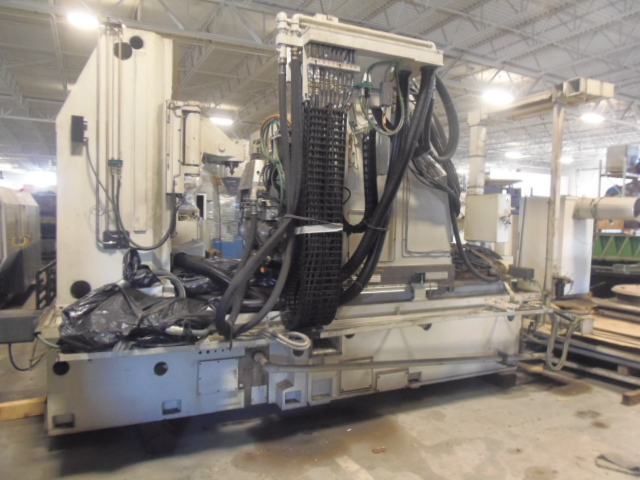

MANUFACTURER........................... PFAUTER
MODEL.................................. P1200G
AGE.................................... 1997
SERIAL NUMBER.......................... 28 385
WORK PIECE
MAX. GRINDABLE PROFILE DEPTH........ 80 MM 3.14"
MAX. DIAMETER....................... 1200 MM 47.24"

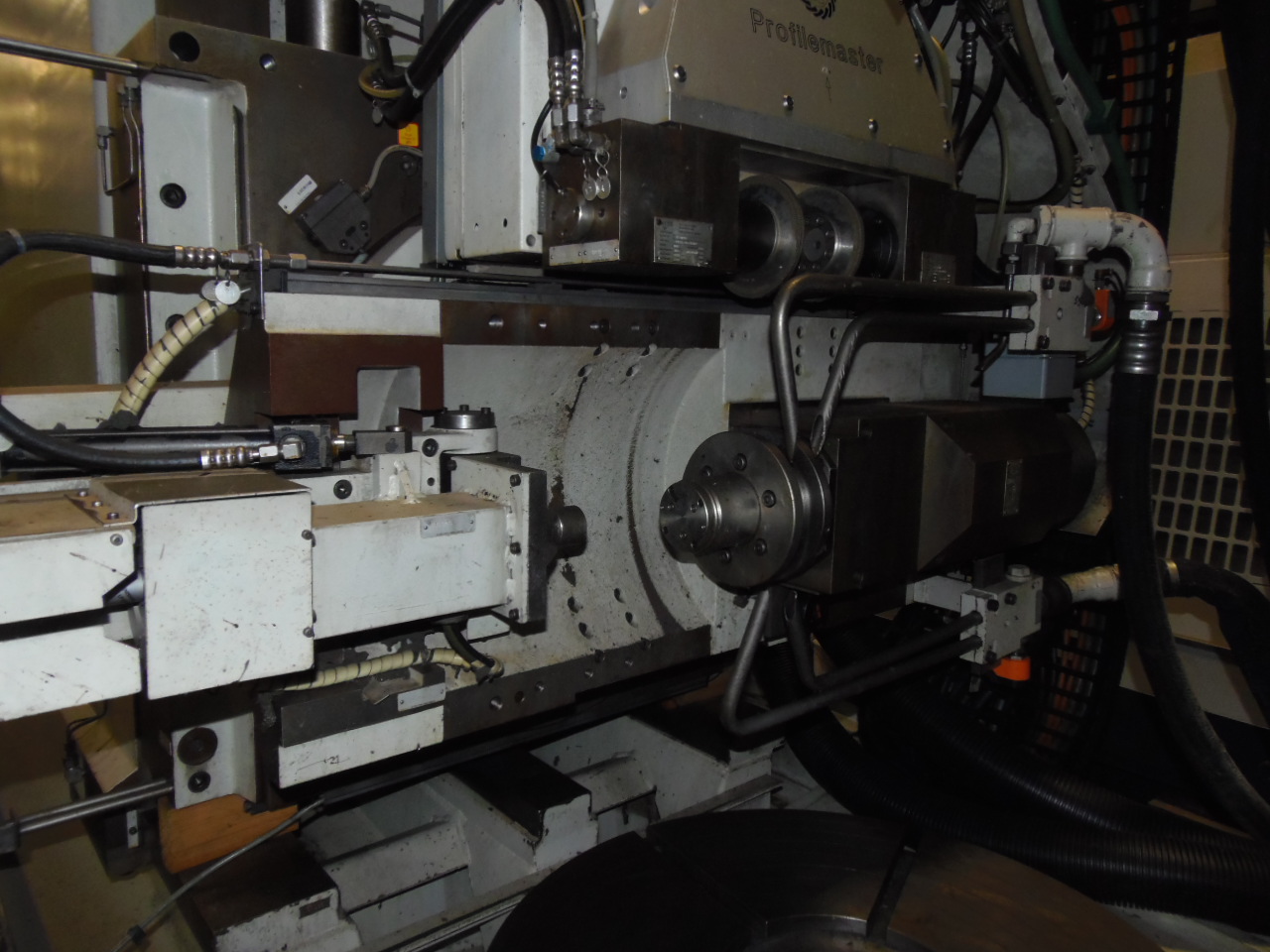

FORM-GRINDING WHEEL
MAX. DIAMETER....................... 400 MM 15.75"
MAX. WIDTH.......................... 80 MM 3.14"
DIA. SPDL.JOURNAL FOR RETAINING..... 80 MM 3.14"
LENGTH SPDL. JOURNAL FOR RETAINING.. 132 MM 5.19"

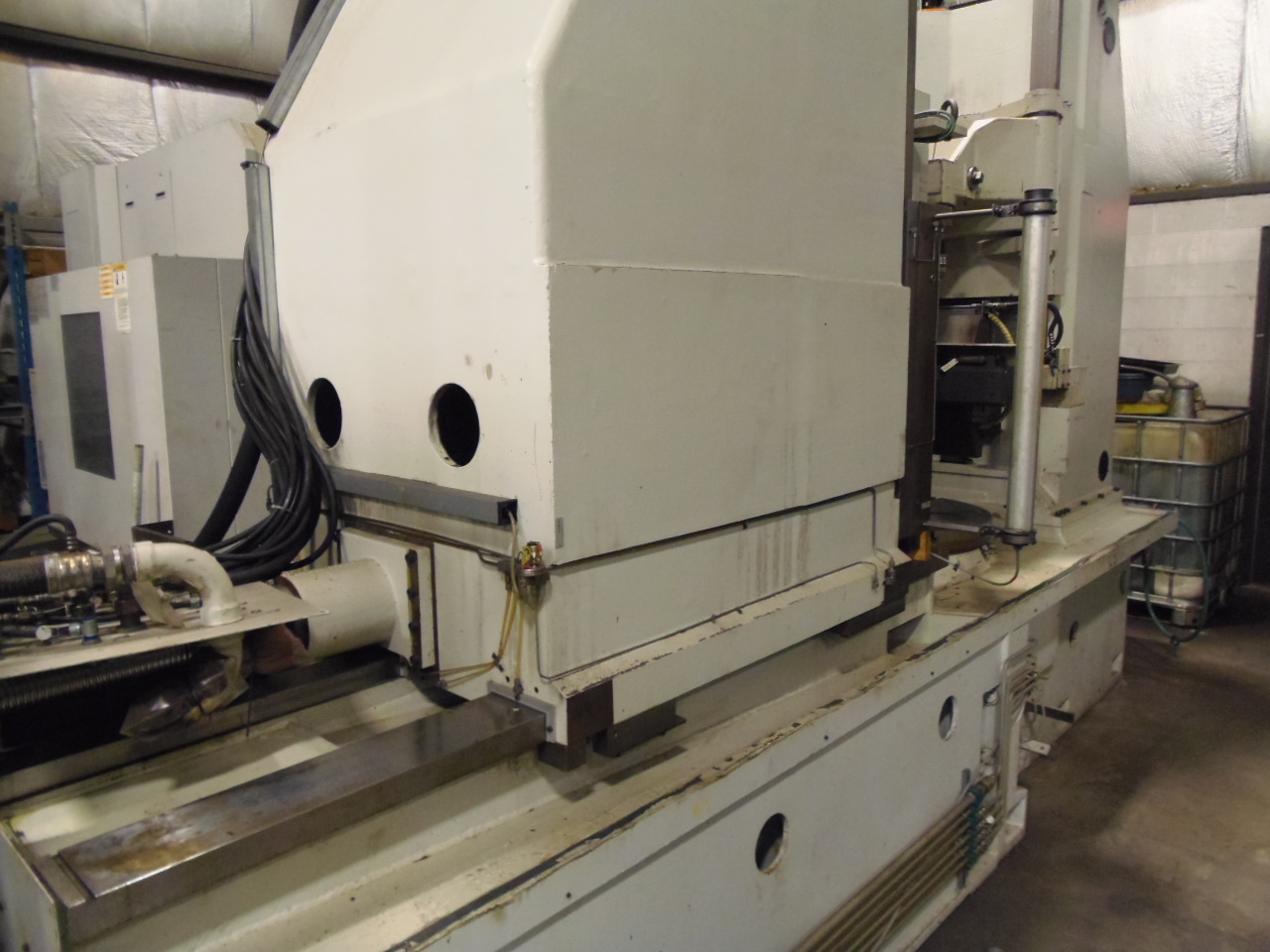

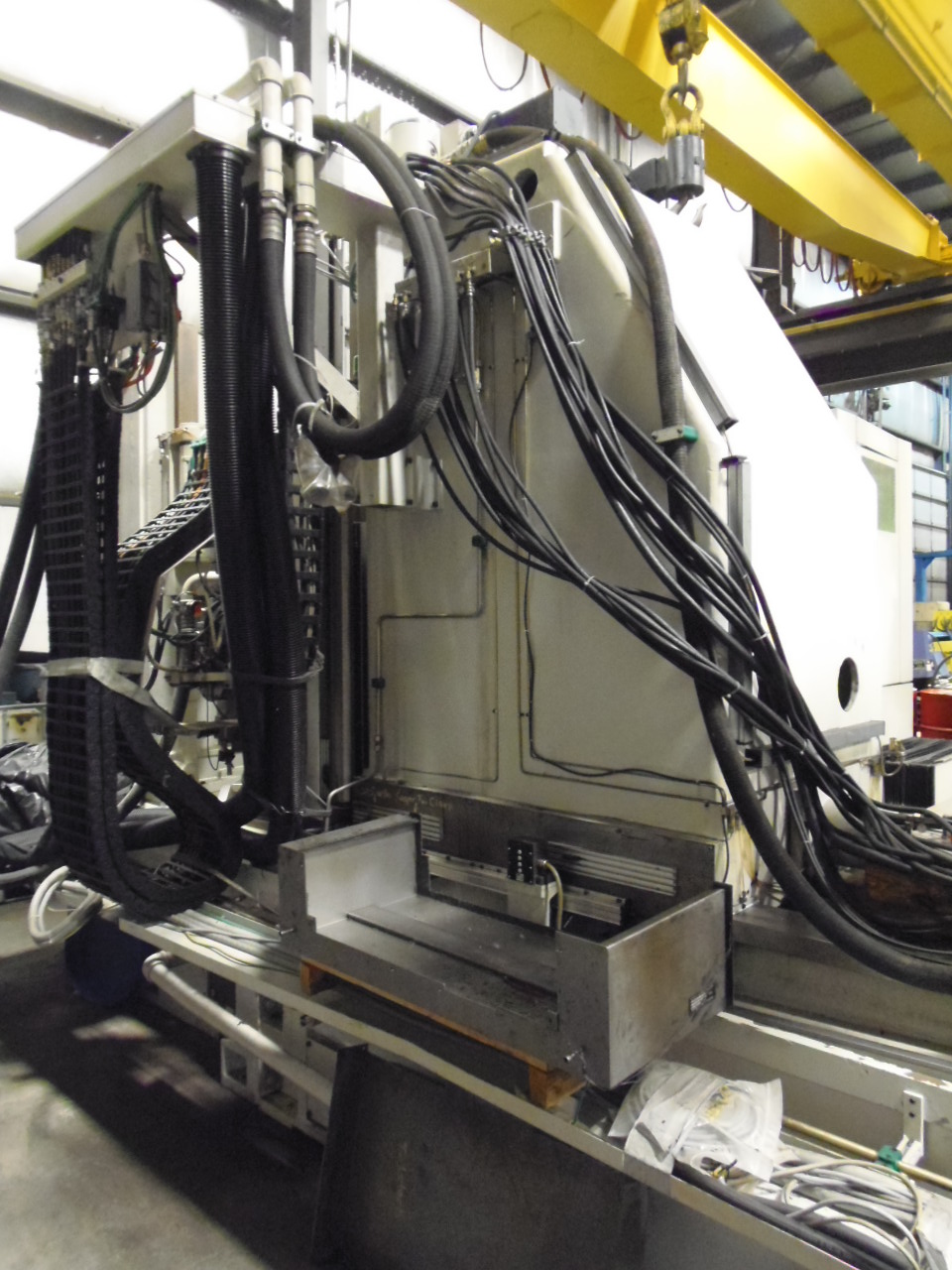

TRAVEL DISTANCES
RADIAL (X AXIS)..................... 770 MM 30.3"
TANGENTIAL (Y AXIS)................. 300 MM 11.8"
AXIAL (Z AXIS)...................... 1,000 MM 39.4"

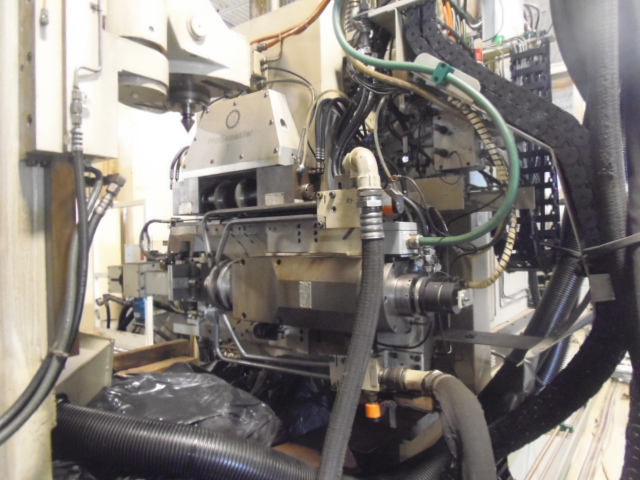

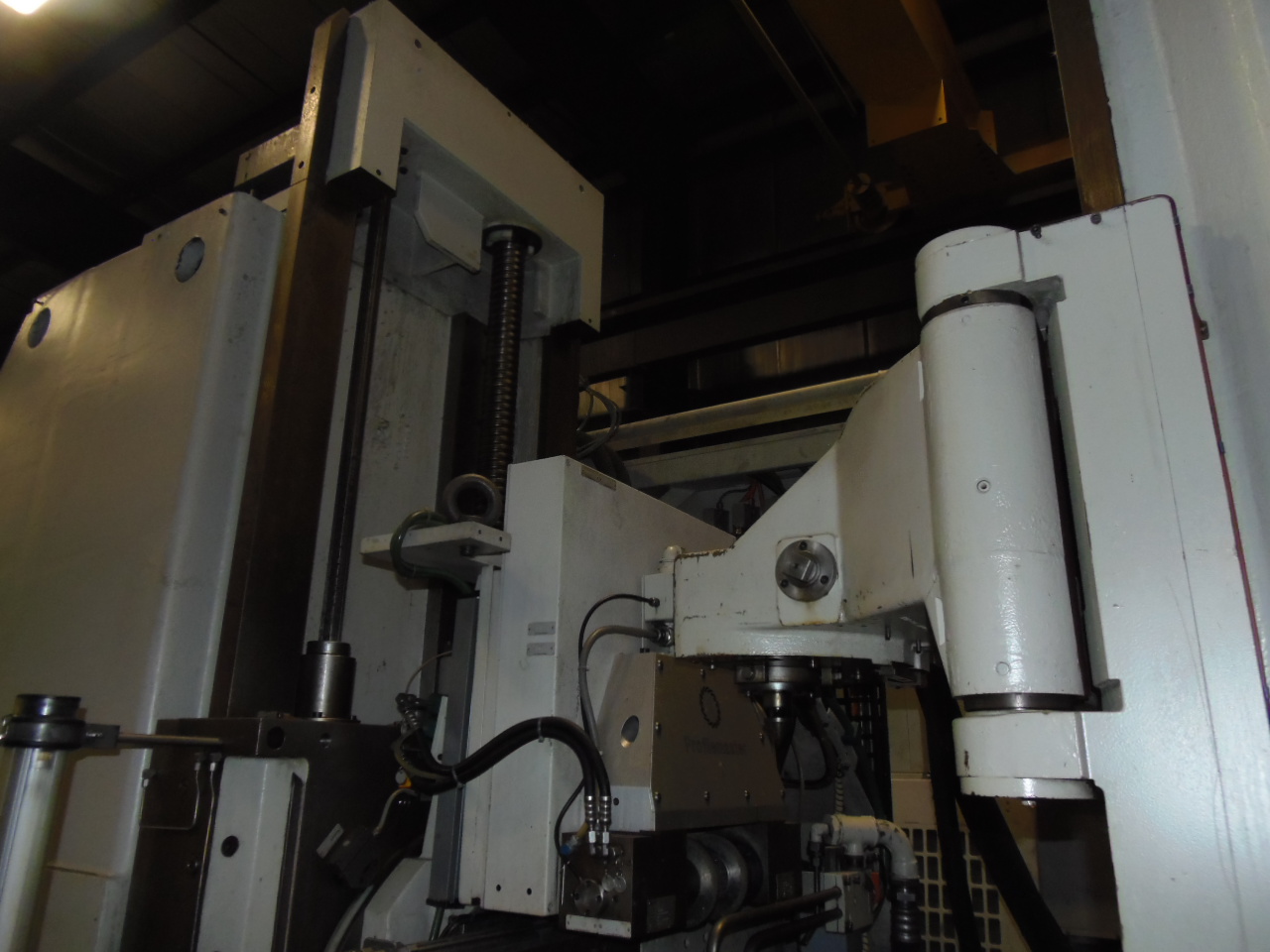

MAXIMUM GRINDING HEAD PIVOTING ANGLE
DIRECTION +A........................ 45 DEGREE
DIRECTION -A........................ 45 DEGREE

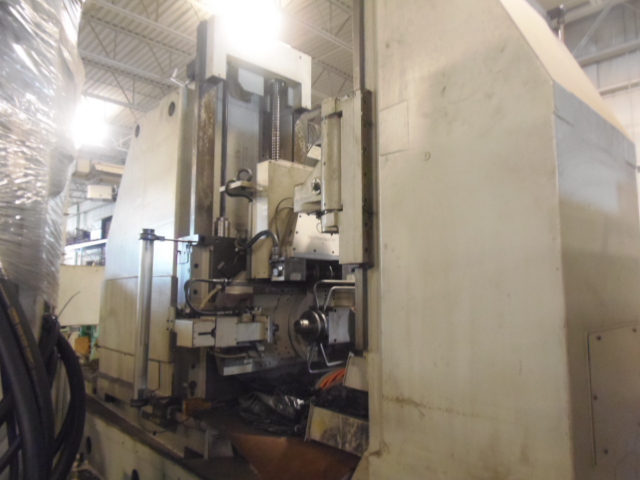

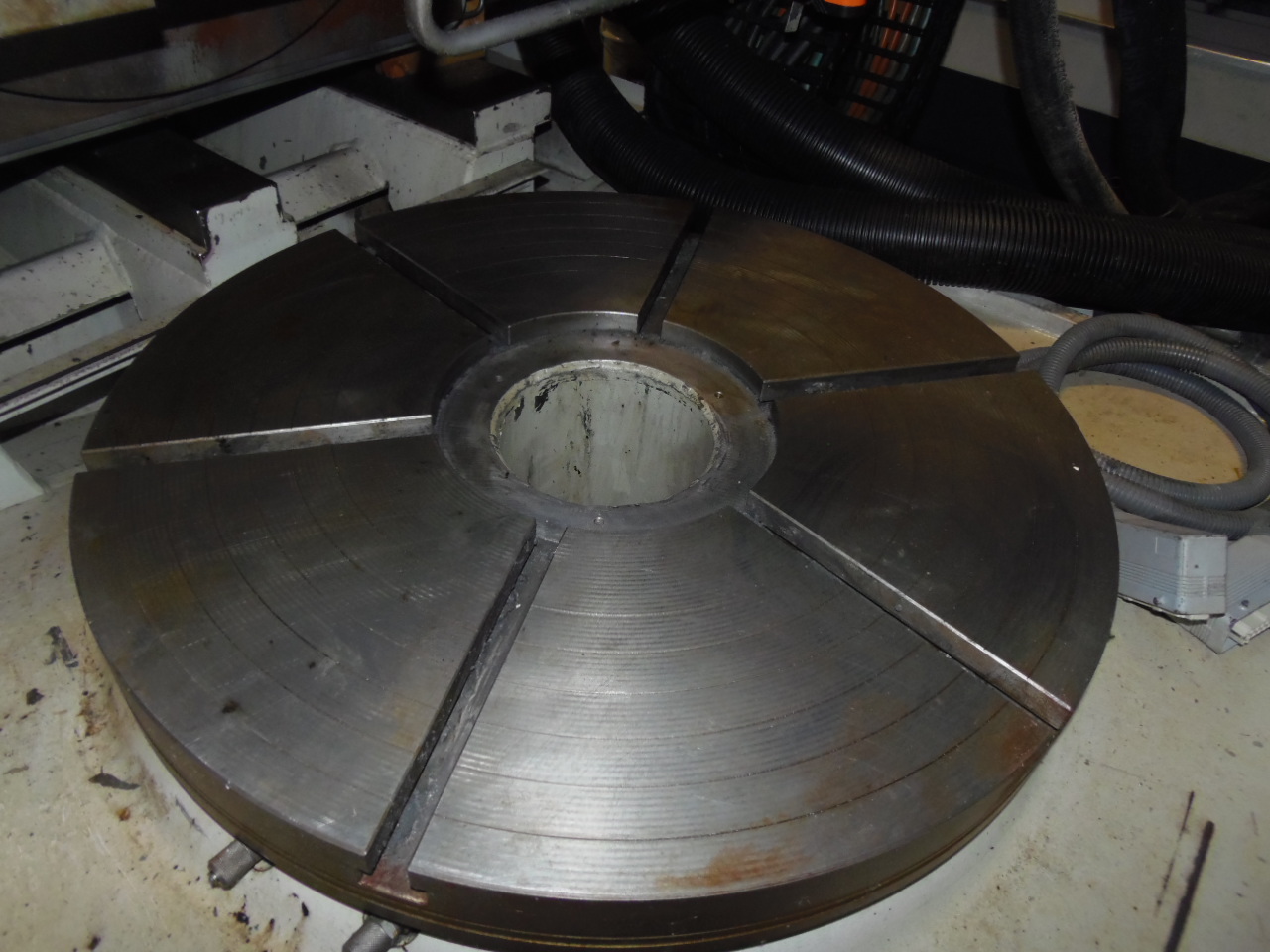

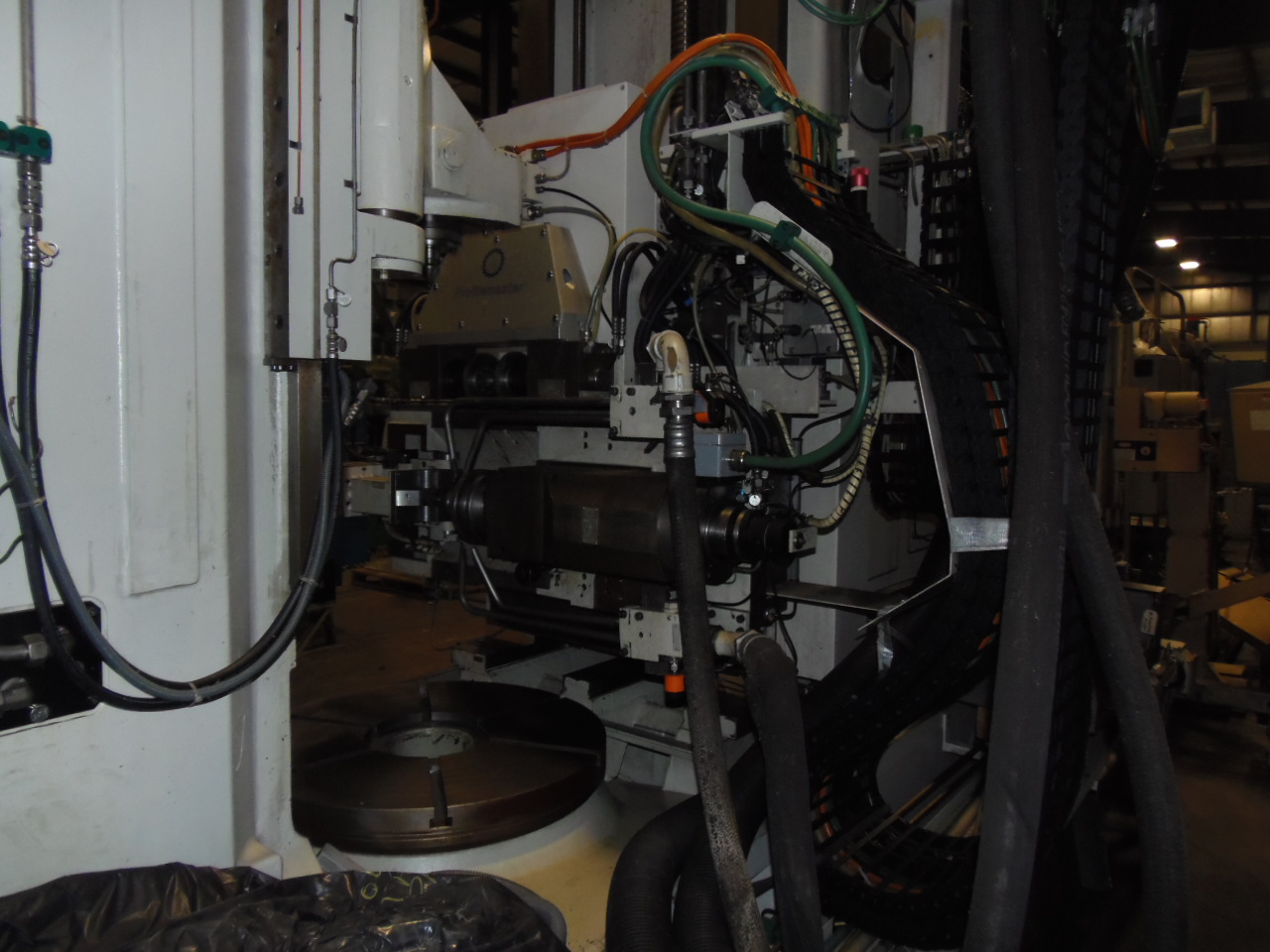

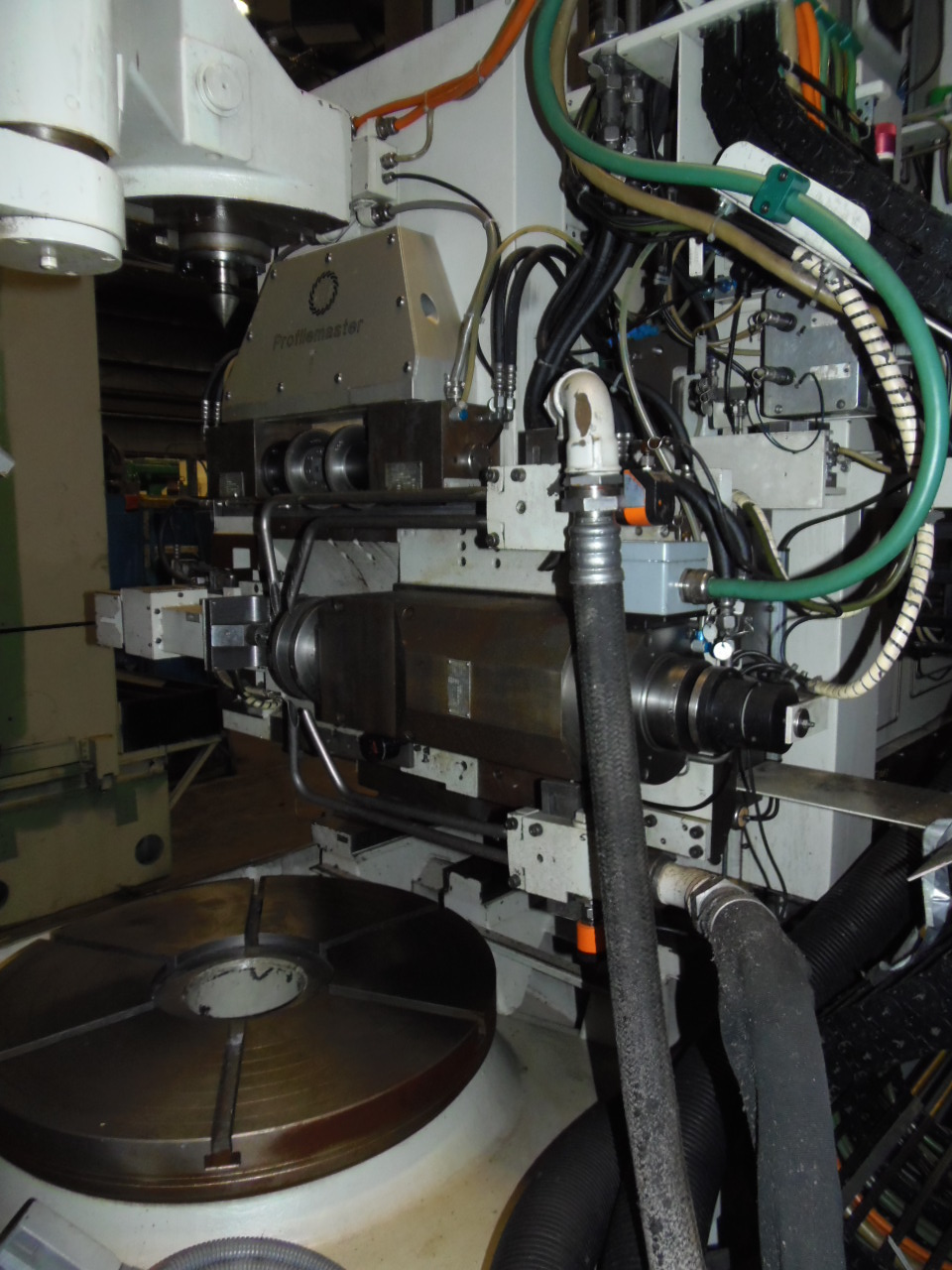

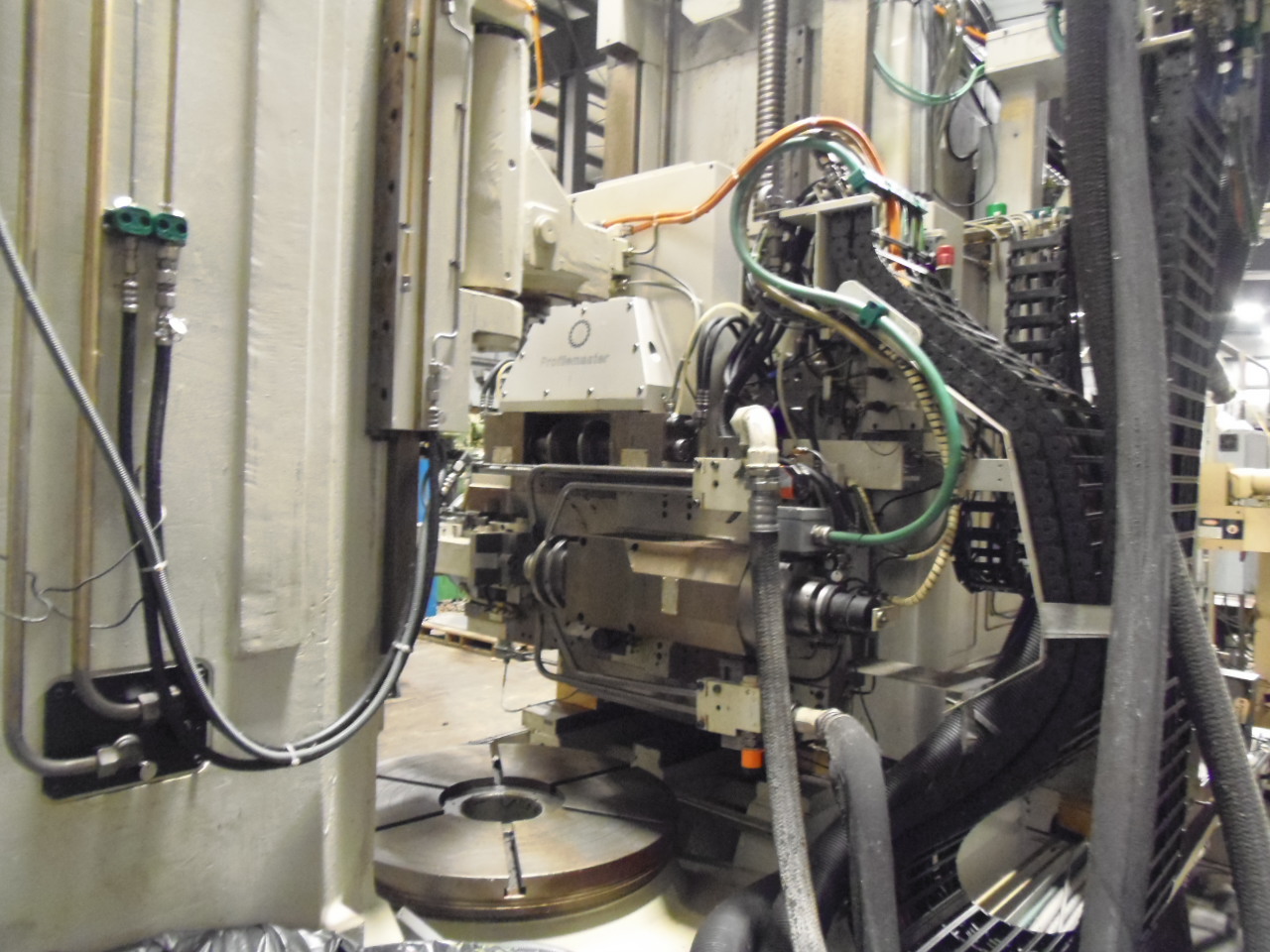

WORK TABLE
EXTERNAL DIAMETER................... 800 MM 31.5"
BORE................................ 182 MM 7.16"
MAXIMUM TABLE LOAD.................. 100 KG 220 LBS

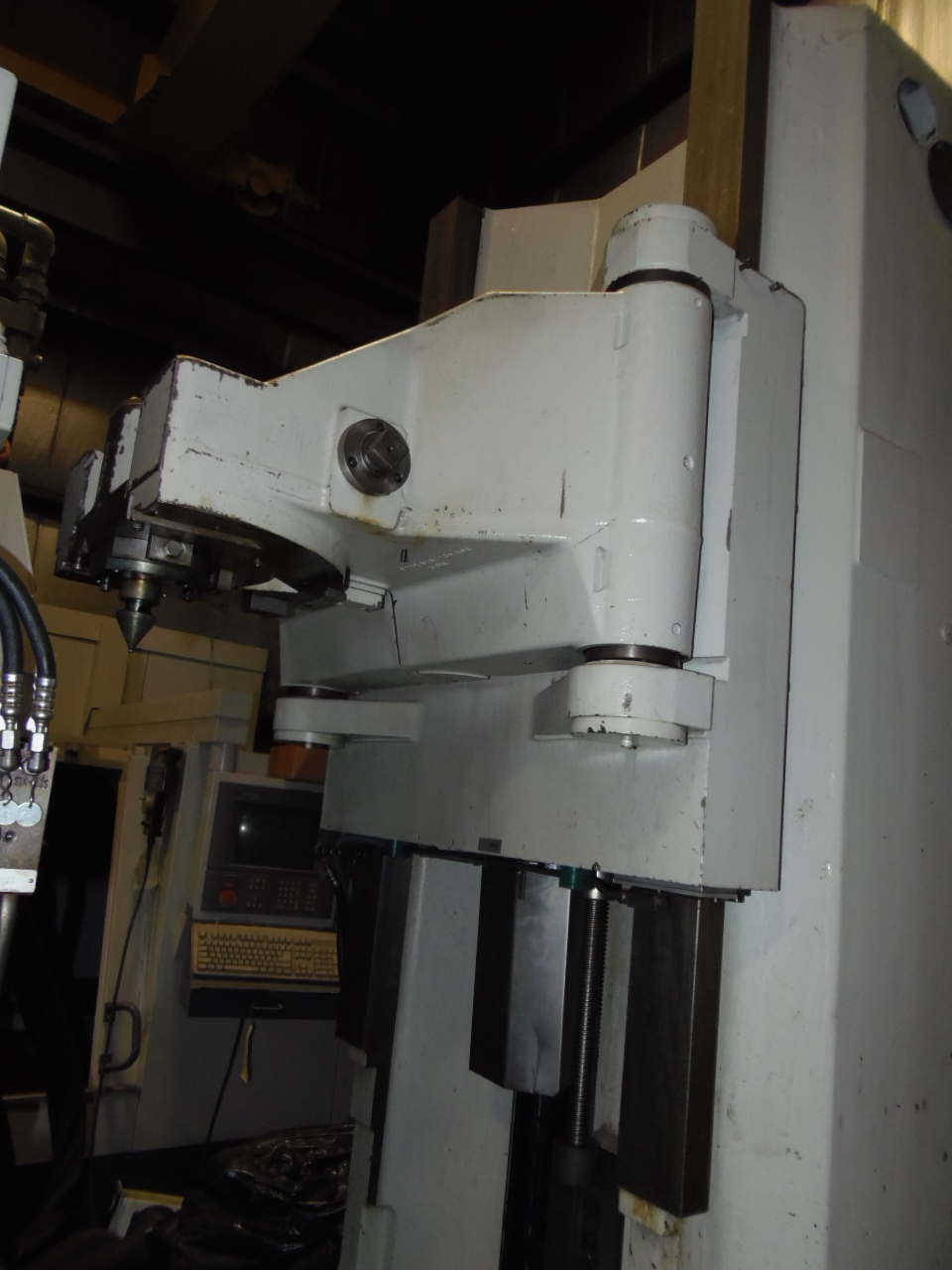

TAILSTOCK
TRAVEL DISTANCE..................... 900 MM 35.4"
MIN. DIAMETER OF THE STEADY REST.... 110 MM 4.33"
MAX. DIAMETER OF THE STEADY REST.... 250 MM 9.84"
FEEDS AND RAPID TRAVERSES
X AXIS.............................. 3000 MM/MIN 35.4 IPM
Y AXIS.............................. 5000 MM/MIN 197 IPM
Z AXIS.............................. 6000 MM/MIN 236 IPM
SPEEDS
B AXIS (TOOL)....................... 1200 TO 8000 RPM
C AXIS (WORK TABLE)................. 0 - 10
DRESSING SYSTEM
TRAVEL DISTANCE Z/2 AXIS........... 150 MM .5.9"
FEEDS AND RAPIDS B/2 AXIS.......... 3000 MM/MIN 118 IPM
SPEED DRESSING SPINDLE B/2 AXIS.... 3000 TO 8,000 RPM
DRESSING WHEEL MAX. DIAMETER....... 130 MM 5.11"
MACHINE DIMENSIONS
LENGTH X WIDTH X HEIGHT............ 6570 X 6720 X 4015 MM
258.6" X 264.5" X 158"
WEIGHT (APPROX).................... 17,000 KG 37,400 LBS
EQUIPPED WITH:

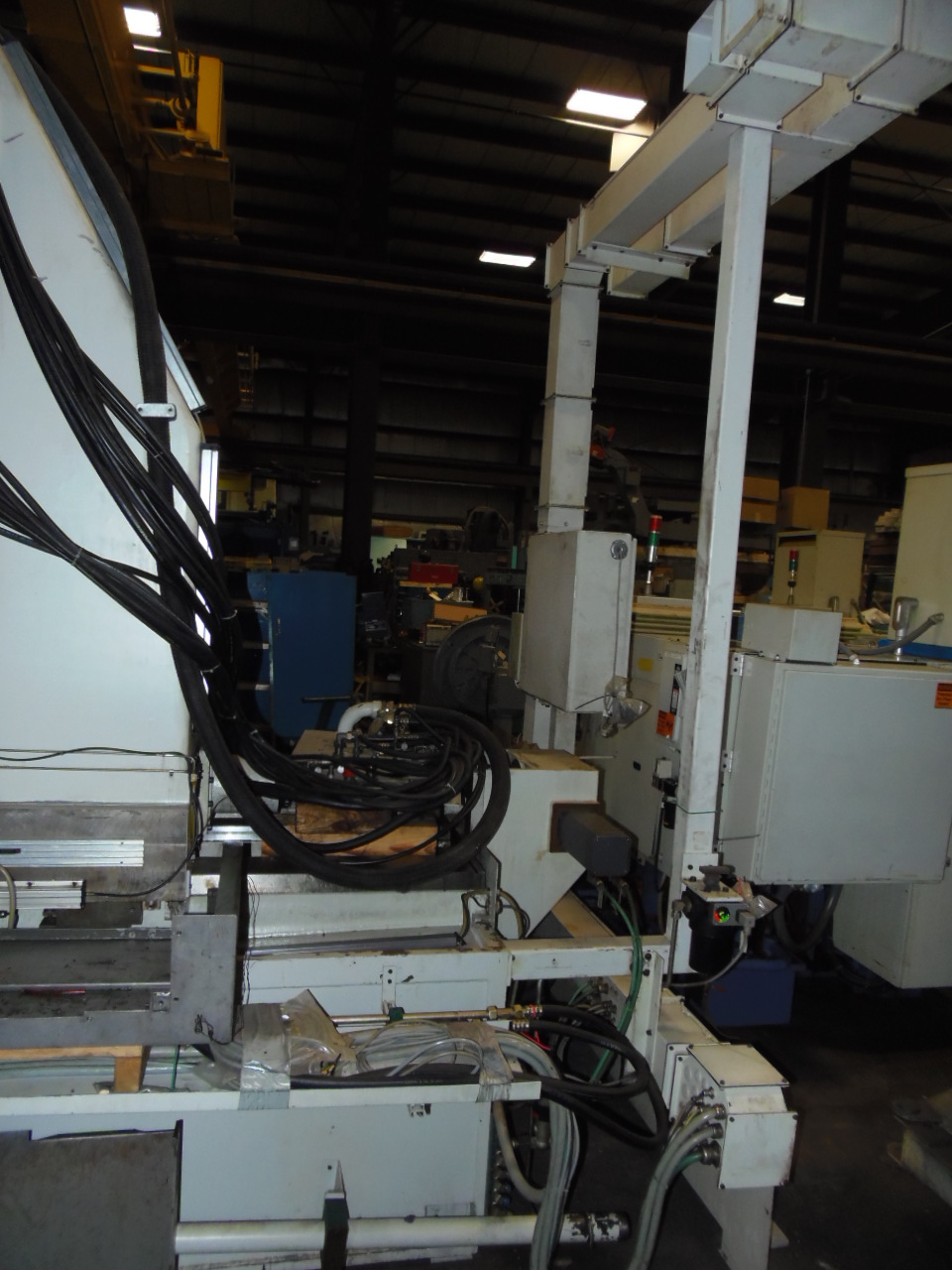

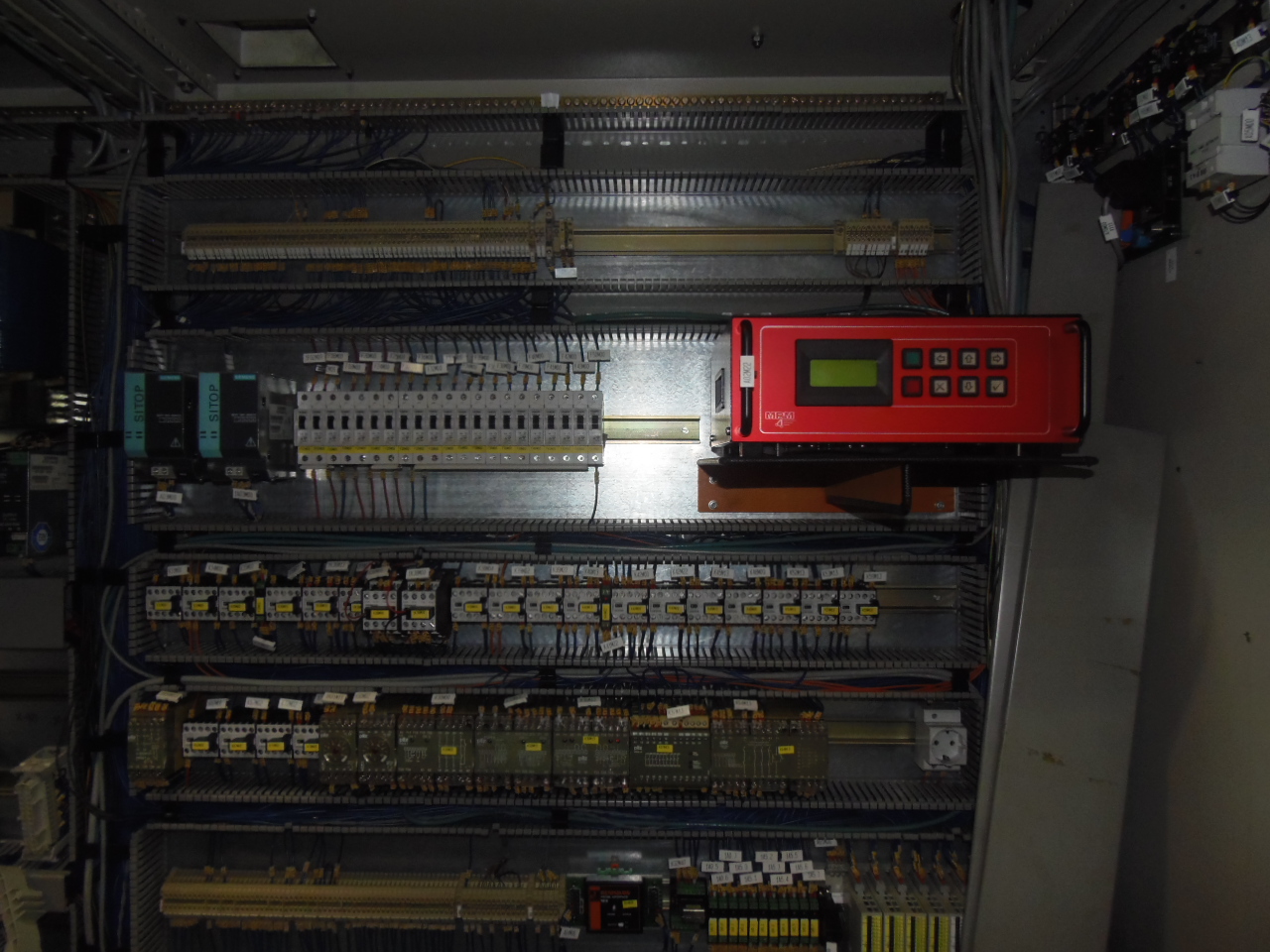

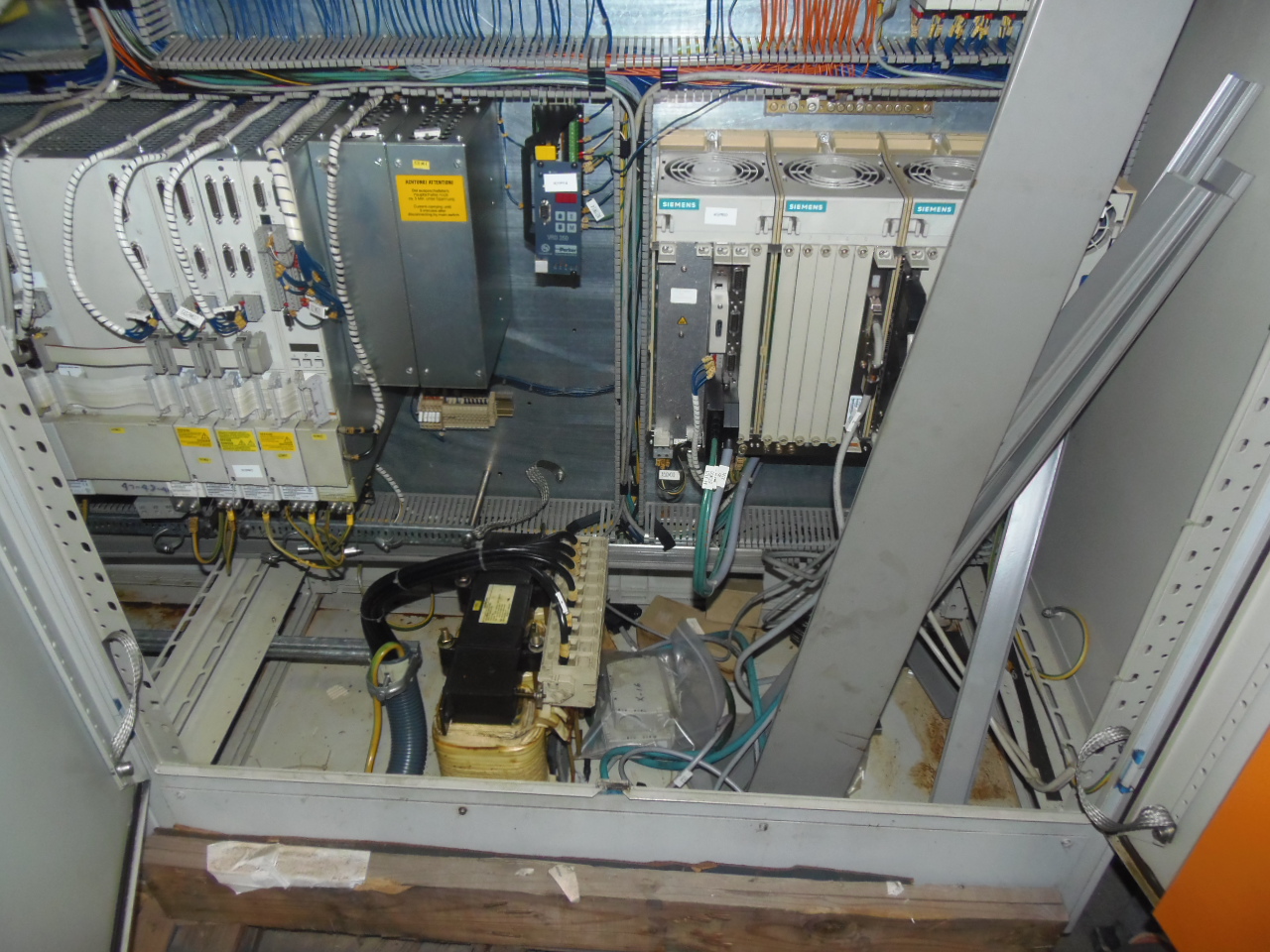

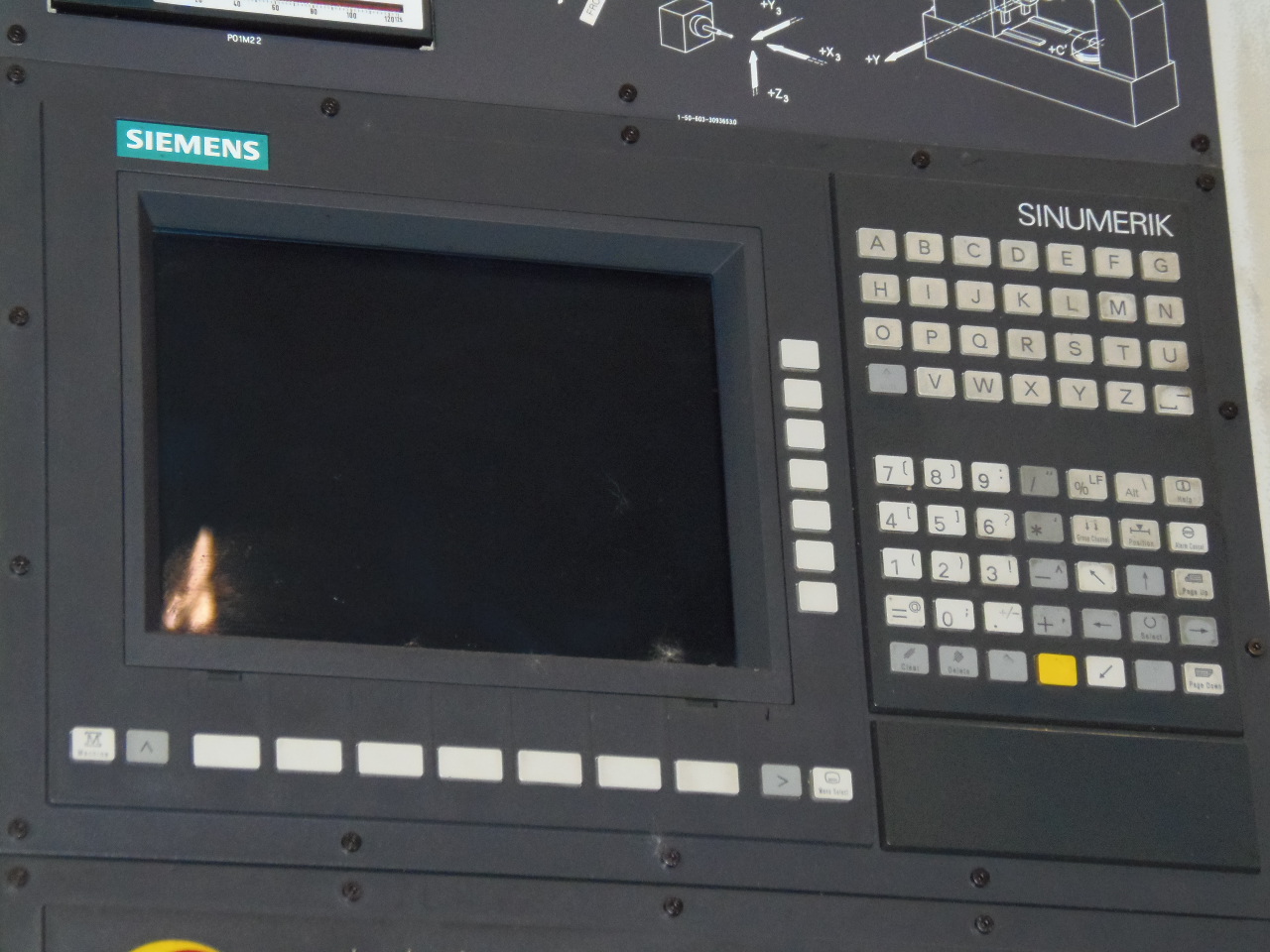

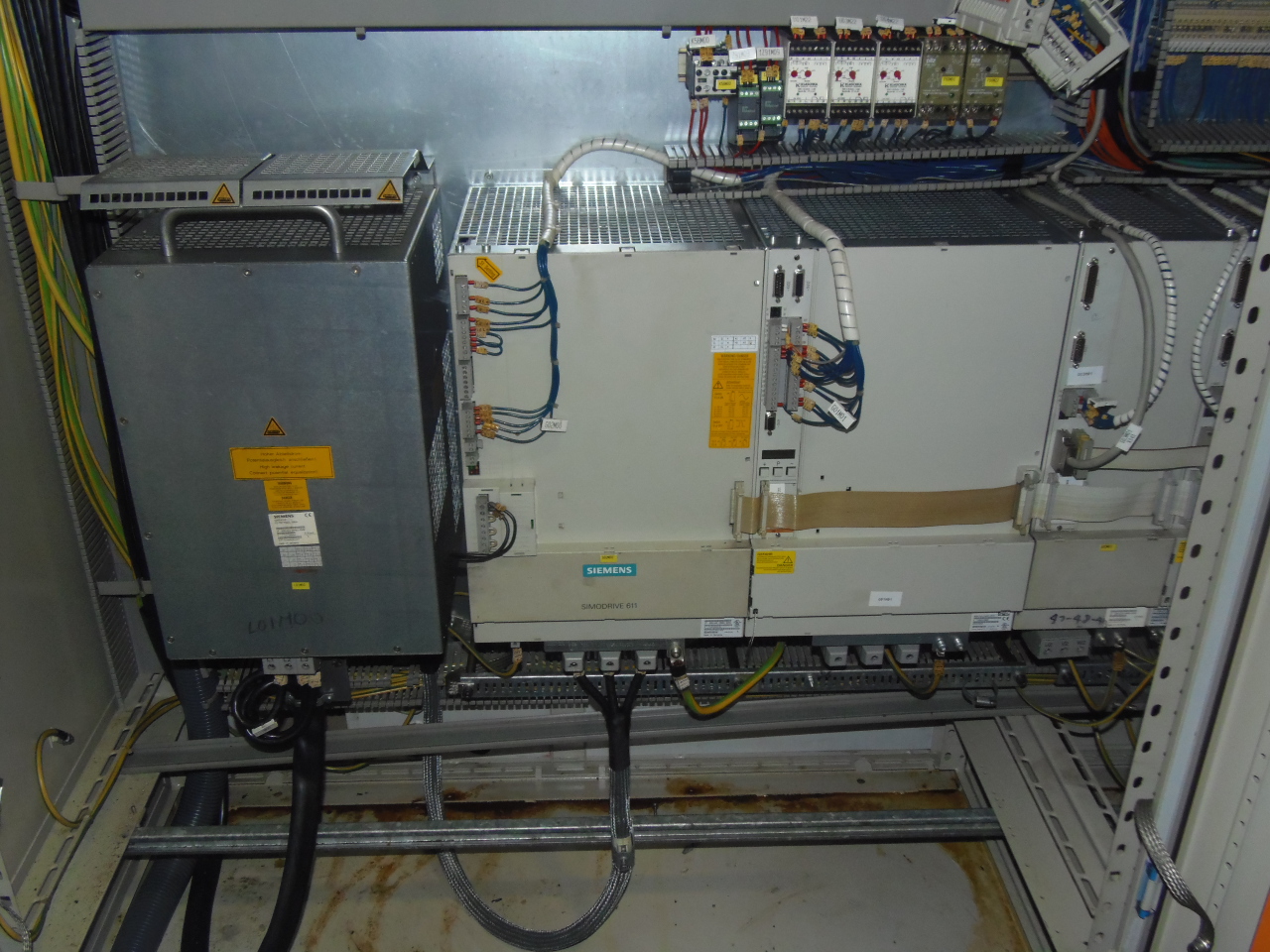

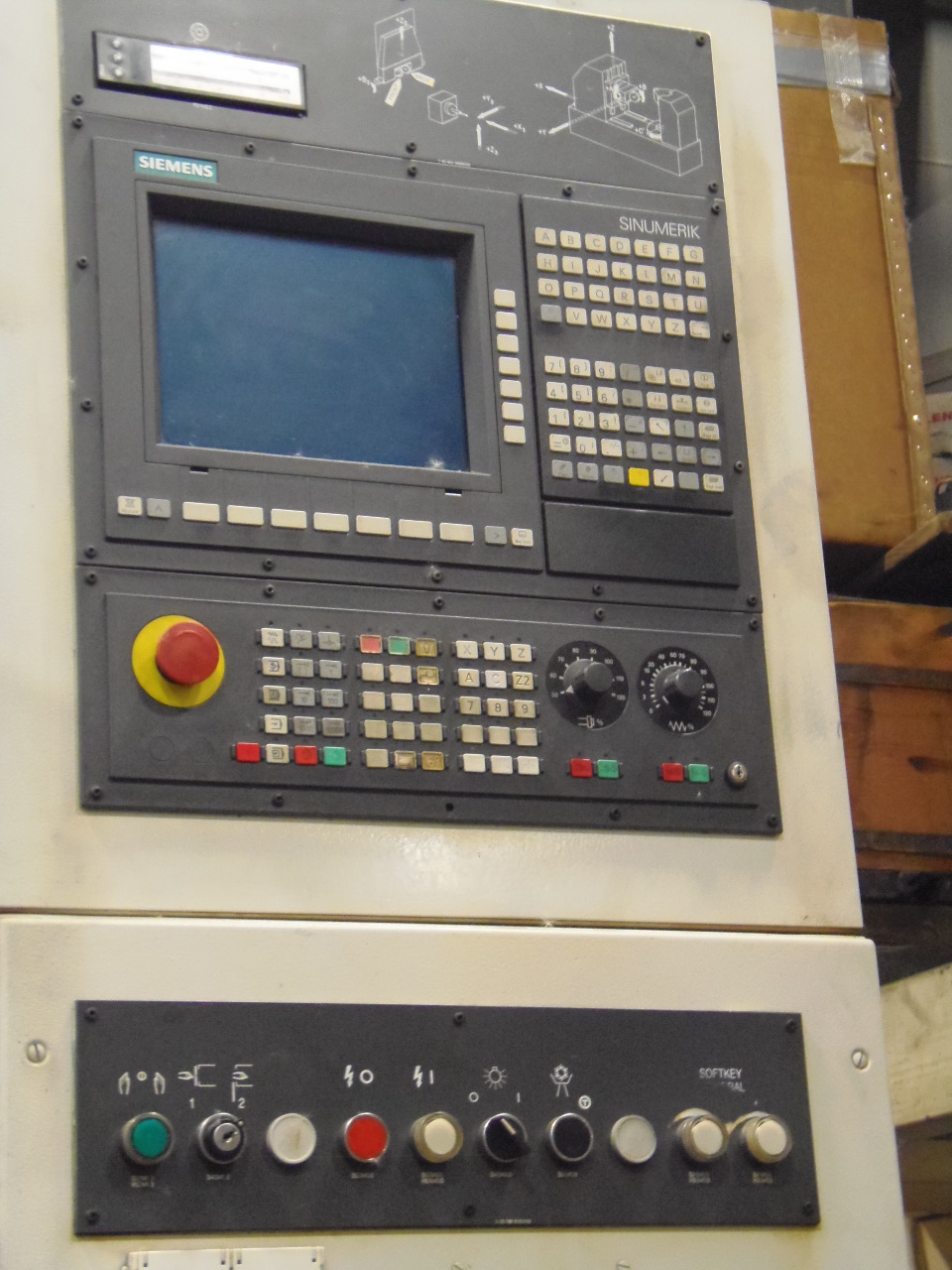

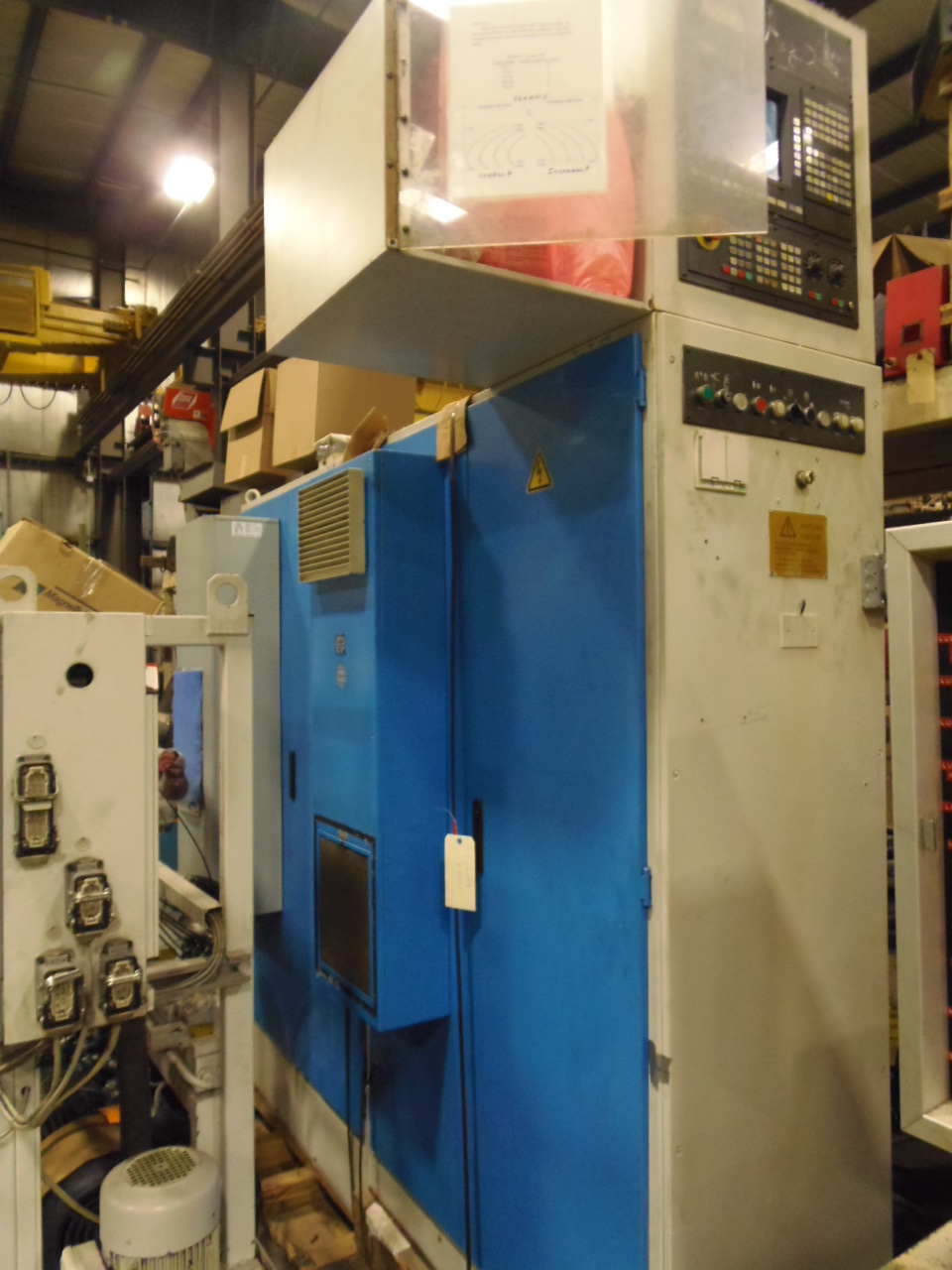

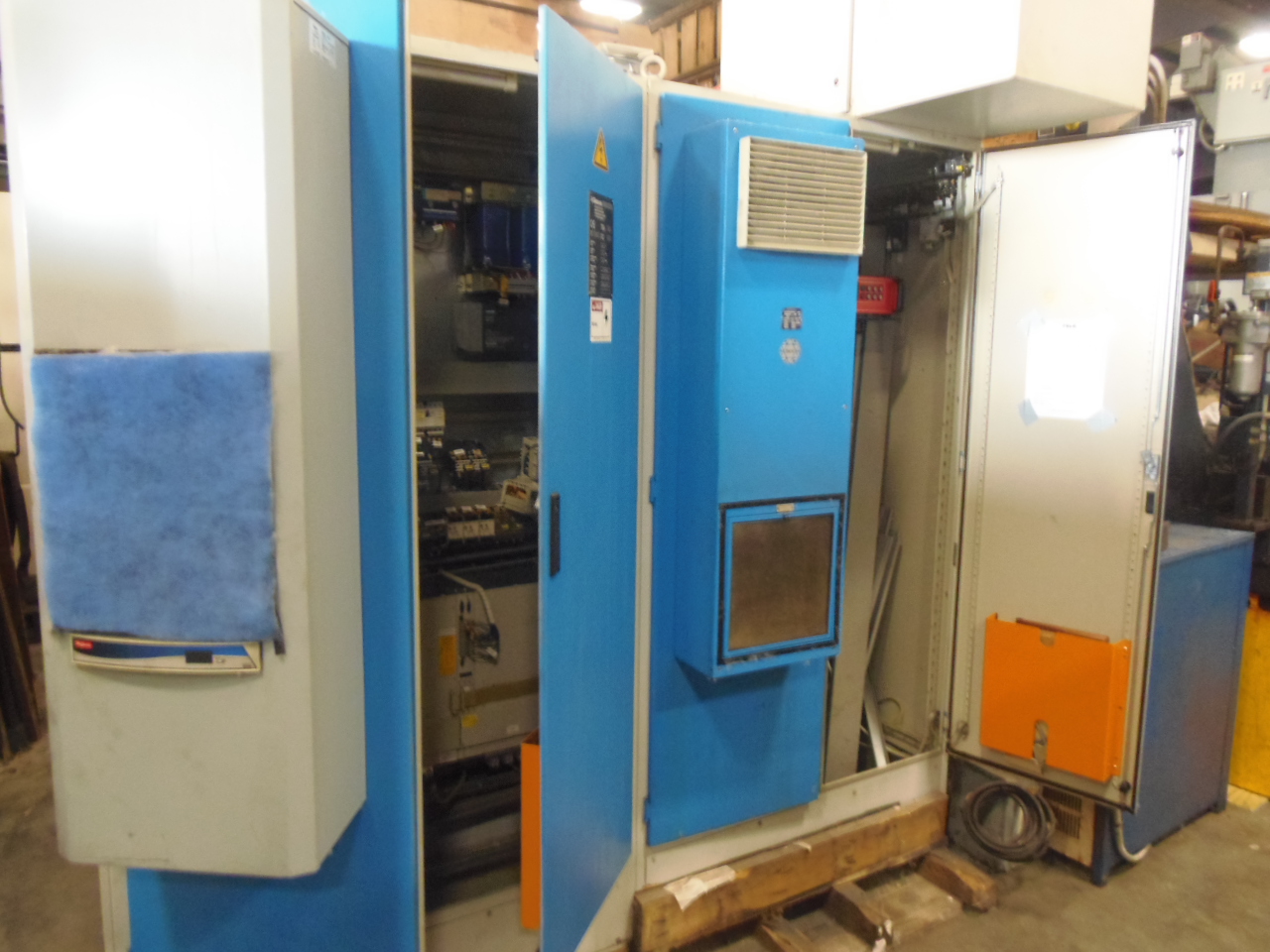

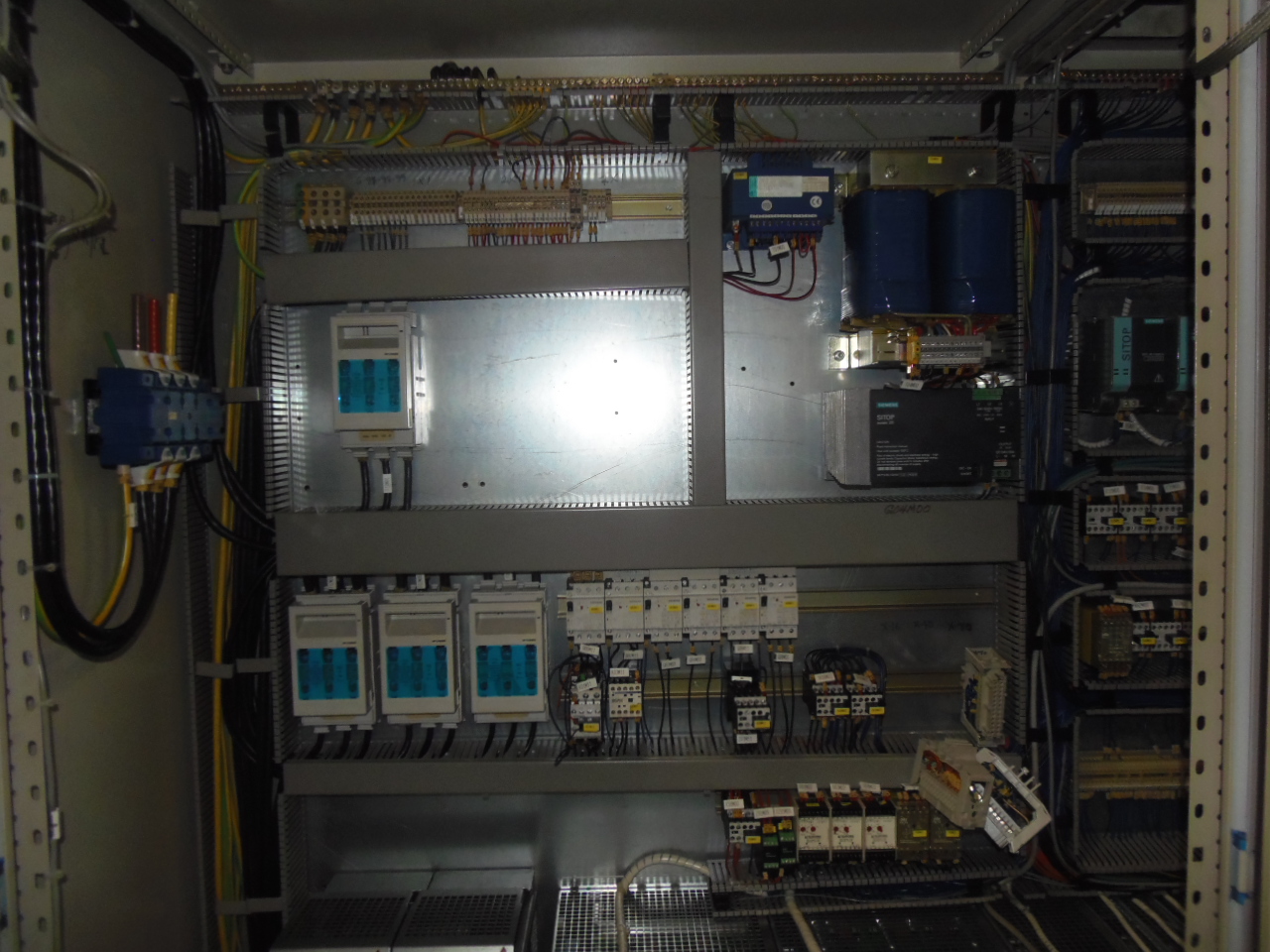

SINUMERIK 840C CNC CONTROL
HAND HELD CONTROLLER

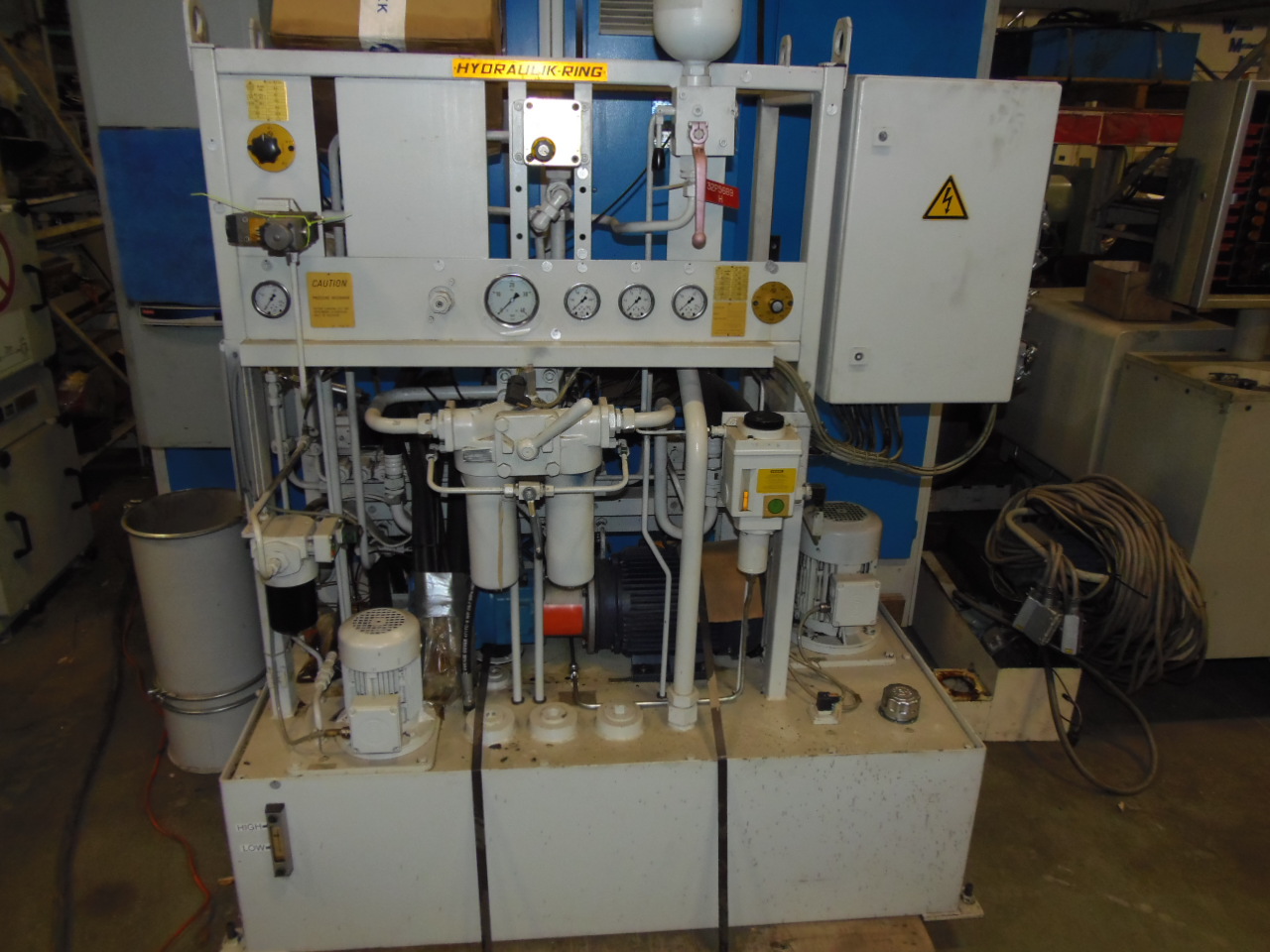

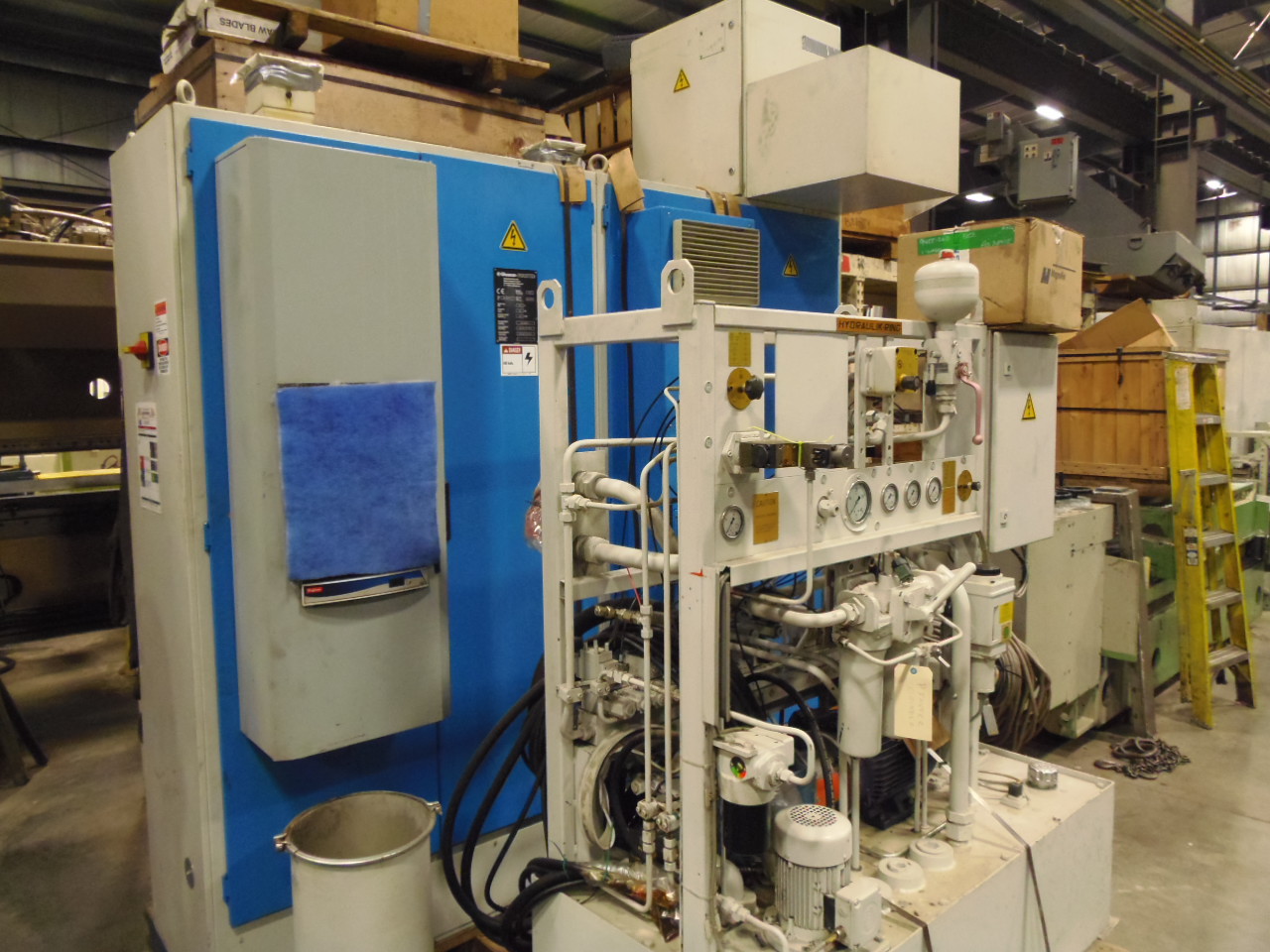

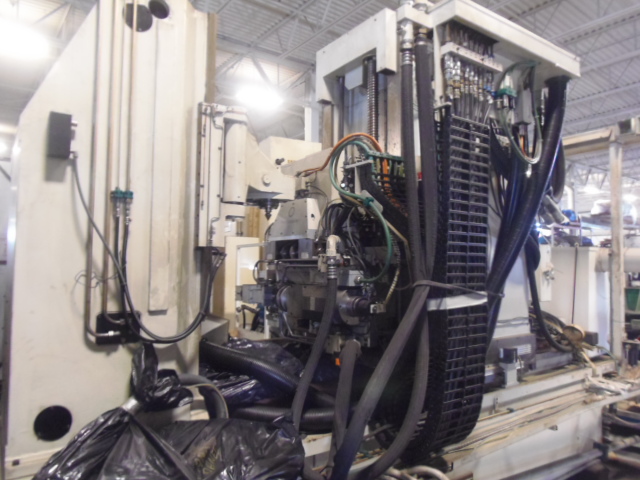

HYDRAULIC SYSTEM

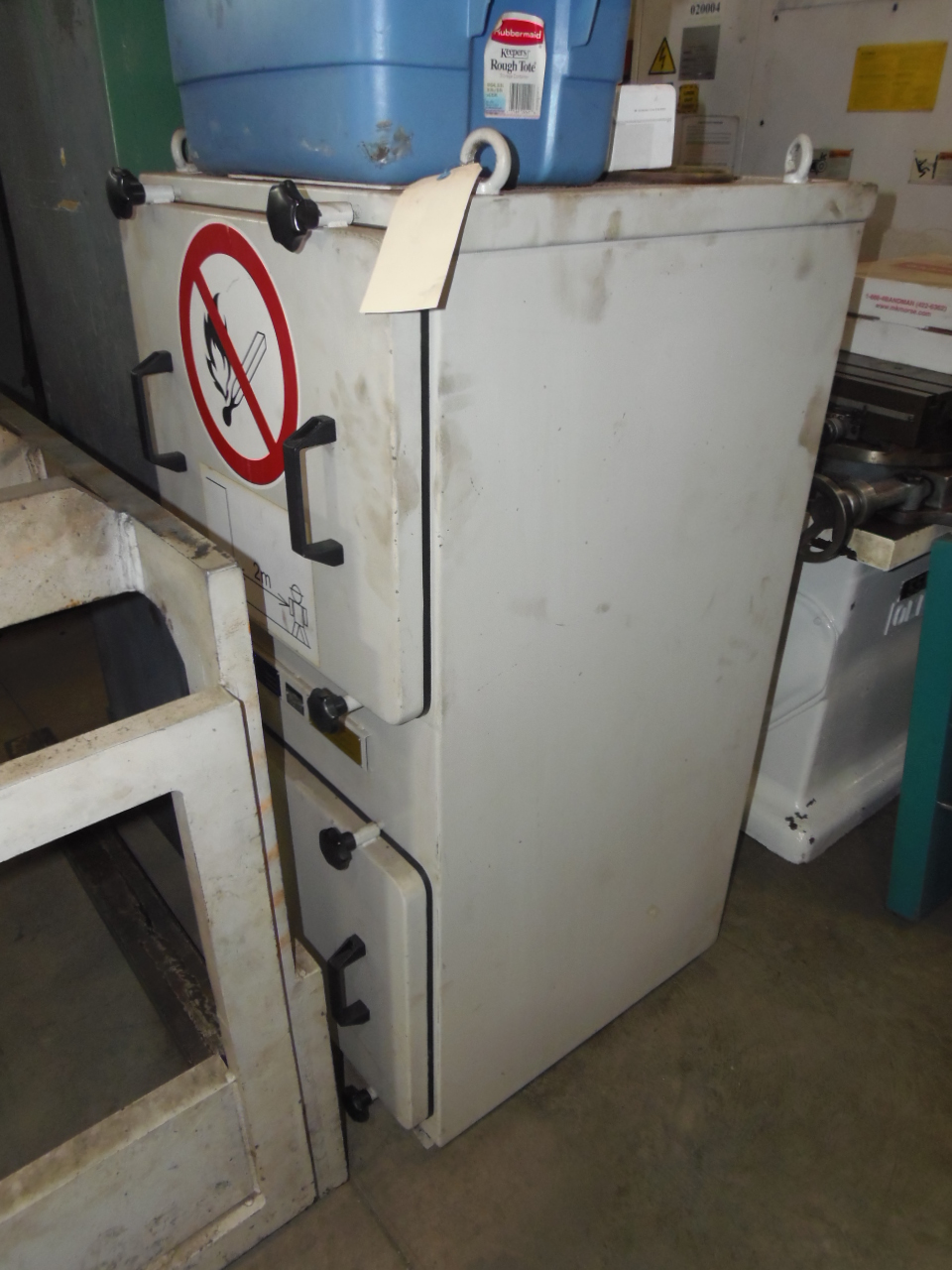

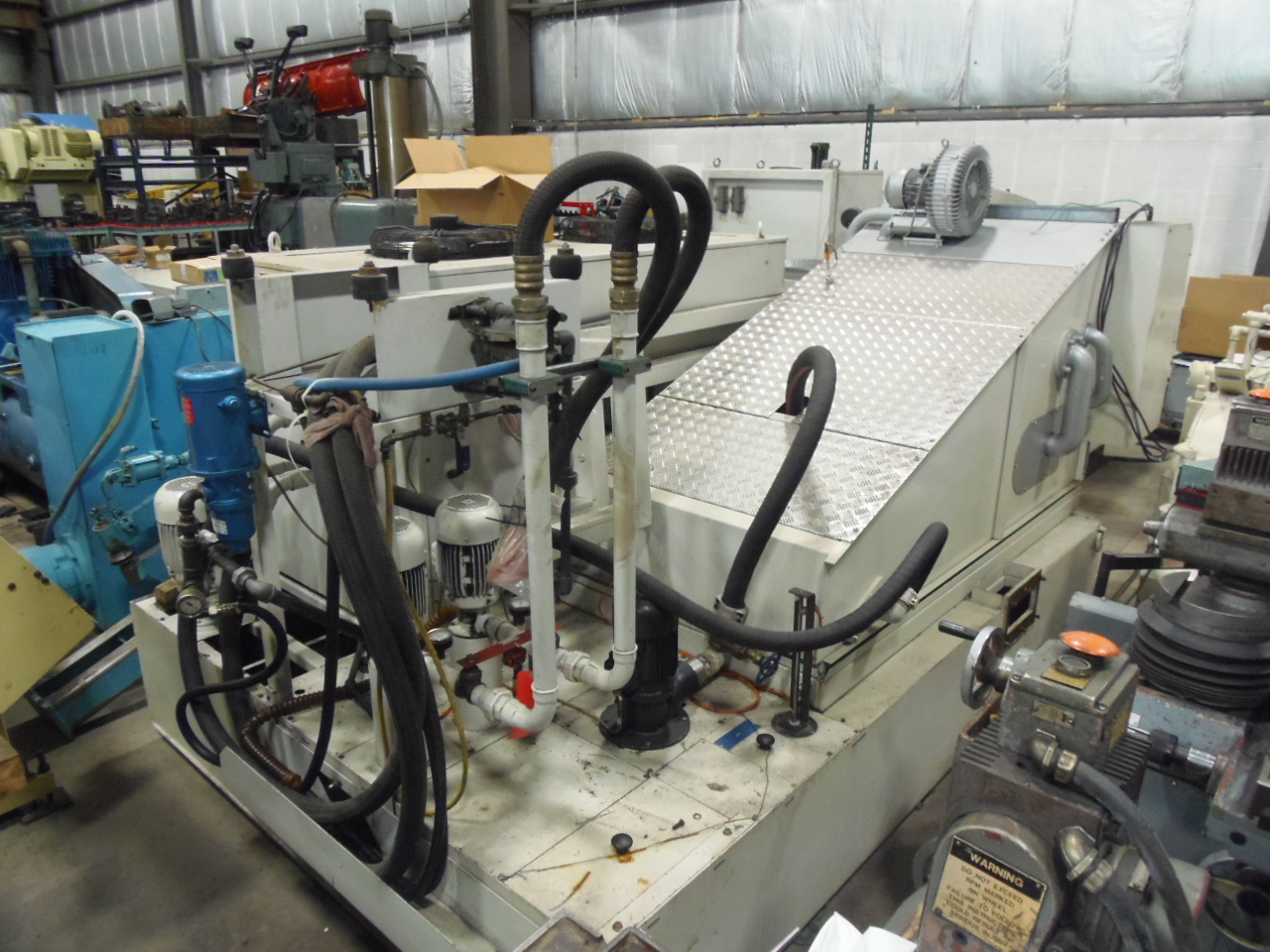

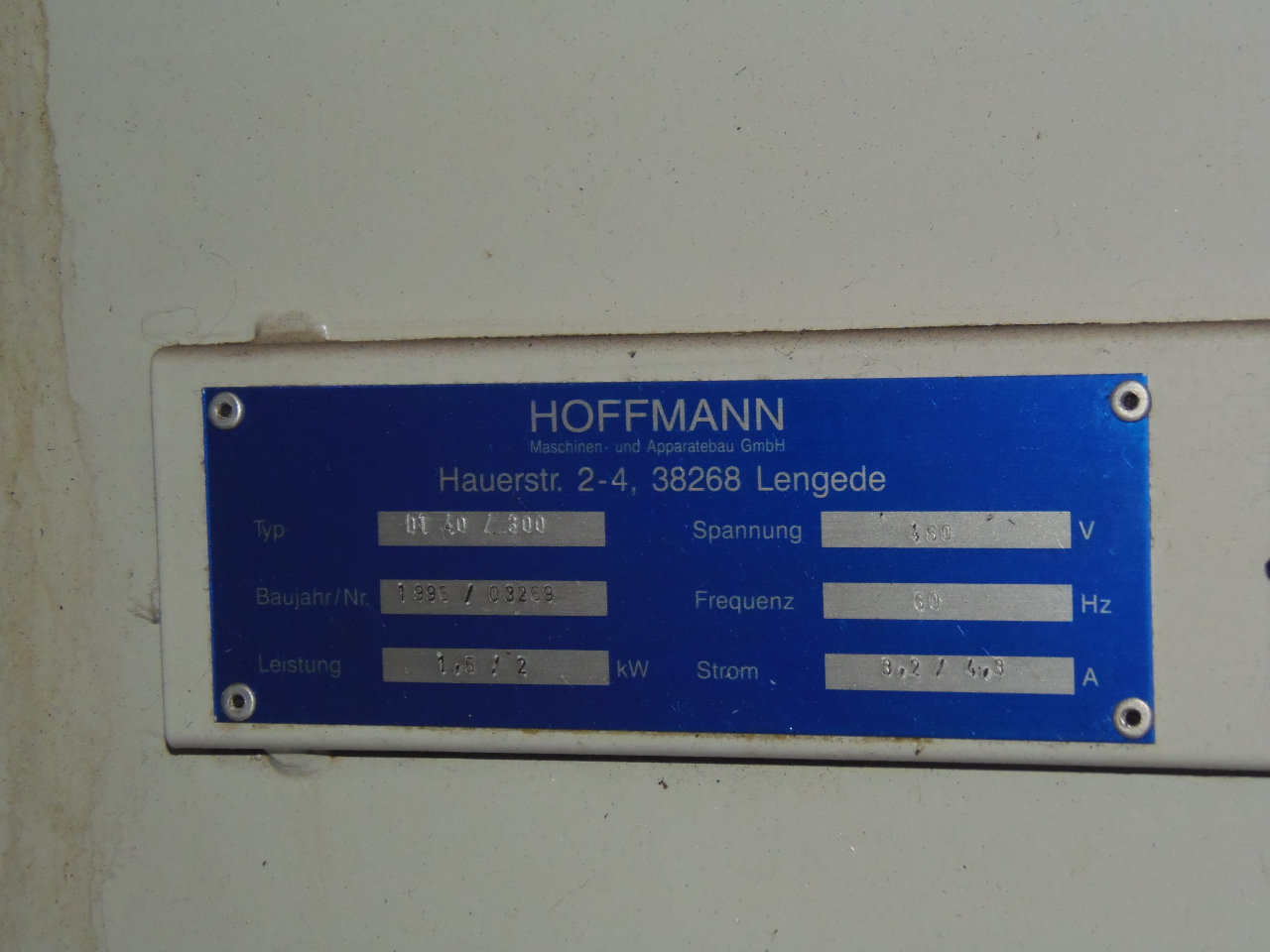

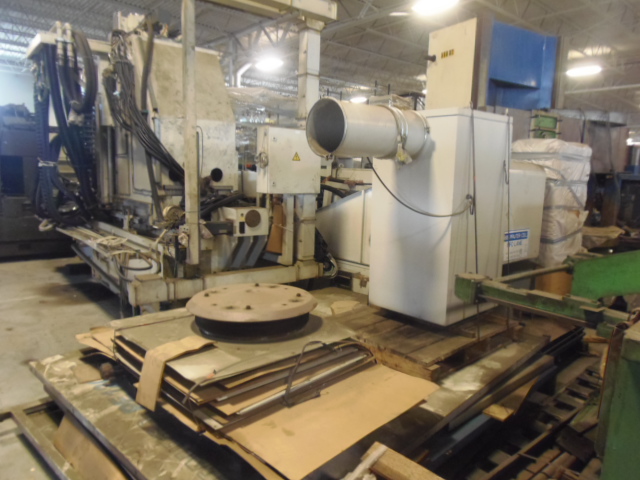

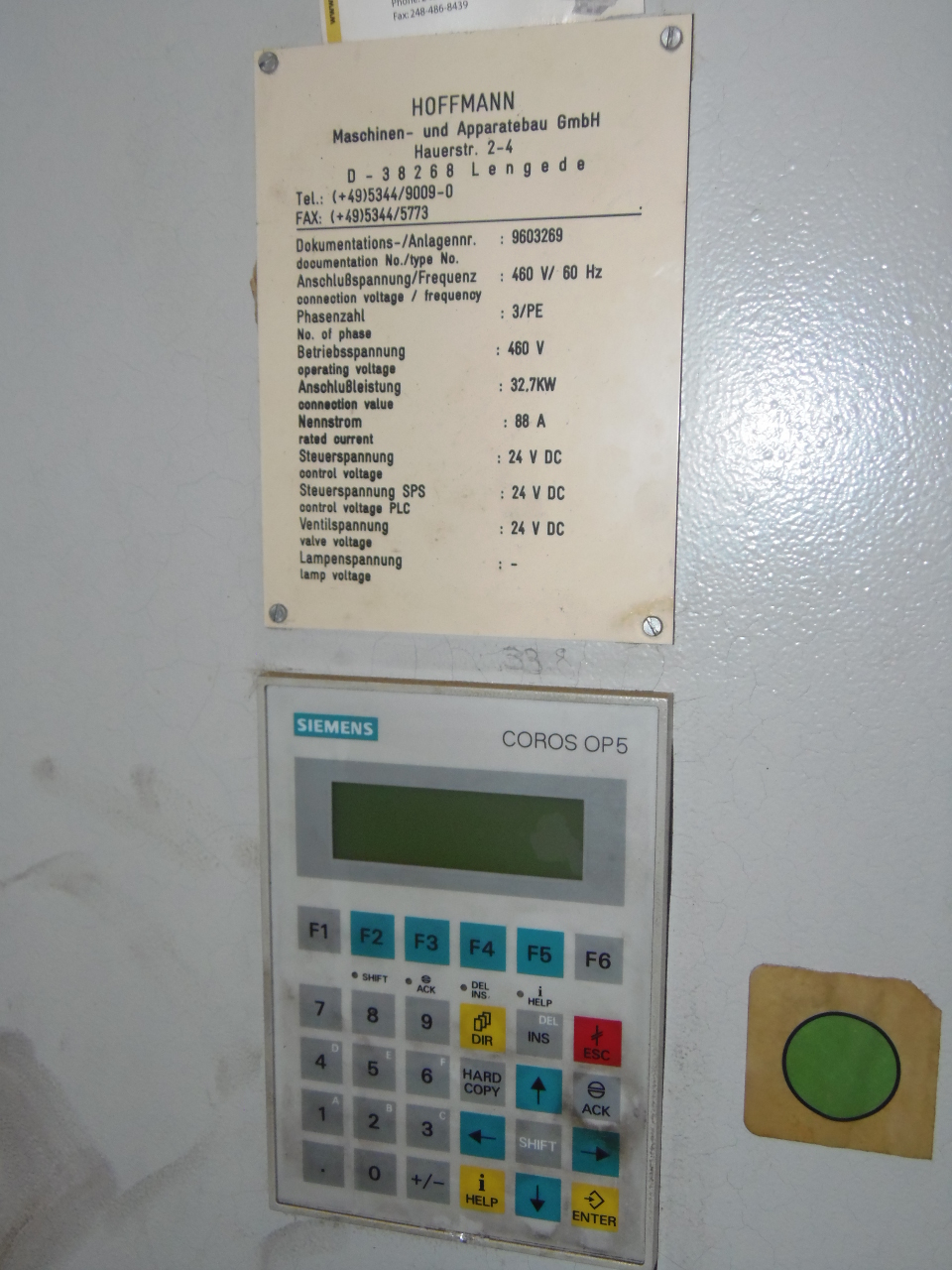

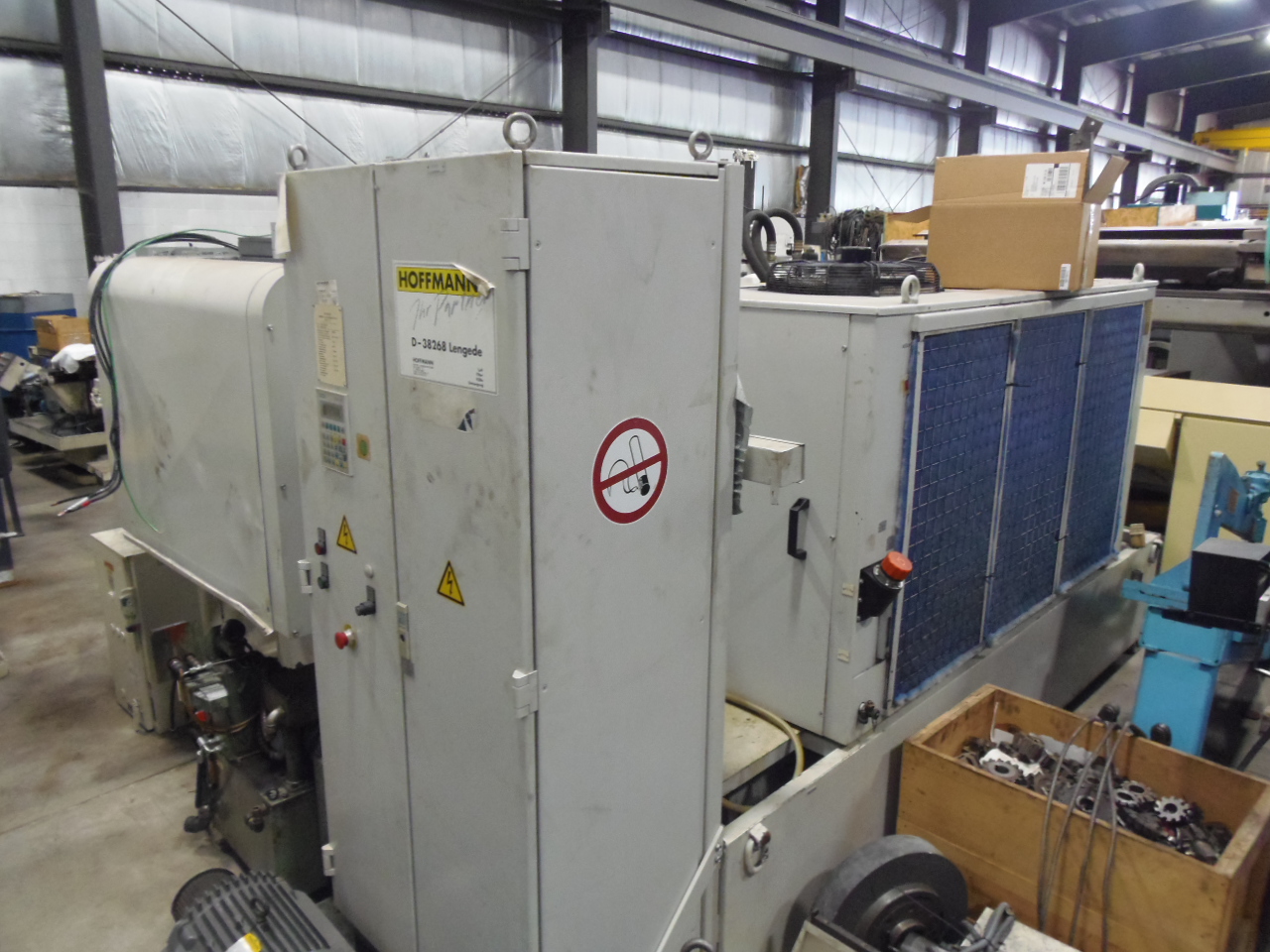

COOLANT SYSTEM WITH MIST COLLECTOR

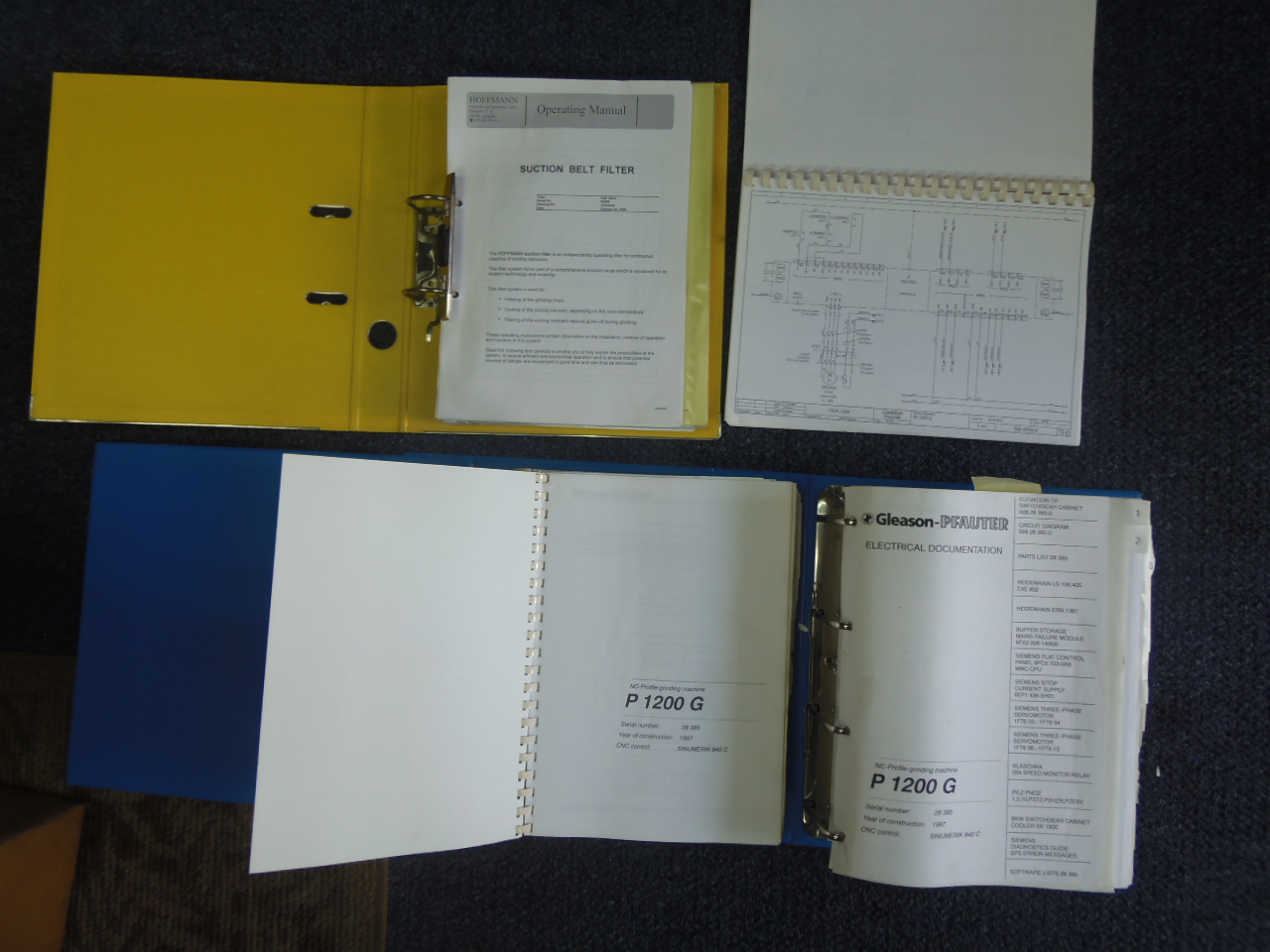

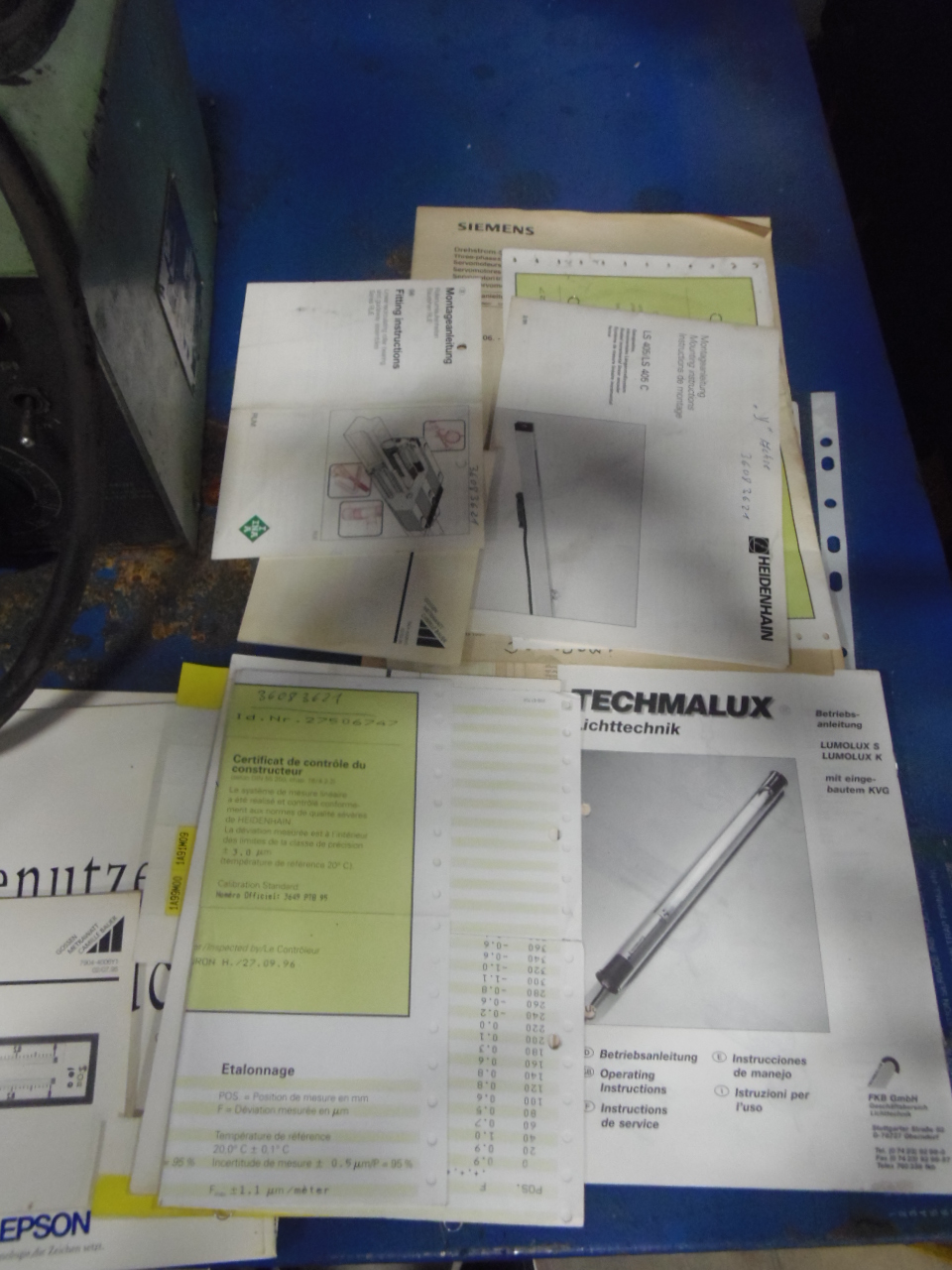

MISC. MANUALS
BUILT IN WHEEL BALANCING SYSTEM
SOLD AS TAKEN FROM PLANT

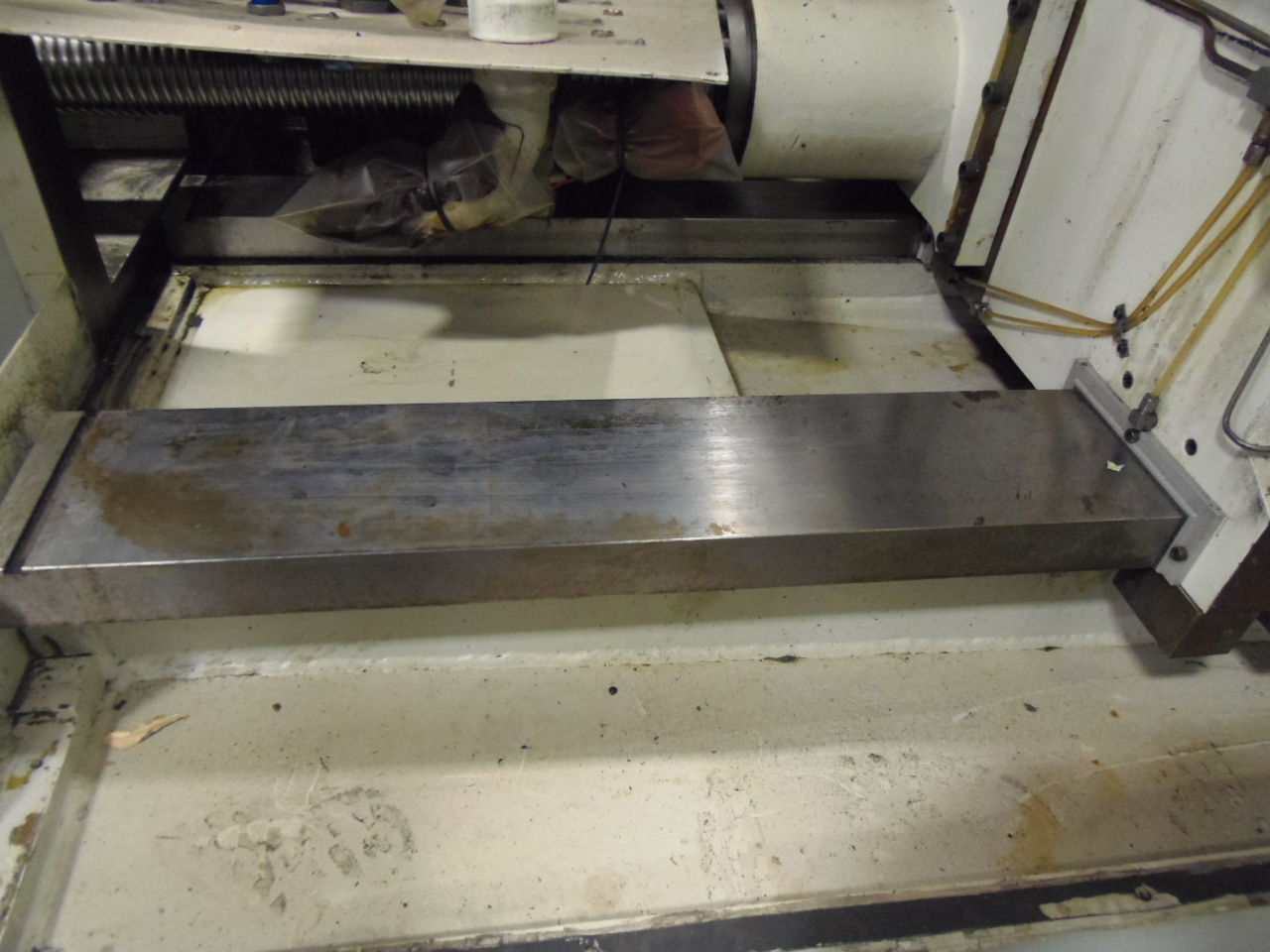

Z AXIS GUIDE WAYS AND ROLLER PACKS NEED REPLACEMENT
SPECIFICATIONS SUBJECT TO VERIFICATION
