GENERAL SPECIFICATIONS:

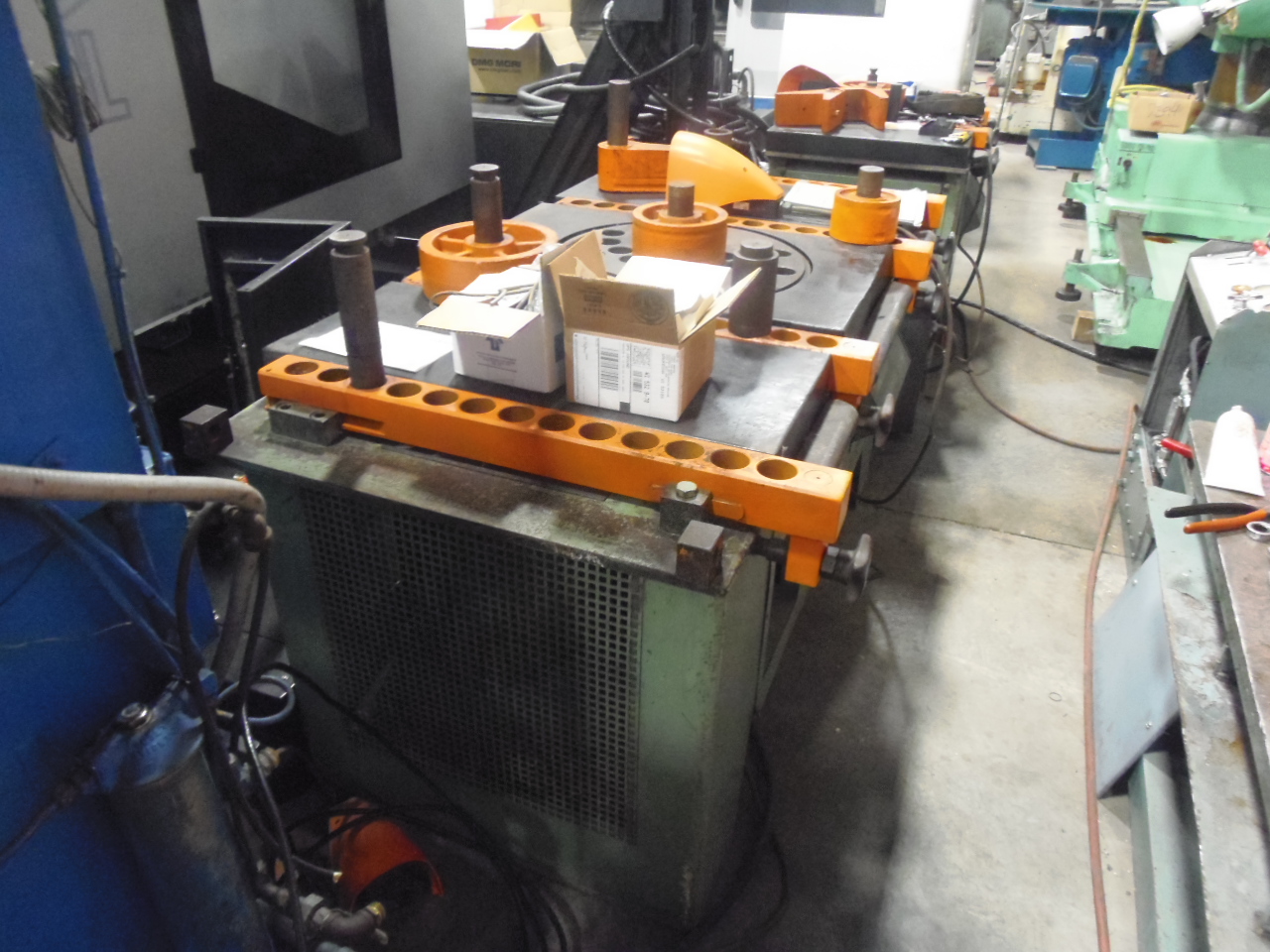

MANUFACTURER..................... PEDDINGHAUS

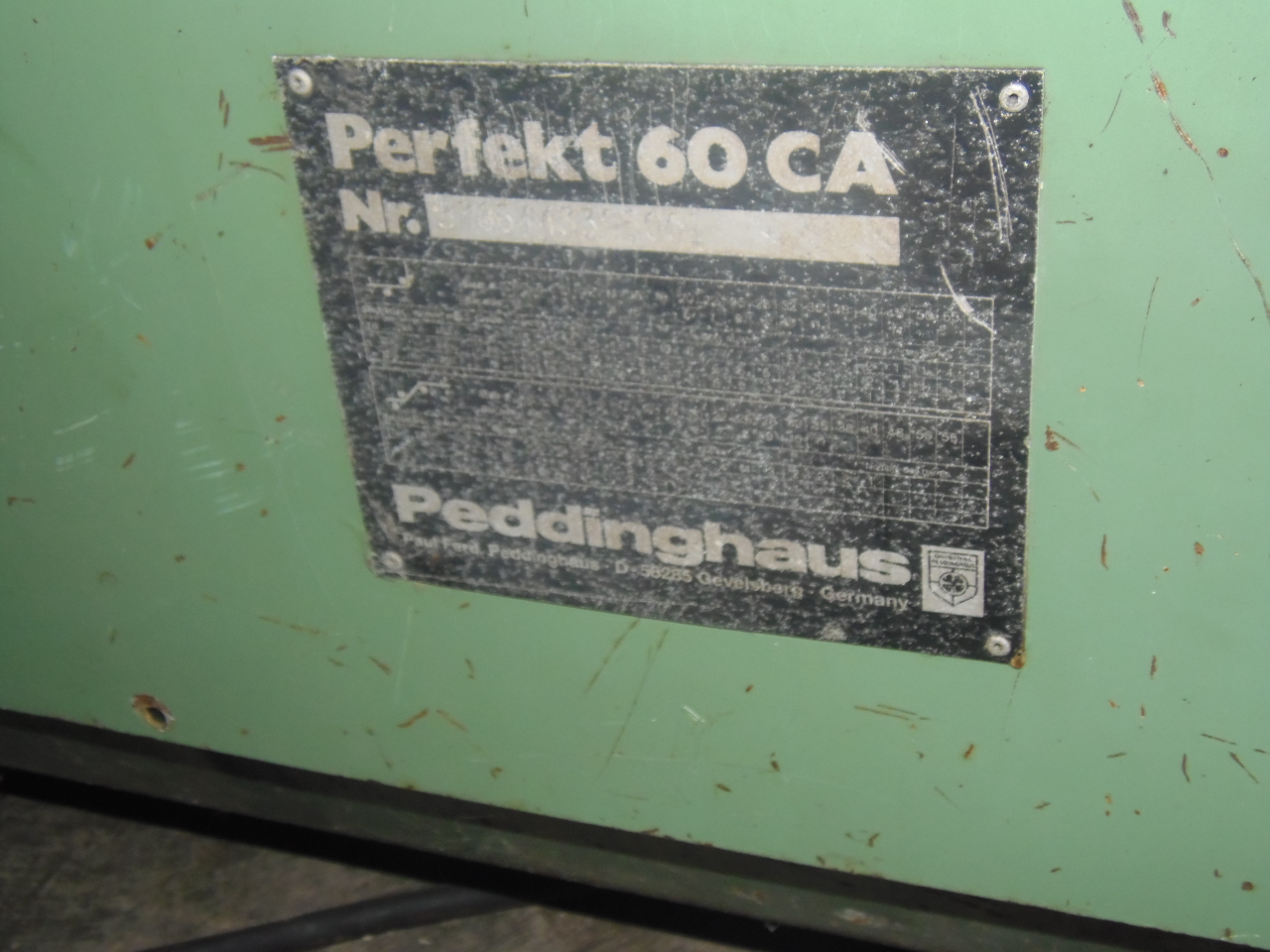

MODEL............................ PERFEKT 60 CA
SERIAL NUMBER.................... 3786443395001
TURNTABLE SPEEDS................. 5/7.5/10/15 RPM
BENDING HEIGHT................... 450 mm
BENDING HEIGHT WITH BANJO........ 800 mm
BENDING CAPACITIES-SINGLE BENDS
1 BAR
REINFORCING IG IR........... 60 mm
STEEL III S................. 50 mm
IV S.................. 45 mm
2 BARS
REINFORCING IG IR........... 40 mm
STEEL III S................. 38 mm
IV S.................. 35 mm
3 BARS
REINFORCING IG IR........... 38 mm
STEEL III S................. 35 mm
IV S.................. 28 mm
5 BARS
REINFORCING IG IR........... 32 mm
STEEL III S................. 28 mm
IV S.................. 25 mm
8 BARS
REINFORCING IG IR........... 20 mm
STEEL III S ................ 18 mm
IV S.................. 16 mm
BENDING CAPACITIES-DOUBLE BENDS
1 BAR
REINFORCING IG IR........... 40 mm
STEEL III S................. 35 mm
IV S.................. 32 mm
2 BARS
REINFORCING IG IR........... 38 mm
STEEL III S................. 28 mm
IV S.................. 25 mm
3 BARS
REINFORCING IG IR........... 28 mm
STEEL III S................. 25 mm
IV S.................. 18 mm
5 BARS
REINFORCING IG IR........... 18 mm
STEEL III S................. 16 mm
IV S.................. 14 mm
8 BARS
REINFORCING IG IR........... 14 mm
STEEL III S ................ 14 mm
IV S.................. 14 mm
MACHINE WEIGHT................... 2000 LBS
EQUIPPED WITH:

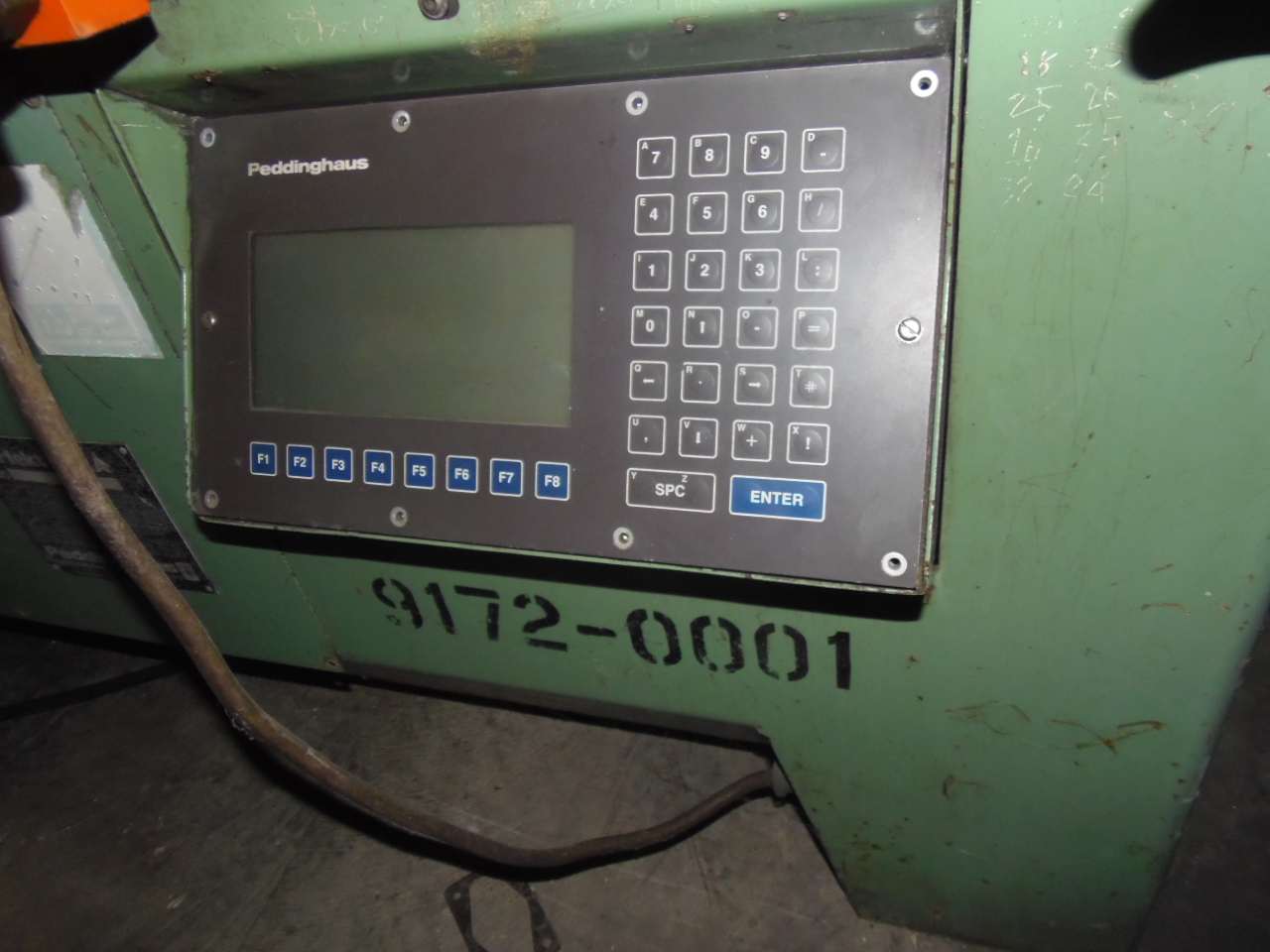

PERFEKT CA CONTROL
255 BENDING SHAPES, EACH CONSISTING OF UP TO 10 DIFFERNT BEND ANGLES
65 STANDARD SHAPES, IN EIGHT GROUPS ARE PROGRAMMED AT THE FACTORY
TEACH MODE
BEND TO SHAPE MODE
FOOT PEDALS
