Specifications
Equipped With
GENERAL SPECIFICATIONS:

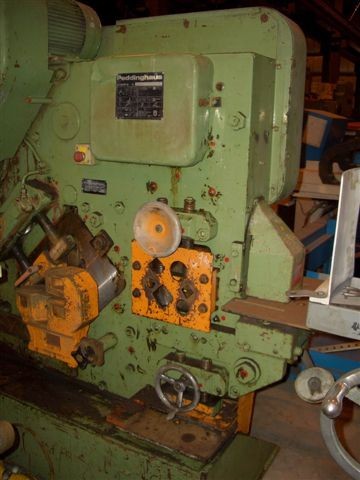

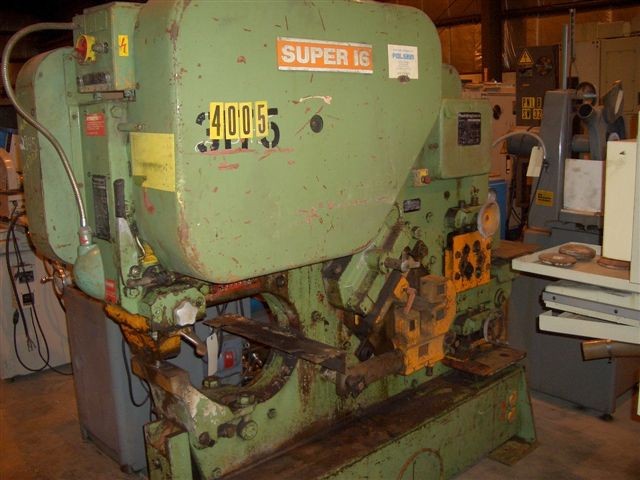

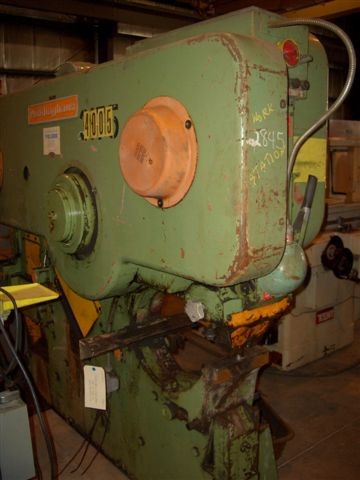

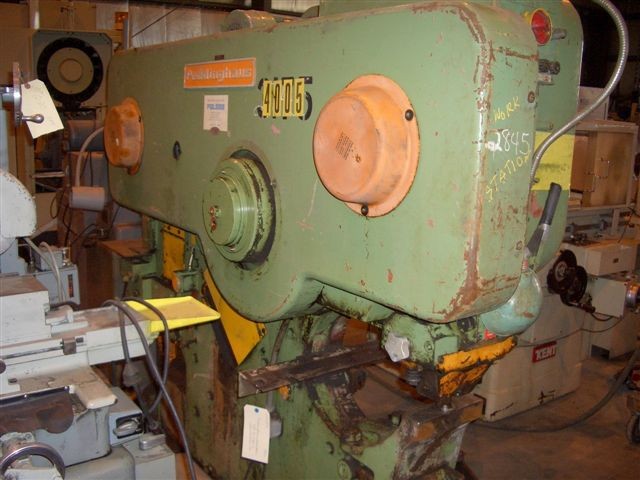

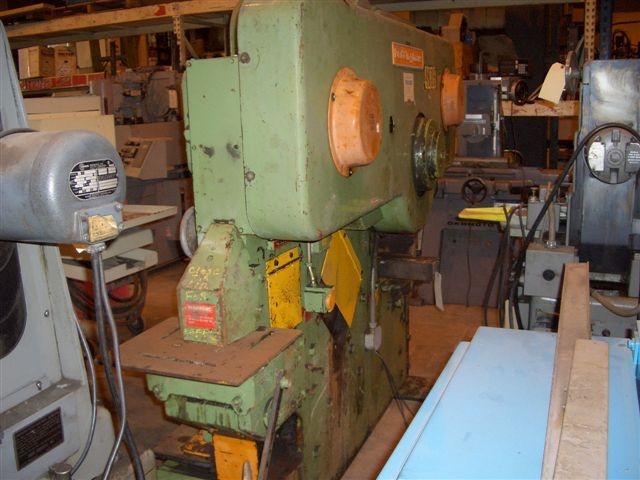

MANUFACTURER PEDDINGHAUS
MODEL 210 SUPER 16
NEW (APPROX. 1977
TYPE MECHANICAL
FLAT SHEAR:
LENGTH OF BLADE 11"
LENGTH OF CUT 10.5"
W/2 DEGREE RAKE 6 x 5/8, 8 x 1/2
W/5 DEGREE RAKE 6 x 3/4, 10 x 1/2
BAR STOCK SHEAR:
W/STANDARD KNIVES (ROUND) 1-7/8"
W/STANDARD KNIVES (SQUARE) 1-3/4"
W/SPECIAL KNIVES CHANNEL 6 - 10.5 LBS.
W/SPECIAL KNIVES BEAMS 5 - 11 LBS.
W/SPECIAL KNIVES ANGLES 4 x 1/2"
W/SPECIAL KNIVES TEES 4 x 3/8"
W/SPECIAL KNIVES FLATS 5 x 3/4"
NOTCHING W/SQ. NOTCHER (PLATES) 5/8"
NOTCHING W/SQ. NOTCHER (ANGLES & TEES) 3.5 x 1/2"
NOTCHING W/SQ. NOTCHER (FLANGE OF CHNLS) 8"
NOTCHING W/SQ. NOTHCER (FLANGE OF BEAMS) 8"
NOTCHING W/SQ. NOTCHER (DEPTH OF CUT) 3-5/16"
NOTCHING W/SQ. NOTCHER (WIDTH OF CUT) 2"
ANGLES (90 DEG.) 6" x 1/2"
ANGLES (45 DEG.) 4" x 7/16"
TEES (90 DEG.) 5" x 1/2"
FLANGE OF CHANNELS 6"
FLANGE OF BEAMS 5"
PUNCH UNIT CAPACITY 88 TONS
PUNCH UNIT LEGTH OF STROKE 1-1/16"
PUNCH UNIT HOLE CAP. (MILD STEEL) 1" x 1", 2" x 1/2", 3" x 1/4"
STROKES PER MIN. (SHEAR) 32
STROKES PER MIN. (PUNCH) 40
MOTOR 5 HP
THROAT DEPTH 14" TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
