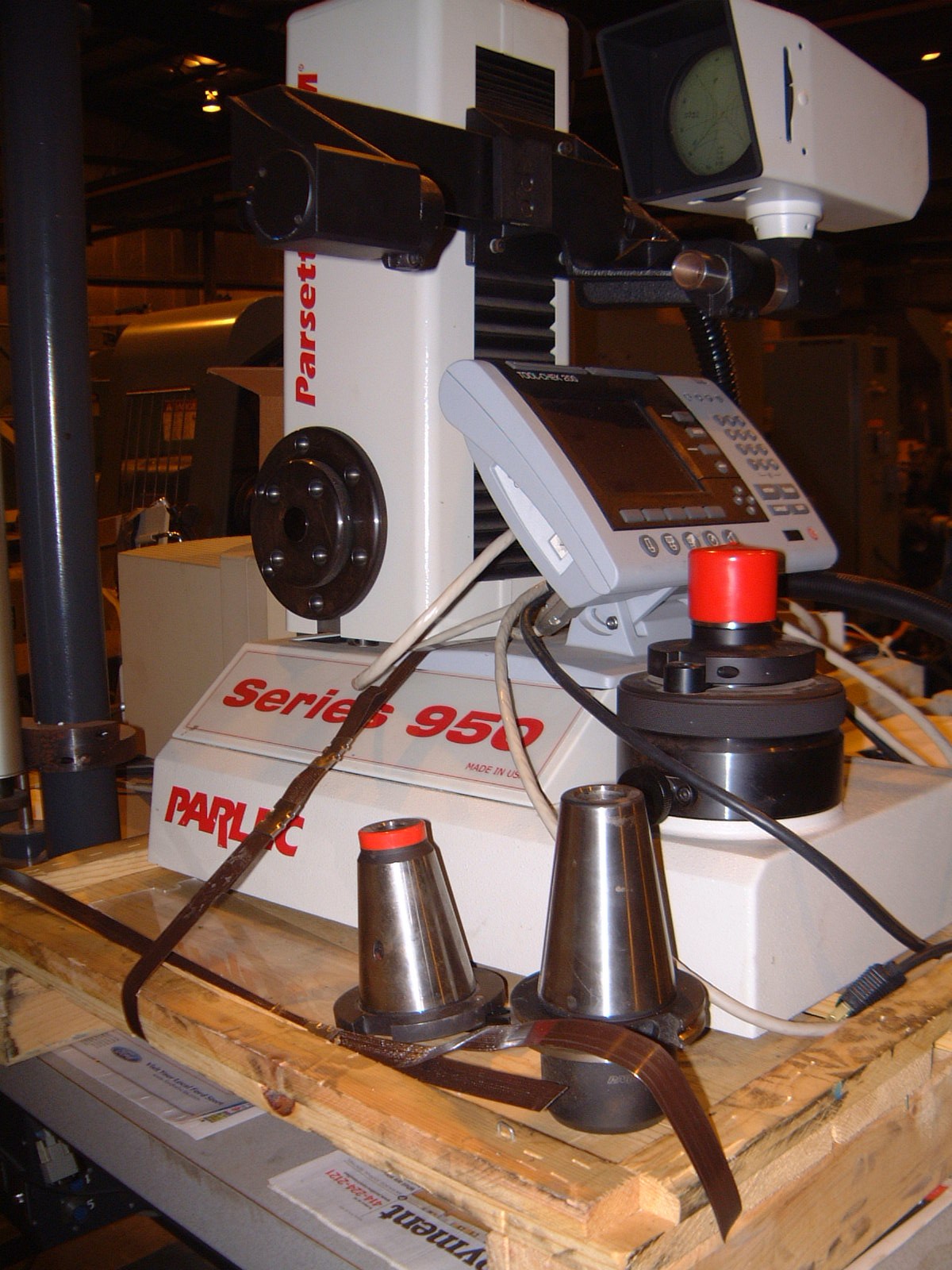

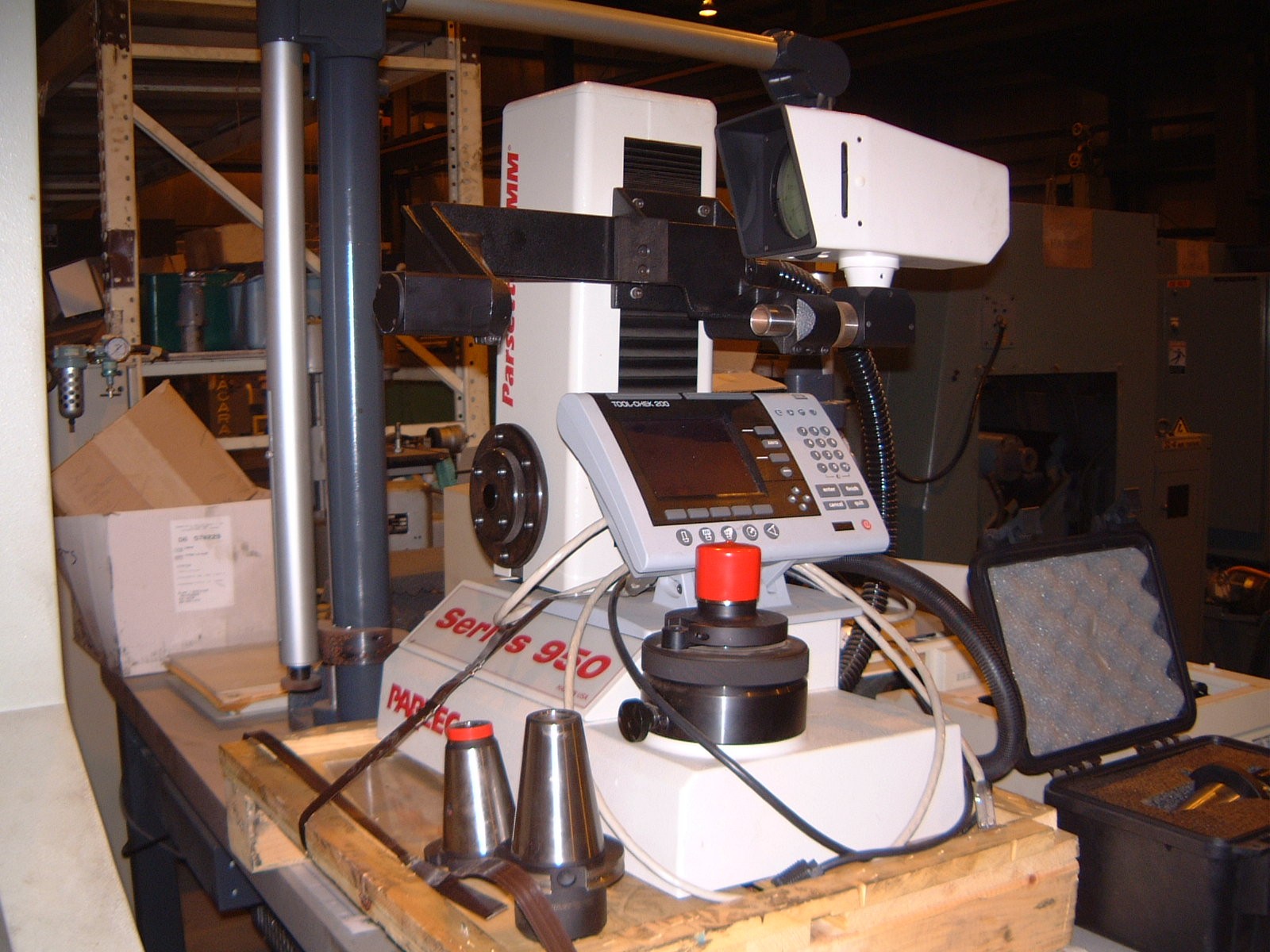

PARSETTER MDL P950-50, 2001, 9" DIA. & 12"H MEASURING RANGE, 4" PROJECT DIA., 20x PROJECTOR MAGNIFICATION, MECHANICAL POSITIONING

GENERAL SPECIFICATIONS:
MANUFACTURER PARSETTER
MODEL P950-50
SERIAL # PB6220601-01
NEW (APPROX.) 2001
MEASURING RANGE DIAMETER 9"
MEASURING RANGE HEIGHT 12"
CONTROL RESOLUTION Z AXIS .0001 LENGTH
CONTORL RESOLUTION X AXIS .0001 RADIUS
PROJECTOR DIAMETER 4"
PROJECTOR MAGNIFICATION 20x
LINEAR SCALES HEIDENHAIN LS303C

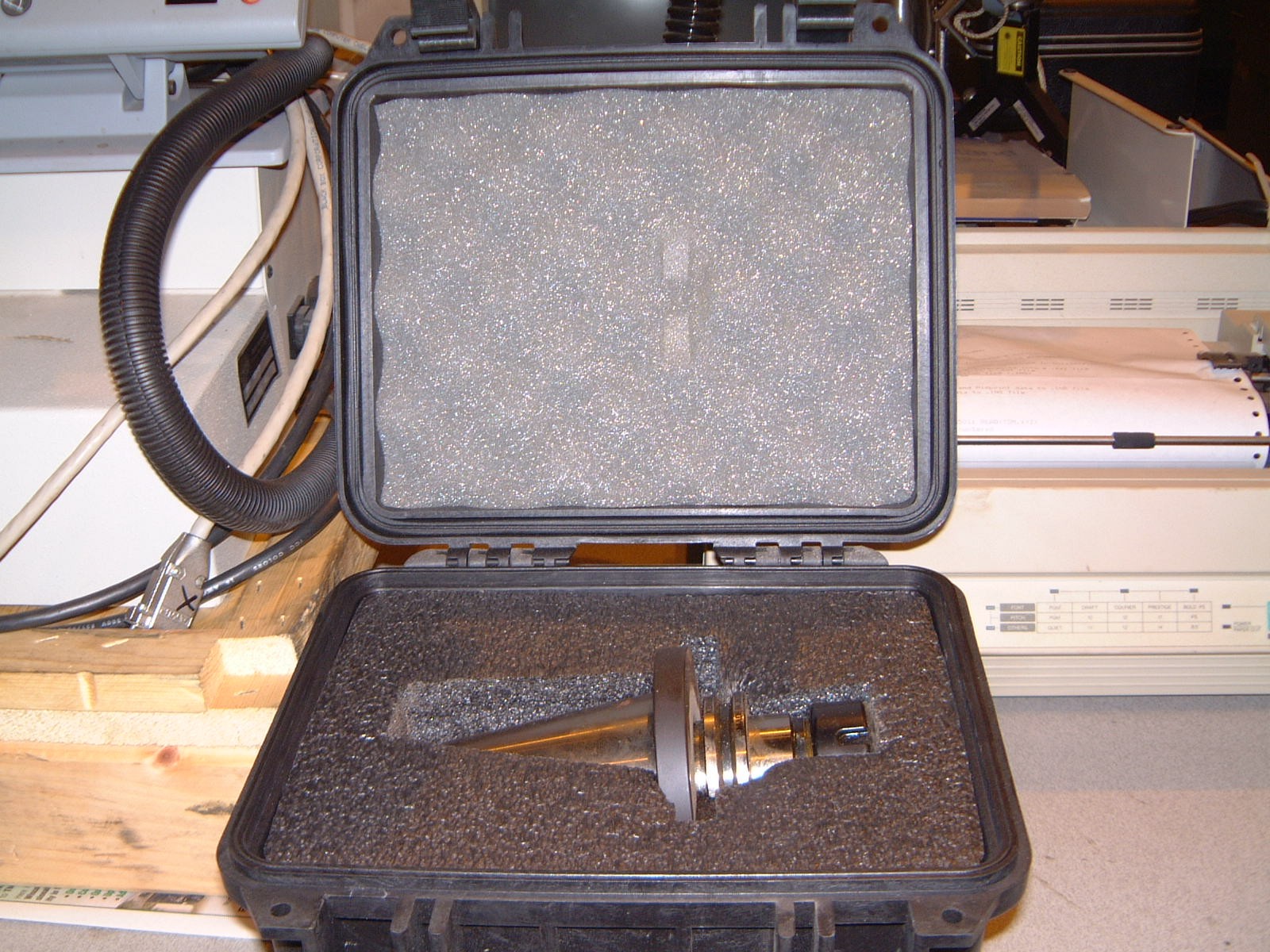

SPINLDE #50 OR #40 TAPER
POSITIONING MECHANICAL
ELECTRICS 120V/60HZ
DIMENSIONS (APPROX.) 23"W x 28"H x 24"D
WEIGHT (APPROX.) 300 LBS.

EQUIPPED WITH:

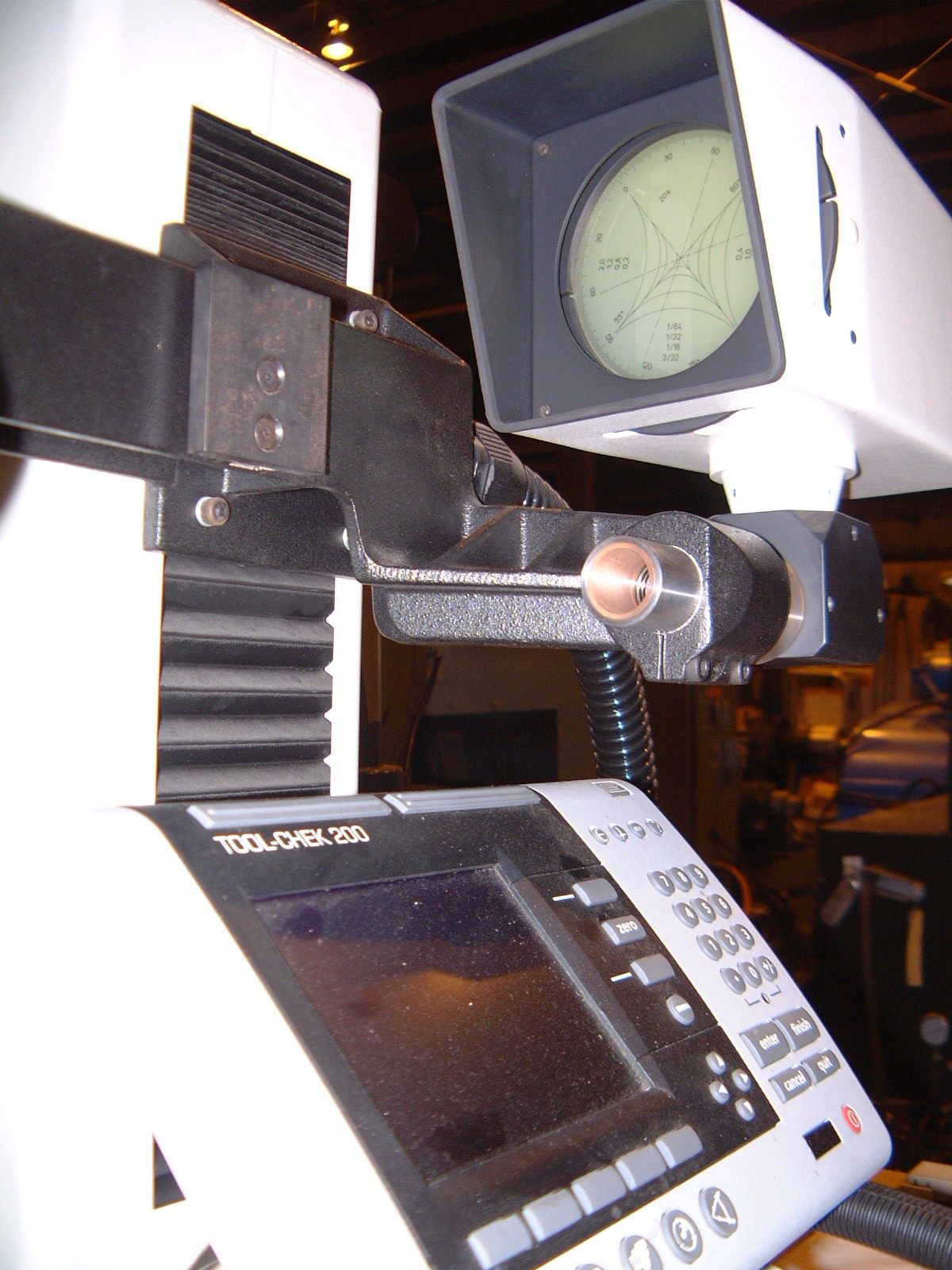

TOOL-CHECK 200 CONTROL
