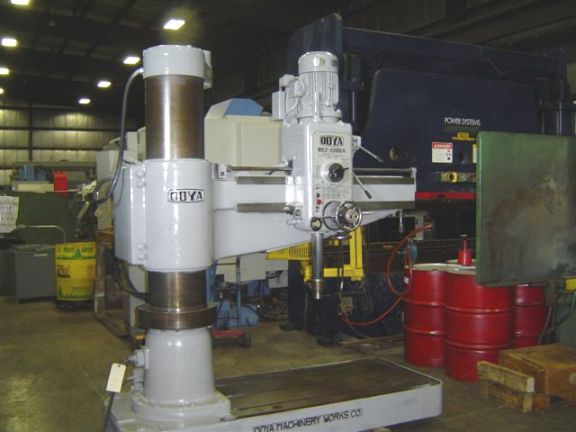

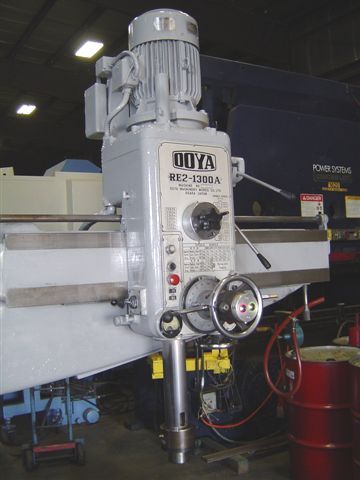

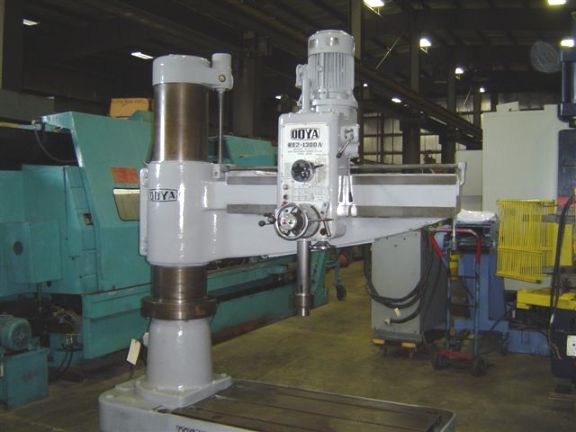

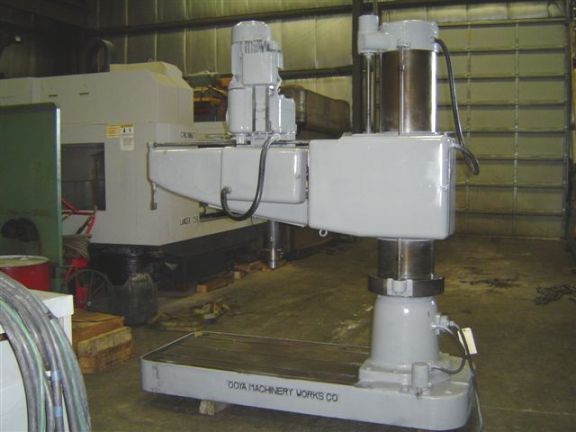

OOYA RE2 1300A, diameter 12", length 48", power elevation, power clamp, tapping,

SPECIFICATIONS:

MANUFACTURER OOYA
MODEL NUMBER RE2 1300A
SERIAL NUMBER 0A7-4849
LENGTH 48"
COLUMN DIAMETER 12"
SPINDLE SPEED 38-1985
FEEDS (FPI) .003-.039 IPR
SPINDLE MOTOR 7.5 HP (MAIN MOTOR)
TEE-SLOTTED BASE 82" X 33" X 6-3/4"(THICKNESS)
COLUMN TO SPINDLE (MAX. DISTANCE) 52.5"
(MIN. DISTANCE) 10.5"
SPINDLE DIAMETER 2 3/4"
SPINDLE STROKE 11 3/4"
DRILL CAPACITY CAST IRON 2"
DRILL CAPACITY STEEL 1 5/8"


EQUIPED WITH:
POWER ELEVATION
POWER CLAMP
TAPPING
