Specifications
Equipped With
GENERAL SPECIFICATIONS:

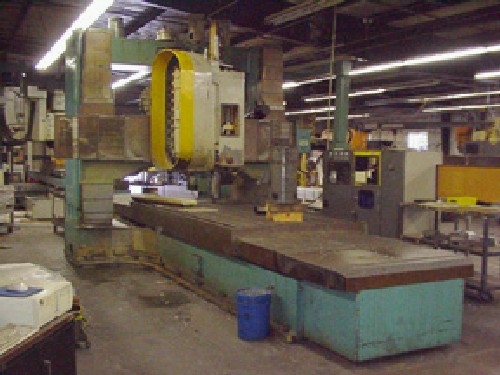

TABLE SIZE 60" x 72"
MAXIMUM TABLE LOAD 6,000 LBS
SPINDLE NOSE TO TABLE TOP 7.87" - 75"
X AXIS TRAVEL 72"
Y AXIS TRAVEL 57.8"
Z AXIS TRAVEL 31.5"
W AXIS TRAVEL (QUILL) 14"
RAPID TRAVERSE RATE X AXIS 350 IPM
RAPID TRAVERSE RATE Y AXIS 350 IPM
RAPID TRAVERSE RATE Z AXIS 350 IPM
CUTTING FEED RATE 0.1 - 100 IPM
SPINDLE SPEEDS 20 - 3,000 RPM
SPINDLE TAPER # 50
SPINDLE MOTOR (2 SPEED GEARED) 25 HP

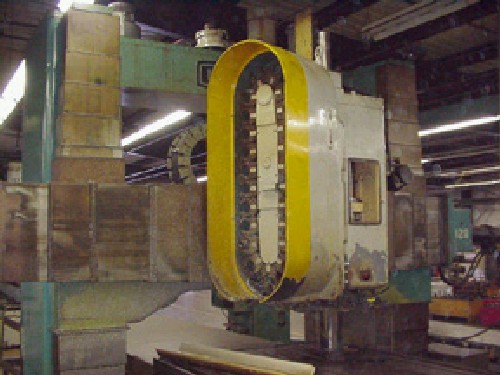

TOOL CHANGER CAPACITY 23 STATION ATC
MAXIMUM TOOL WEIGHT 44 LBS
EQUIPPED WITH:
FANUC 6M CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
CENTRALIZED AUTO LUBRICATION SYSTEM
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE MANUALS
