Specifications
Equipped With
GENERAL SPECIFICATIONS:

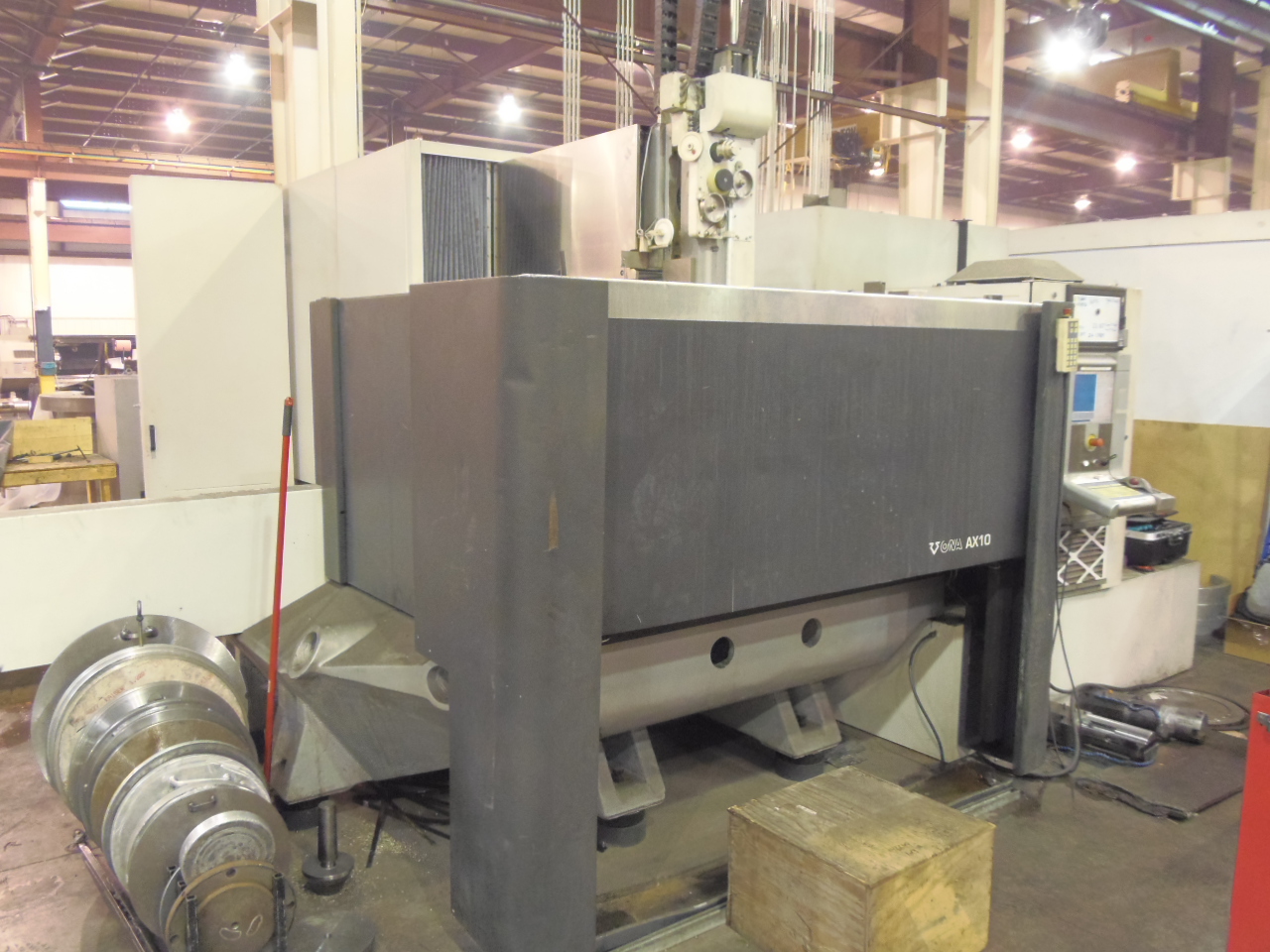

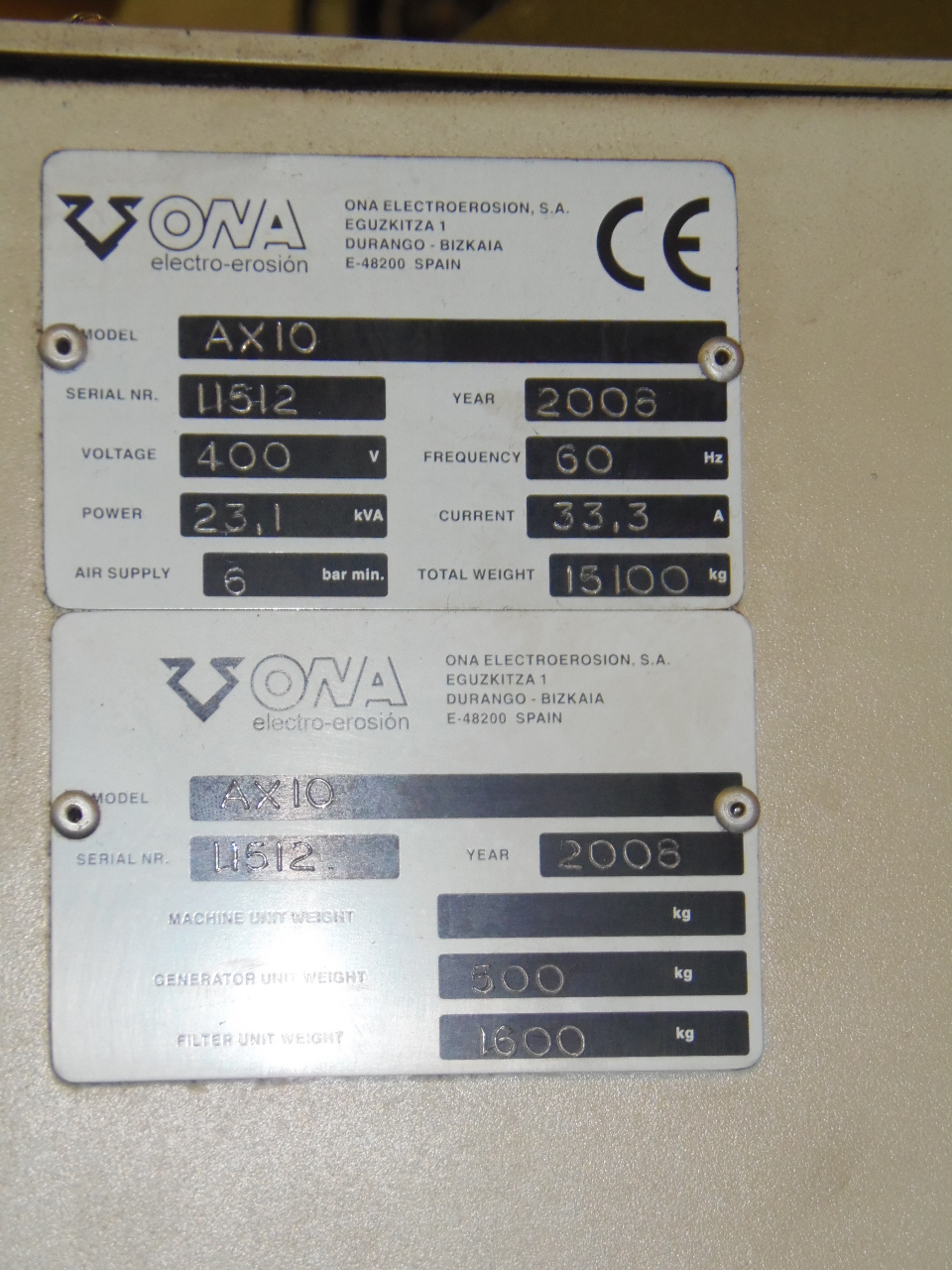

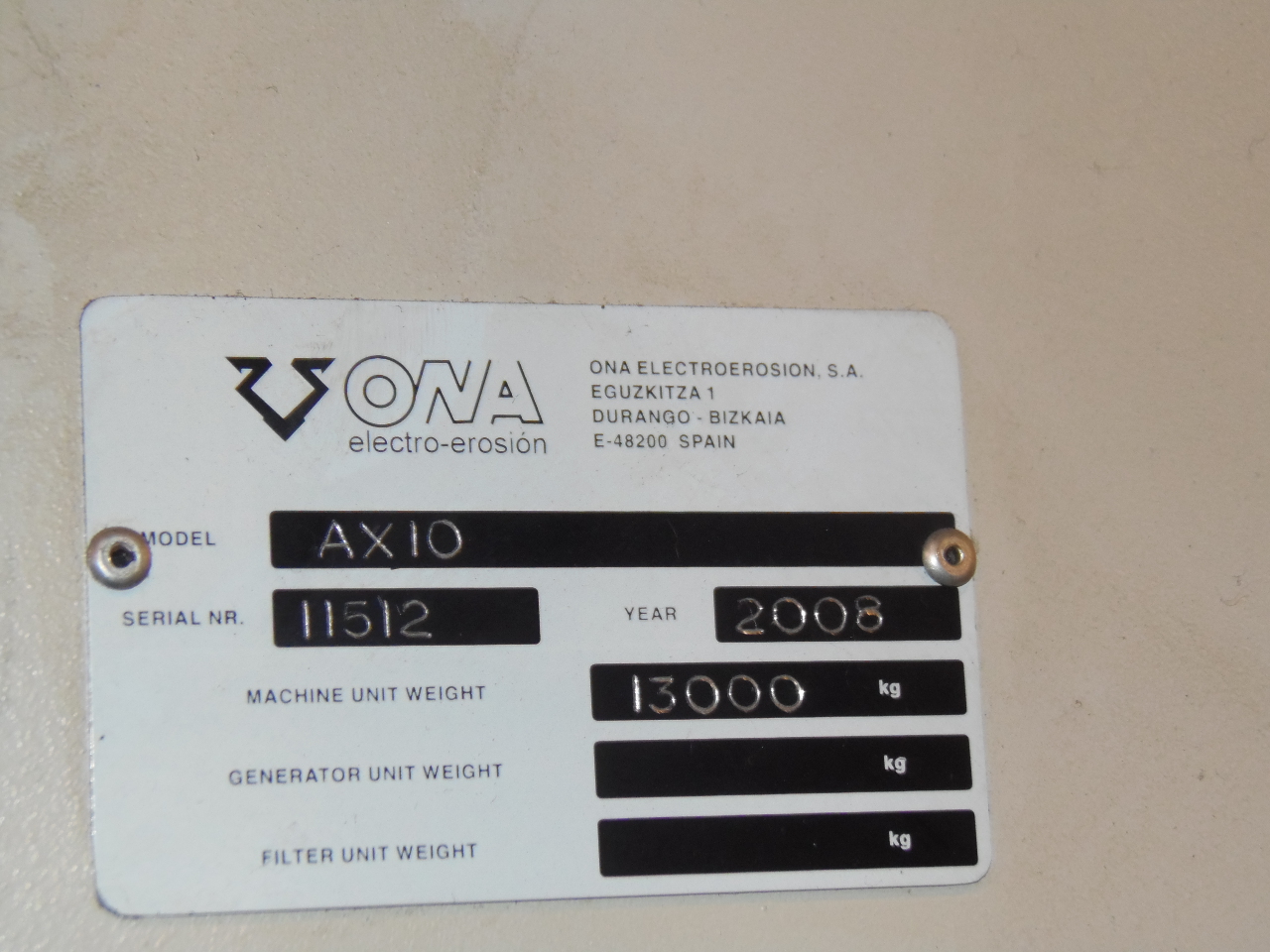

MANUFACTURER....................... ONA
MODEL.............................. AX10+
SERIAL NUMBER...................... 11512

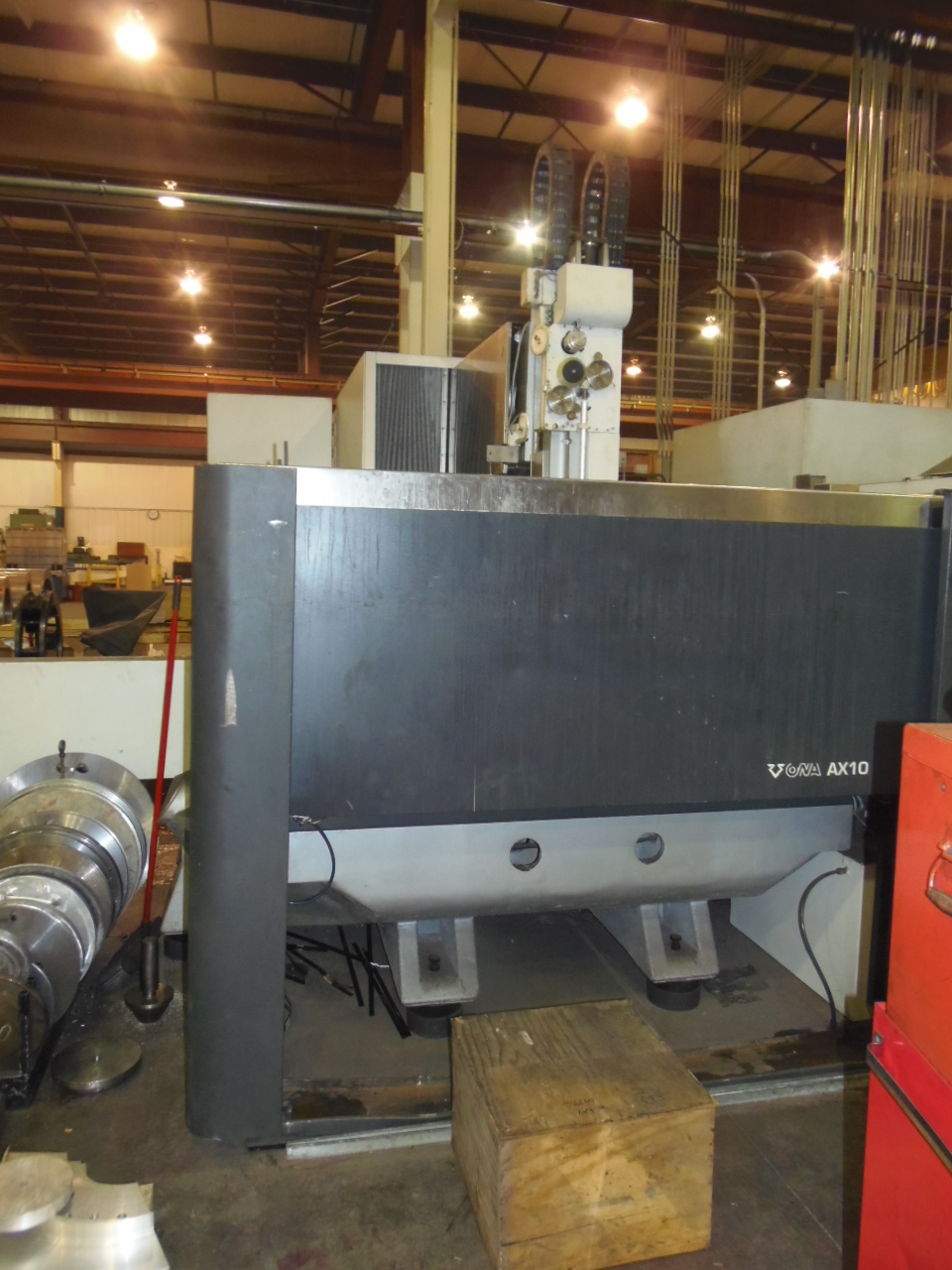

MACHINE
MAXIMUM WORK PIECE SIZE............ 76.8" X 63" X 27.5"
MAXIMUM WORK PIECE WEIGHT.......... 22,000 LBS
X,Y TRAVELS........................ 59.1" X 39.4"
U,V TRAVELS........................ 19.7" X 19.7"
Z TRAVEL........................... 27.5"
RAPID TRAVERSE SPEED............... 78.7 IPM
MAXIMUM TAPER ANGLE@Z=15.7"........ + OR - 30 DEGREES
MAXIMUM TAPER ANGLE@Z=23.6"........ + OR - 20 DEGREES
TOTAL WEIGHT....................... 44,000 LBS
MAXIMUM HEIGHT..................... 122"
TOTAL SURFACE REQUIRED............. 217" X 184"

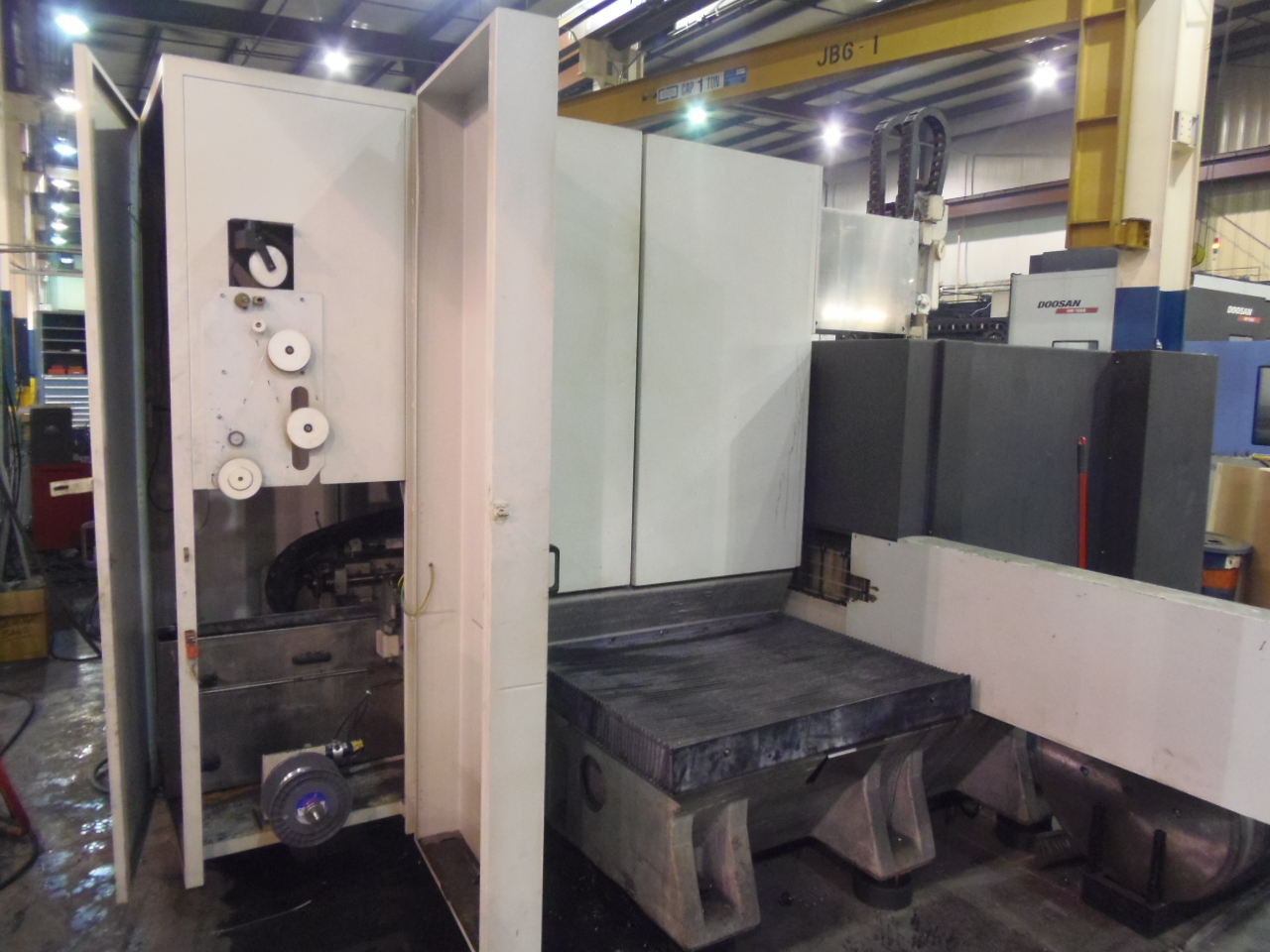

WIRE CIRCUIT
STANDARD WIRE DIAMETERS............ 0.0078 TO 0.014"
WIRE GUIDES........................ CLOSED-TYPE, DIAMOND

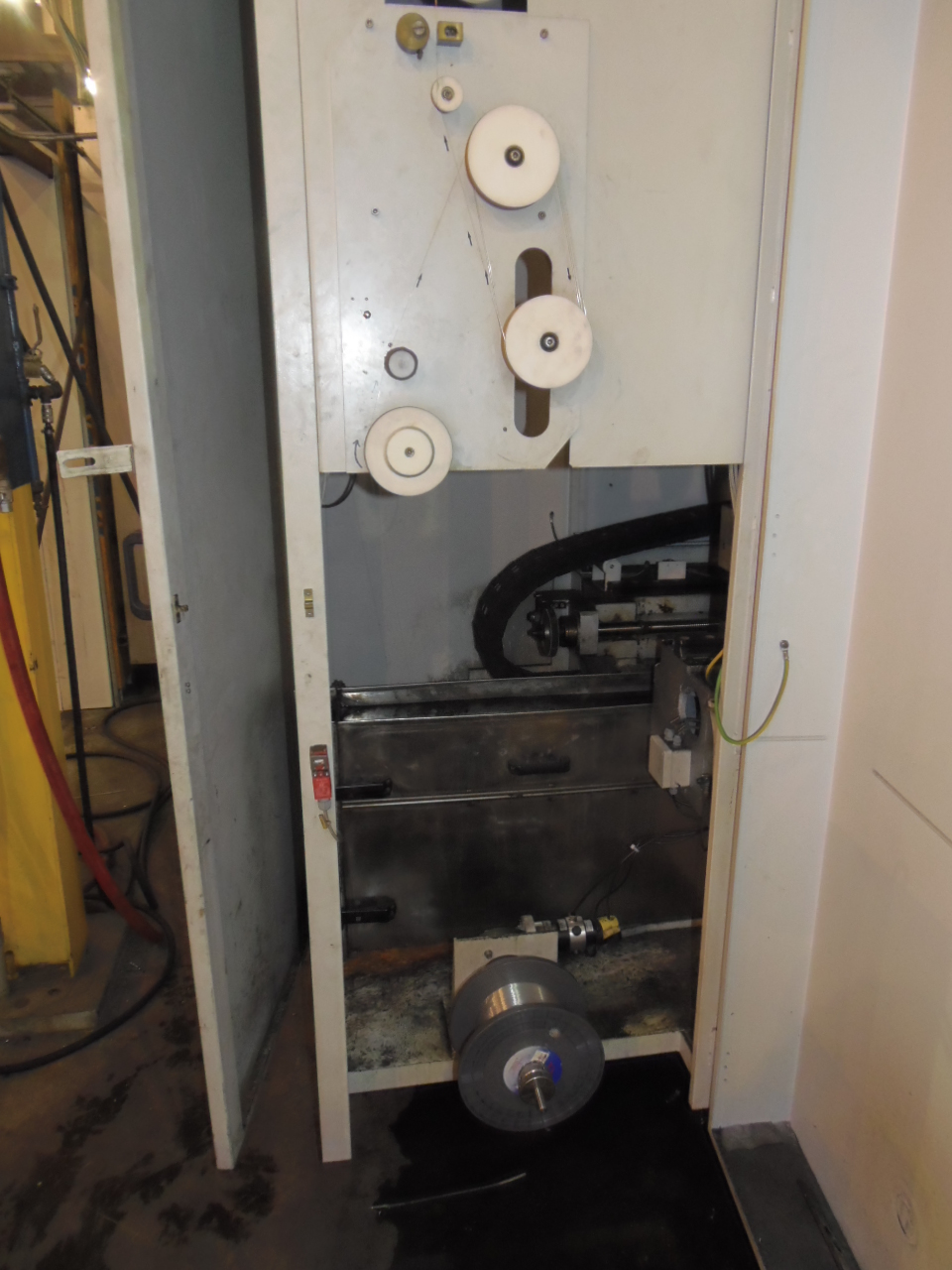

WIRE SPOOL......................... UP TO 100 LBS (DIN 355)
AUTOMATIC WIRE THREADING........... STANDARD
WIRE CHOPPER....................... STANDARD

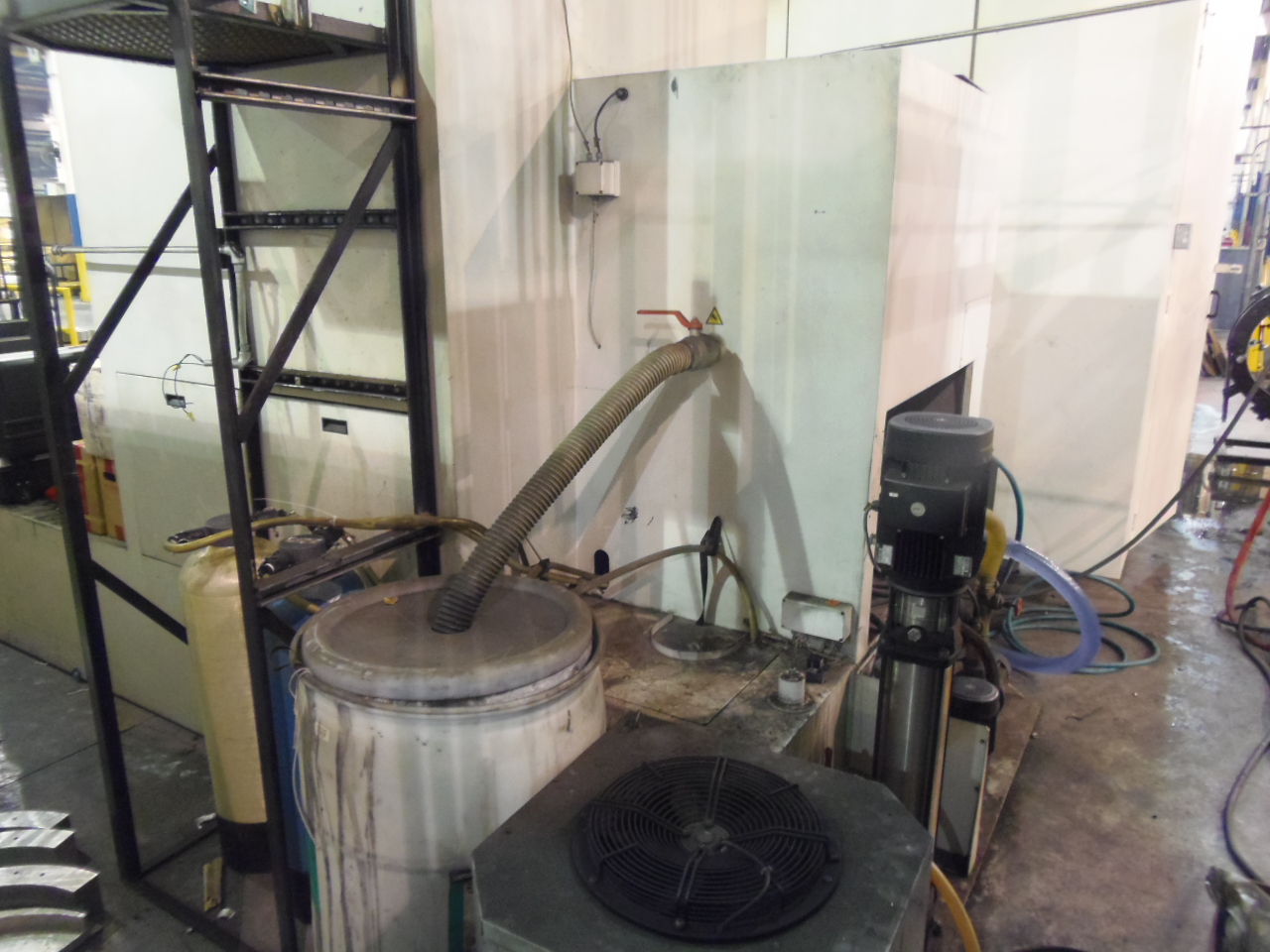

DIELECTRIC
PAPER CARTRIDGES................... 2
DIELECTRIC CAPACITY................ 925 GALLONS
CHILLER............................ STANDARD

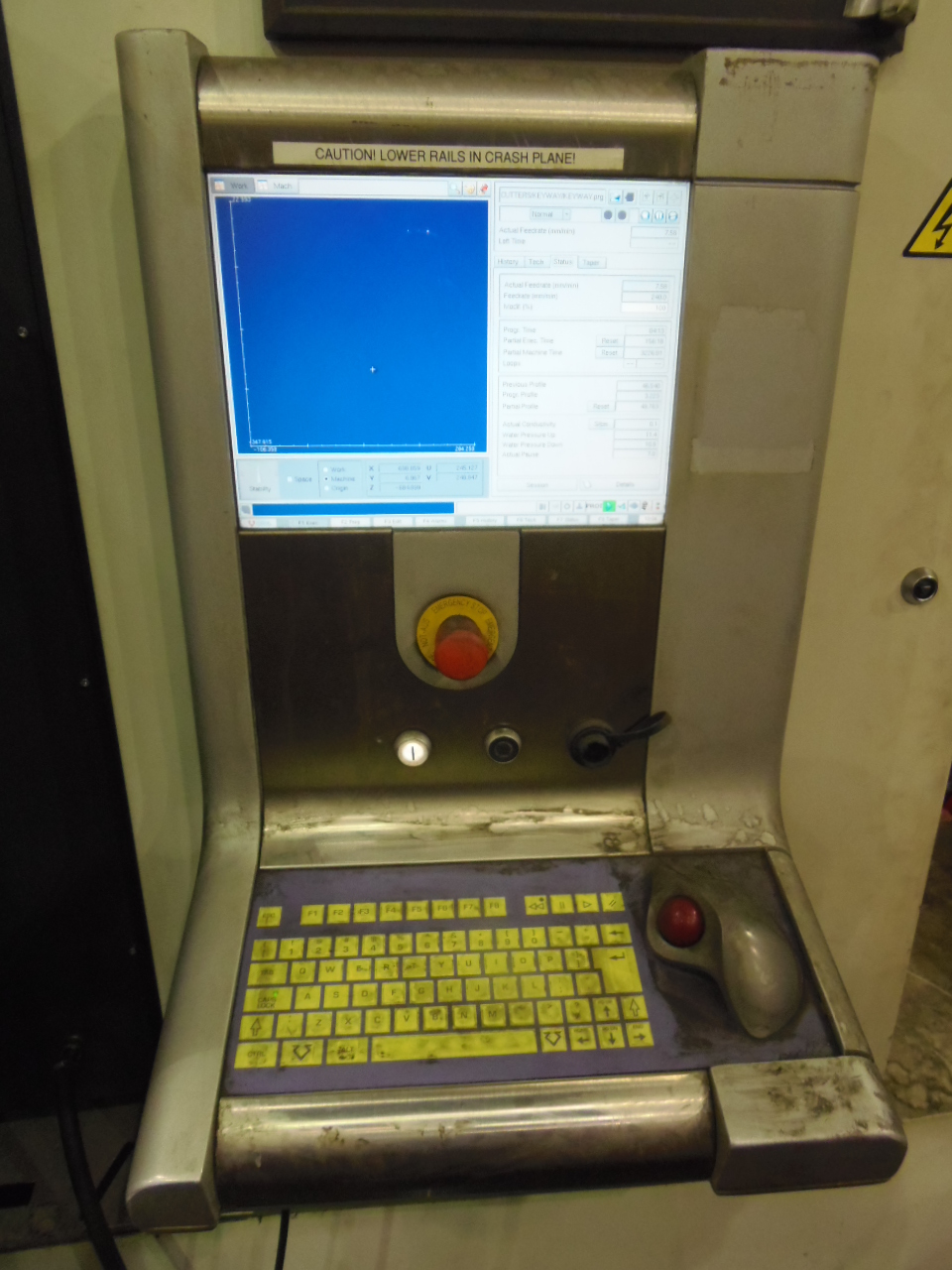

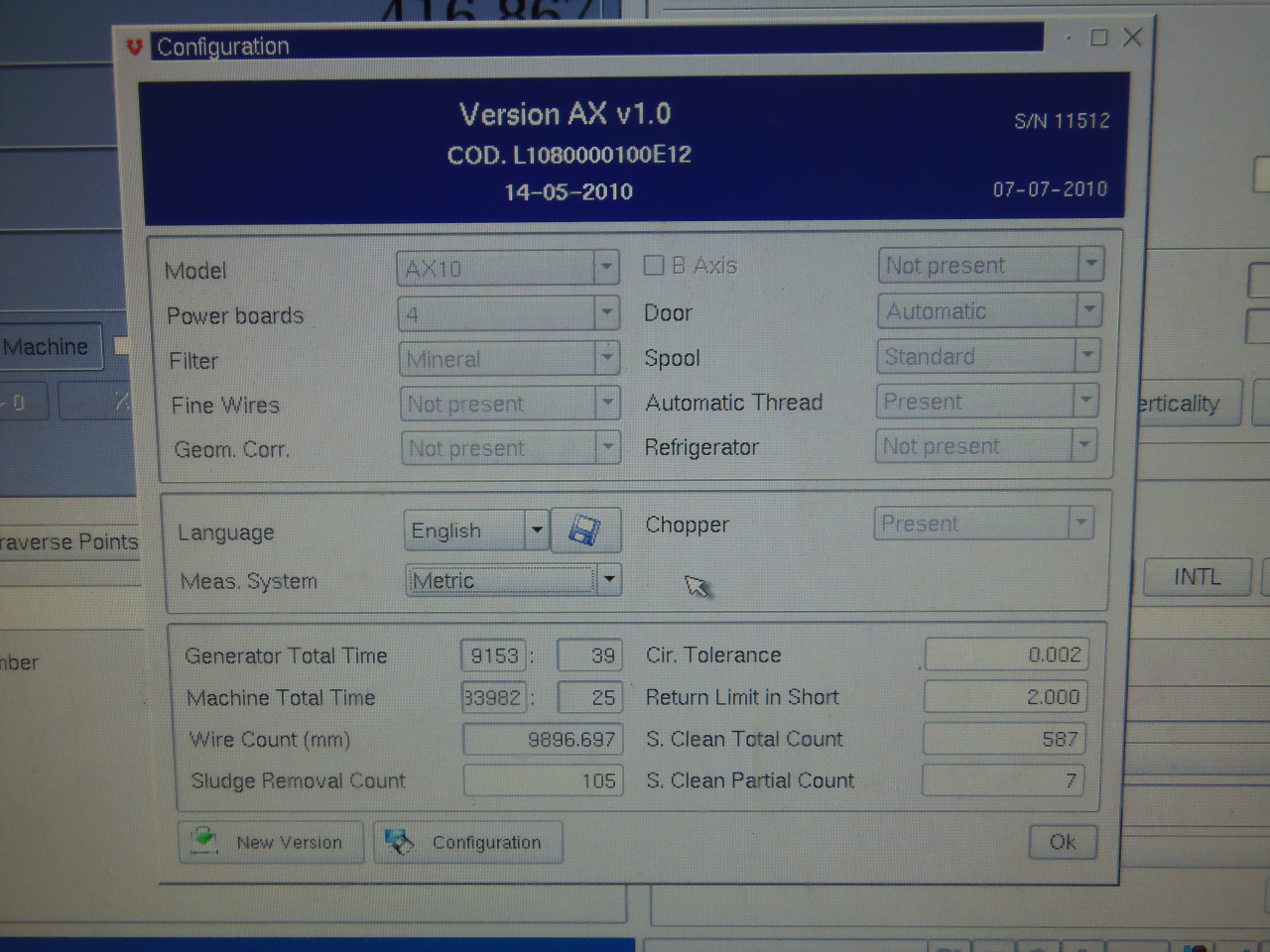

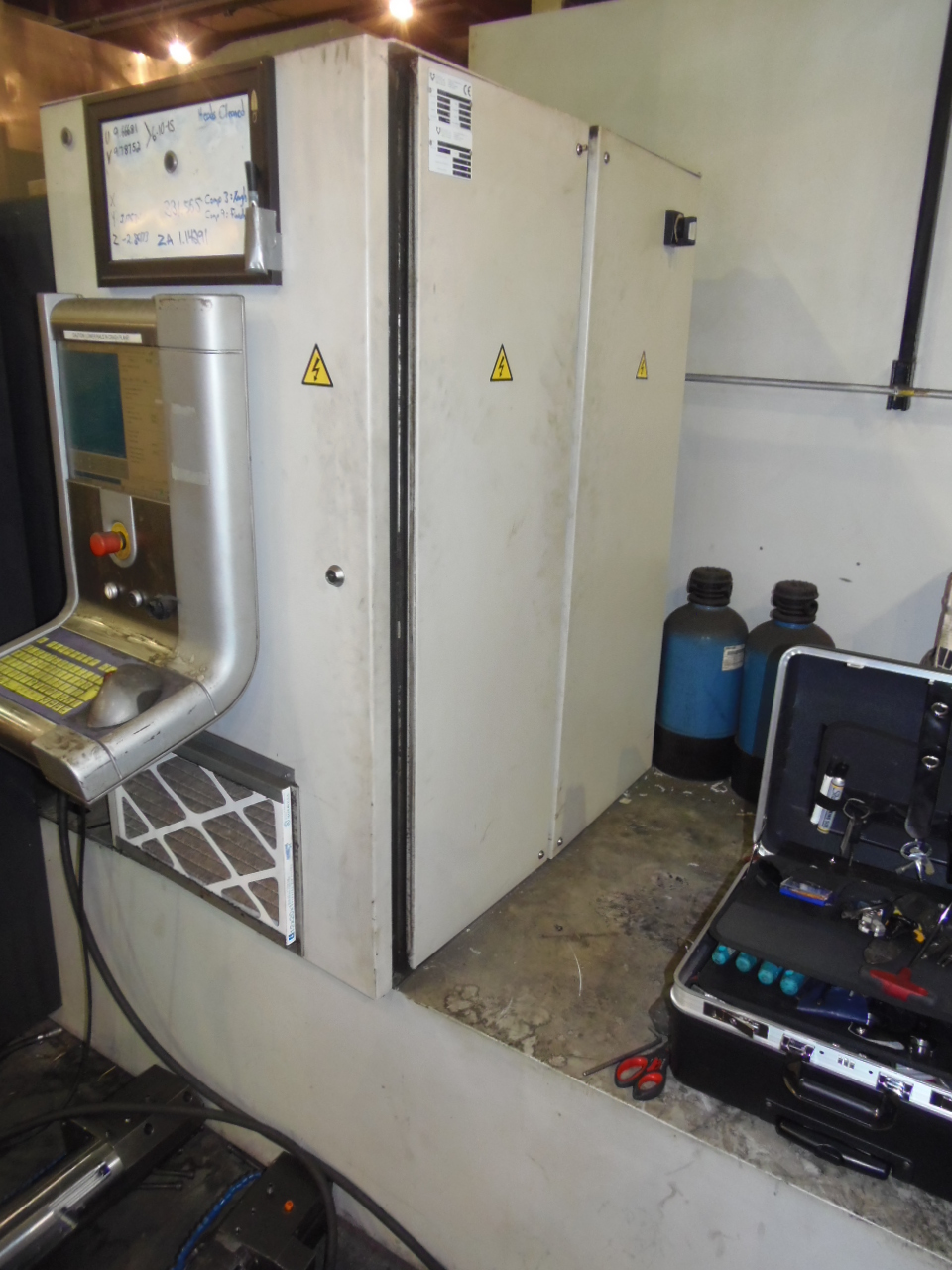

CNC
NUMBER OF AXES SIMULTANEOUSLY CONTROLLED..... 5
LEAST INPUT INCREMENT.............. 0.00004"

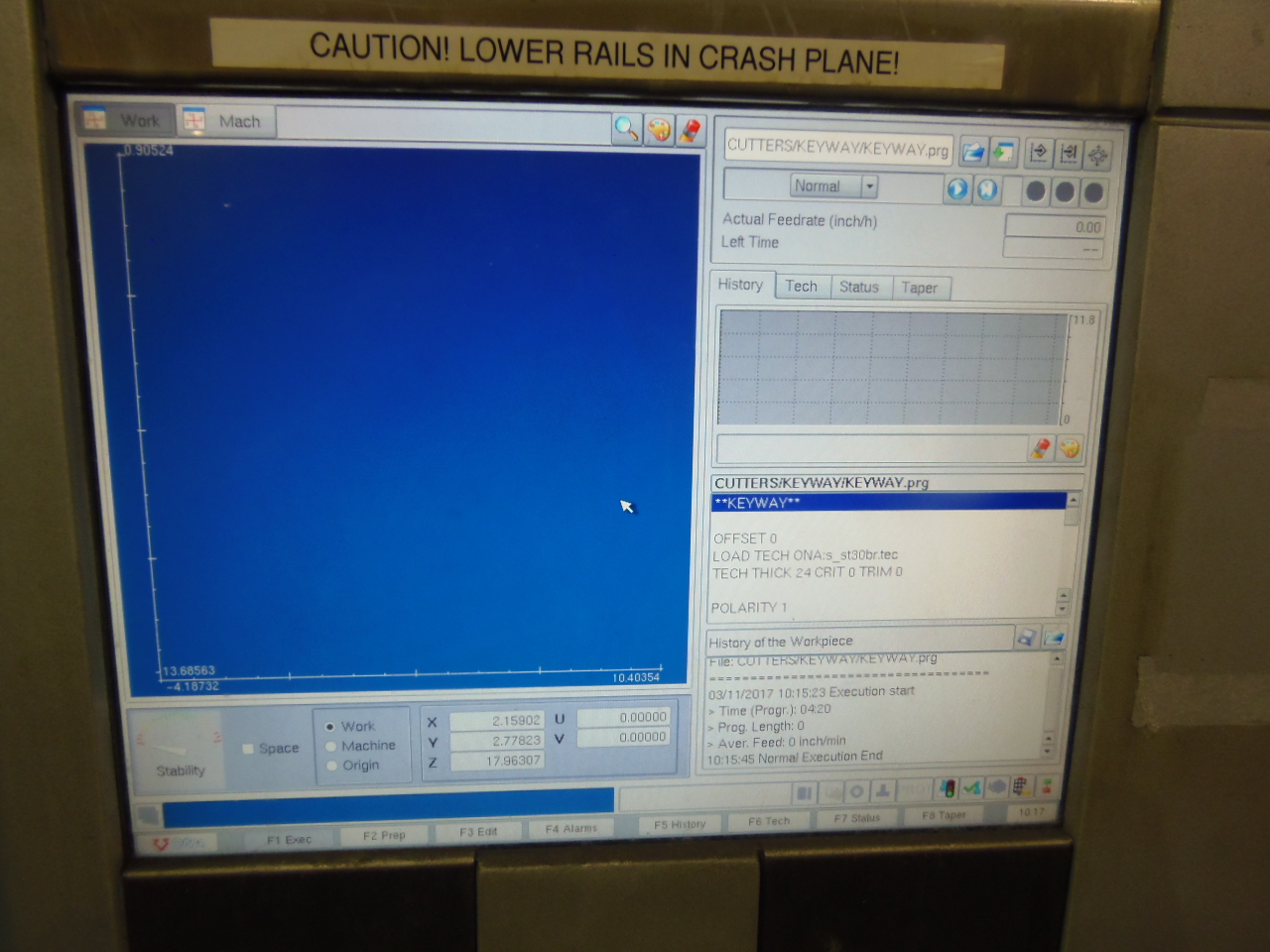

SCREEN............................. 15" TFT COLOR
KEYBOARD........................... FLA ANTIDUST
MOUSE CONTROL...................... TRACKBALL
HAND HELD CONTROL UNIT............. STANDARD
OPTIONS
FACTORY RECERTIFIED 10/2017
MINERAL FILTER SYSTEM
WIRE CHOPPER
