Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAXIMUM SWING 4.0"
COLLET SIZE 5C
X AXIS TRAVEL 12"
Z AXIS TRAVEL 9"
C AXIS INDEXING 0.001º
RAPID TRAVERSE RATE X AXIS 600 IPM
RAPID TRAVERSE RATE Z AXIS 600 IPM
SPINDLE BORE 1.4"
STANDARD BAR CAPACITY WITH 5C COLLET 1.062"
SPINDLE SPEEDS 100 - 4,000 RPM
SPINDLE MOTOR 5 HP AC

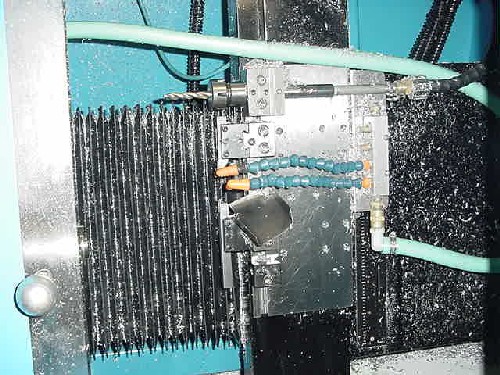

TOOLING CAPACITY GANG PLATE
LIVE TOOLING MOTOR 4.5 HP
LIVE TOOLING SPEEDS 100 - 4,000 RPM
MACHINE WEIGHT 1,800 LBS
MACHINE FOOTPRINT 56" x 35" x 58"
EQUIPPED WITH:

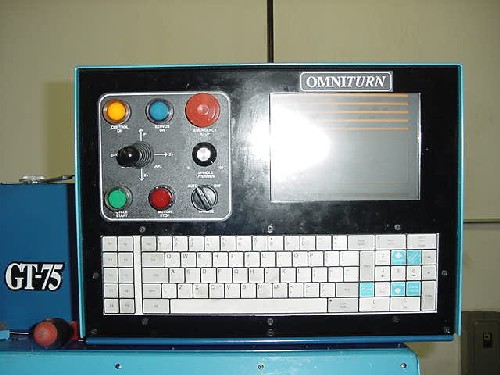

OMNITURN CNC CONTROL WITH 9" CRT & RS-232 PORT

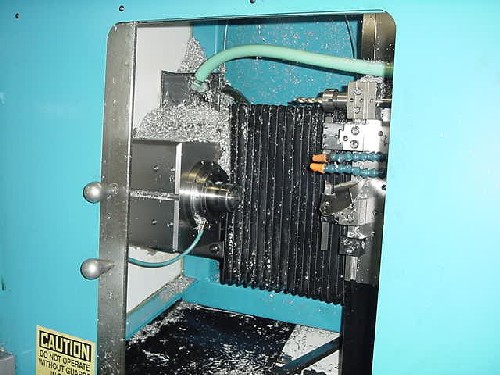

5C COLLET CHUCK SYSTEM WITH COLLET PADS
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
BARFEED CAN BE TAKEN OFF OF THE MACHINE FOR A 10,000 CREDIT.
